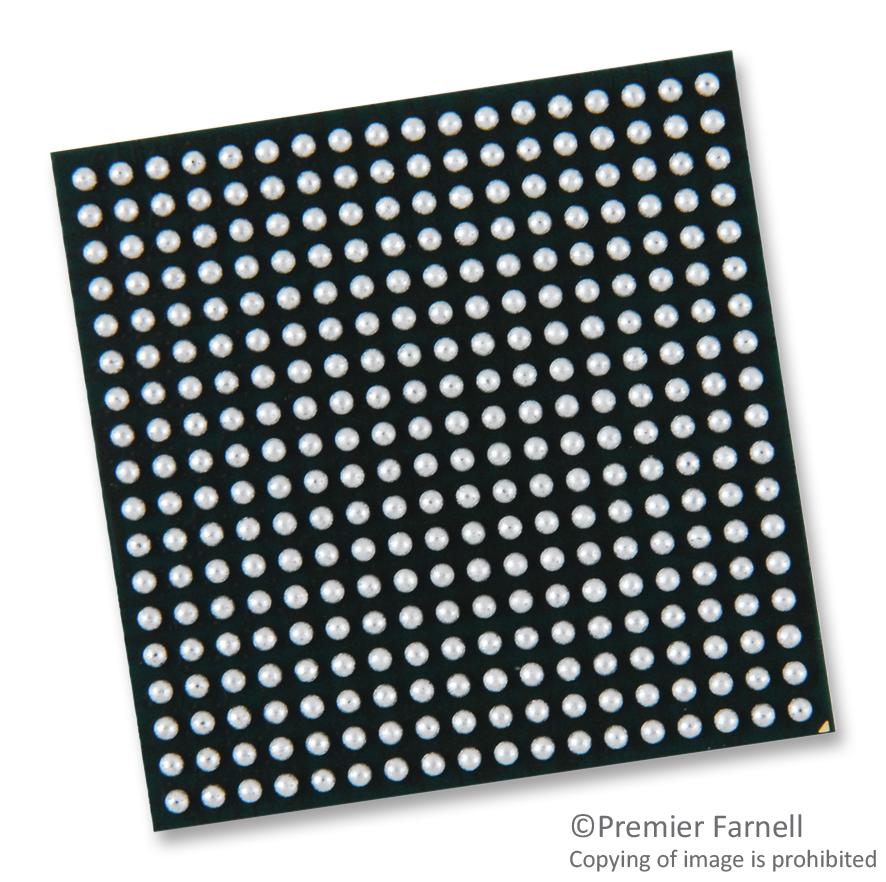

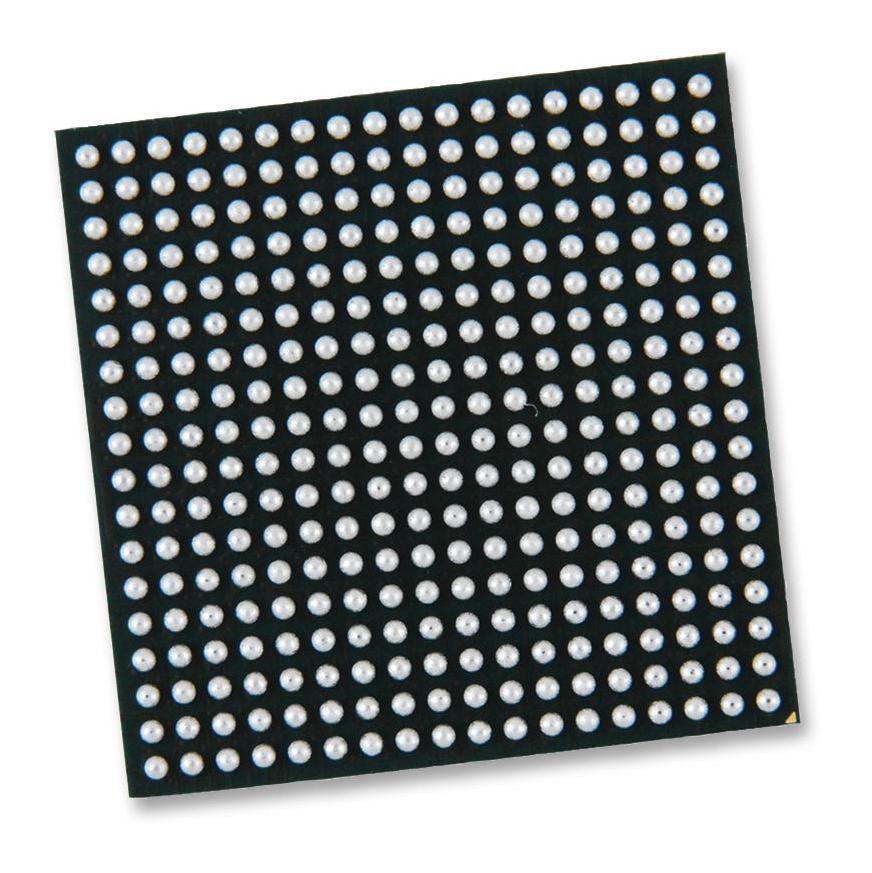

Texas Instruments AM3358BZCZA100 AM3358BZCZA100 Microprocessor ARM Cortex-A8 Sitara AM335x Series 1 GHz 912 mV to 1.378 V NFBGA-324

The AM3358BZCZA100 is a Sitara Microprocessor, based on the ARM Cortex-A8 processor, is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The device support high-level operating systems (HLOS). The AM335x microprocessor contain the subsystem, this subsystem based on the ARM Cortex-A8 processor and the PowerVR SGX� Graphics Accelerator subsystem provides 3D graphics acceleration to support display and gaming effects. The Programmable Real-Time Unit Subsystem and Industrial Communication Subsystem (PRU-ICSS) is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos and others.

• NEONâ�¢ SIMD Coprocessor
• 32kB of L1 instruction and 32kB of data cache with single-error detection
• 256kB of L2 cache with error correcting code
• 176kB of On-chip boot ROM
• 64kB of dedicated RAM
• JTAG emulation and debug
• Interrupt controller
• Supports retention for fast wakeup
• General-purpose memory controller
• Error locator module
• Two programmable real-time units
• Contains electrical fuse farm (FuseFarm) of which some bits are factory programmable
• Configurable as three capture inputs or three auxiliary PWM outputs
• Integrated raster controller
• Green product and no Sb/Br

Applications

Industrial, Consumer Electronics, Medical

Warnings ESD sensitive device, take proper precaution while handling the device.

Other details

Brand	TEXAS INSTRUMENTS
Part Number	AM3358BZCZA100
Quantity	Each
Product Change Notice EN
