Description

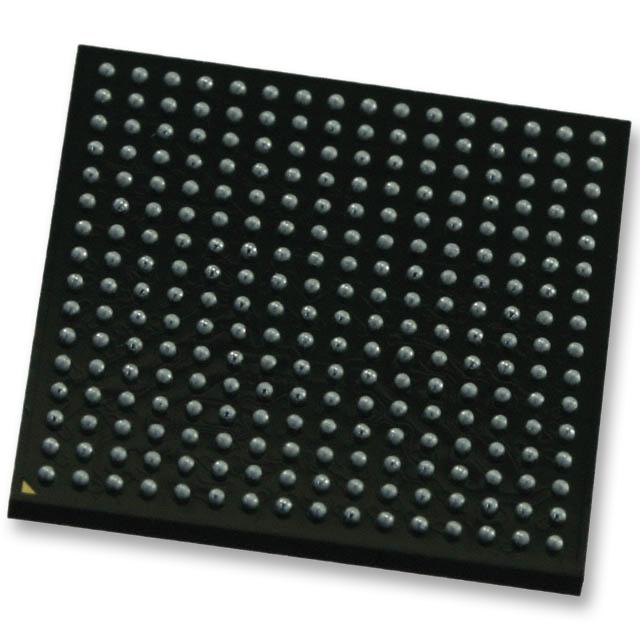

The Sitara AM335x series Sitaraâ�¢ Microprocessor based on the ARM Cortex-A8 processor, is enhanced with image, graphics processing, peripherals and industrial interface options such as EtherCAT and PROFIBUS. The devices support high-level operating systems (HLOS). Linux® and Androidâ�¢ are available free of charge from TI. The microprocessor unit (MPU) subsystem is based on the ARM Cortex-A8 processor and the PowerVR SGXâ�¢ graphics accelerator subsystem provides 3D graphics acceleration to support display and gaming effects. The PRU-ICSS is separate from the ARM core, allowing independent operation and clocking for greater efficiency and flexibility. The PRU-ICSS enables additional peripheral interfaces and real-time protocols such as EtherCAT, PROFINET, EtherNet/IP, PROFIBUS, Ethernet Powerlink, Sercos and others.
- Up to 1GHz Sitaraâ�¢ ARM® Cortex® -A8 32-Bit RISC processor
- 64kB General-purpose on-chip memory controller (OCMC) RAM
- External memory interfaces (EMIF)- General-purpose memory controller (GPMC)
- Error locator module (ELM)
- Programmable real-time unit subsystem and industrial communication subsystem (PRU-ICSS)
- Five ADPLLs to generate system clocks
- Two non-switchable power domains (Real-time clock (RTC), wake-up logic (wake-up))
- Real-time date (day-month-year-day of week) and time (hours-minutes-seconds) information
- Up to two USB 2.0 high-speed OTG ports with integrated PHY
- Up to two controller-area network (CAN) ports
- Programmable high-quality image anti-aliasing
- Fully virtualized memory addressing for OS operation in an unified memory architecture
- LCD controller
- 12-bit successive approximation register (SAR) ADC
- Up to Three enhanced high-resolution PWM modules (eHRPWMs)
- Two programmable real-time units (PRUs)
- 12kB Shared RAM with single-error detection (parity)
- Peripherals inside the PRU-ICSS
- Power, reset and clock management (PRCM) module
- Device identification
Applications
Industrial, Building Automation, Medical, Consumer Electronics, Computers & Computer Peripherals, Hobby & Education
Product details
| Product Range: Sitara Family AM335x Series Microprocessors |
| Program Memory Size: - |
| IC Case / Package: BGA |
| No. of Pins: 324Pins |
| Supply Voltage Min: 912mV |
| Supply Voltage Max: 1.378V |
| Operating Frequency Max: 1GHz |
| Interfaces: CAN, Ethernet, I2C, SPI, UART, USB |
| Data Bus Width: 32 bit |
| Operating Temperature Min: 0°C |
| Operating Temperature Max: 90°C |
| Qualification: - |
| MPU Series: AM335x |
| MPU Family: Sitara |
| MSL: MSL 3 - 168 hours |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | AM3352BZCZ100 |
| Quantity | Each |
| Technical Data Sheet EN |  |
