Description

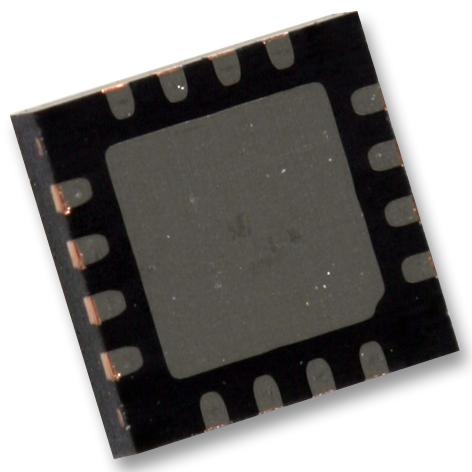

The AM26LV31EIRGYR is a quadruple low-voltage high-speed differential Line Driver with 3-state outputs. This driver has ±15kV ESD (HBM and IEC61000-4-2, air-gap discharge) and ±8kV ESD (IEC61000-4-2, contact discharge) protection. This device is designed to meet TIA/EIA-422-B and ITU recommendation V.11 driver with reduced supply voltage. The device is optimized for balanced-bus transmission at switching rates up to 32MHz. The outputs have high current capability for driving balanced lines, such as twisted-pair transmission lines and provide a high impedance in the power-OFF condition.
- IOFF supports partial-power-down mode operation
- Driver output short-circuit protection
- Glitch-free power-up/power-down protection
- Accepts 5V logic inputs with 3.3V supply
- 8ns Typical propagation delay time
- 500ps Typical pulse skew time
- ±30mA High output-drive current
- 5ns Typical controlled rise and fall time
- 2.6V Typical differential output voltage with 100R load
- 32Mbps Signalling rate
- Green product and no Sb/Br
Applications
Signal Processing
Product details
| IC Type: RS422 / RS485 Transmitter |
| No. of Receivers: - |
| No. of Transmitters: 4 |
| Communication Mode: Half Duplex |
| Data Rate Max: 32Mbps |
| Supply Voltage Min: 3V |
| Supply Voltage Max: 3.6V |
| IC Case / Package: QFN |
| No. of Pins: 16Pins |
| No. of Nodes: 32 |
| ESD Protection: ±8 kV (Contact), ±15 kV (Air Gap), ±15 kV (HBM) |
| Fail Safe: - |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 85°C |
| Product Range: - |
| Qualification: - |
| MSL: MSL 2 - 1 year |
Other details
| Brand | TEXAS INSTRUMENTS |
| Part Number | AM26LV31EIRGYR |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
