Description
TerraMaster F2-423 External HDD/SSD Overview
- 1Description
- 2Designed for High Performance Requirements
- 3Excellent Performance
- 4Faster Application Response
- 5Higher Transmission Speed
- 6Powerful Multimedia Service
- 7Flexible Storage Configuration
- 8Professional Operating System
- 9Across-Platform File Services
- 10Rich Backup Solutions
- 11Virtualized Applications
- 12System Level Security Protection
- 13Multiple Commercial Applications
- 14Worry-Free After-Sales-Service

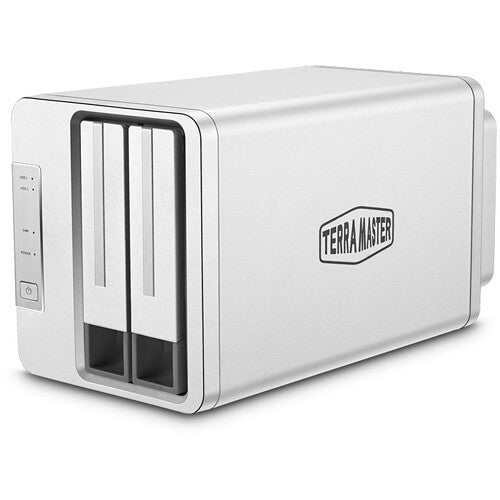

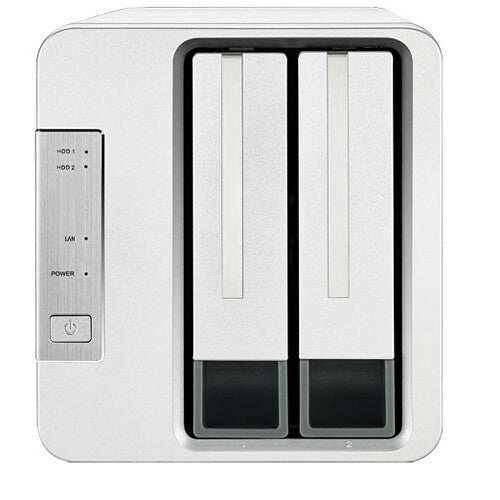

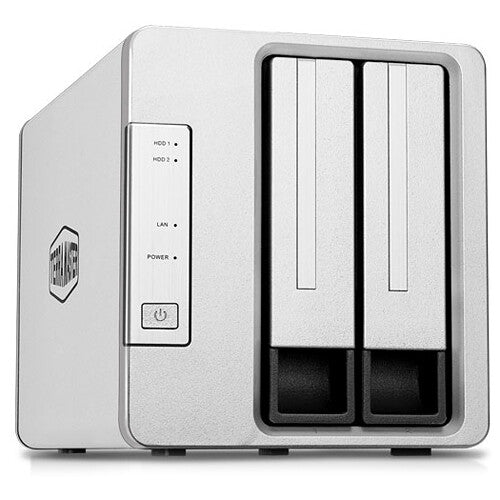

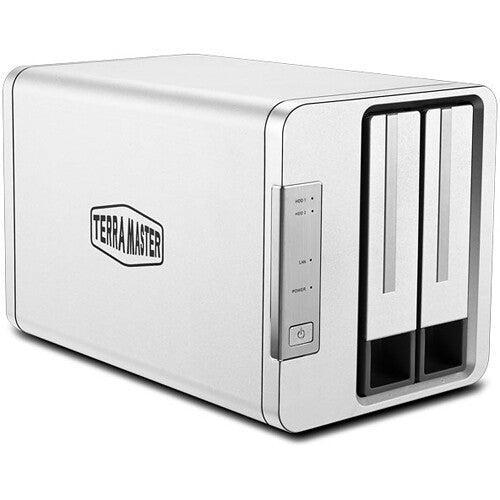

The F2-423 2-Bay NAS Enclosure from TerraMaster is suitable for SMB users who need high-performance storage solutions. It is powered by a 2.0 GHz Intel Celeron 4-Core processor, 4GB of DDR4 RAM (upgradeable to 32GB), integrated Intel UHD graphics, AES-NI, and AES 256-bit encryption. It runs using TOS, a Linux-based operating system. This unit has two SATA drive bays that natively support 3.5" hard drives, as well as 2.5" hard drives and SSDs, along with two M.2 NVMe slots for for SSD caching. In a RAID 0 configuration, the F2-423 can transfer data at speeds up to 283 MB/s.

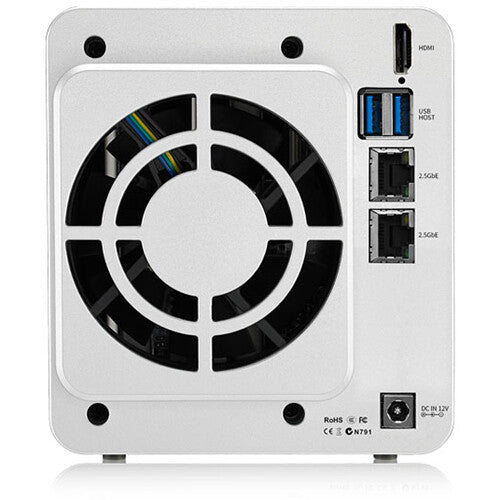

Also featured are two USB-A 3.2 Gen 2 Type-A ports, which allow it to be connected to external peripherals. Network connectivity is achieved via the two 2.5 Gigabit Ethernet ports with port trunking failover support, which helps to provide redundancy in the case that a LAN connection malfunction occurs on one port. Supported RAID modes include RAID 0 and 1. For those who do not require a RAID, JBOD is also available, allowing each drive bay to be individually utilized.
TerraMaster has engineered the F2-423 to be energy efficient. Not only does it feature an 80mm fan to help keep the system running cool, the server supports numerous scheduled power on / off cycles and hard-drive hibernation to further minimize power consumption and operation expenses. The F2-423 operates using an included external 40W power supply and also includes a power cord, an RJ45 cable, and screws. Protection is provided by a limited 2-year warranty.
Designed for High Performance Requirements
The 2-Bay F2-423 is suitable for SMB users who need high-performance storage solutions. High performance means that users can easily handle high-load workflows, while multiple business-level backup solutions guarantee data safety and safeguard against the risk of data loss.
Excellent Performance
This is a high-performance storage solution that provides a virtual storage and database service for SMB users. It features a 2.0 GHz Intel Celeron Quad-Core processor with a maximum turbo of 2.9 GHz, integrated Intel UHD graphics, and AES-NI hardware encryption. In addition, it is equipped with two 2.5 GbE interfaces and 4GB of dual-channel DDR4 memory that is expandable up to 32GB. Moreover, this storage solution features two M.2 NVMe slots, which accelerate SSD caching and double the storage efficiency of your RAID.
Faster Application Response
The performance of the F2-423 surpasses that of previous generations, offering a 50% improvement that transforms the handling of high-load workflows. Moreover, is offers a 37% increase in file retrieval speeds, a 35% increase in database response speeds, and a 40% increase in webpage PHP response speeds.
Higher Transmission Speed
The F2-423 is configured with two 2.5GbE interfaces, supporting a 2.5GbE high-speed network bandwidth with a linear data transmission speed that can reach 283 MB/s in RAID 0. Link Aggregation offers a network bandwidth up to 5 Gb/s, thereby providing a cost-effective solution for multi-user and high-concurrent file access.
Powerful Multimedia Service
With 4K video decoding capability, the F2-423 is compatible with uPnP/DLNA protocol and can stream videos to various multimedia devices including computers, smart phones, media players, and televisions, by using TerraMaster's proprietary Multimedia Server application or one from a third-party to deliver constant, reliable entertainment experiences.
Flexible Storage Configuration
The F2-423 supports various RAID types including Single/RAID 0/1. It offers online capacity expansion and online migration for RAID types. It supports the creation of multiple storage spaces, and Ext 4 or BTRFS file systems can be selected in accordance with various business requirements. When used in conjunction with TerraMaster USB DAS devices, the F2-423 has the ability to flexibly expand storage capacity.
Professional Operating System
TNAS runs on TOS, a TerraMaster operating system developed based on Linux. Extensive research into the needs of various business users and the resultant continued evolution of multiple TOS generations has enabled it to integrate all-round professional storage management functions including network management, permission management, storage management, and resource monitoring via user-friendly, intuitive, and flat web interfaces. It also provides hundreds of free apps for the app market.
Across-Platform File Services
The ability of the F2-423 to support most file services (SMB, AFP, SFTP/FTP, iSCSI, NFS, and WebDAV) enables it to successfully address the across-platform file service needs of different network environments. Moreover, the F2-423 supports Windows AD domain and LDAP, thereby facilitating the incorporation of the existing IT environments of business users and improving management efficiency. The presence of permission management at the level of users, user groups, and file directories means that the F2-423 can satisfy the comprehensive requirements of business users for inter-departmental collaboration and data security.
Rich Backup Solutions
TOS can protect valuable data using visual user interfaces and trustworthy storage solutions thanks to its integration with multiple backup applications that can address backup needs in an array of circumstances.
Centralized Backup
Backup for servers, virtual machines, employee PCs, and file servers can be initiated at the TNAS end, thus facilitating the rapid restoration of data after incidents.
Duple Backup
In order to provide several offsite backup versions, Duple Backup provides advanced data protection by backing up files to another remote TNAS, file server, or cloud drive.
Snapshot
It is possible to take continuous snapshots of your folders or iSCSI LUNs by enabling the snapshot schedule with the advanced storage technology and optimized snapshot technology available via the BTRFS file system. When problems arise, the system can roll back to points-in-time and restore to the last backup, thereby ensuring that your data is well protected.
CloudSync
This backs up or synchronizes TNAS data with the cloud drive, which not only improves the availability of cloud data, but also provides several offsite backup versions, thus safeguarding the security of your data.
Centralized Backup
Backup for servers, virtual machines, employee PCs, and file servers can be initiated at the TNAS end, thus facilitating the rapid restoration of data after incidents.
Duple Backup
In order to provide several offsite backup versions, Duple Backup provides advanced data protection by backing up files to another remote TNAS, file server, or cloud drive.
Snapshot
It is possible to take continuous snapshots of your folders or iSCSI LUNs by enabling the snapshot schedule with the advanced storage technology and optimized snapshot technology available via the BTRFS file system. When problems arise, the system can roll back to points-in-time and restore to the last backup, thereby ensuring that your data is well protected.
CloudSync
This backs up or synchronizes TNAS data with the cloud drive, which not only improves the availability of cloud data, but also provides several offsite backup versions, thus safeguarding the security of your data.
Virtualized Applications
The F2-423 satisfies virtualized application needs and provides additional functionality within one device with the use of professional virtualized apps, including VirtualBox and Docker, and by cooperating with Docker-compose and Portainer. This lowers the cost of corporate investment in IT.
System Level Security Protection
Increased cyberattacks mean that the security system of network devices must address considerable challenges. TOS enables various systematic safeguards, such as pam identity authentication, AES 256-bit encryption, automatic account lockout, anti-DoS attack, and firewall. Hence, it effectively reduces the risks of malicious attacks on your devices.
Multiple Commercial Applications
TNAS allows business users to easily build file servers, mail servers, web servers, FTP servers, MySQL databases, CRM, Node.js, Java VMs, and many other services, thereby satisfying the commercial requirement of various SMBs in such fields as education, consulting, finance, scientific research, and law.
Worry-Free After-Sales-Service
TerraMaster offers a unique after-sales-service policy that provides replacements for 2 years and offers worry-free quality assurance through real-time online customer service, a professional technical forum, an online user guide, a technical service mailbox, and remote troubleshooting.
In the Box
- TerraMaster F2-423 2-Bay NAS Enclosure
- Power Cord
- Power Adapter
- RJ45 Network Cable
- Screws
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Designed for High Performance Requirements
- Excellent Performance
- Faster Application Response
- Higher Transmission Speed
- Powerful Multimedia Service
- Flexible Storage Configuration
- Professional Operating System
- Across-Platform File Services
- Rich Backup Solutions
- Virtualized Applications
- System Level Security Protection
- Multiple Commercial Applications
- Worry-Free After-Sales-Service
TerraMaster F2-423 External HDD/SSD Specs
Computing
| CPU | 2 to 2.9 GHz Quad-Core |
| Processor | Intel Celeron |
| Total Installed Memory | 4 GB |
| User-Replaceable Memory | 1 x 4 GB |
| Total Memory Slots | 2 x SO-DIMM |
| Maximum Memory Capacity | 32 GB |
General
| Number of Bays | 2 x 2.5"/3.5" 2 x M.2 (2280) |
| I/O | 2 x RJ45 (2.5GbE) 2 x USB-A (USB 3.1/3.2 Gen 2 (10 Gb/s)) 1 x HDMI |
| Compatible Drive Interface | SATA (Unspecified Version) |
| Media Card Slots | None |
| RAID | RAID 0, 1, JBOD, Single |
| Hot-Swap Support | Yes |
| Wake on LAN | Yes |
| Link Aggregation and Failover Support | Yes |
Networking
| Supported Protocols | AFP CIFS/SMB FTP HTTPS IPv4 IPv6 NFS SFTP SMB SNMP SSH WebDAV iSCSI |
| iSCSI LUN | 256 |
| iSCSI Target | 128 |
| Max Concurrent Connections | 500 |
| Max Folders | 512 |
| Max Sync Tasks | 8 |
| Max Groups | 512 |
| Max User Accounts | 2048 |
| Max Volume Number | 256 |
Software
| Installed Operating System | TOS |
| Supported File Systems | Internal: BTRFS, EXT4 External: EXT3, EXT4, FAT32, HFS+, NTFS |
| OS Compatibility | Windows macOS Linux *As of October, 2022: Check with manufacturer for the most up-to-date compatibility |
| Supported Browsers | Chrome, Edge, Firefox, Safari |
| Supported Languages | English French German Hungarian Italian Japanese Korean Portuguese Russian Simplified Chinese Spanish Traditional Chinese Turkish |
Security
| Encryption | 256-Bit AES, AES-NI (Hardware-Based) |
Electrical
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Source | AC Adapter |
| Power Consumption | 22.1 W (Typical) 11.4 W (Standby) |
| PSU Wattage | 1 x 40 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% |
| Storage Temperature | -5 to 140°F / -20 to 60°C |
Physical
| Status Monitoring | LED Indicator |
| Cooling | 1 x 80 mm Fan |
| Noise Level | 26.4 dBA |
| Built-In Speakers | None |
| Dimensions | 8.9 x 5.2 x 4.7" / 227 x 133 x 119 mm |
| Weight | 5.3 lb / 2.4 kg |
Packaging Info
| Package Weight | 5.34 lb |
| Box Dimensions (LxWxH) | 10.4 x 10.2 x 6.4" |
