Description

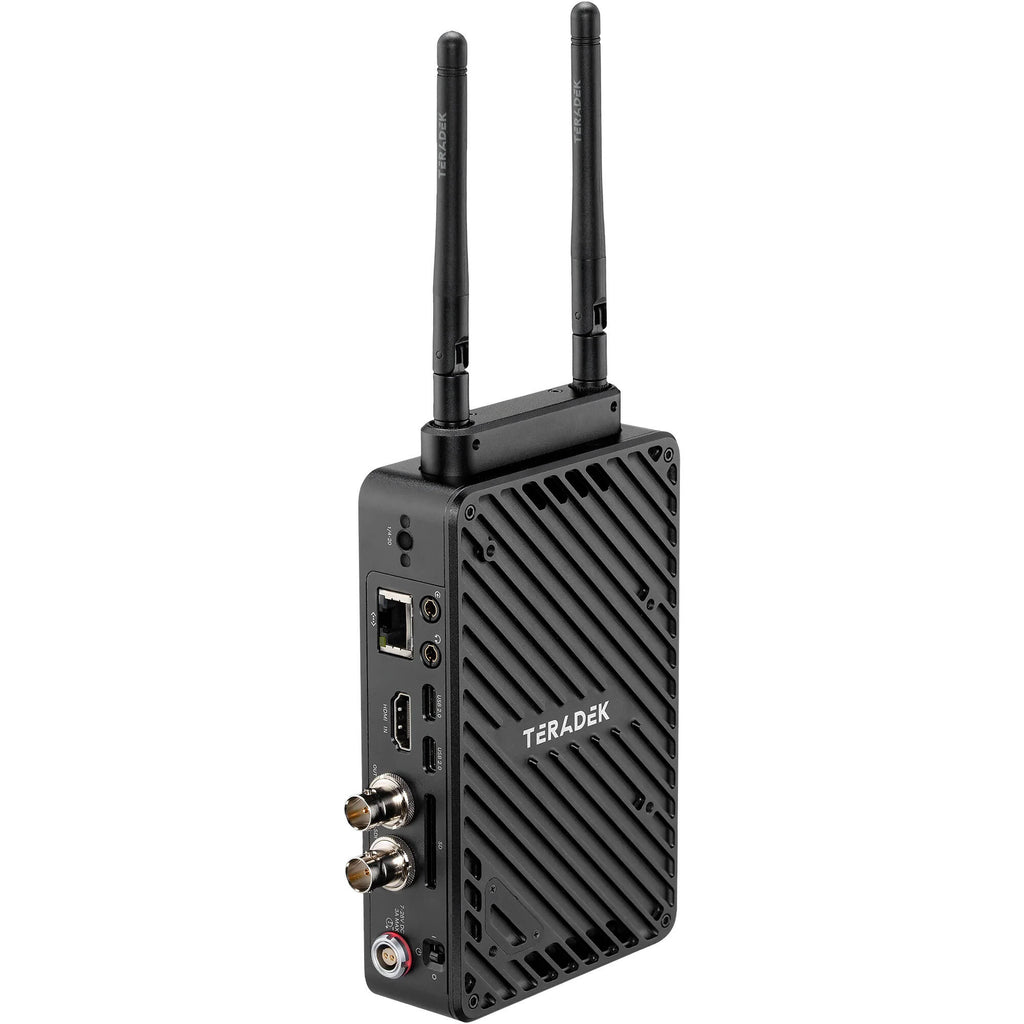

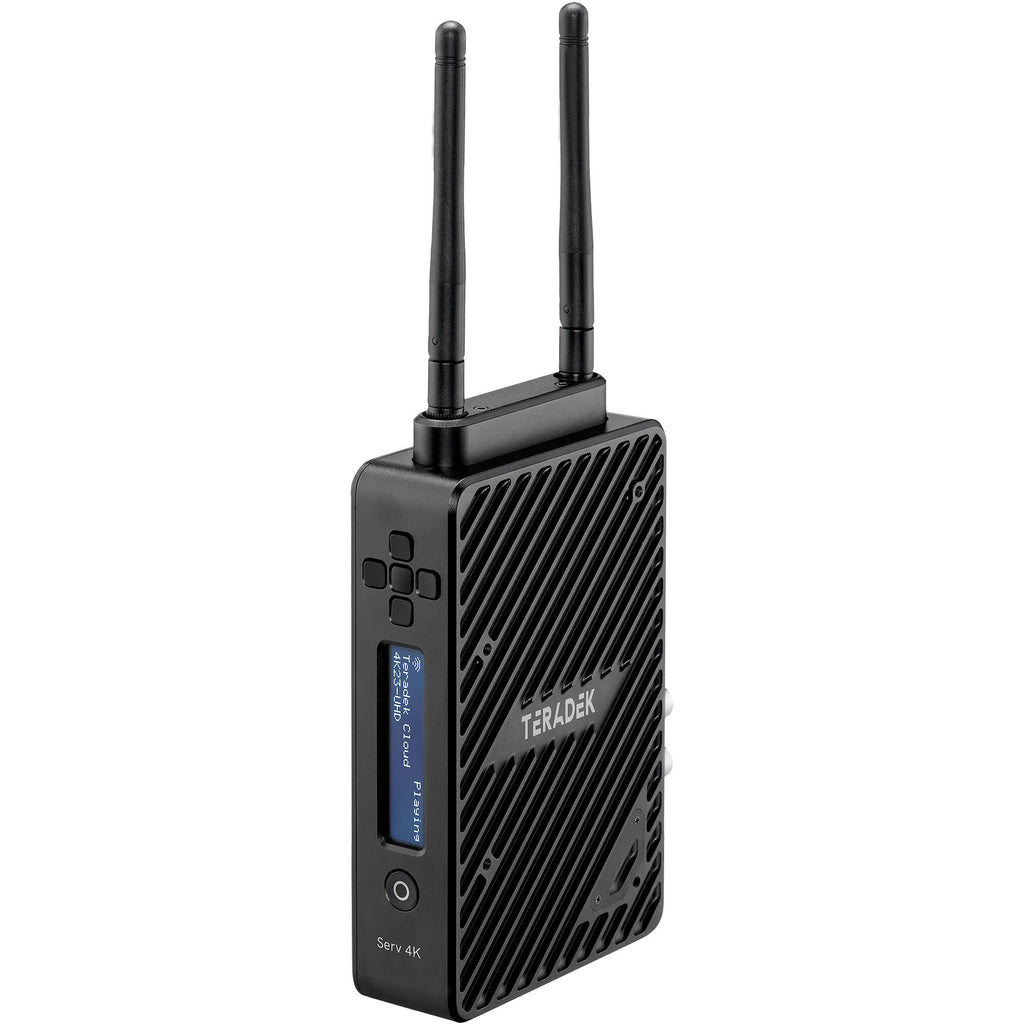

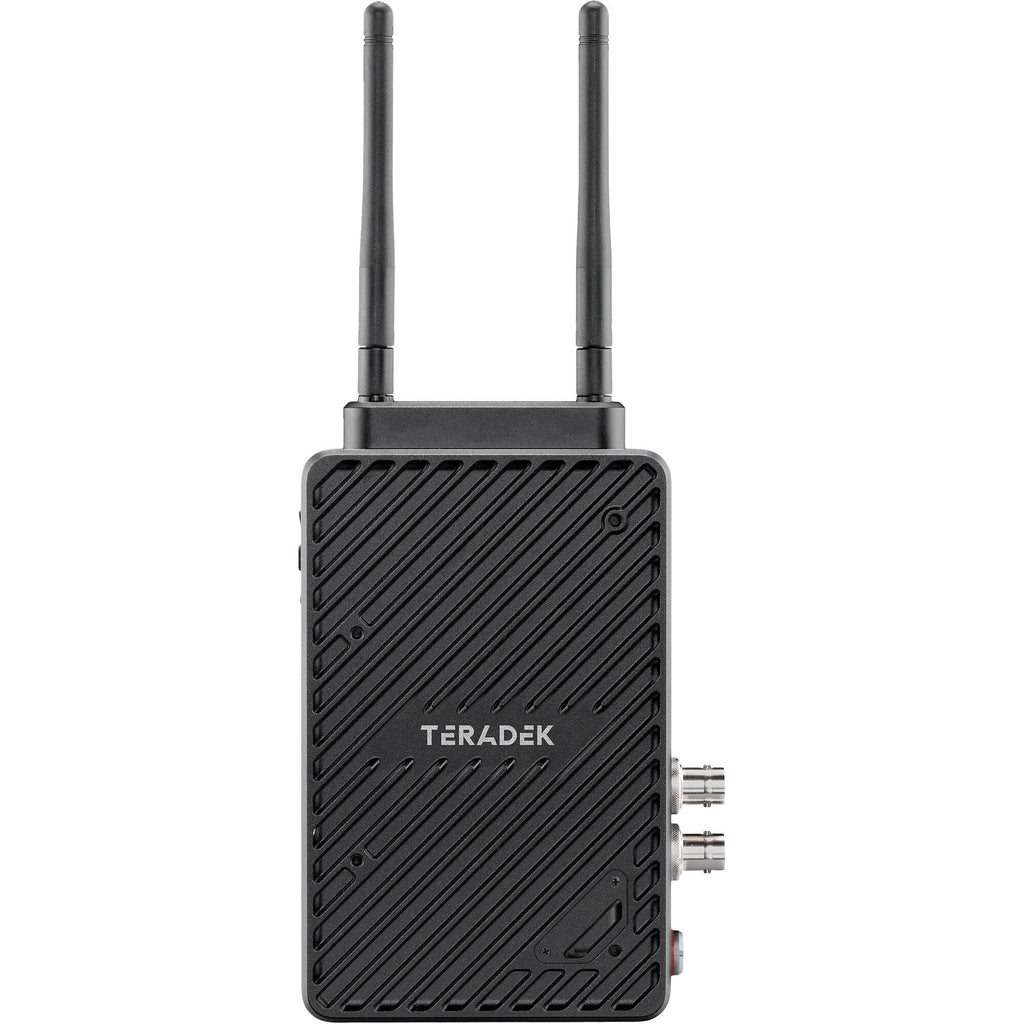

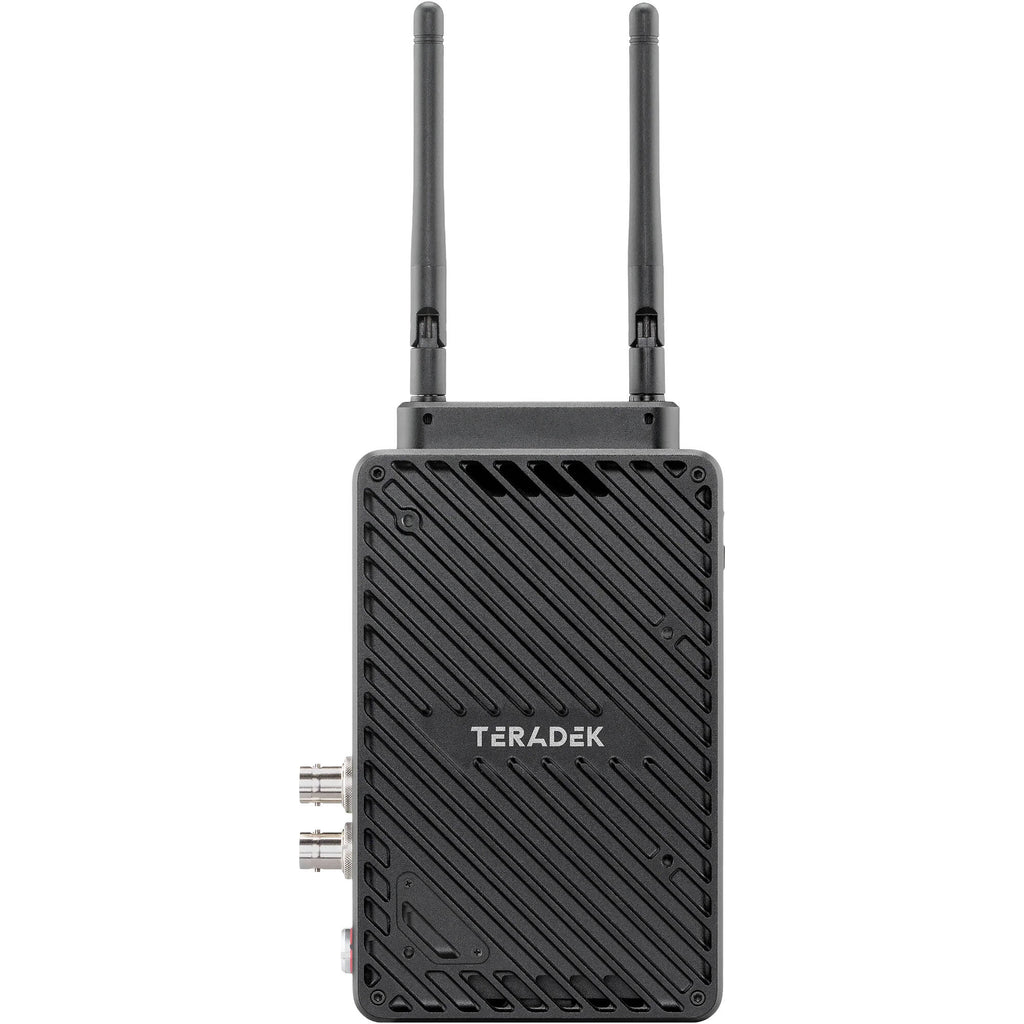

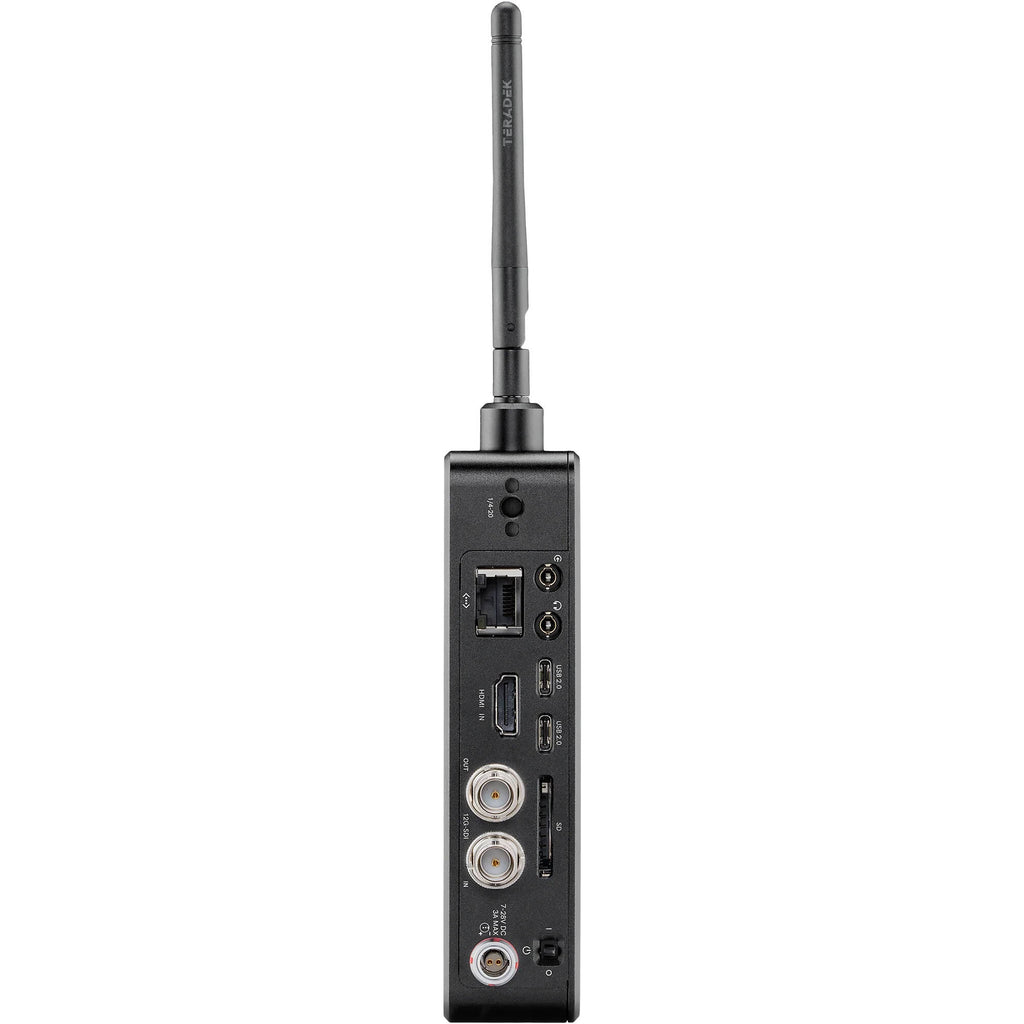

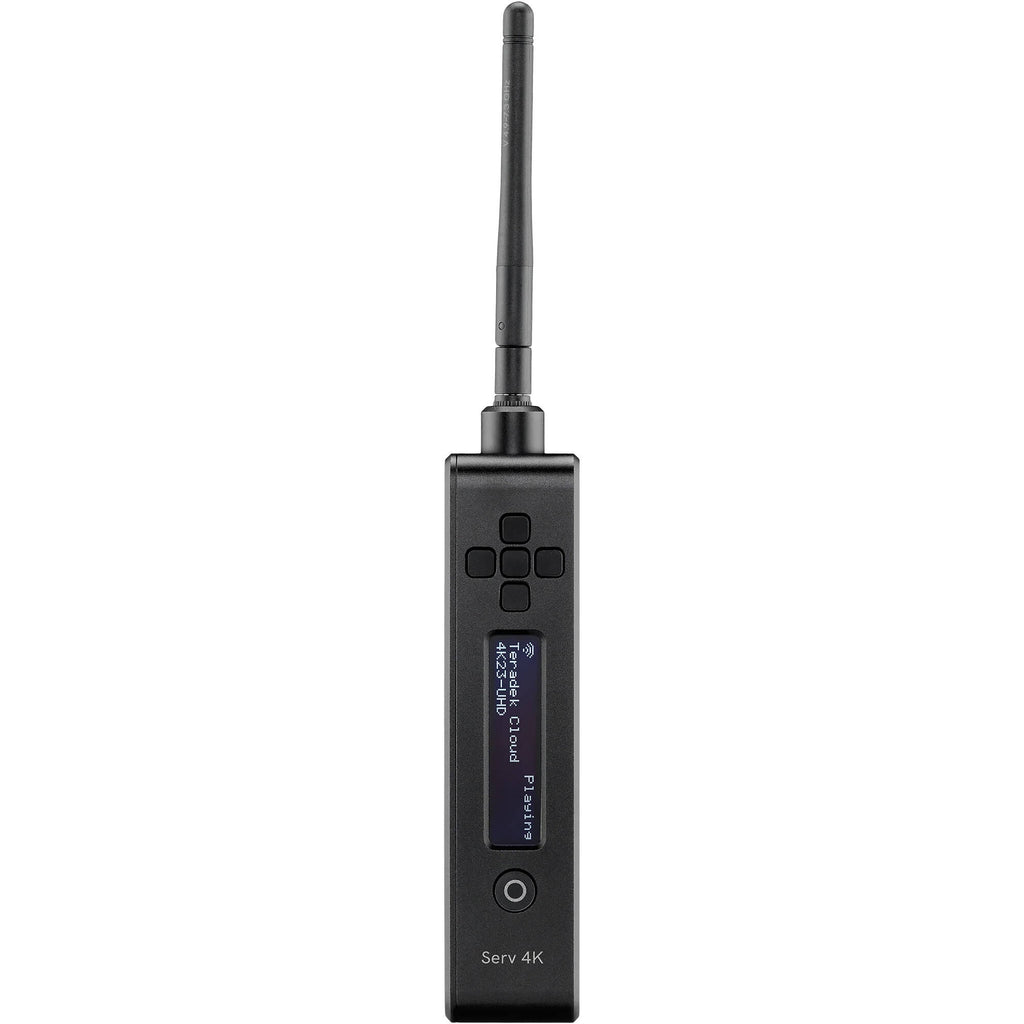

Teradek Serv 4K 2024 Overview
Encode and stream from your camera to up to 20 local or streaming locations to reach unlimited endpoints with the Serv 4K (2024) from Teradek. Updated in 2024, the Serv 4K has an improved OLED display, 50% quieter operation with better heat management, and better mounting options. It allows you to input up to DCI 4K60 4:2:2 video via HDMI or 12G-SDI ports, and it supports 10-bit HDR color. You can output encoded video via multiple methods, including Gigabit Ethernet, dual-band Wi-Fi, and 12G-SDI loop output for monitoring, and there are two USB-C ports that support optional cellular bonding using modems such as the Node 5G. The built-in SD card slot allows you to record your stream locally.
The Serv 4K can stream live to a web server or to the cloud, supporting Teradek's Core cloud, Teradek TV, Frame io, Sony's Ci Media Cloud, PIX, and more. It supports high-quality, low-latency HEVC and AVC compression for clear, high-resolution delivery. Support for 256-bit encryption provides military-grade security for your streams. Other features include timecode sync, run/stop flags, C2C integrations, filename sync, and a maximum bitrate of 45 Mb/s. Power the unit using DC input or via a separately available V-mount or Gold mount battery plate.
- Intuitive apps with easy, customizable monitoring tools
- Critical resolution and color accuracy with low delay
- Distribute secure, 256-bit encrypted streams
- Display up to four camera feeds at once
- Collaborate live via integrated messaging and voice chat
- Timecode sync
- Run/stop flags
- Filename sync
- Up to 45 Mb/s data rate
- DCI-P3/PQ 2084 color space
- Link AX
- Node 5G Cellular Modem
- Teradek Data SIM
- Teradek Core
- Teradek TV
- Frame.io
- Sony Ci Media Cloud
- PIX
Visit the Teradek website for a list of cameras that support cloud-to-cloud metadata.
Items Included
- Teradek Serv 4K (2024)
- 2 x Antenna
- Power Adapter
- 2-Pin to AC Power Cable (6')
- 2-Pin to D-Tap Cable (18")
- BNC-to-BNC SDI Cable (10")
- Limited 1-Year Manufacturer Warranty
Additional Resources
Firmware Updates
v1.7, Aug ' 24
Teradek Serv 4K 2024 Specs
| Video I/O |
1x HDMI 2.0 Input
1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Loop Output |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB/Wireless
|
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [Supports Recording]
|
| Built-In Battery |
Yes
|
| Power Consumption |
18 W
|
| Mounting |
1x 1/4"-20 Female (Bottom)
|
| Antenna I/O |
2x RP-SMA
|
| Video I/O |
1x HDMI 2.0 Input
1x BNC (12G-SDI) Input 1x BNC (12G-SDI) Loop Output |
| Embedded Audio |
HDMI/LAN (RJ45)/SDI/USB/Wireless
|
| Audio I/O |
1x 1/8" / 3.5 mm Mic Input
1x 1/8" / 3.5 mm Headphone Output |
| Power I/O |
1x LEMO 2-Pin Input
|
| Other I/O |
2x USB-C 3.0 / 3.1/3.2 Gen 1 Input/Output
1x RJ45 (LAN) Input/Output |
| Media/Memory Card Slot |
Single Slot: SD/SDHC/SDXC [Supports Recording]
|
| File System Support |
exFAT, FAT32
|
| Encryption |
Yes, 256-Bit AES
|
| Wi-Fi |
Wi-Fi 6E (802.11ax); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support
|
| Bluetooth |
No
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Vuer |
| Cellular Support |
No
|
| IP Video |
H.264/H.265: 640 x 480 to 4096 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (50.00 Mb/s)
|
| IP Audio |
AAC-LC:
|
| Transport Protocols |
DHCP, HTTP, SRT, SSL, TCP/IP, UDP
|
| Simultaneous Streams |
20 Streams
|
| Input Power |
6 to 28 VDC
|
| Built-In Battery |
Yes
|
| Power Consumption |
18 W
|

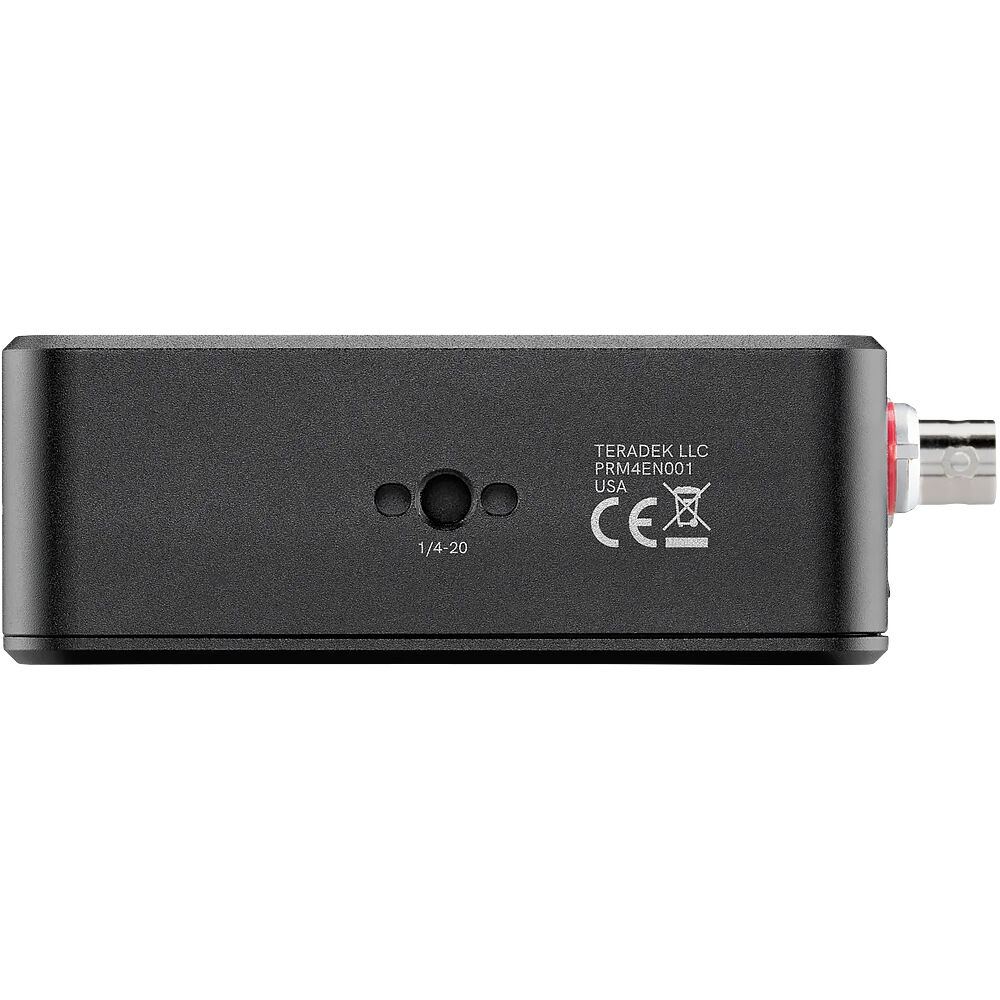

| Mounting |
1x 1/4"-20 Female (Bottom)
|
| Status Display |
OLED
|
| Environmental Resistance |
No
|
| Material of Construction |
Aluminum
|
| Dimensions |
5.9 x 4.2 x 1.4" / 150 x 107 x 36 mm
|
| Weight |
1.05 lb / 476.00 g
|
| Package Weight |
2.735 lb
|
| Box Dimensions (LxWxH) |
9 x 6.7 x 4.9"
|
