Description

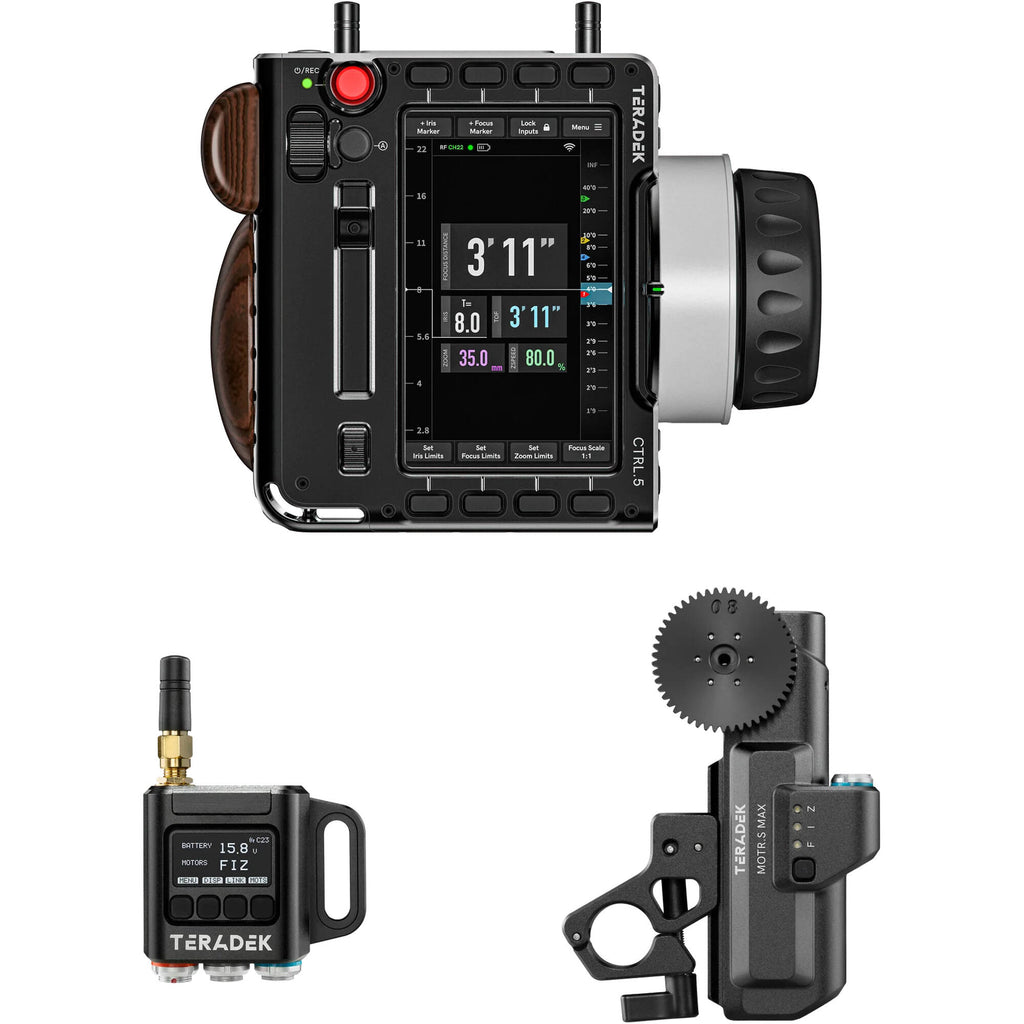

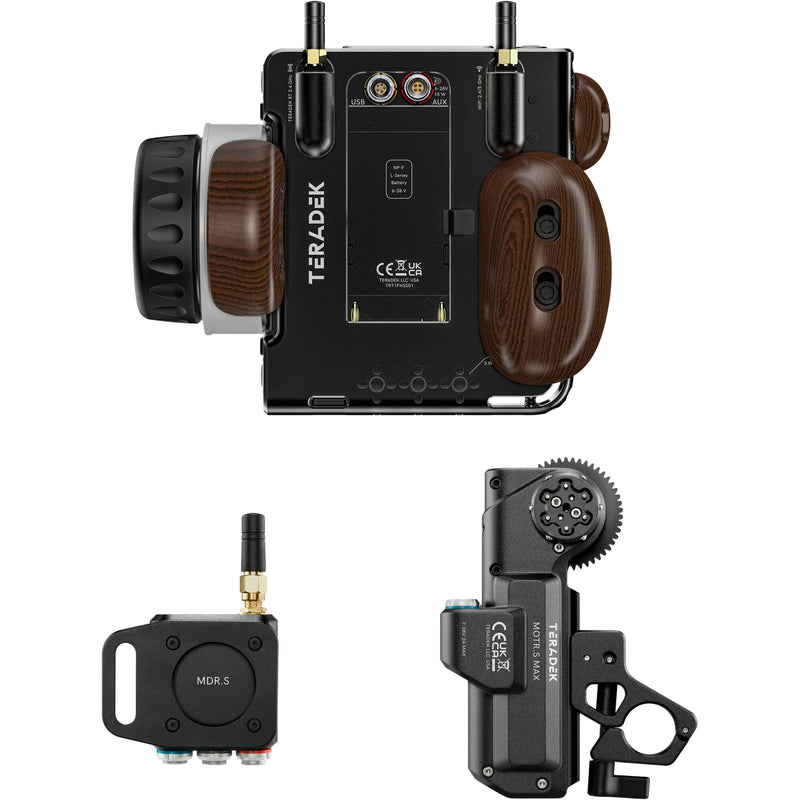

Teradek CTRL.5 with MDR.S System Overview

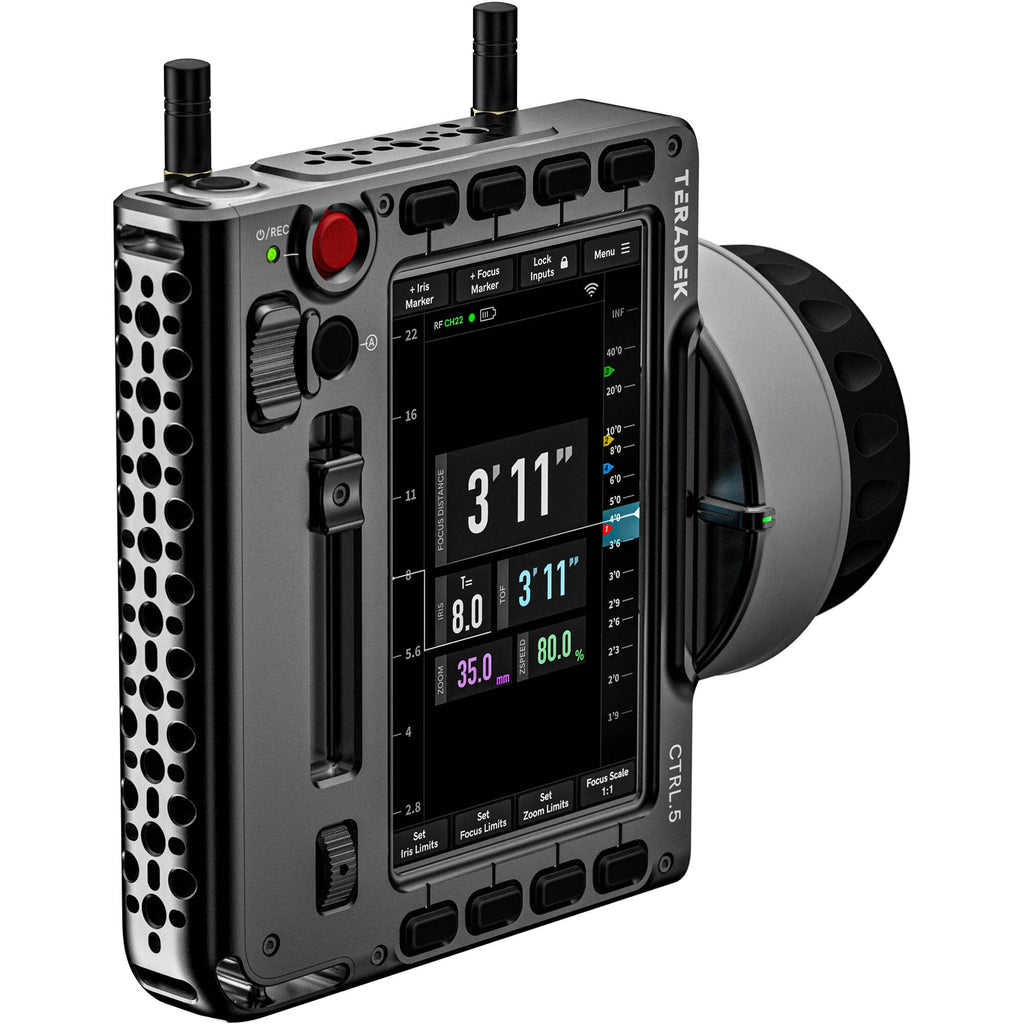

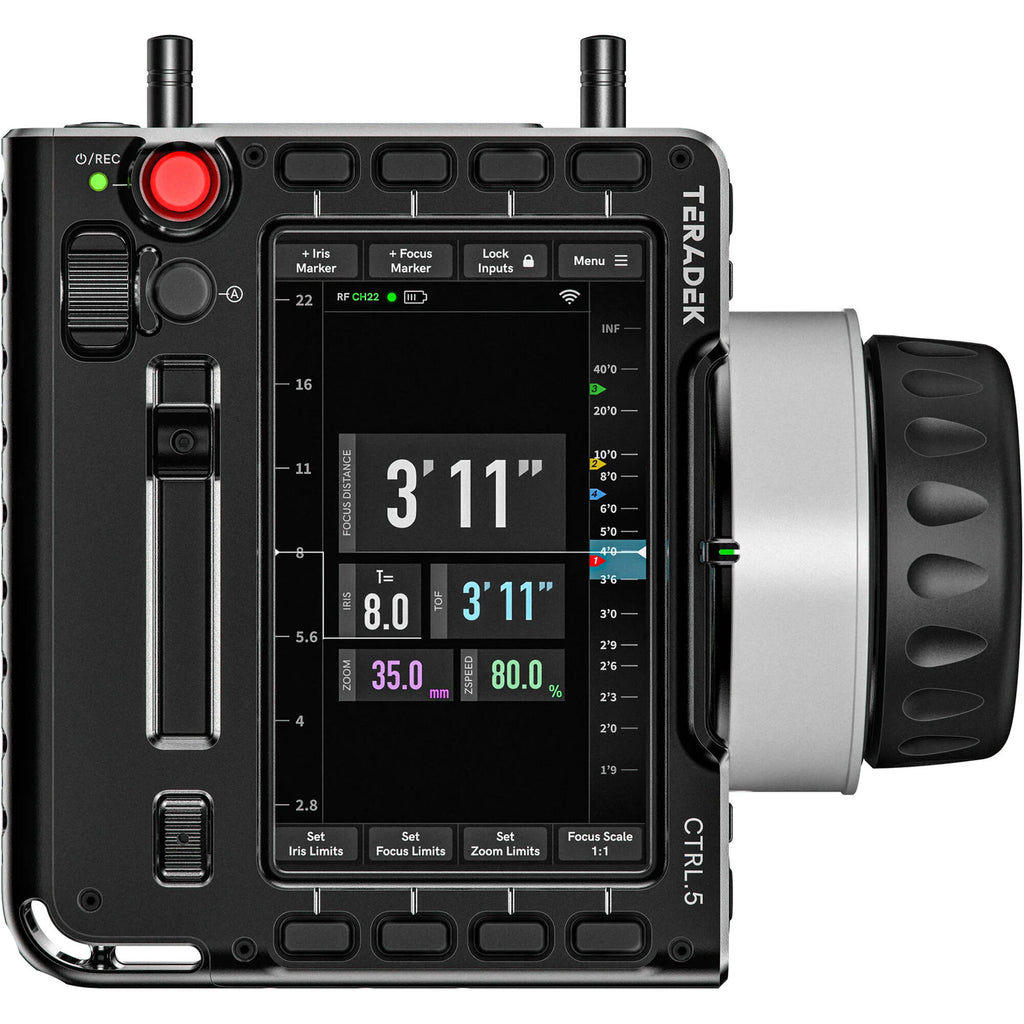

- Program the 11 quick-action buttons around the perimeter of the touchscreen to recall settings of your choice. The flexible UI makes for flexible setup.
- Other onboard controls include a slider, pressure sensitive rocker, record button, adjustable knob with 9-levels of tension, and an additional knob to control speed or a fourth lens axis.

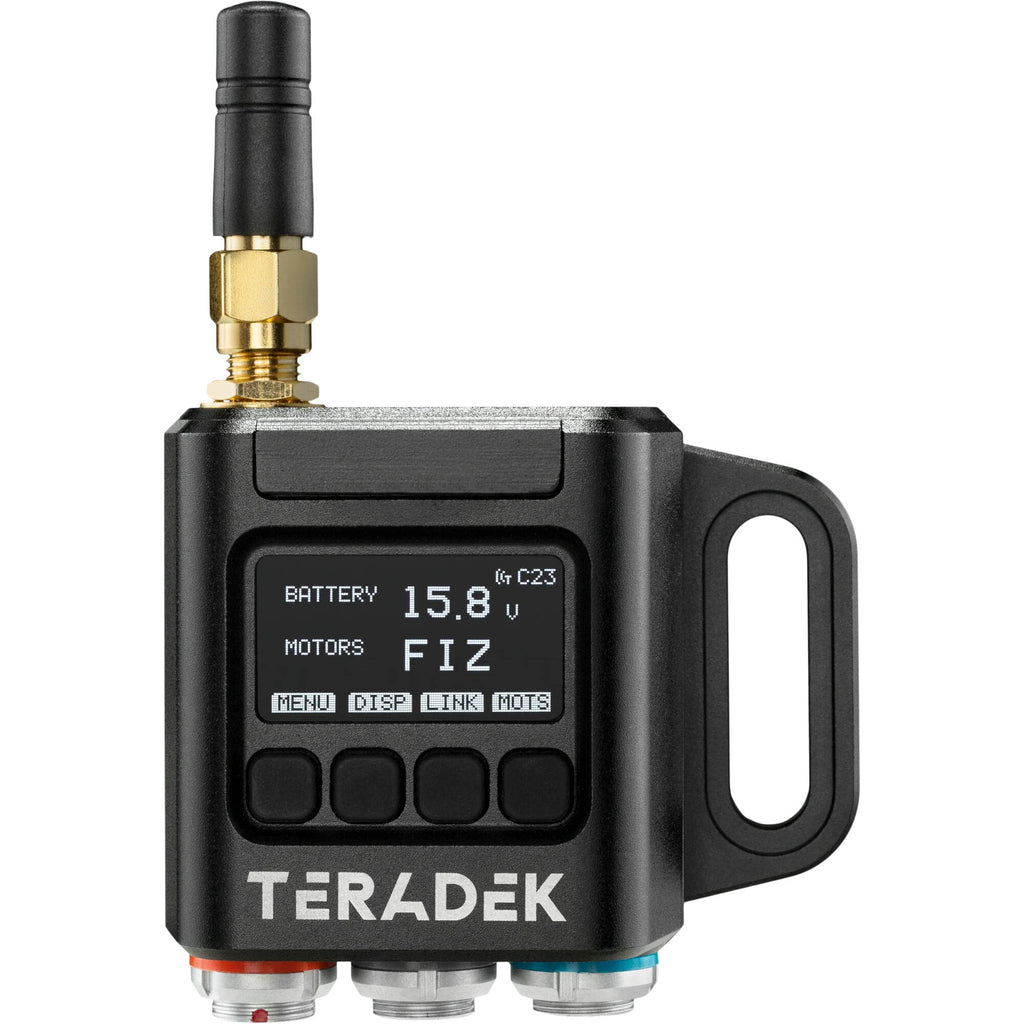

With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.
The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
The Teradek RT MOTR.S Max Lens Motor features a similar design to its MOTR.S sibling but with increased torque and size for heavier-duty lens operations. Adjust focus, iris, or zoom functions with the MOTR.S Max and its 1.2nm maximum torque and maximum speed of 275 teeth per second. Balanced cable management ensures your 0B 4-pin connections redirect cables and prevent them from getting in the way of your camera configuration.
An improved rod clamp is compatible with both 15 and 19mm rods. One 0.8 MOD lens gear is included and separately available gears can expand lens compatibility. The MOTR.S can be daisy-chained to suit your needs. The motor supports an operating voltage of up to 32V.
- Lightweight form factor
- Redesigned aluminum chassis, reinforced sockets, next-gen circuit boards
- New 15/19mm rod clamp with better-located handle
- 1.2nm maximum torque, 275 teeth per second
Items Included
- Teradek CTRL.5 3-Axis Wireless Lens Controller
- Limited 1-Year Manufacturer Warranty
- Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
- USB 2.0 Type-A to Type-C Male Cable (3.3')
- Teradek RT Power 3-Pin D-Tap Cable
- Straight 2.4 GHz Wi-Fi Antenna
- MDR.S Bracket
- Black Screw Socket Head (M2 x 6mm)
- Screw Socket Cap (1/4"-20 x 3/8"-16)
- Limited 1-Year Manufacturer Warranty
- Teradek RT MOTR.S Max Lens Motor
- 0.8 MOD Gear
- MOTR.S Bracket
- Limited 1-Year Manufacturer Warranty
- White Disk Type B
- White Disk Type B Pre-Marked (Iris Ring 1-32)
- White Disk Type B Pre-Marked (0.5m Minimum Focus)
- White Disk Type B Pre-Marked (1m Minimum Focus)
- White Disk Type B Pre-Marked (2m Minimum Focus)
- White Disk Type B Pre-Marked (3m Minimum Focus)
- White Disk Type B Pre-Marked (0.25m Minimum Focus)
- White Disk Type B Pre-Marked (10" Minimum Focus)
- White Disk Type B Pre-Marked (14" Minimum Focus)
- White Disk Type B Pre-Marked (20" Minimum Focus)
- White Disk Type B Pre-Marked (3'6" Minimum Focus)
- White Disk Type B Pre-Marked (6' Minimum Focus)
- White Disk Type B Pre-Marked (10' Minimum Focus)
- 1/4"-20 Screw Sock Cap
- Hex Wrench
- 4 x M2 Socket Head (Black)
- RT Motor Cable (ST-ST, 7.9")
- RT Motor Cable (ST-ST, 15.7")
- RT Motor Cable (ST-ST, 23.6")
- RT 3-Pin to 3-Pin Power and Run/Stop Cable for ARRI
- RT 3-Pin to 2-Pin Power Cable
- 3-Pin to D-Tap Cable
- USB-A 2.0 to USB-C Cable (39.4")
- 2 x RP-SMA Straight 2.4 GHz Antenna (1")
- CTRL.5 Monitor Mount
- CTRL.5 Hand Strap
- CTRL.5 Neck Strap
- CTRL.5 Matte Screen Protector
- CTRL.5 Knob Wooden Handle
- CTRL.5 Thumb Grip
- SKB Case for RT CTRL.5
- Sticker Set
Not Included
- Essential Batteries
Additional Resources
No additional resources available

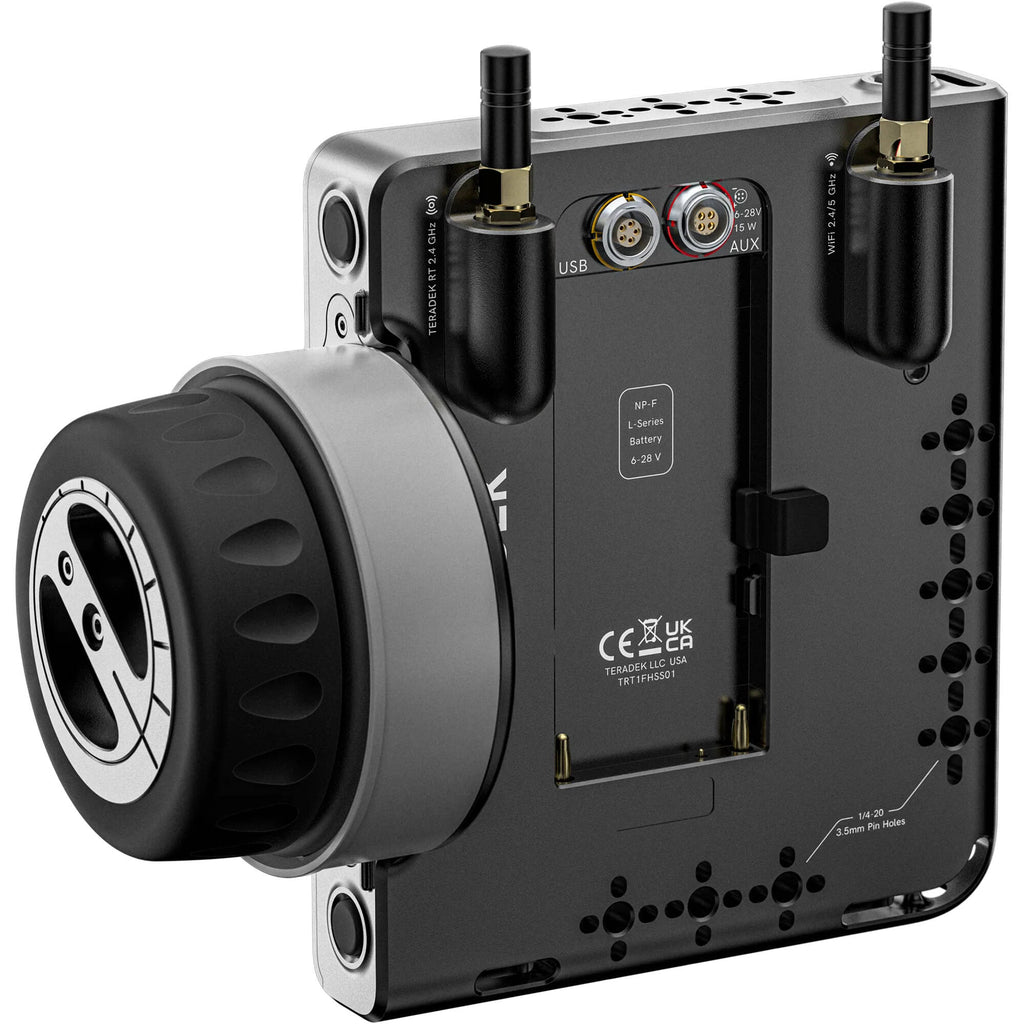

Teradek CTRL.5 3-Axis Wireless Lens Controller
| Compatibility |
Teradek MOTR.S / MOTR.S MAX / MOTR.X / MK 3.1 Motor / Thumbwheel / MDR.S / MDR.X / Latitude MDR Receivers / MK 3.1 Receiver / TOF.1
|
| Panel Type |
LCD
|
| Display Size |
5"
|
| Touchscreen |
Yes
|
| Maximum Brightness |
2000 nits / cd/m2
|
| Other I/O |
1 x 5-Pin USB
1 x 4-Pin AUX |
| Wireless |
2.4 GHz Radio/RF / 5.8 GHz Radio/RF / Wi-Fi 6 (802.11ax) / Bluetooth
*Built-In |
| Latency |
2 ms
|
| Wireless Range |
5000' / 1500 m (Teradek RT)
500' / 150 m (WiFi/Bluetooth) |
| Power Source |
Battery
|
| Battery Type |
1x Sony L-Series
|
| DC Input Power |
7.2 VDC
|
| Power Consumption |
15 W
|
| Operating Current |
5 A
|
| Mounting |
Multiple 1/4"-20 Anti-Twist Threads
|
| Color |
Black
|
| Package Weight |
3.275 lb
|
| Box Dimensions (LxWxH) |
13.2 x 8.1 x 5.4"
|
