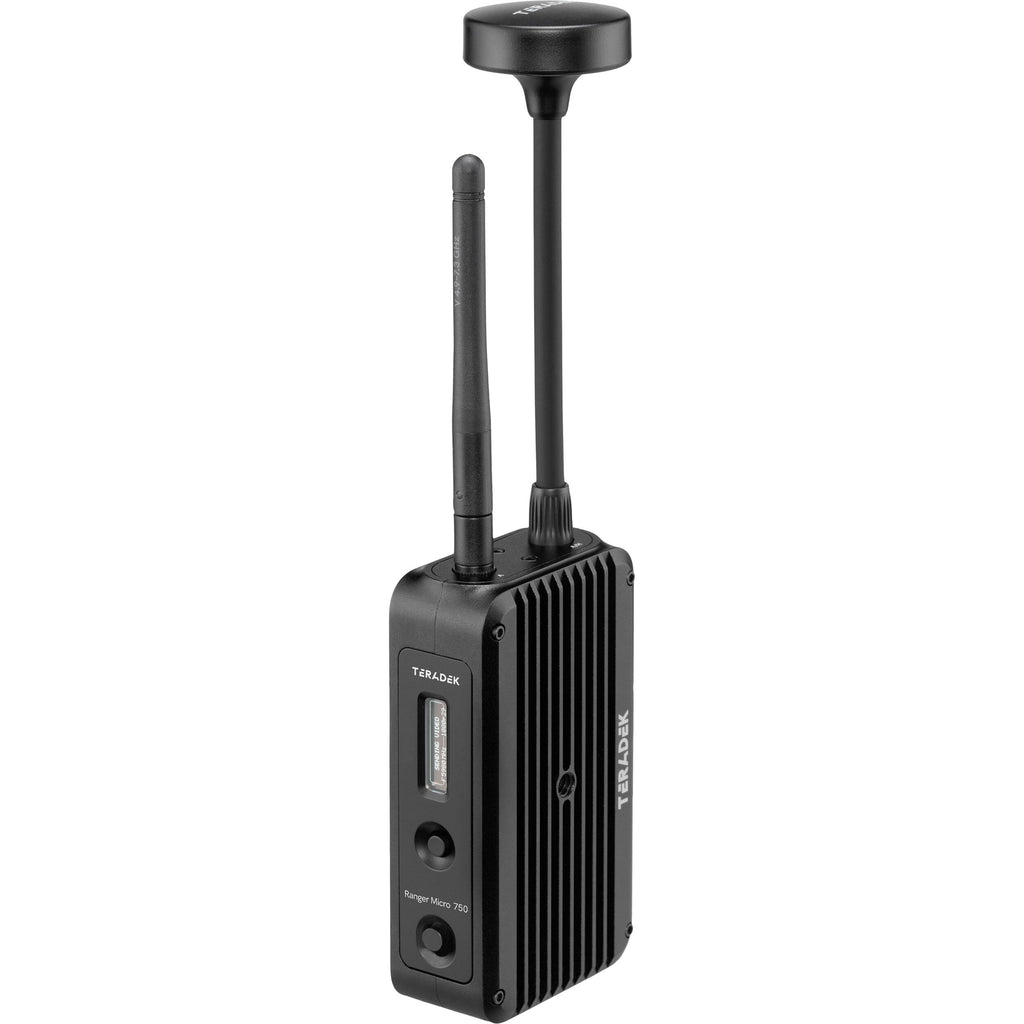

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter

Roll over image to zoom in

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter


	₹ 540540.0 includes GST and import duties.
	B2B customers can avail ₹ 82432.35 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Teradek
SKU:	6995355861077
MPN:	10-2531

Share this product

Teradek Ranger Micro Overview

By Photo's

Jennifer Hahn

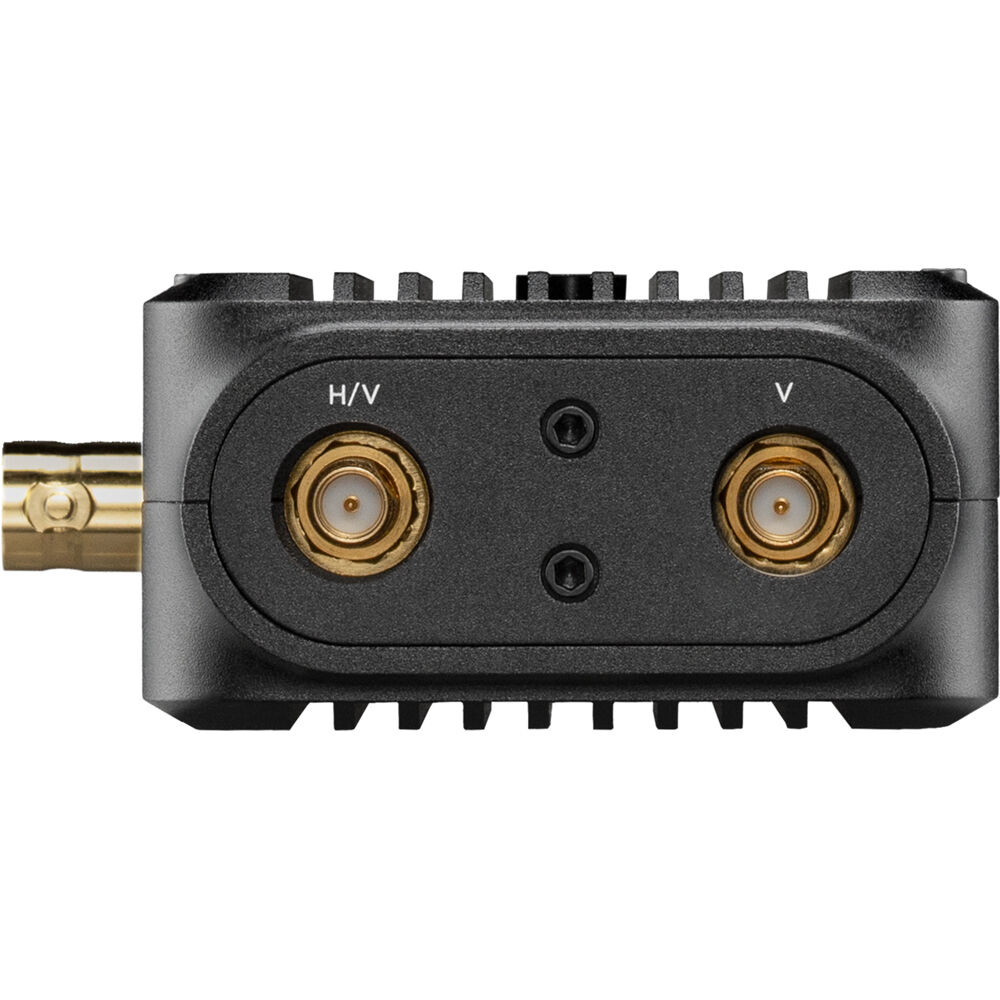

Transmit lossless HD video up to 750' with the Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 750' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.

The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

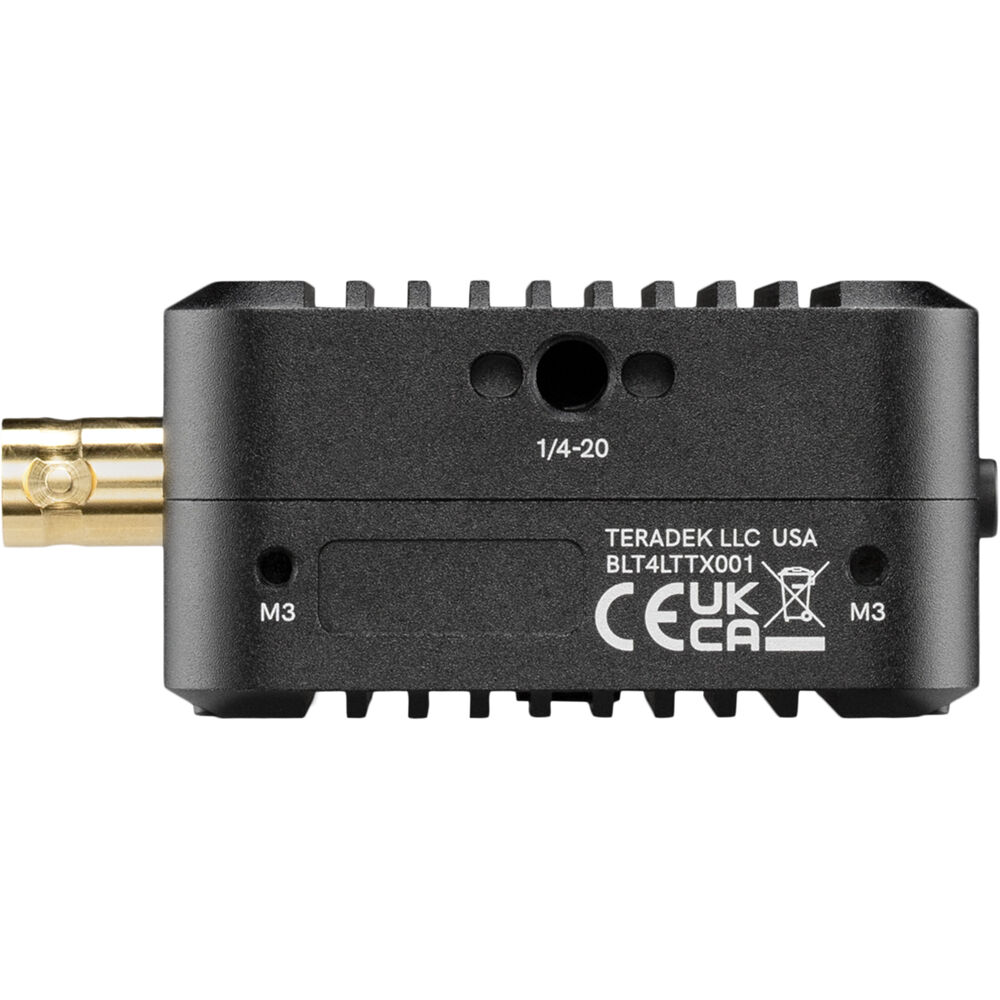

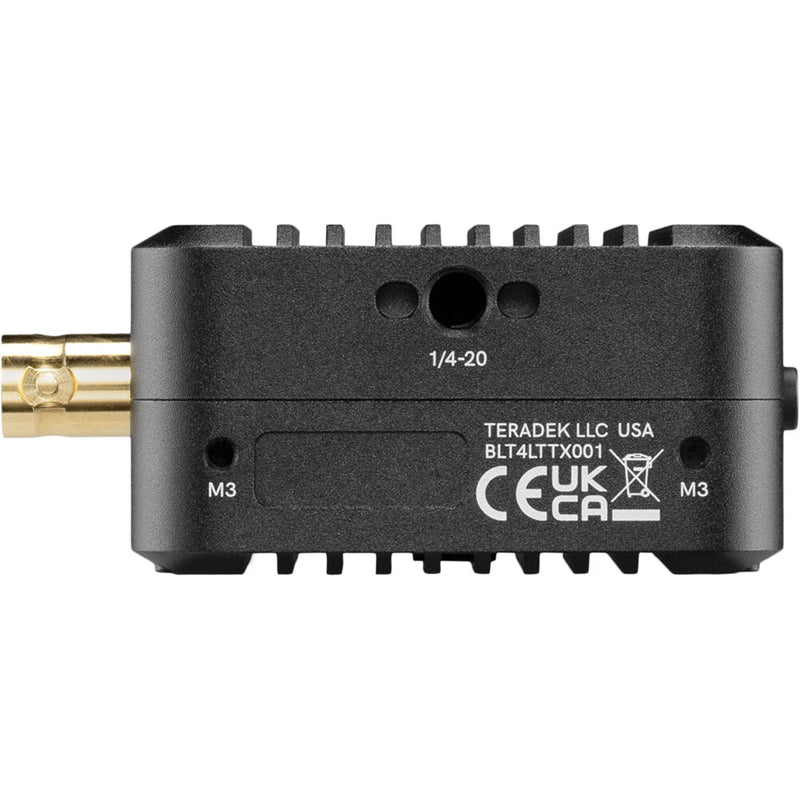

The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

Key Features

Premium Wireless Hardware

State-of-the-art hardware. Designed for professional video production. The Ranger Series is powered by Teradek's Emmy and Academy Award-winning technology for zero-delay wireless video transmission. This model boasts a maximum range of 750', and it works seamlessly within a variety of professional broadcast, sports, and ENG applications, including handheld gimbals, drones, and shoulder-mounted production cameras.

Ranger Compatibility

Pair any combination of Ranger TX and RX together, regardless of model. That means your production can quickly scale and operate a variety of Ranger systems best suited to your environment, despite differences in transmission range. Mixed Ranger systems operate with a range of the lowest paired model. 6 GHz operation requires support on both the TX and RX.

Zero Delay

When a delay in audio and video transmission is noticeable, it's nearly impossible to offer a lifelike experience. Ranger's patented zero-delay technology solves this problem. With Ranger, your audio and video signals are transmitted with ultra-low latency, even in 1080p60, providing a visually lossless and engaging experience for your viewers.

Configure Ranger from PC or Phone

Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
Bluetooth 5 LE connection support
Pair transmitters and receivers with the touch of a button
Measure and analyze the frequency and amplitude of a signal
View live channel strength for licensed/unlicensed bands
Monitor your live RF spectrum bandwidth

Wide Transmission Frequency Range

With the number of wireless devices on the rise, and a limited amount of frequency bands to choose from, there is little room for your signal to move without interference or disruption. But with Ranger, you have options: 5 GHz for general use, licensed band frequencies for special events, and the new 6 GHz U-NII-5 band for 12 new channels of uncongested wireless spectrum.

In the Box

Teradek Ranger Micro 750 3G-SDI/HDMI Wireless Transmitter
2 x N-Type Antenna
Limited 1-Year Manufacturer Warranty

Teradek Ranger Micro Specs

Key Specs

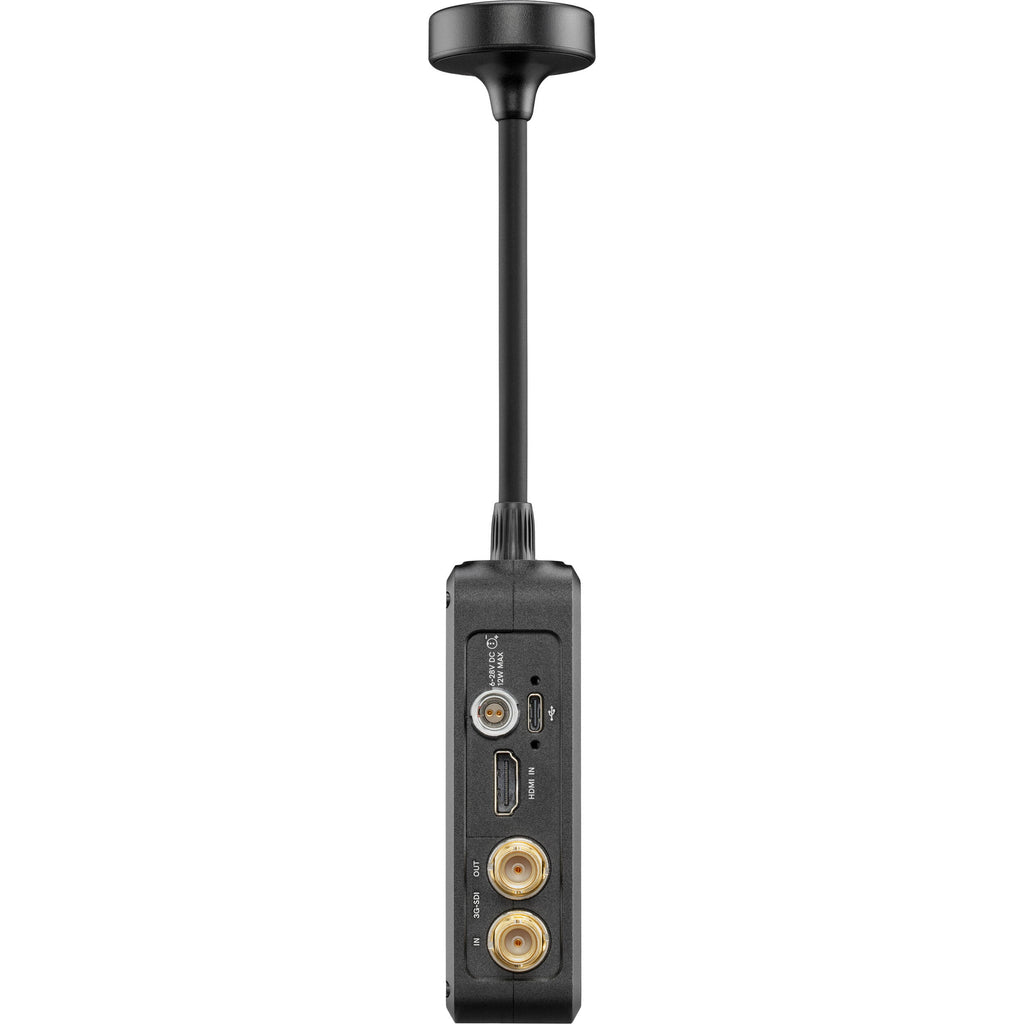

Video I/O	1x HDMI 2.0 Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Latency	< 0.01 ms
Video Format	HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Power Consumption	9 W
Mounting	1x 1/4"-20 Female

Inputs / Outputs

Antenna I/O	2x RP-SMA Female
Video I/O	1x HDMI 2.0 Input 1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Audio I/O	No
Power I/O	1x LEMO 2-Pin (28 VDC) Input
Other I/O	1x USB-C (Firmware) Input
Encryption	256-Bit AES

Wireless

Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	US: 5.92 to 6.42 GHz US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz
Latency	< 0.01 ms
RF Power	23 dBm
Wi-Fi	No
Bluetooth	5.0 LE
Mobile App Compatible	Yes: Android & iOS Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
Cellular Support	No

Format Support

Video Format	HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Video Standard Compliance	SMPTE 424M
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Power

DC Input Power	7 to 28 VDC
Power Consumption	9 W

Mounting

1x 1/4"-20 Female

Environmental

Operating Temperature

32 to 72°F / 0 to 40°C

General

Material of Construction	Aluminum, Polycarbonate
Dimensions	4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Weight	7.3 oz / 206 g

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.

Quantity	Price
2	₹ 529729.2
3-5	₹ 524323.8
5-10	₹ 513513.0
10+	₹ 502702.2

Bulk discount will be automatically applied during checkout based on quantity.
