Description
Teradek Ranger Micro Overview

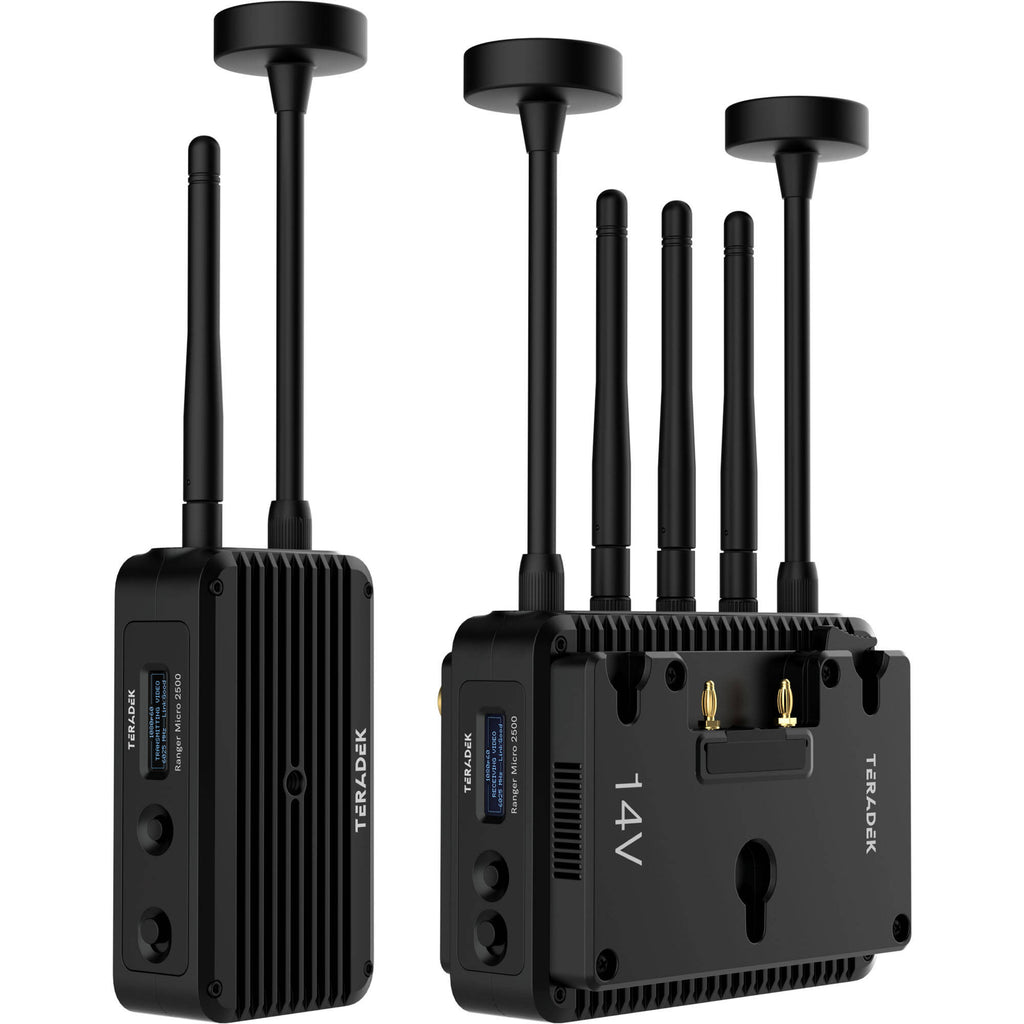

Add a full wireless transmission kit to your rig to transmit lossless HD video up to 5000' with the Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter/Receiver Kit from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter/receiver set can input up to 1080p60 video over HDMI or 3G-SDI and transmit up to 5000' away to the receiver, which can output to HDMI or 3G-SDI.
The set supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. You can set up the set using a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration. Each unit is powered using a 2-pin DC input and the receiver can be powered using the included Gold mount battery plate.
Read more below about the items in this kit.

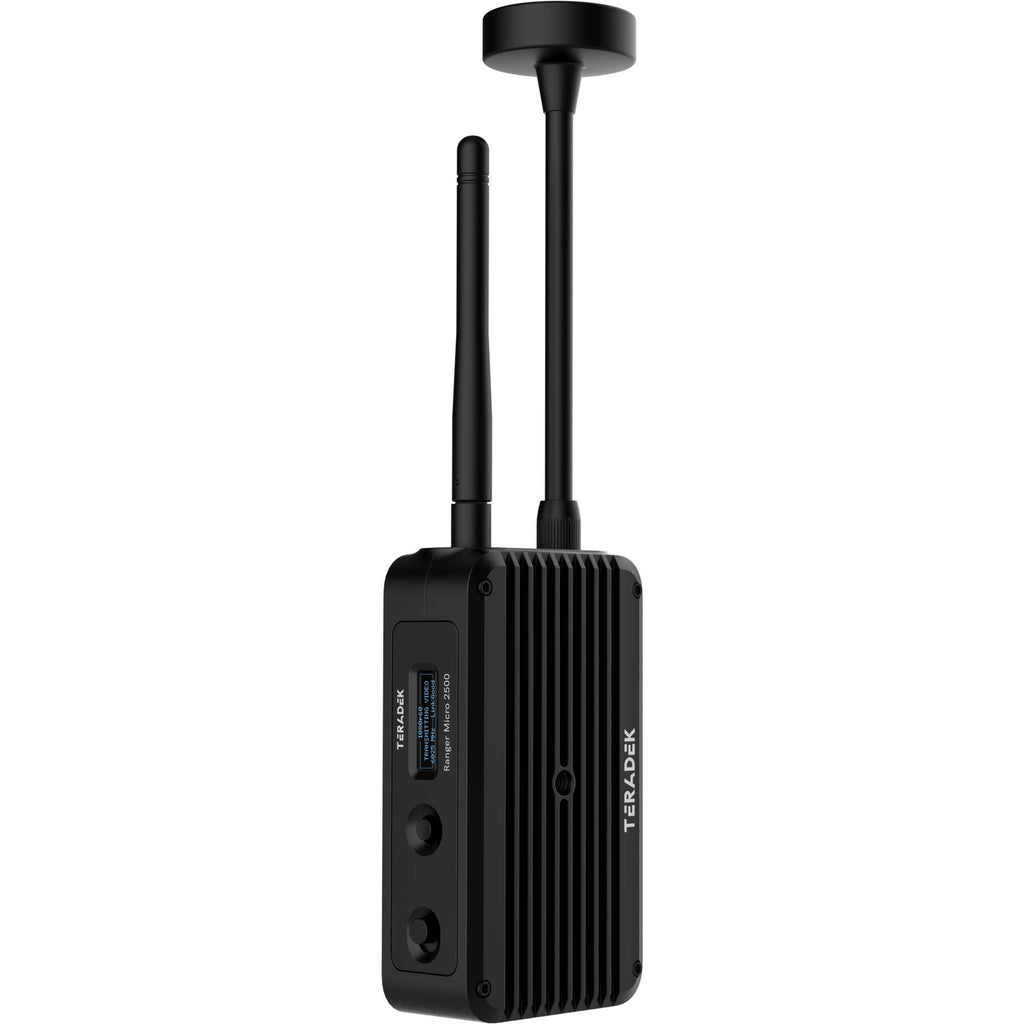

Transmit lossless HD video up to 5000' with the Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this transmitter can input up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support and transmit up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum. The transmitter unit provides a powerful signal that can travel up to 5000' line of sight. It also features an SDI loop output for local monitoring, and one horizontal and one vertical N-type antenna.
The transmitter supports transmission of up to 1080p60 video to up to six receivers and features built-in AES-256 encryption protects your video from prying eyes. It can transmit visually lossless video to any Ranger series receiver with zero delay. The transmitter supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The unit is powered using a 2-pin DC input, and there are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.
- Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
- Bluetooth 5 LE connection support
- Pair transmitters and receivers with the touch of a button
- Measure and analyze the frequency and amplitude of a signal
- View live channel strength for licensed/unlicensed bands
- Monitor your live RF spectrum bandwidth

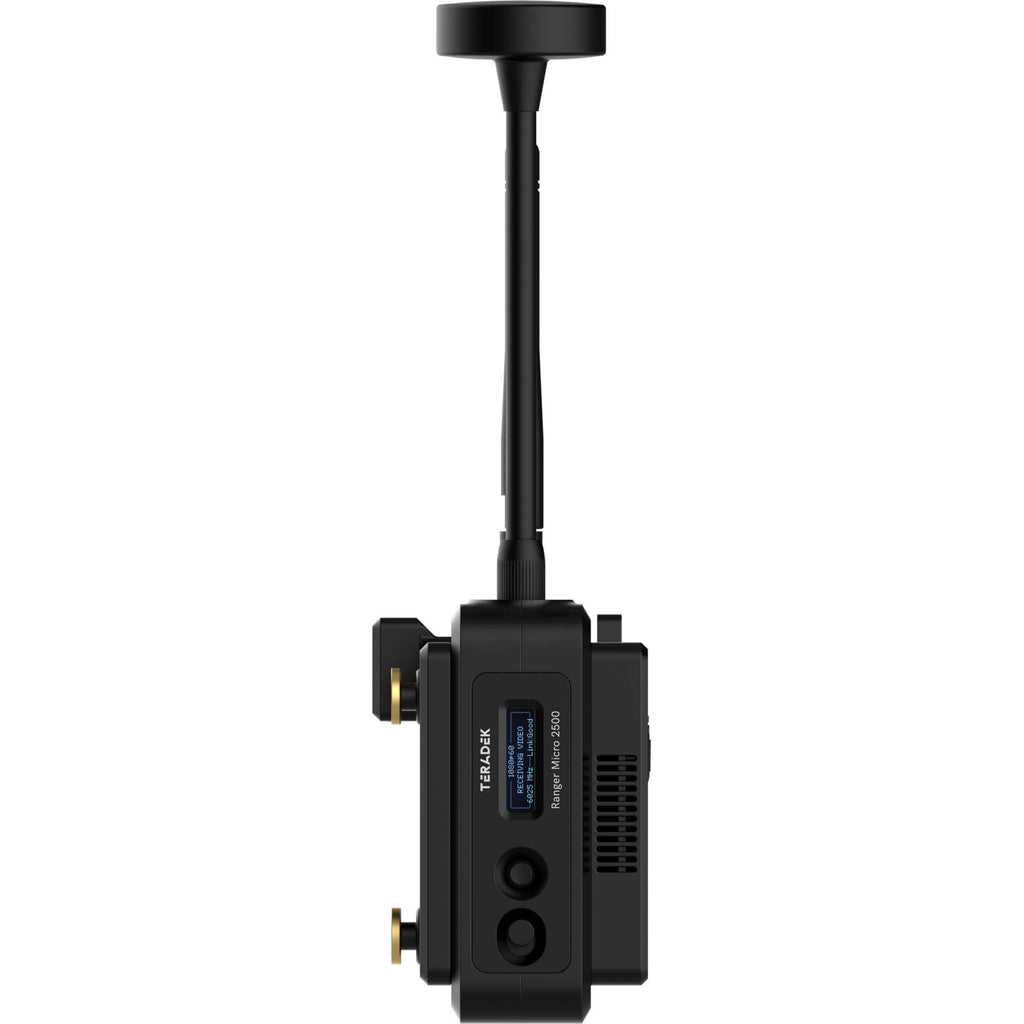

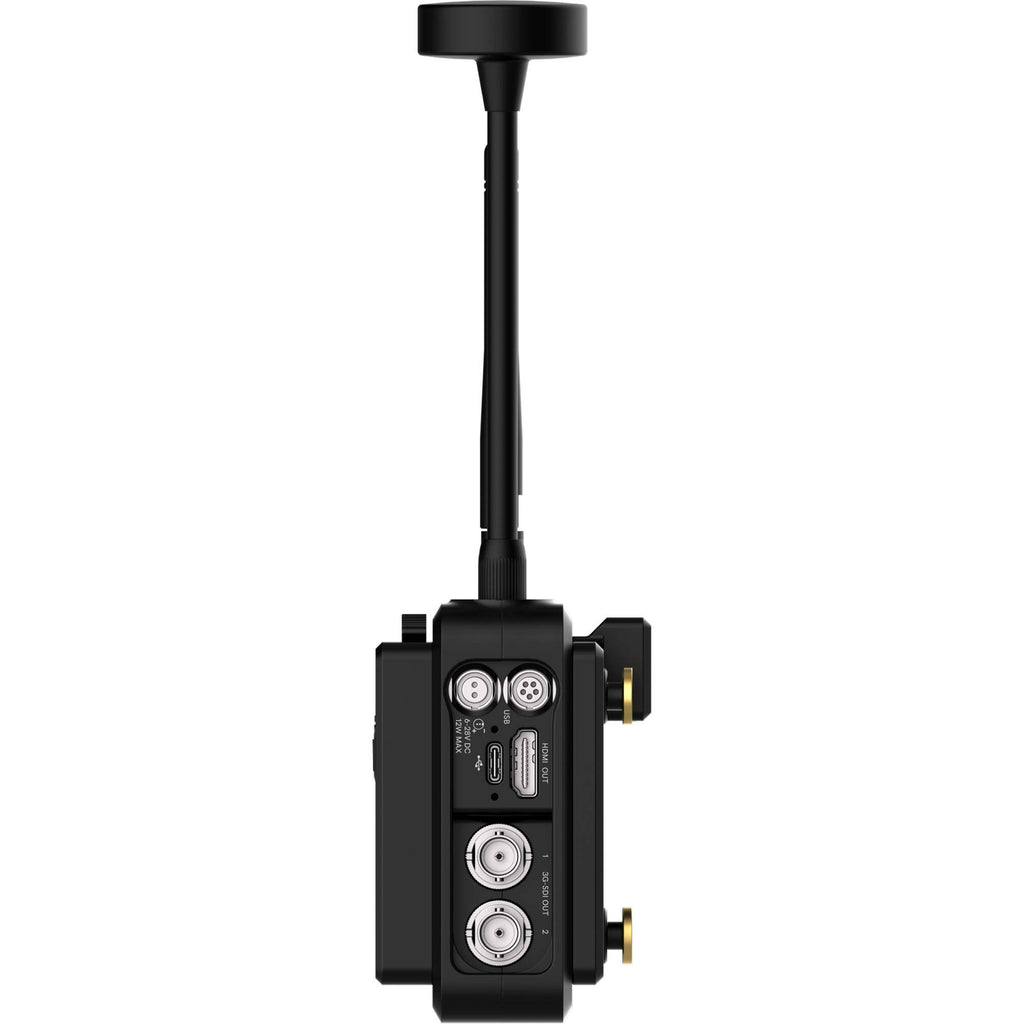

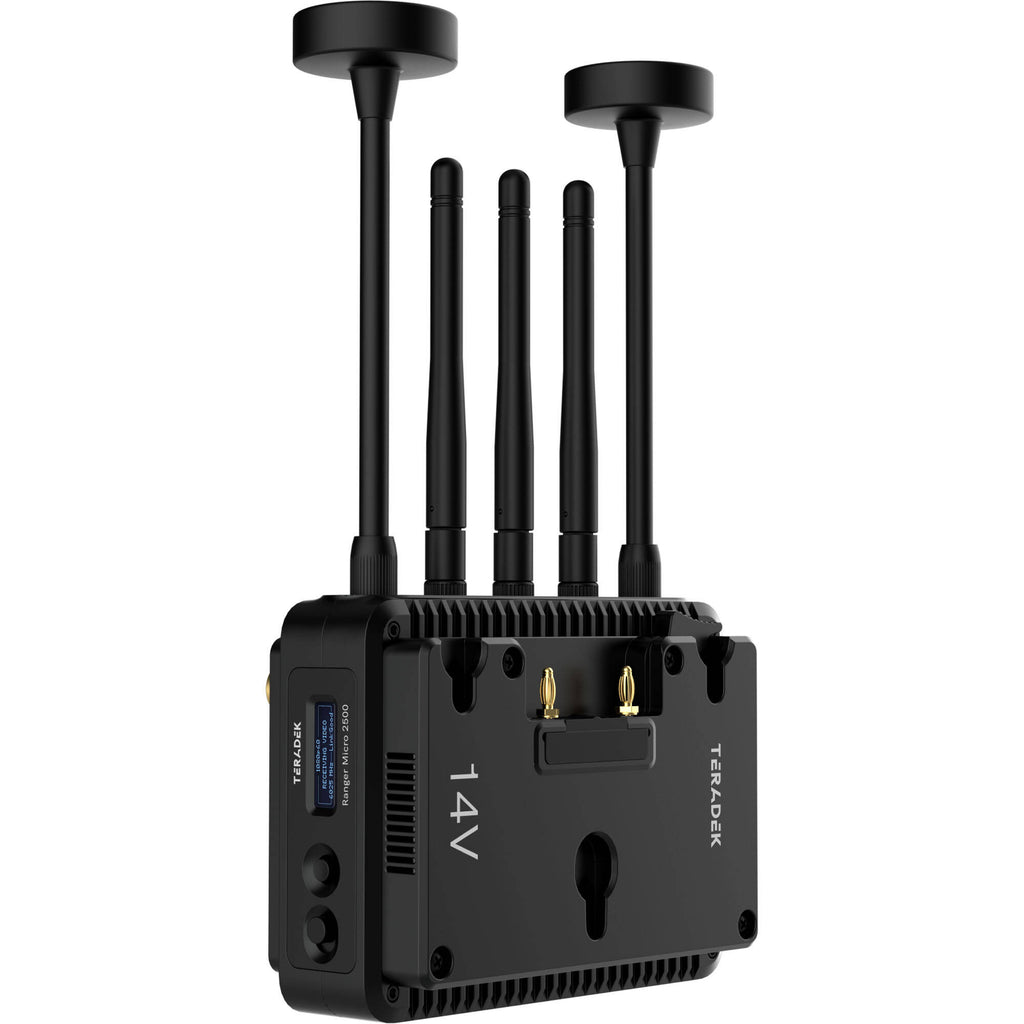

Transmit lossless HD video up to 5000' with the Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 5000' line of sight. It also features five external antennas.
When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

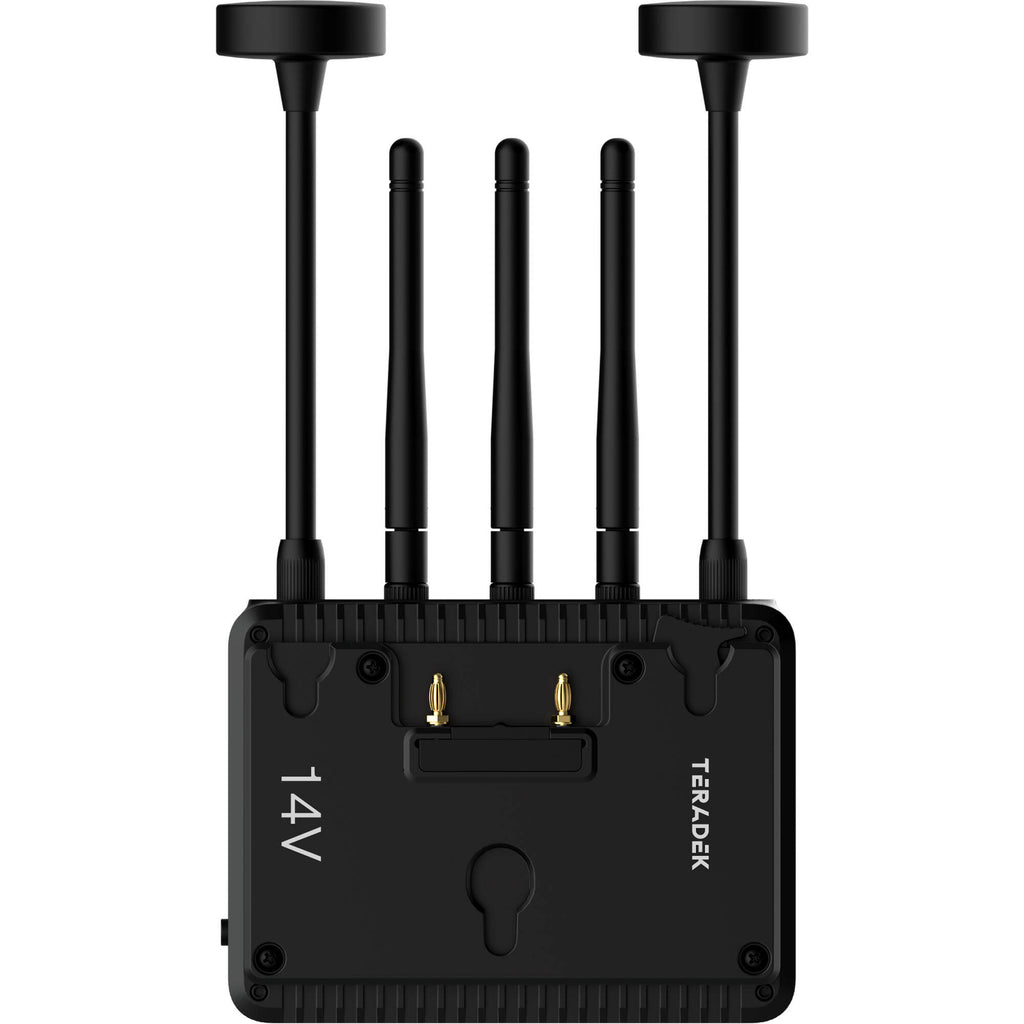

The unit is powered using a 2-pin DC input or via the included Gold mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.
- Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
- Bluetooth 5 LE connection support
- Pair transmitters and receivers with the touch of a button
- Measure and analyze the frequency and amplitude of a signal
- View live channel strength for licensed/unlicensed bands
- Monitor your live RF spectrum bandwidth
In the Box
- Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter
- 2 x N-Type Antenna
- Limited 1-Year Manufacturer Warranty
- Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver (Gold Mount)
- 5 x 2 dBi Antenna
- Gold Mount Battery Plate
Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Transmitter Specs
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel |
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Power Consumption |
9 W
|
| Mounting |
1x 1/4"-20 Female
|
| Antenna I/O |
2x RP-SMA Female
|
| Video I/O |
1x HDMI 2.0 Input
1x BNC (3G-SDI) Input 1x BNC (3G-SDI) Loop Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel |
| Audio I/O |
No
|
| Power I/O |
1x LEMO 2-Pin (28 VDC) Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Encryption |
256-Bit AES
|
| Wireless Range |
5000' / 1524 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency |
< 0.01 ms
|
| RF Power |
23 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
5.0 LE
|
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Cellular Support |
No
|
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance |
SMPTE 424M
|
| Audio Format |
2-Channel 24-Bit 48 kHz
|
| Wireless Video Compression |
Uncompressed
|
| Timecode Support |
Yes
|
| DC Input Power |
7 to 28 VDC
|
| Power Consumption |
9 W
|
| Mounting |
1x 1/4"-20 Female
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
|
| Weight |
7.3 oz / 206 g
|
Teradek Ranger Micro 5000 3G-SDI/HDMI Wireless Receiver (Gold Mount) Specs
| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel |
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Battery Type |
1x Gold Mount
|
| Power Consumption |
11 W
|
| Mounting |
1x 1/4"-20 Female
|
| Antenna I/O |
5x RP-SMA Female
|
| Video I/O |
