Description
Teradek Ranger Micro Overview

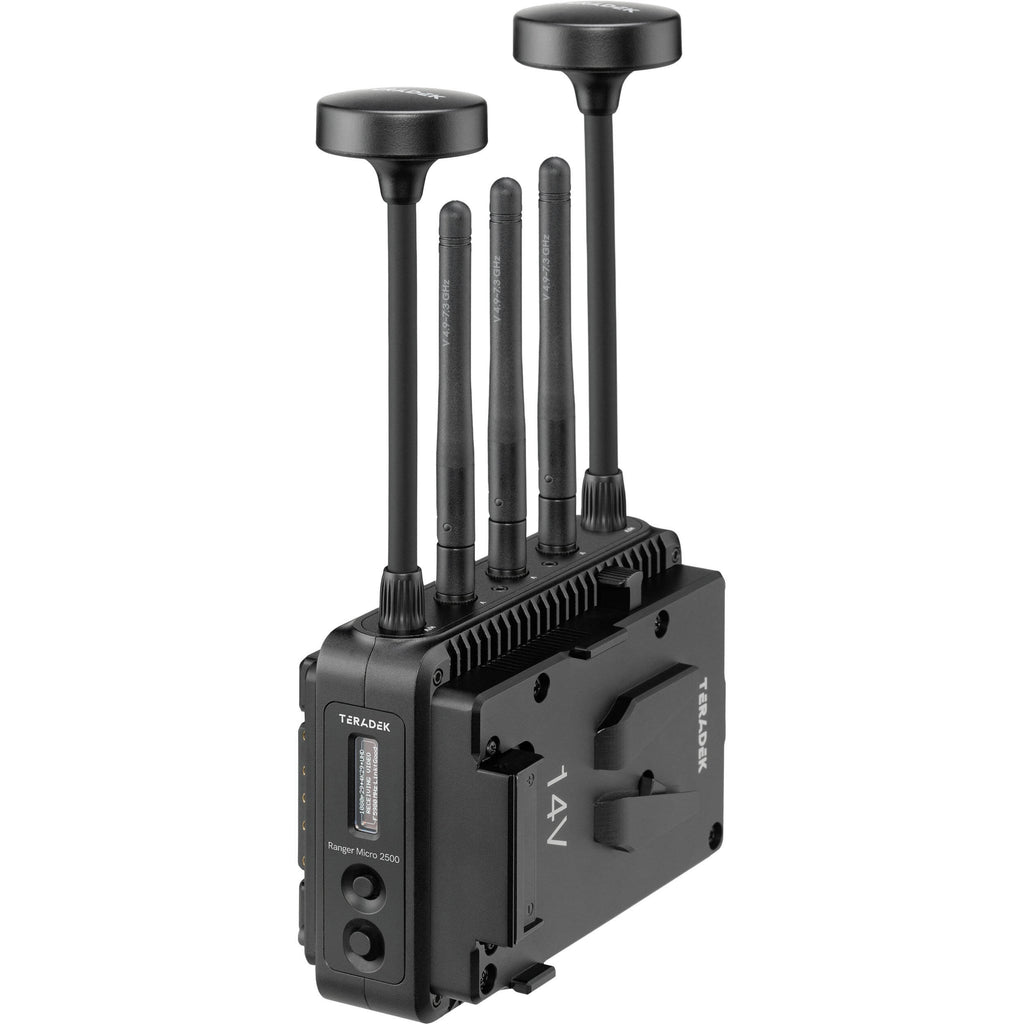

Transmit lossless HD video up to 2500' with the Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver from Teradek. Redesigned for broadcast, event, drone, and handheld applications, this receiver can receive up to 1080p60 video over a wide 4.9 to 6.4 GHz wireless range, including licensed and unlicensed bands in the 6 GHz U-NII 5 spectrum, and it can output up to 1080p60 video over HDMI or 3G-SDI with 10-bit HDR support. The receiver unit supports a powerful signal that can travel up to 2500' line of sight. It also features five external antennas.
When pairing with a Ranger transmitter, this unit can receive up to 1080p60 video alongside up to five other receivers, and it features built-in AES-256 encryption protects your video from prying eyes. It can receive visually lossless video from any Ranger series receiver with zero delay. The receiver supports a desktop Launchpad software application or the Launchpad app for iOS or Android that easily connects via Bluetooth 5, which both provide a spectrum analyzer, channel selection tools, and remote configuration.
The unit is powered using a 2-pin DC input or via the included V-mount battery plate, and there are 1/4"-20 and M3 mounting threads to mount onto a variety of cameras, cages, or rigs.
- Install the Launchpad app on your macOS or Windows computer, or on iOS/Android phone
- Bluetooth 5 LE connection support
- Pair transmitters and receivers with the touch of a button
- Measure and analyze the frequency and amplitude of a signal
- View live channel strength for licensed/unlicensed bands
- Monitor your live RF spectrum bandwidth
In the Box
- Teradek Ranger Micro 2500 3G-SDI/HDMI Wireless Receiver (V-Mount)
- 5 x 2 dBi Antenna
- V-Mount Battery Plate
Teradek Ranger Micro Specs
| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel |
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Battery Type |
1x V-Mount
|
| Power Consumption |
11 W
|
| Mounting |
1x 1/4"-20 Female
|
| Antenna I/O |
5x RP-SMA Female
|
| Video I/O |
1x HDMI 2.0 Output
1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI: 2-Channel
SDI: 2-Channel |
| Audio I/O |
No
|
| Power I/O |
1x LEMO 2-Pin (28 VDC) Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Encryption |
256-Bit AES
|
| Wireless Range |
2500' / 762 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
US: 5.92 to 6.42 GHz
US: 4.85 to 5.15 GHz US: 5.35 to 5.47 GHz US: 5.85 to 5.92 GHz Non-DFS Frequencies US: 5.15 to 5.25 GHz US: 5.72 to 5.85 GHz DFS Frequencies US: 5.25 to 5.35 GHz US: 5.47 to 5.72 GHz |
| Latency |
< 0.01 ms
|
| RF Power |
21 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
5.0 LE
|
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed |
| Cellular Support |
No
|
| Video Format |
HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC)
1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Video Standard Compliance |
SMPTE 424M
|
| Audio Format |
2-Channel 24-Bit 48 kHz
|
| Wireless Video Compression |
Uncompressed
|
| Timecode Support |
Yes
|
| DC Input Power |
7 to 28 VDC
|
| Battery Type |
1x V-Mount
|
| Power Consumption |
11 W
|
| Mounting |
1x 1/4"-20 Female
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm
|
| Weight |
10.3 oz / 292 g
|
