Teradek MDR.S Overview

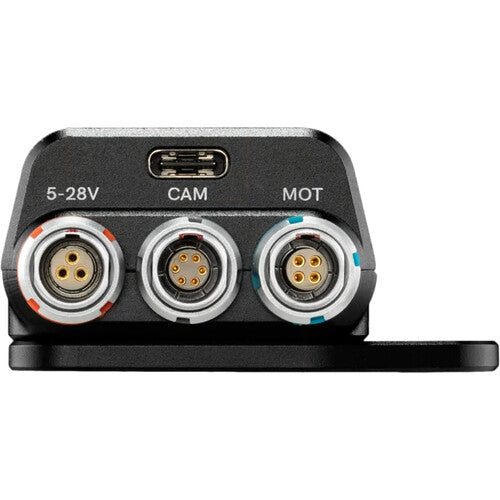

With 3-channel lens control in an ultracompact form factor, the MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth from Teradek allows you to control compatible RT motors for wireless focus, iris, and zoom functionality. The MDR.S has FHSS wireless technology that prevents interference and a 5000' line of sight range. A 6-pin port on the receiver allows you to trigger run/stop on the camera from your connected hand unit.

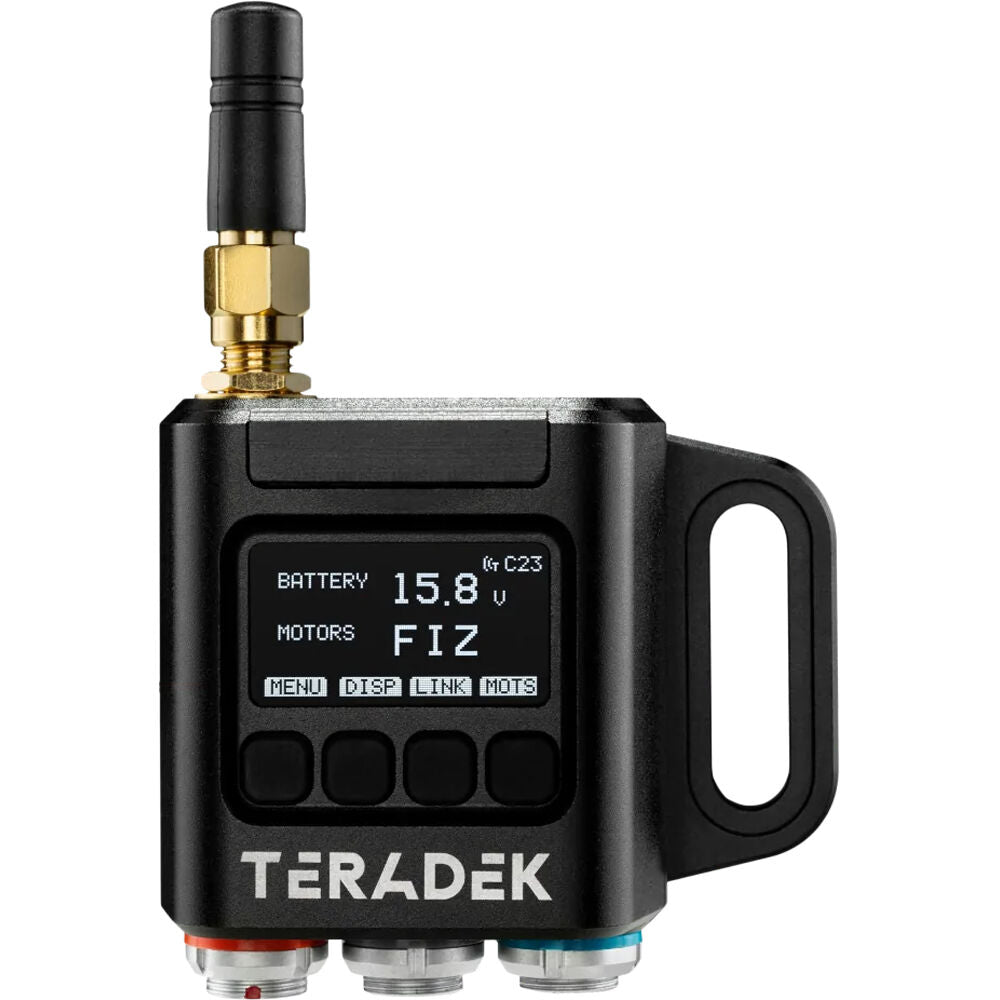

The MDR.S features a built-in OLED display with four buttons for control over various functions. Further parameters can be controlled via the device's integrated Bluetooth and the Teradek RT smartphone app. A 28V input range allows you flexibility in powering the receiver.
- Daisy-chain up to three motors
- 28V input range increases power compatibility
- Remotely configure lens maps and more settings via the Teradek RT app
- Replace and customize the external antenna
- Integrated overlays for SmallHD monitors to display lens information like focus distance, focal length, iris, zoom, etc.
- Onboard buttons toggle menu, display, link, and motors
- OLED displays battery and motor information
In the Box
- Teradek MDR.S Compact 3-Channel Lens Control Receiver with Bluetooth
- USB 2.0 Type-A to Type-C Male Cable (3.3')
- Teradek RT Power 3-Pin D-Tap Cable
- Straight 2.4 GHz Wi-Fi Antenna
- MDR.S Bracket
- Black Screw Socket Head (M2 x 6mm)
- Screw Socket Cap (1/4"-20 x 3/8"-16)
Teradek MDR.S Specs
Display
| Panel Type |
OLED |
| Size |
Not Specified by Manufacturer |
| Touchscreen |
No |
Inputs / Outputs
| USB I/O |
1 x USB-C Female Input |
| Video I/O |
1 x Mini Hirose 6-Pin Input
1 x Mini-DIN 4-Pin Input |
Power
| Power Source |
Proprietary Interface |
| DC Input Power |
5 to 28 VDC |
Physical
| Mounting |
1 x Rail |
| Color |
Black |
| Dimensions |
2.3 x 1.7 x 0.9" / 58 x 42 x 24 mm |
| Weight |
2.4 oz / 68 g |
Packaging Info
| Package Weight |
0.545 lb |
| Box Dimensions (LxWxH) |
5.9 x 4.25 x 2.3" |
Teradek MDR.S Reviews
Mdrs
By Christopher
Rated 5 out of 5
Date: 2022-08-28
Worth it for a light weight set up. Makes mounting on a gimbal, handheld or steadicam easy and compact. Mounting point can't be rotated 360 degrees making it versatile for what ever camera you are using.
