Description
Teradek XT MAX Overview
Receive lossless HD video from up to 5000' away along line of sight with the Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver from Teradek. The unit can wirelessly receive up to DCI 4K60 video with 10-bit HDR support, features a bright OLED display, and features HDMI and 12G-SDI outputs. This line supports the 6 GHz wireless band, which is now freely available. It also supports camera control with optional firmware via its 5-pin USB output. The unit comes with a Gold mount battery plate so it can be powered using an optional high-capacity Gold mount battery.
The receiver supports transmissions of up to DCI 4K60 video from any Bolt 6 or Bolt 4K series transmitter, which can simultaneously transmit to up to six receivers and has an improved long-range mode. It features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption and RSA 1024 key pairing protect your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 XT system also supports the transmission of time code and start/stop triggers.
Though it can receive visually lossless video from any Bolt 4K series transmitter with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. The receiver also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20 and M3 mounting threads to mount your receiver on a variety of monitors or rigs.
In the Box
- Teradek Bolt 6 XT MAX 12G-SDI/HDMI Wireless Receiver (Gold Mount)

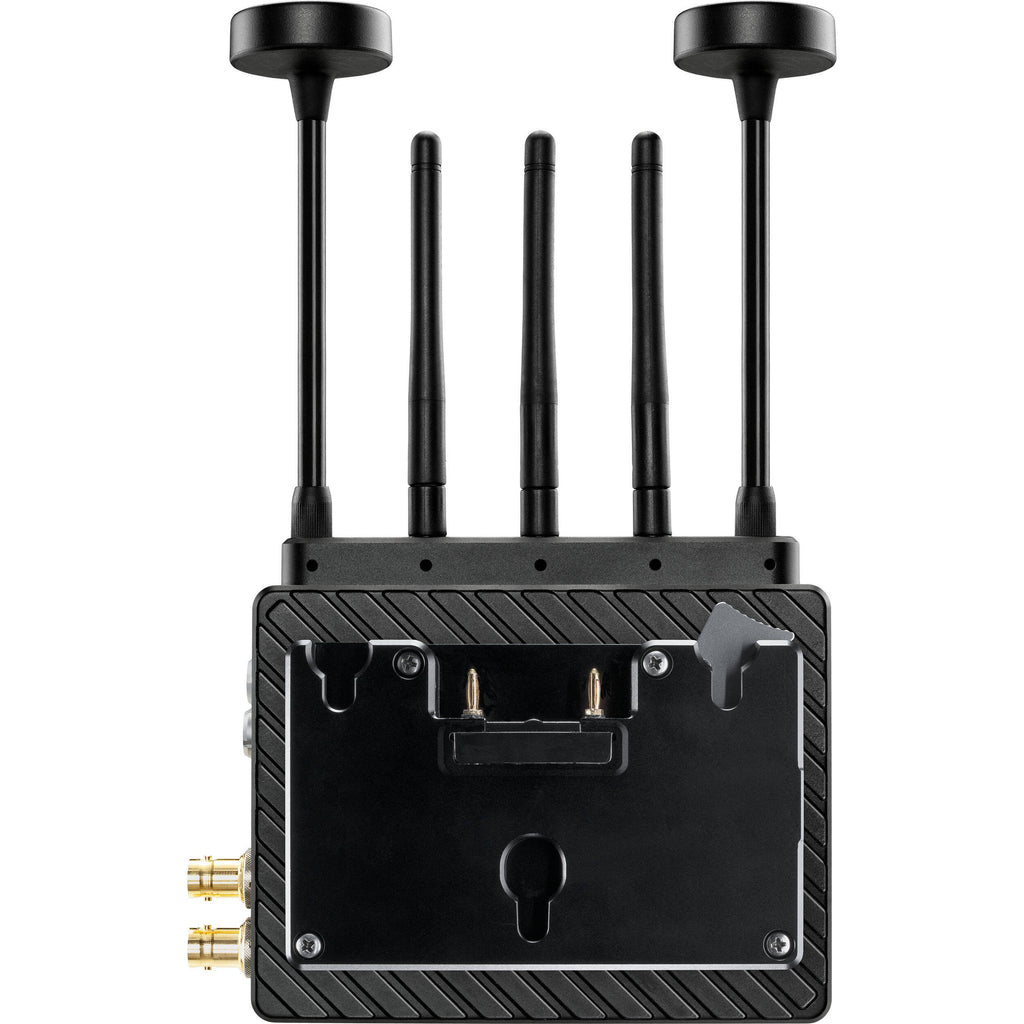

- Gold Mount Battery Plate
- 2-Pin to D-Tap Power Cable (18")
- USB Type-A to Micro-USB Type-B Cable (3')
- Ultrathin HDMI Type A Cable (18")
- BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 5 x Antenna
- Battery Cover
- 2 x Screw
Teradek XT MAX Specs
| Antenna I/O | 5 x RP-SMA Female |
| Video I/O | 1 x HDMI 2.0 Output 1 x BNC (12G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power I/O | 1 x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1 x USB-C Input 1 x LEMO 5-Pin 2.0 Output |
| Encryption | 256-Bit AES |
| Wireless Range | 5000' / 1524 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 21 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Battery Type | 1 x Gold Mount |
| Power Consumption | 18 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 5.5 x 4.4 x 1.1" / 139 x 112 x 27 mm, Excluding Battery Plate |
| Weight | 15.2 oz / 430 g, Excluding |
| Package Weight | 4.23 lb |
| Box Dimensions (LxWxH) | 17 x 8.4 x 3.6" |
