Description
Teradek XT 750 Overview

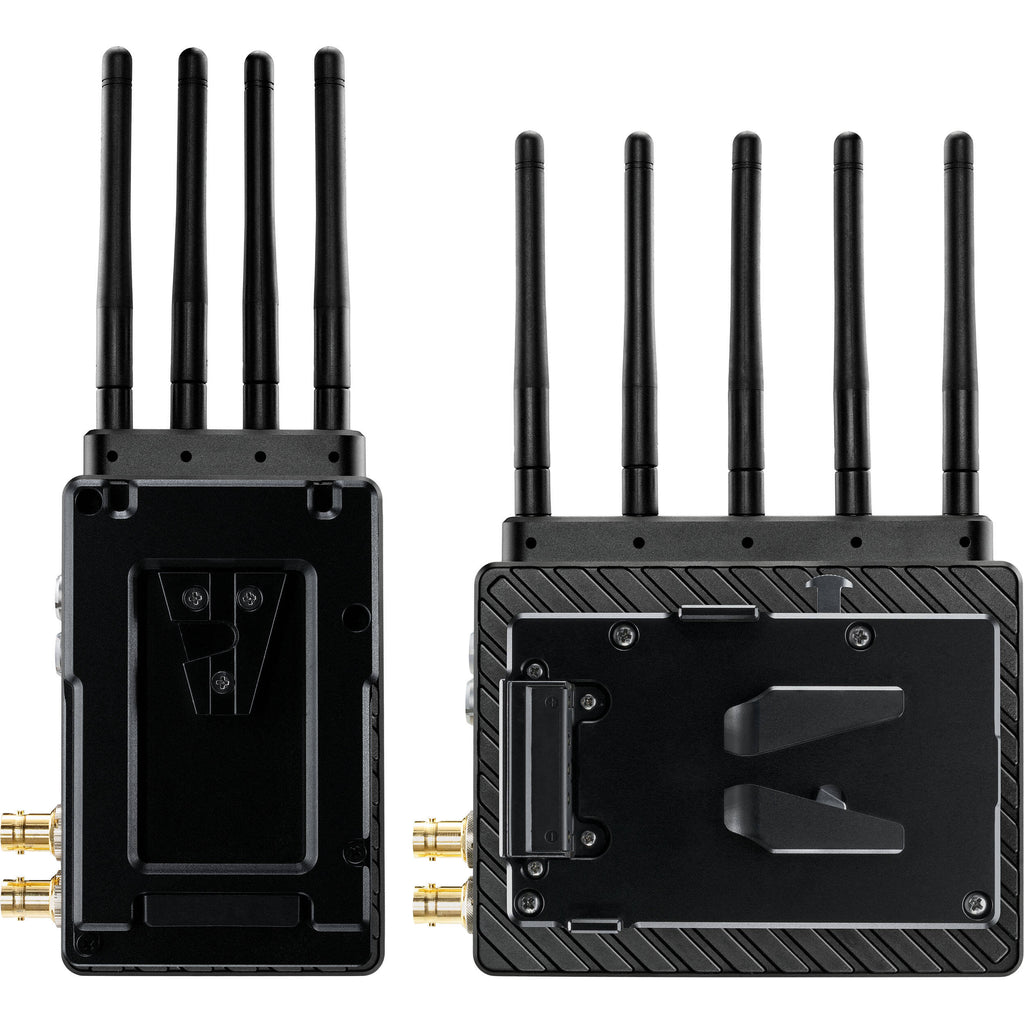

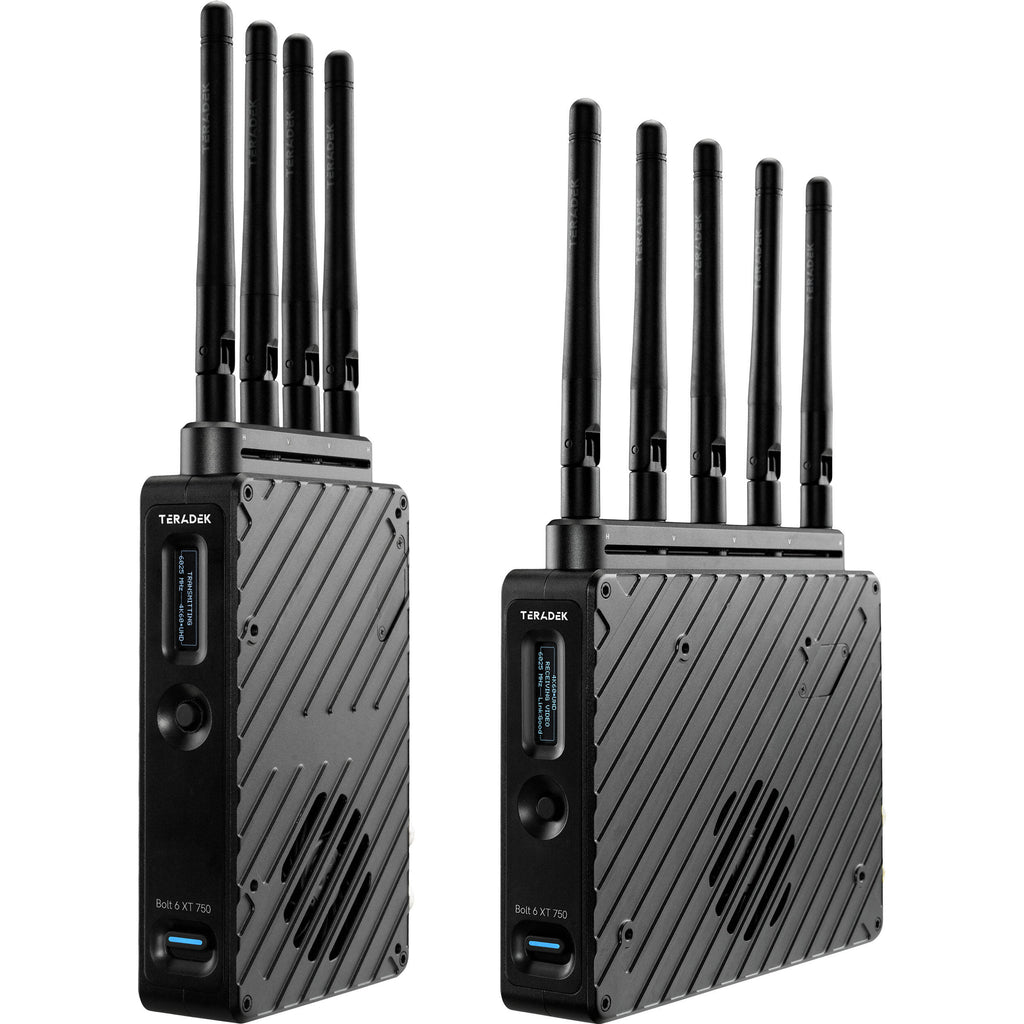

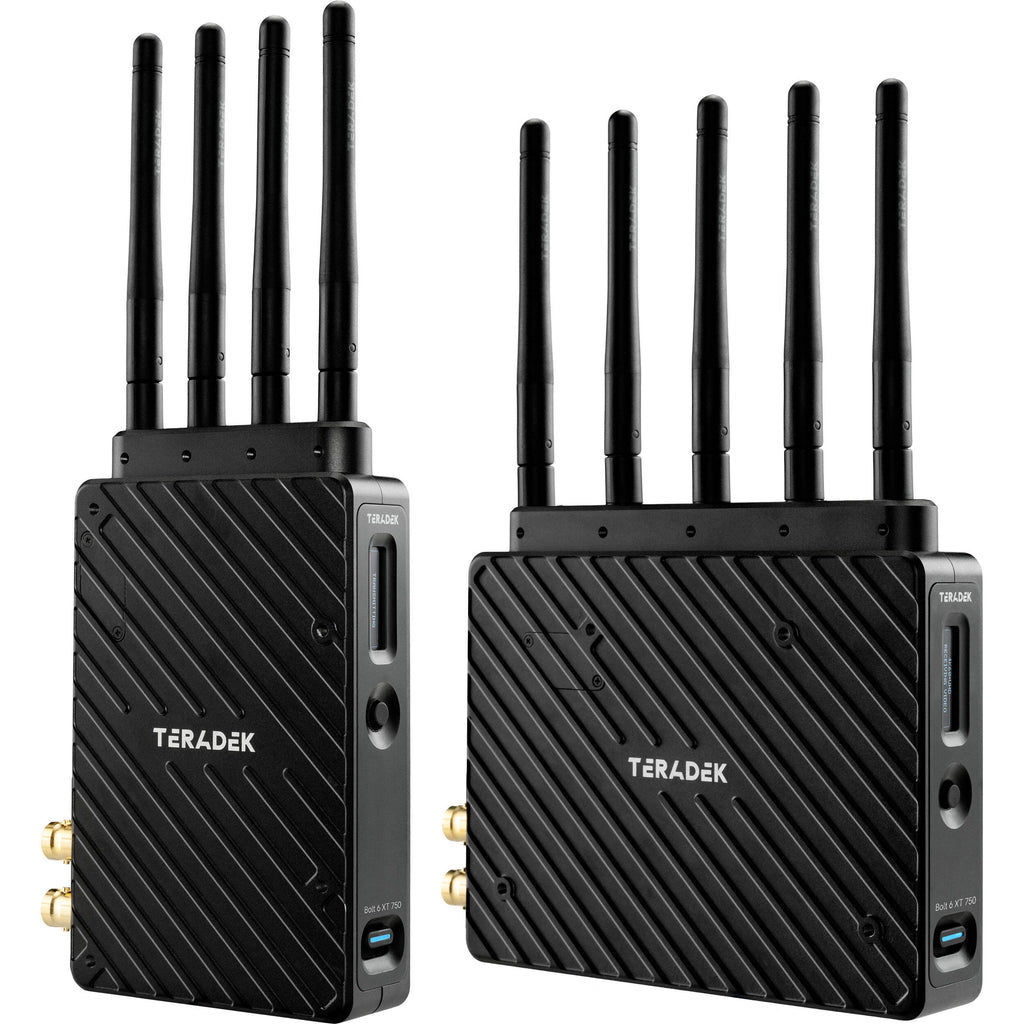

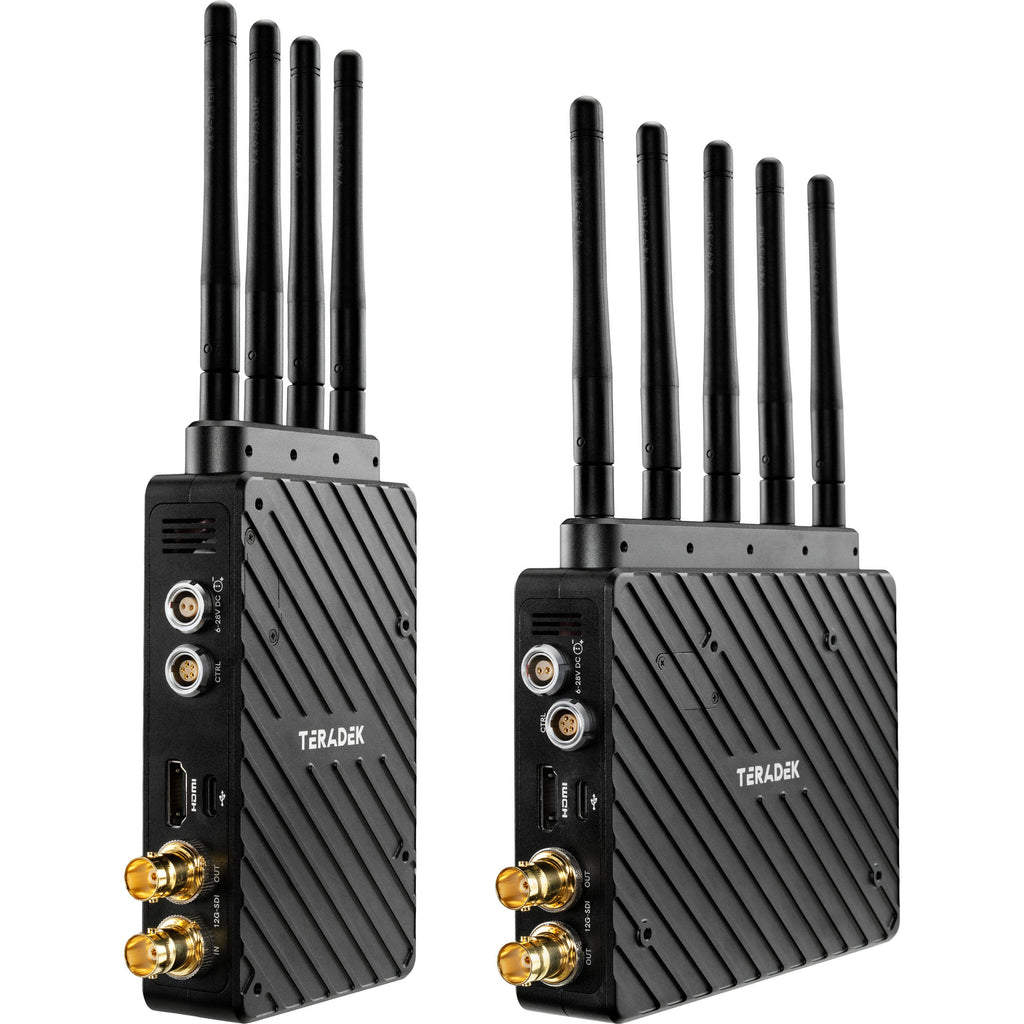

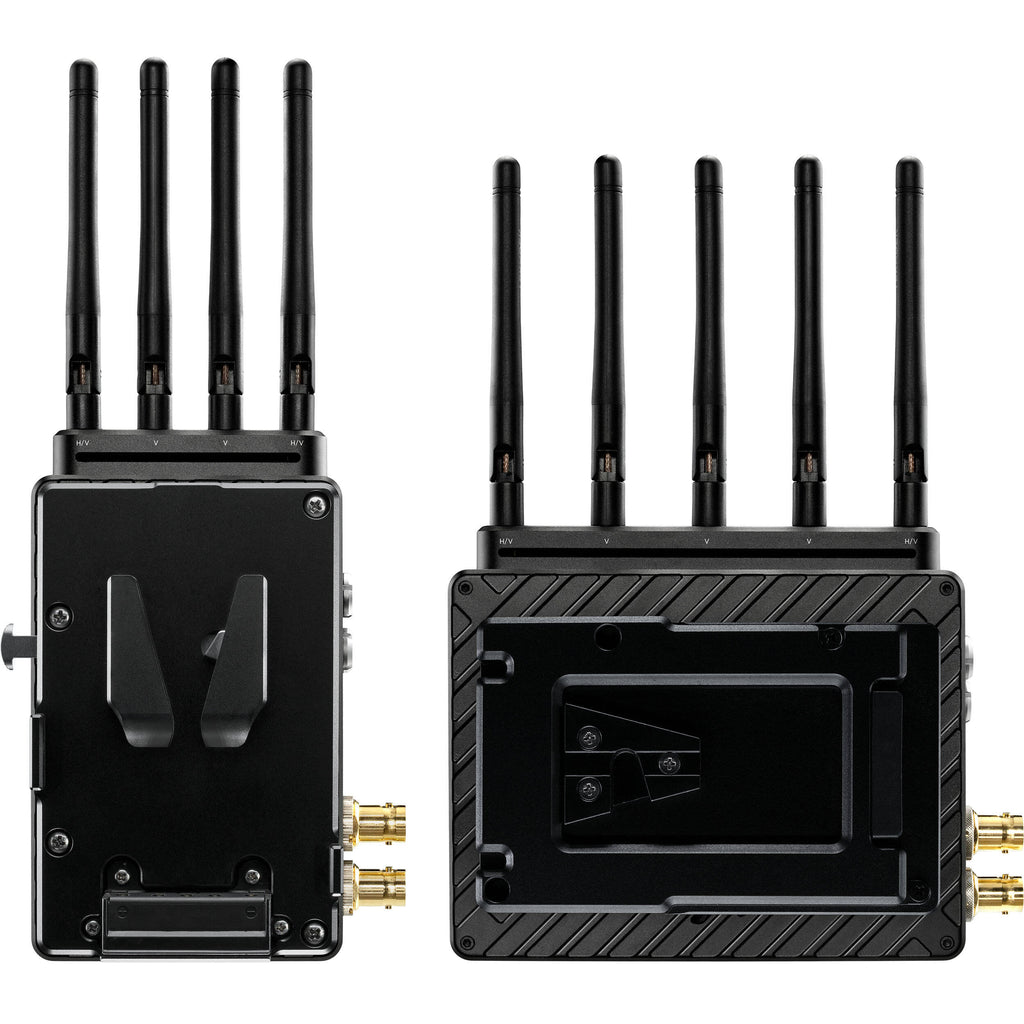

Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit from Teradek. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.
The transmitter sends up to 4K60 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.
The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4"-20, 3/8"-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.
In the Box
- Teradek Bolt 6 XT 750 12G-SDI/HDMI Wireless RX/TX Deluxe Kit (V-Mount)
- Bolt 6 XT 750 12G-SDI/HDMI Transmitter (V-Mount)
- Bolt 6 XT 750 12G-SDI/HDMI Receiver (V-Mount)
- 2 x 2-Pin to D-Tap Power Cable (18")
- Micro-USB to USB Type-A Cable (36")
- 2 x HDMI Type A to HDMI Type A Cable (18")
- 2 x BNC to BNC Cable (18")
- 2-Pin to 2-Pin Cable for ALEXA (18")
- 18W AC Adapter with Cable (6')
- 2 x Bolt Battery Cover (Front)
- 2 x Bolt Battery Cover (Rear)
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Screw Set
- Allen Wrench
- Wooden Camera Monitor Mount
- Carry Case
- 9 x Antenna
Teradek XT 750 Specs
| Antenna I/O | Transmitter: 4 x RP-SMA Female Receiver: 5 x RP-SMA Female |

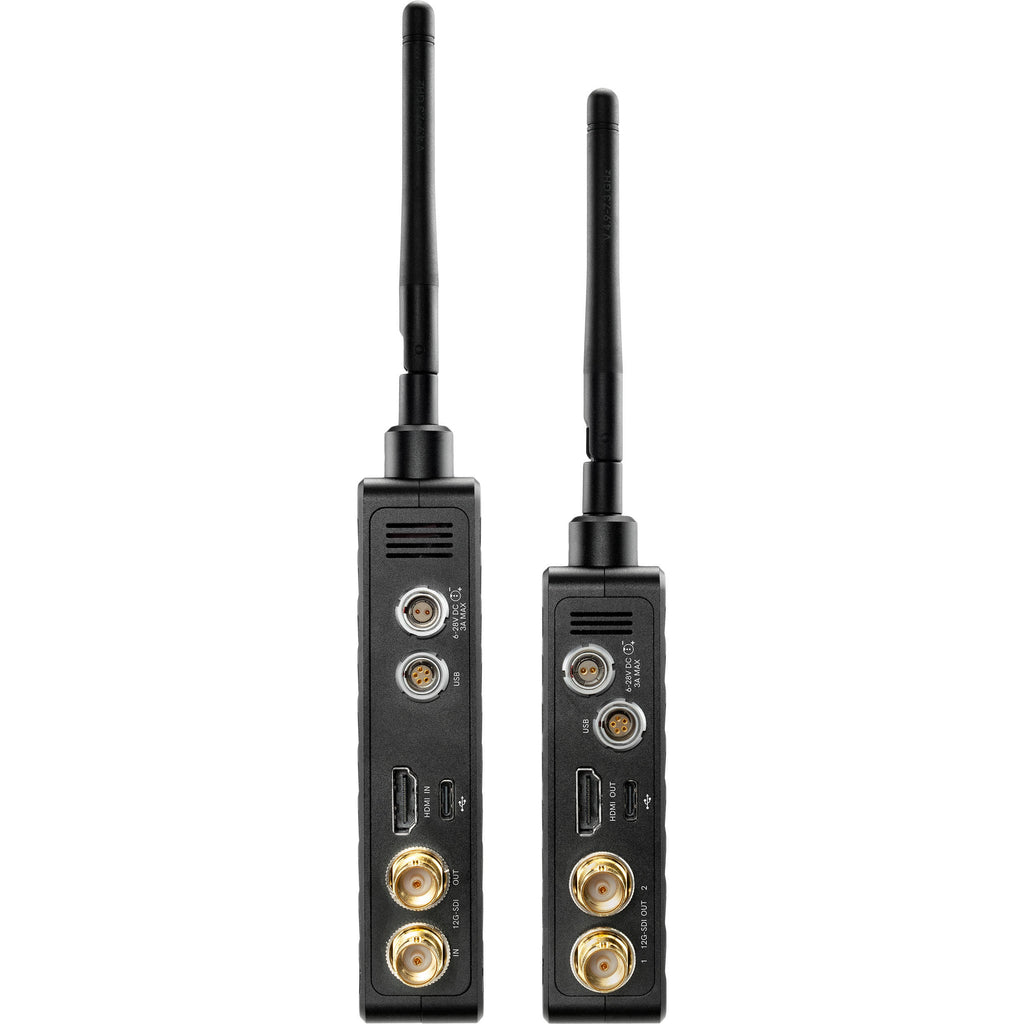

| Video I/O | Transmitter: 1 x HDMI 2.0 Input Transmitter: 1 x BNC (12G-SDI) Input Transmitter: 1 x BNC (12G-SDI) Loop Output Receiver: 1 x HDMI 2.0 Output Receiver: 1 x BNC (12G-SDI) Output |
| Embedded Audio | SDI: 2-Channel HDMI: 2-Channel |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 SDI (8/10-Bit 4:4:4/4:2:2 RGB, YCC) DCI 4K: 60/59.94/50/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 59.94/50 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz LPCM Audio |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
| DC Input Power | 28 VDC |
| Battery Type | Receiver: 1 x V-Mount |
| Power Consumption | Transmitter: 20 W Receiver: 18 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | Transmitter: 5.2 x 3.6 x 1.1" / 132 x 91 x 27 mm Receiver: 5.4 x 4.4 x 1.1" / 138 x 112 x 27 mm |
| Weight | Transmitter: 12.1 oz / 344 g Receiver: 15.2 oz / 430 g |
| Package Weight | 10.405 lb |
| Box Dimensions (LxWxH) | 13.8 x 12.2 x 7.5" |
