Description
Teradek LT MAX Overview

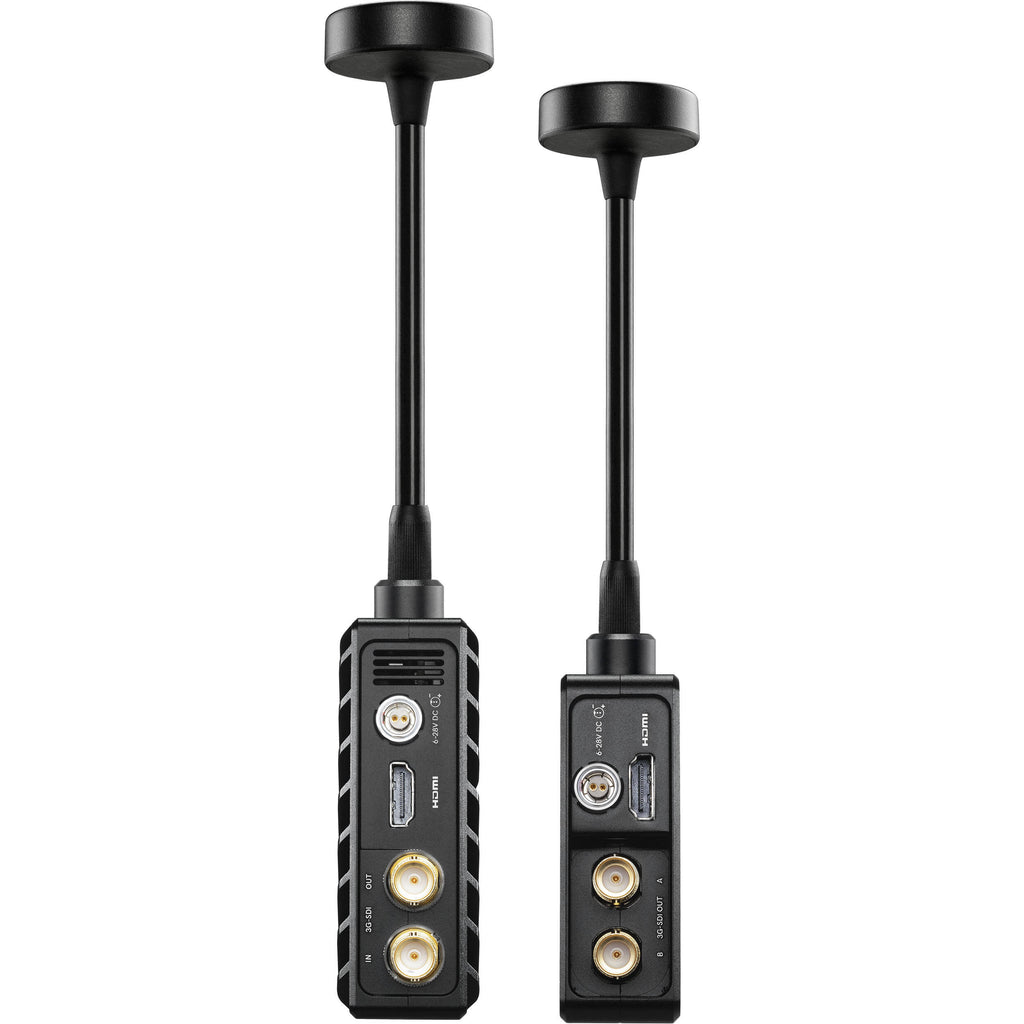

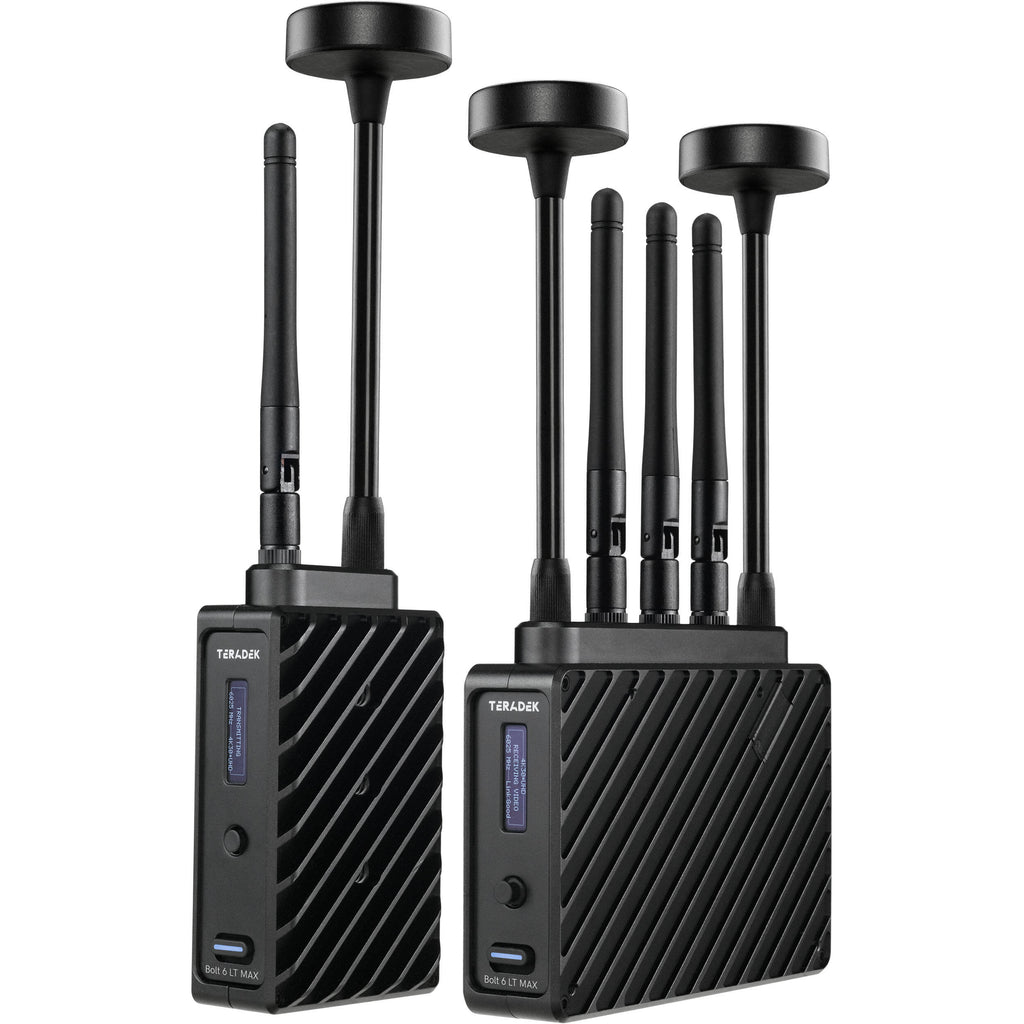

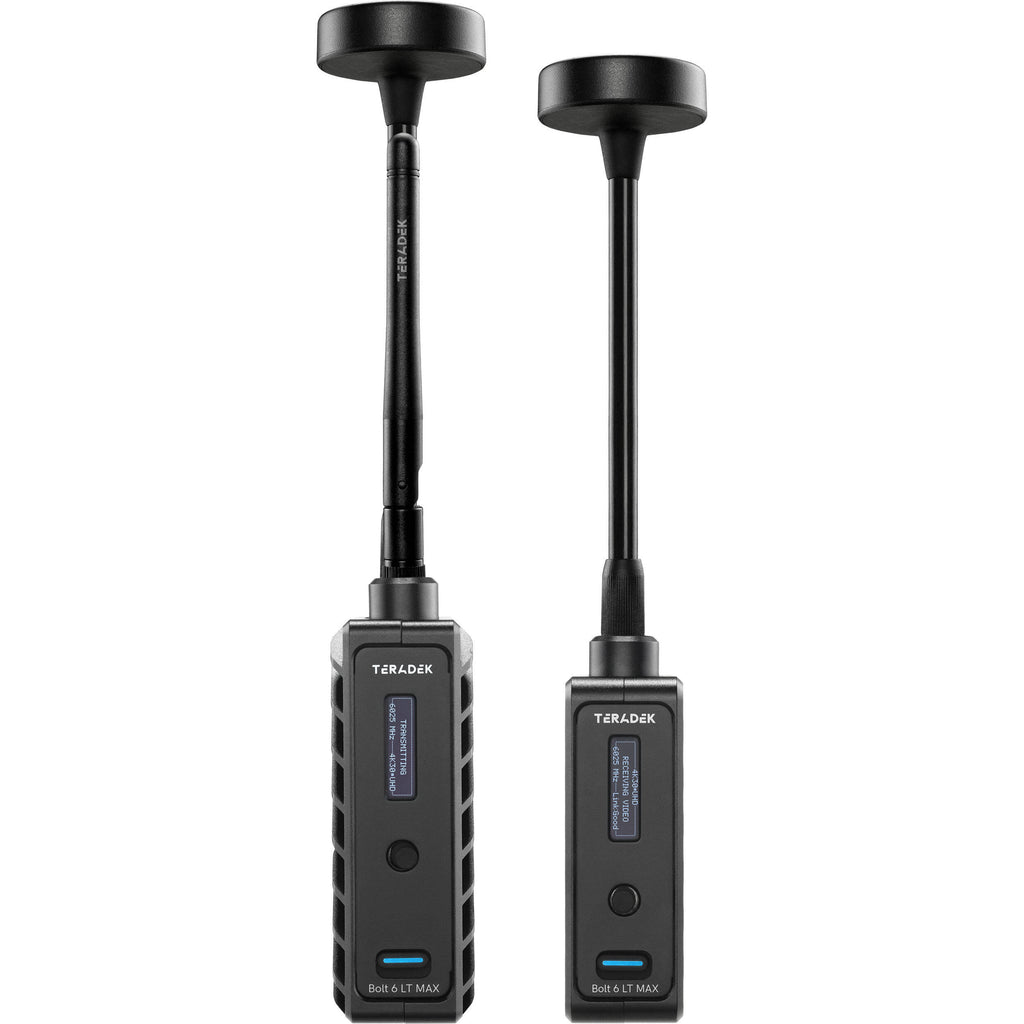

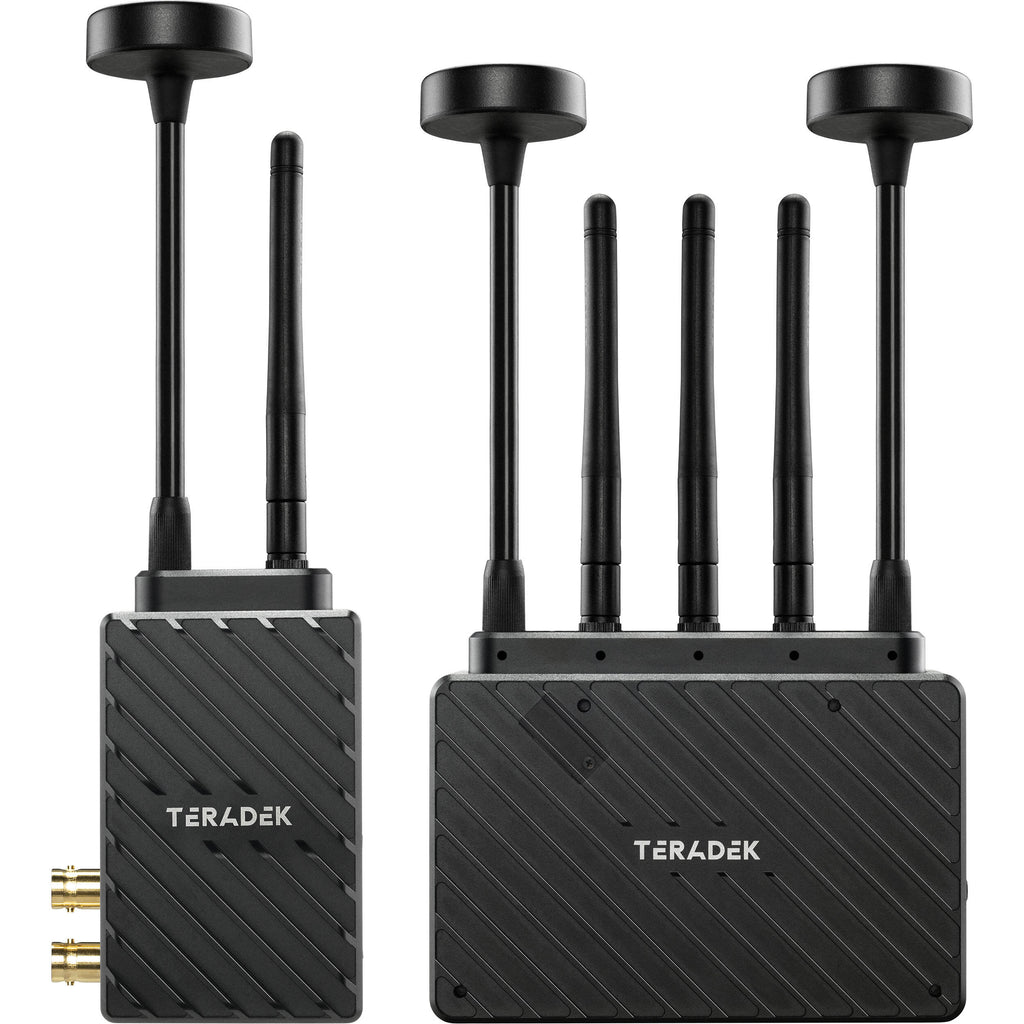

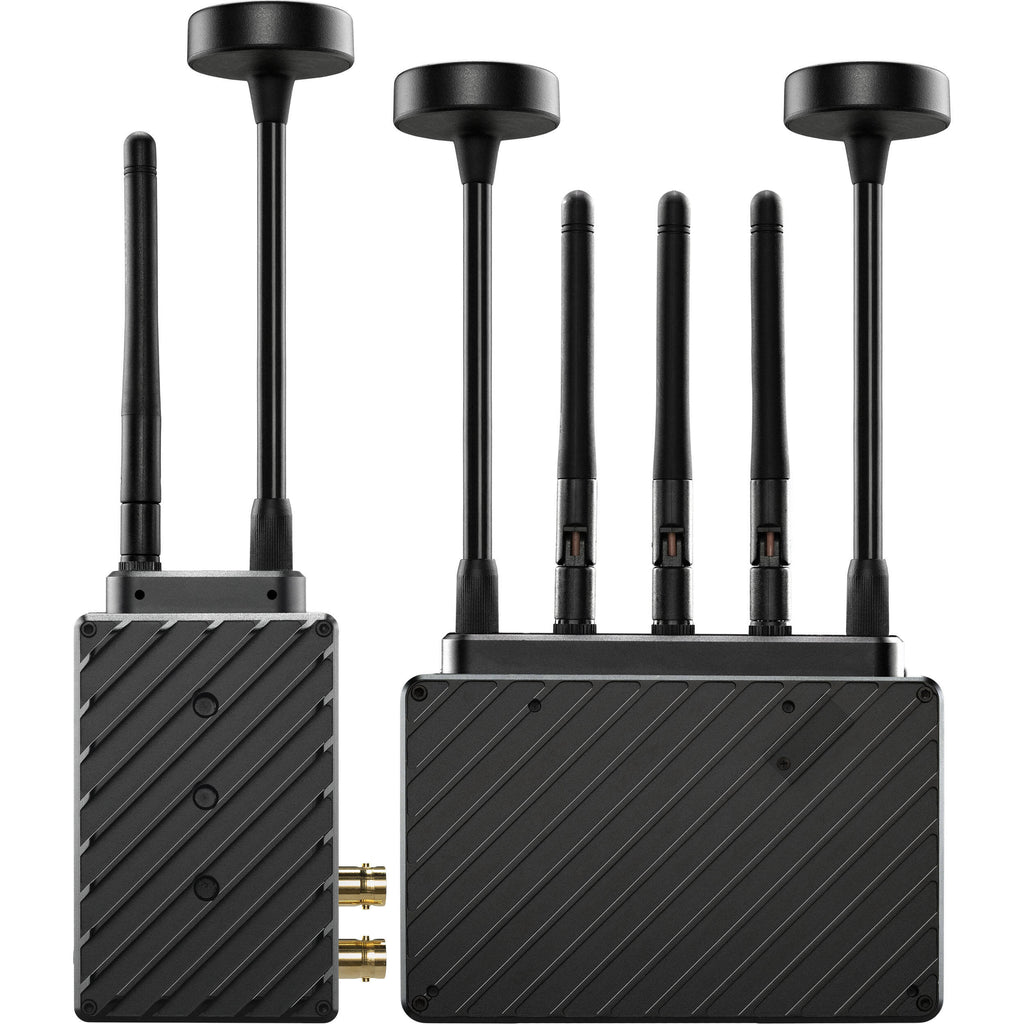

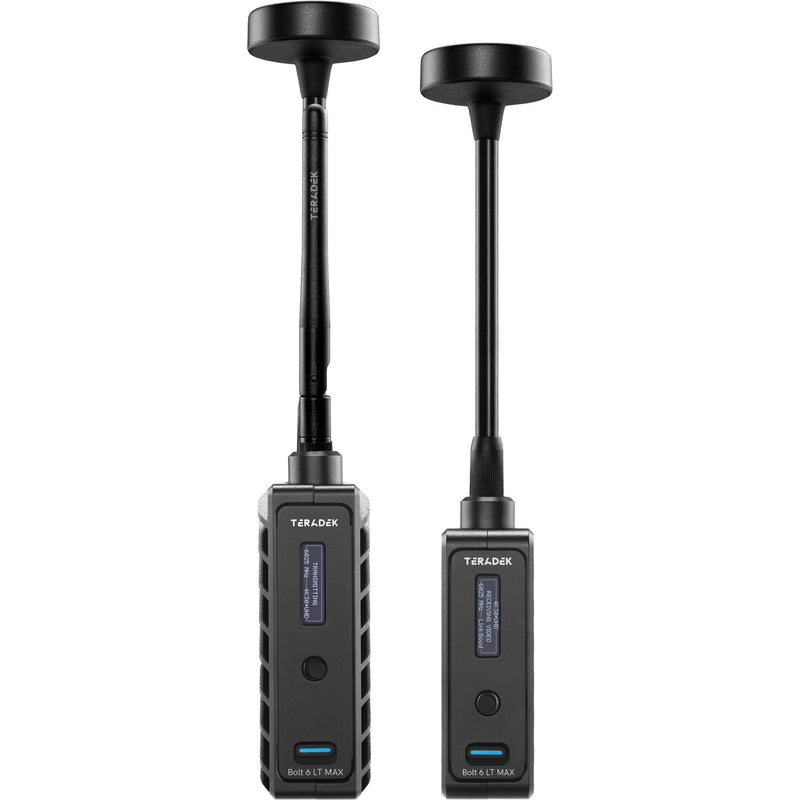

Transmit and receive lossless HD video from up to 5000' line of sight with the Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit from Teradek. The kit includes a Bolt 6 wireless transmitter and Bolt 6 receiver featuring bright OLED displays and able to wirelessly receive up to UHD 4K30 HDR video with 10-bit 4:2:2 HDR support, and this new line supports the 6 GHz wireless band, which is now freely available. The transmitter inputs up to 4K video over HDMI or up to 1080p30 video via 3G-SDI, and the receiver outputs up to 4K30 video via HDMI and up to 1080p60 3G-SDI.
The transmitter sends up to 4K30 video to the Bolt 4K LT MAX receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors, and it supports HDMI/SDI cross conversion. Though the transmitter can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band. A carry case is included to store and transport the kit.
In the Box
- Teradek Bolt 6 LT MAX 3G-SDI/HDMI Wireless Transmitter and Receiver Kit
- Bolt 6 LT MAX 3G-SDI/HDMI Transmitter
- Bolt 6 LT MAX 3G-SDI/HDMI Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB 2.0 Type-A Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male Cable (18")
- 2 x BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 5 x Standard Antenna
- 3 x Mushroom Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Carry Case
Teradek LT MAX Specs

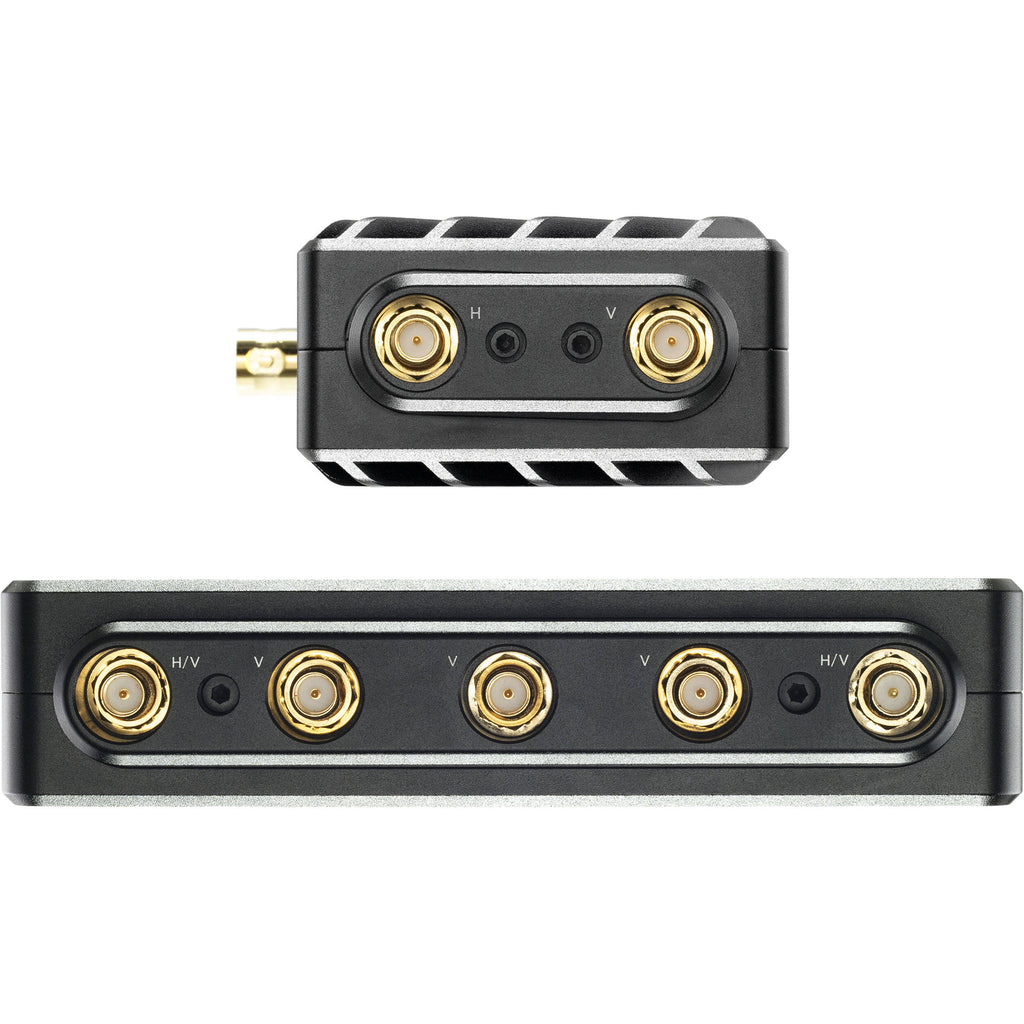

| Antenna I/O | Transmitter: 2 x RP-SMA Female Receiver: 5 x RP-SMA Female |
| Video I/O | Transmitter: 1 x HDMI 1.4b Input Transmitter: 1 x BNC (3G-SDI) Input Transmitter: 1 x BNC (3G-SDI) Loop Output Receiver: 1 x HDMI 1.4b Output Receiver: 1 x BNC (3G-SDI) Output |
| Embedded Audio | HDMI: 2-Channel SDI: 2-Channel |
| Audio I/O | None |
| Power | Transmitter/Receiver: 1 x LEMO 2-Pin Input |
| Other I/O | Transmitter/Receiver: 1 x Micro-USB Input |
| Encryption | 256-Bit AES |
| Wireless Range | 5000' / 1524 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency | < 0.01 ms |
| RF Power | 23 dBm |
| Wi-Fi | None |
| Bluetooth | Yes |
| Video Format | HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Timecode Support | Yes |
| DC Input Power | 6 to 28 VDC |
| Power Consumption | Transmitter: 9 W Receiver: 11 W |
| Mounting | 1 x 1/4"-20 Female 1 x 3/8"-16 Female |
| IP Rating | None |
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight | Transmitter: 7.3 oz / 206 g Receiver: 10.3 oz / 292 g |
| Package Weight | 8.02 lb |
| Box Dimensions (LxWxH) | 14.5 x 10.9 x 7.3" |
