Description
Teradek LT 750 Overview
By Photo's
Jennifer Hahn

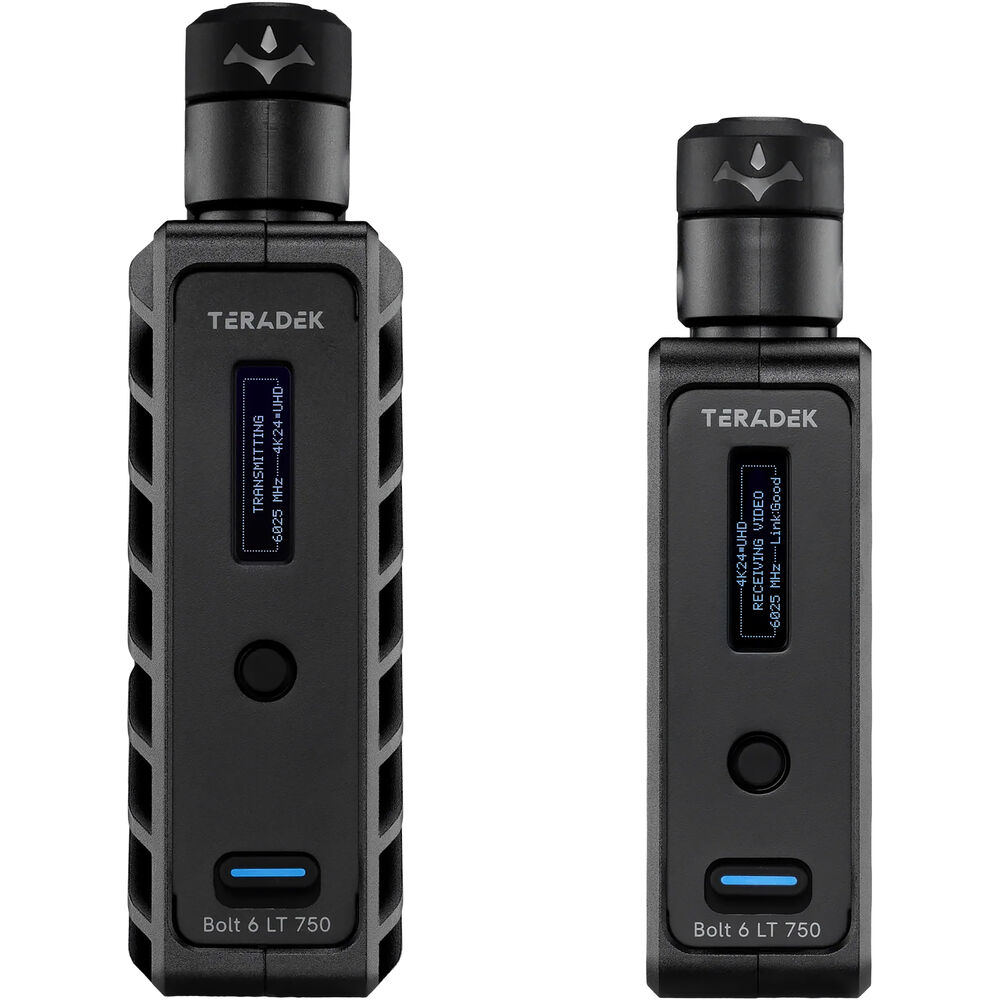

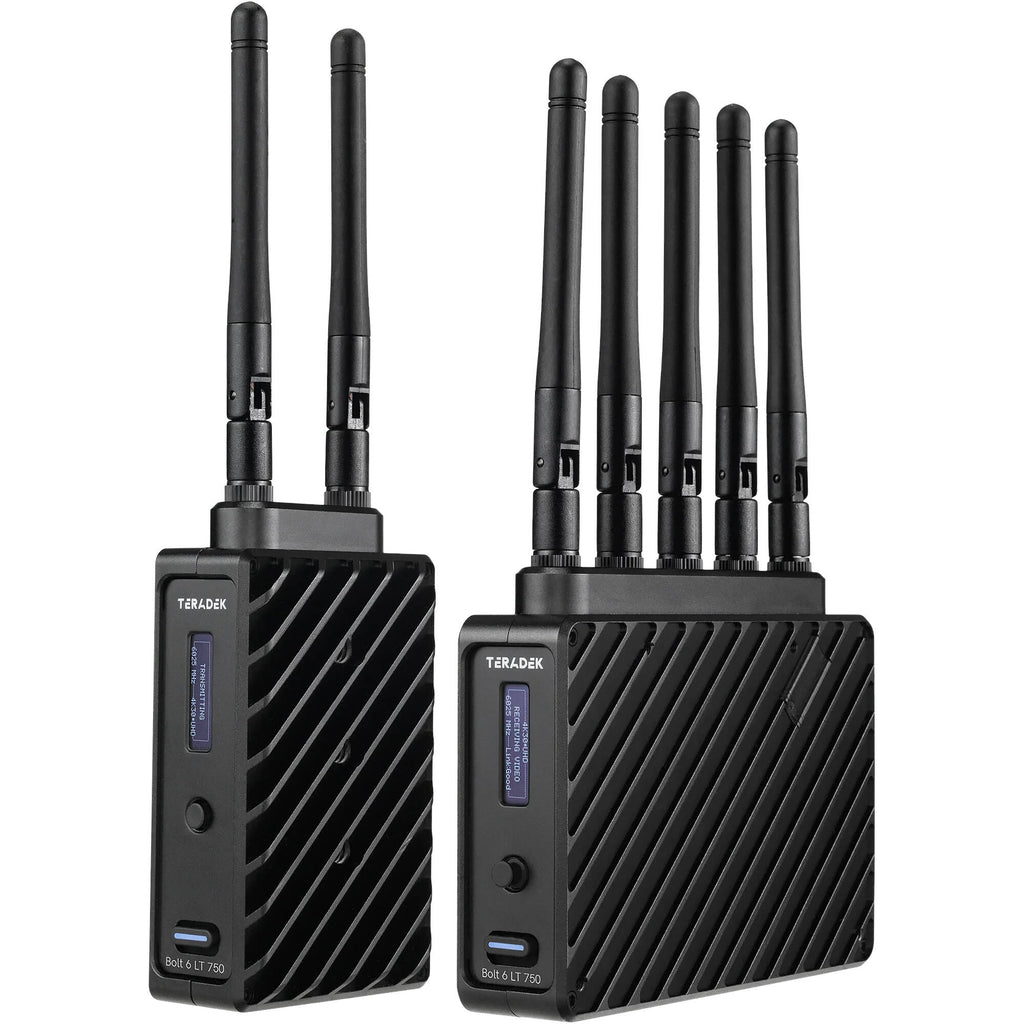

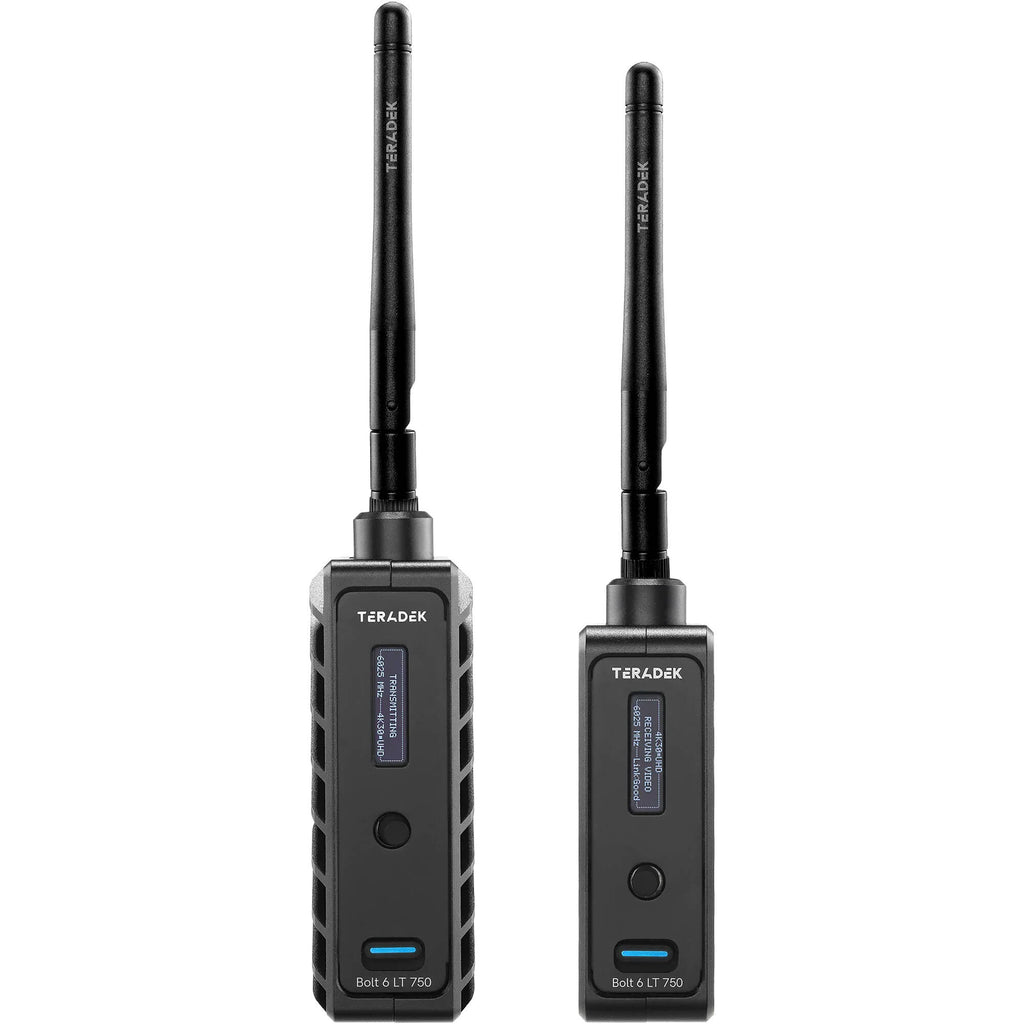

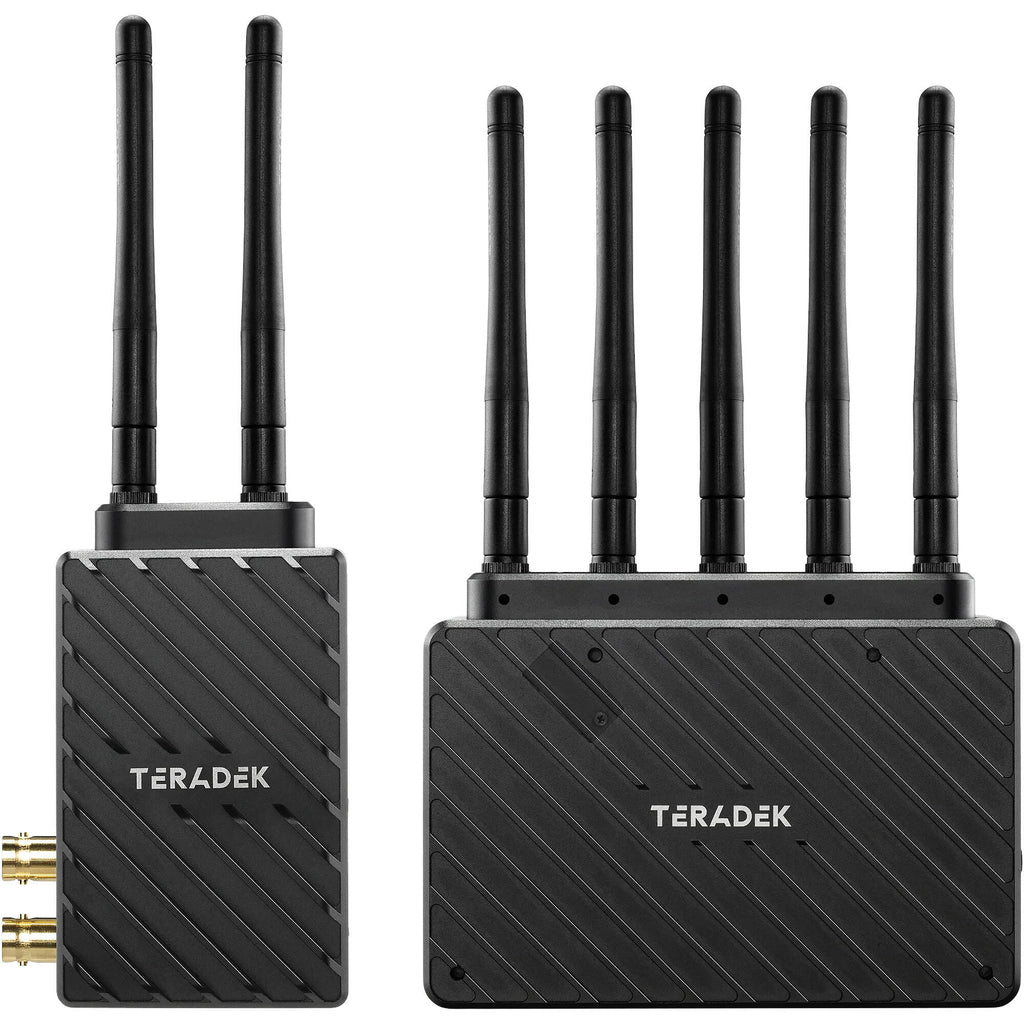

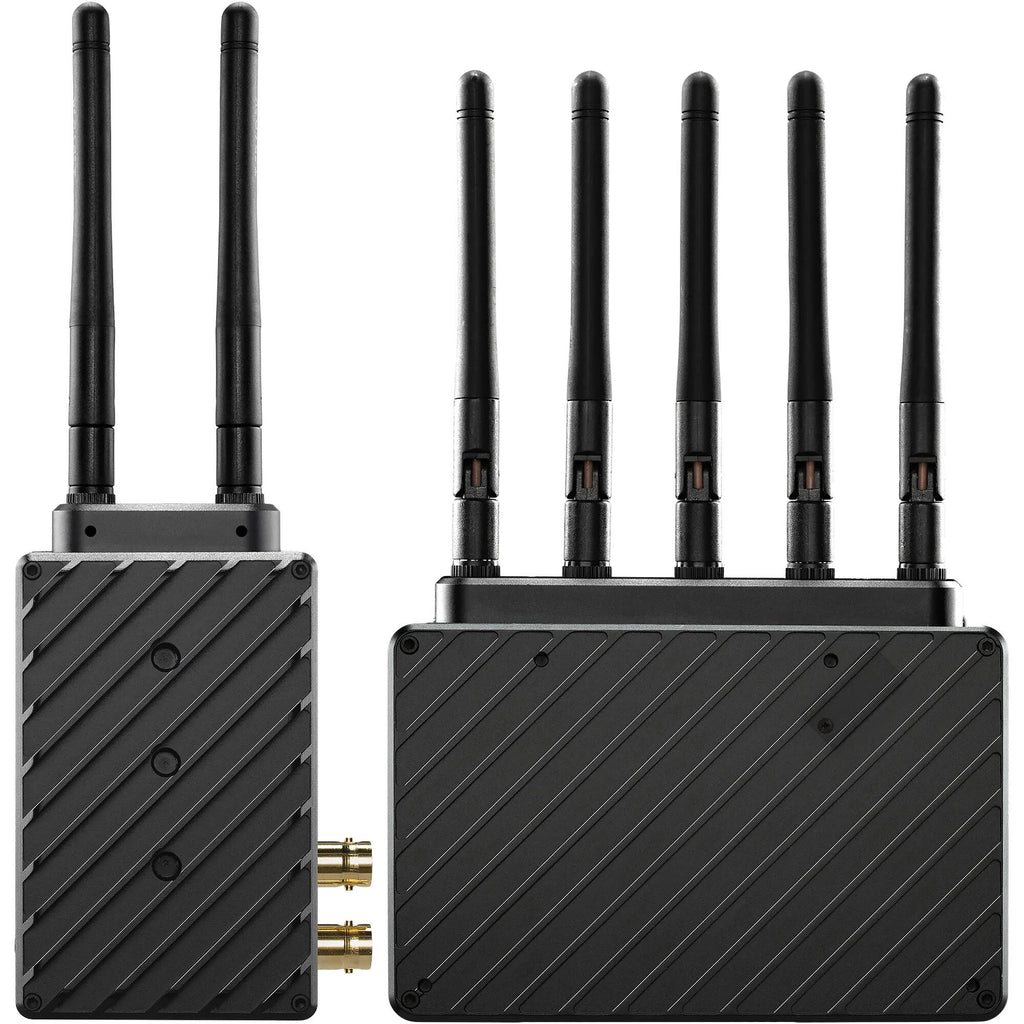

Transmit and receive lossless HD video from up to 750' line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit from Teradek. The kit includes a wireless Bolt 6 LT 3G-SDI/HDMI transmitter and wireless Bolt 6 LT 3G-SDI/HDMI receiver, which support the new 6 GHz wireless frequency, feature bright OLED displays, and can wirelessly receive up to UHD 4K30 video with 10-bit 4:2:2 HDR support.

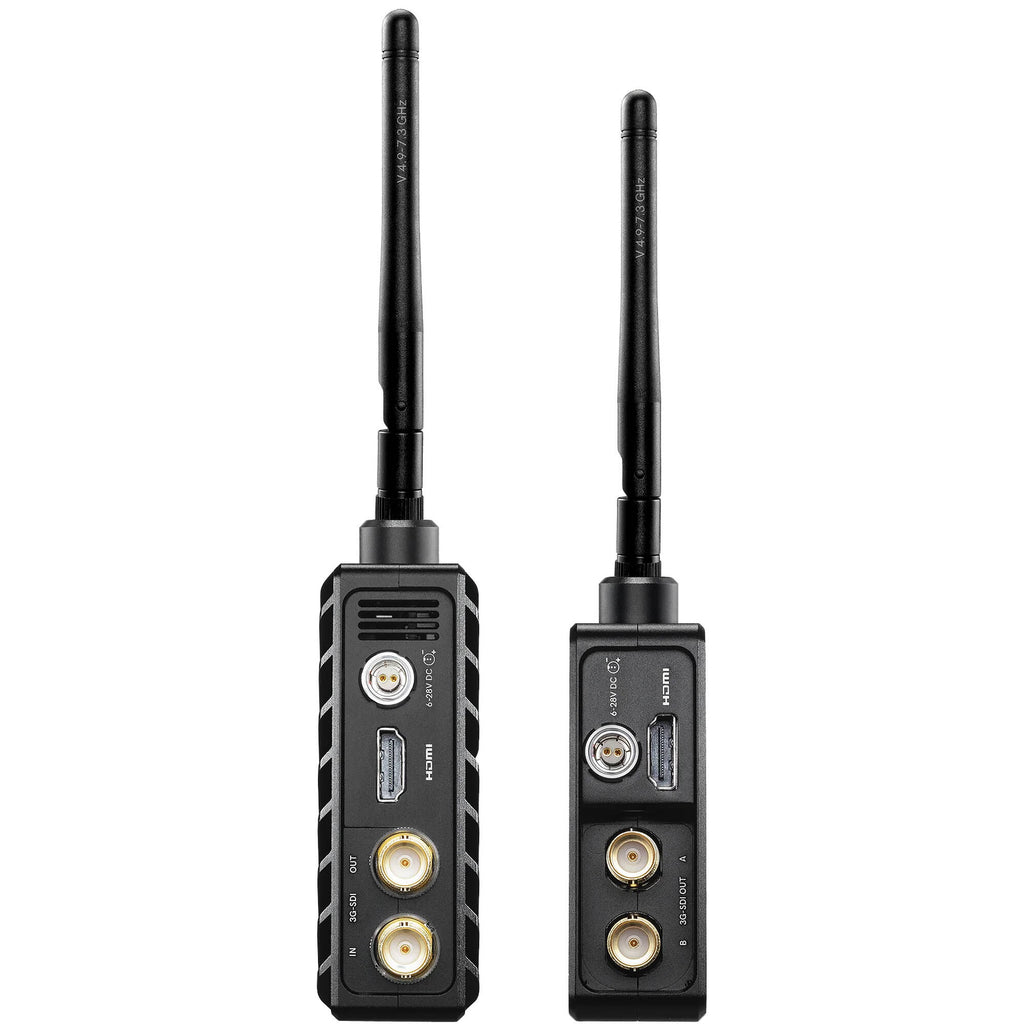

The transmitter inputs video over 3G-SDI or HDMI and features 3G-SDI and HDMI loop outputs, and the receiver outputs video via 3G-SDI and HDMI. Both units are compatible with all Bolt 4K models using the 5 GHz wireless band.
Quick Features
Compatible with Bolt 6 series devices using the newly available 6 GHz frequency band
Cross-compatible with all Bolt 4K, Bolt 4K LT, and Bolt 4K Monitor Module series devices over the 5 GHz signal spectrum
Input video up to UHD 4K30 4K via HDMI and transmit up to 4K30 video; input up to 1080p60 via SDI; SDI loop output
SDI Eye Pattern Tool to check SDI cable integrity
Supports Rec 2020 HDR in 10-bit 4:2:2 color gamut
Improved "long range" mode
Small and lightweight chassis design
Transmit to up to six Bolt 4K or Bolt 6 series receivers
AES-256 encryption support
Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration
Items Included
- Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit
- Bolt 6 LT 750 3G-SDI/HDMI Transmitter
- Bolt 6 LT 750 3G-SDI/HDMI Receiver
- 2-Pin to D-Tap Power Cable (18")
- USB-A 2.0 Male to Micro-USB Male Cable (39")
- 2 x HDMI Type A Male to HDMI Type A Male Cable (18")
- 2 x BNC to BNC SDI Cable (10")
- AC Adapter with Cable (6')
- 7 x Antenna
- 1/4"-20 Light Stand Adapter
- Shoe Adapter
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teradek LT 750 Specs
Key Specs
| Video I/O |
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 1.4b Output Receiver: 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI Input: 2-Channel
SDI Input: 2-Channel |
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Power Consumption |
Transmitter: 9 W
Receiver: 11 W |
| Mounting |
: 1x 1/4"-20 Female ()
: 1x 3/8"-16 Female () |
Inputs / Outputs

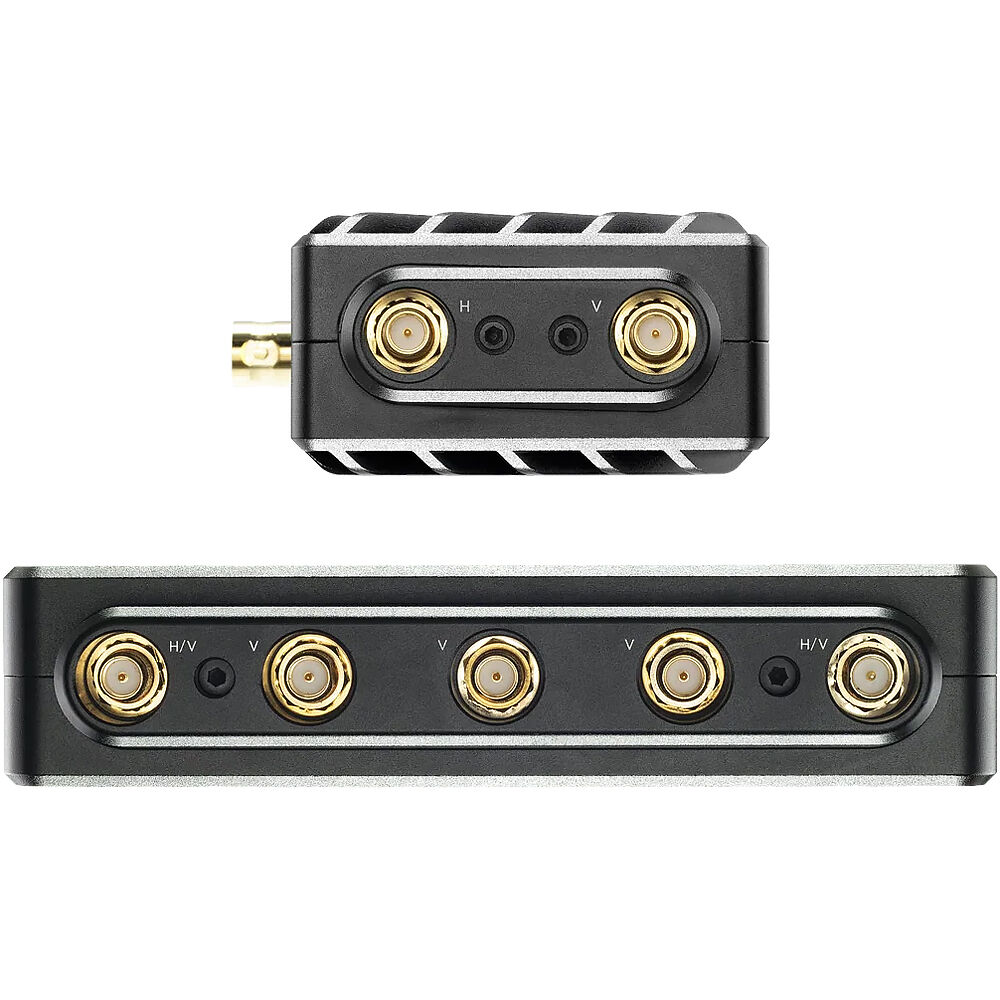

| Antenna I/O |
Transmitter: 2x RP-SMA Female
Receiver: 5x RP-SMA Female |
| Video I/O |
Transmitter: 1x HDMI 1.4b Input
Transmitter: 1x BNC (3G-SDI) Input Transmitter: 1x BNC (3G-SDI) Loop Output Receiver: 1x HDMI 1.4b Output Receiver: 1x BNC (3G-SDI) Output |
| Embedded Audio |
HDMI Input: 2-Channel
SDI Input: 2-Channel |
| Audio I/O |
No
|
| Power I/O |
Transmitter/Receiver: 1x LEMO 2-Pin Input
|
| Other I/O |
Transmitter/Receiver: 1x Micro-USB Input
|
| Encryption |
, 256-Bit AES
|
Wireless
| Wireless Range |
750' / 228.6 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz, 20 MHz
|
| Frequency Range |
Non-DFS Frequencies
US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency |
< 0.01 ms
|
| RF Power |
23 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
|
| Cellular Support |
No
|
Format Support
| Video Format |
HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94 |
| Audio Format |
2-Channel 24-Bit 48 kHz
|
| Timecode Support |
Yes
|
Power
| Input Power |
6 to 28 VDC
|
| Power Consumption |
Transmitter: 9 W
Receiver: 11 W |
Mounting
| Mounting |
: 1x 1/4"-20 Female ()
: 1x 3/8"-16 Female () |
Environmental
| Environmental Resistance |
No
|
| Certifications |
No
|
| Operating Temperature |
32 to 72°F / 0 to 40°C
|
General
| Material of Construction |
Aluminum, Polycarbonate
|
| Dimensions |
Transmitter: 4.1 x 2.4 x 1.3" / 103 x 60 x 33 mm
Receiver: 4.8 x 3.7 x 1.1" / 122 x 94 x 27 mm |
| Weight |
Transmitter: 7.27 oz / 206.00 g
Receiver: 10.30 oz / 292.00 g |
Packaging Info
| Package Weight |
4.8 lb
|
| Box Dimensions (LxWxH) |
15.2 x 12.2 x 7.5"
|
