Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas (Gold Mount)

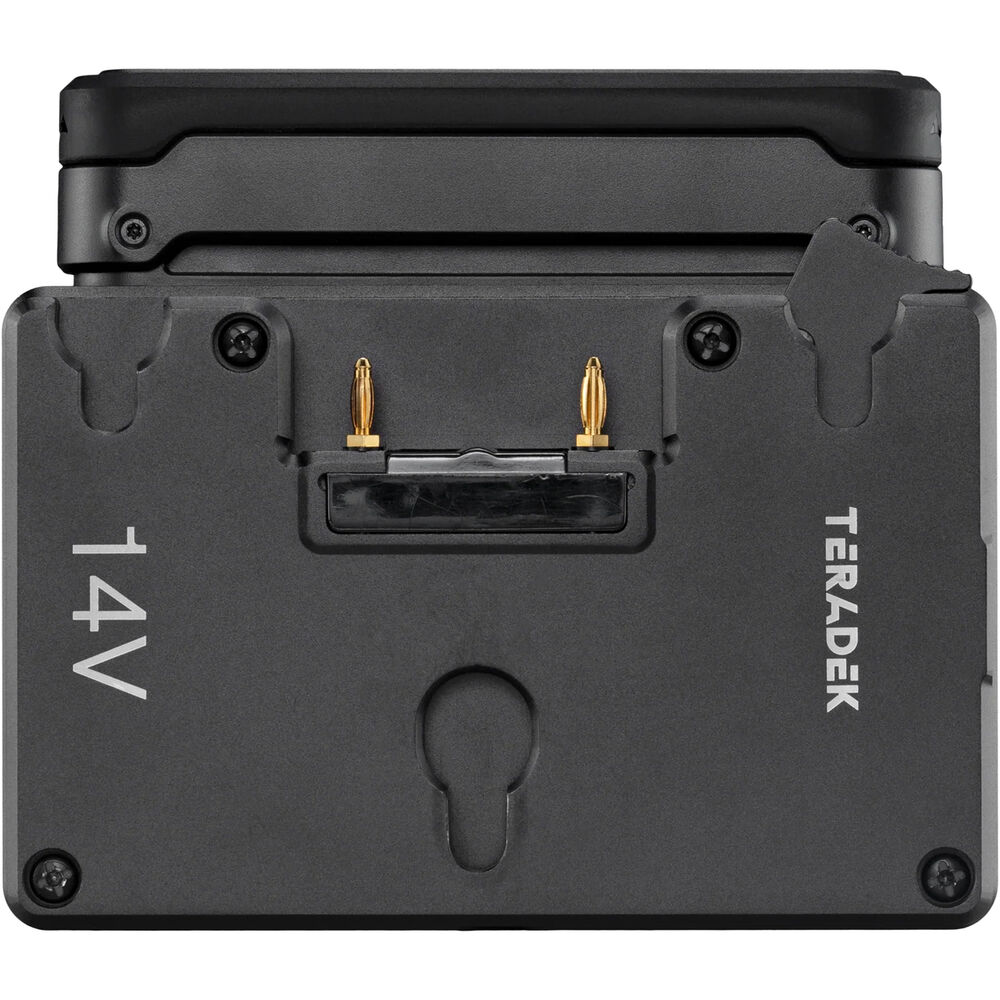

Receive lossless HD video from up to 750' away along the line of sight with the Bolt 6 LT 750 3G-SDI/HDMI Wireless Receiver with Internal Antennas from Teradek. This unit can wirelessly receive up to UHD 4K30 video with 10-bit HDR, output video via an HDMI or 3G-SDI port, and it comes in a sleek form with all antennas tucked inside. It features a bright OLED display and support for the 6 GHz wireless band. The receiver comes with a Gold mount battery plate to power it with a high-capacity battery.

The antennas in this receiver are all tucked inside, producing a sleek, compact form. There are 1/4"-20 and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs.

This receiver is cross-compatible with all Bolt 4K series devices over the 5 GHz signal spectrum and works with Bolt 6 series devices using the 6 GHz frequency band. It also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration.

• Wirelessly receive up to UHD 4K30 video and output 4K via an HDMI or 1080p via a 3G-SDI output.
• Supports Rec. 2020 HDR in 10-bit 4:2:2 color gamut.
• SDI Eye Pattern Tool to check SDI cable integrity.
• Wireless iOS/Android app via Bluetooth features a spectrum analyzer and remote configuration.

Teradek LT 750 II Specs

Video I/O	1x HDMI 1.4b Output 1x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Latency	< 0.01 ms
Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Battery Type	1x Gold Mount
Power Consumption	11 W
Mounting	1x 1/4"-20 Female (Bottom)

Antenna I/O	5x RP-SMA Female
Video I/O	1x HDMI 1.4b Output 1x BNC (3G-SDI) Output
Embedded Audio	HDMI: 2-Channel SDI: 2-Channel
Audio I/O	No
Power I/O	1x LEMO 2-Pin (28 VDC) Input
Other I/O	1x Micro-USB Input
Encryption	Yes, 256-Bit AES

Wireless Range	750' / 228.6 m (Line-of-Sight)
Channel Bandwidth	40 MHz, 20 MHz
Frequency Range	Non-DFS Frequencies US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz
Latency	< 0.01 ms
RF Power	21 dBm
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Mobile App Compatible	Yes: Android & iOS App Name: Bolt App
Cellular Support	No

Video Format	HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC) UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 SDI (10-Bit 4:4:4/4:2:2 RGB, YCC) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 576i: 50 480p: 60/59.94 480i: 59.94
Audio Format	2-Channel 24-Bit 48 kHz
Wireless Video Compression	Uncompressed
Timecode Support	Yes

Input Power	6 to 28 VDC
Battery Type	1x Gold Mount
Power Consumption	11 W

Mounting

1x 1/4"-20 Female (Bottom)

Status Display	LCD
Environmental Resistance	No
Certifications	FCC 15, CAN, IC, ICES
Operating Conditions	32 to 72°F / 0 to 40°C
Material of Construction	Aluminum, Polycarbonate
Dimensions	4.8 x 3.7 x 0.9" / 122 x 94 x 22 mm
Weight	10.30 oz / 292.00 g

Package Weight	3.82 lb
Box Dimensions (LxWxH)	17.1 x 9.3 x 3.6"
