Description
Teradek Ace 750 Overview

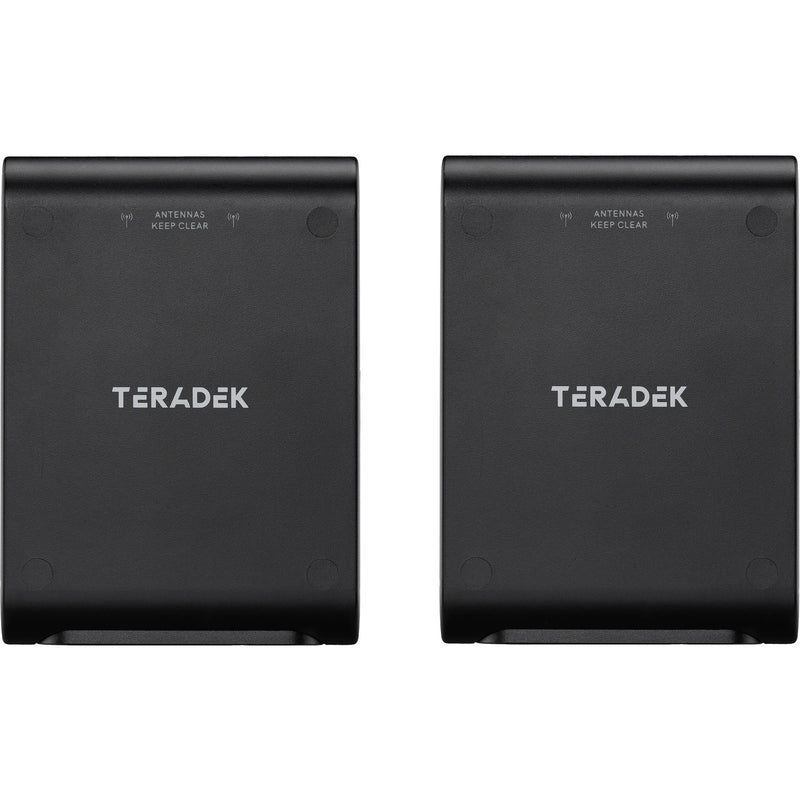

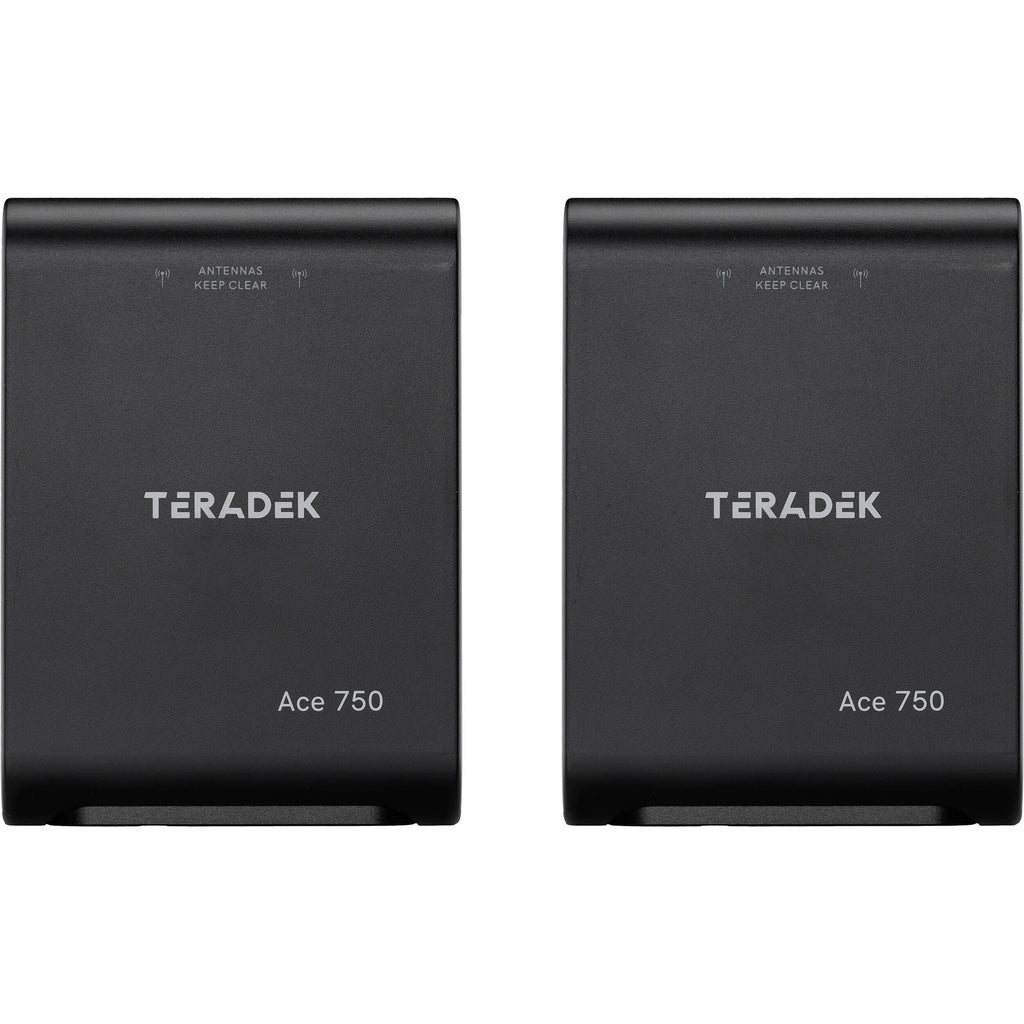

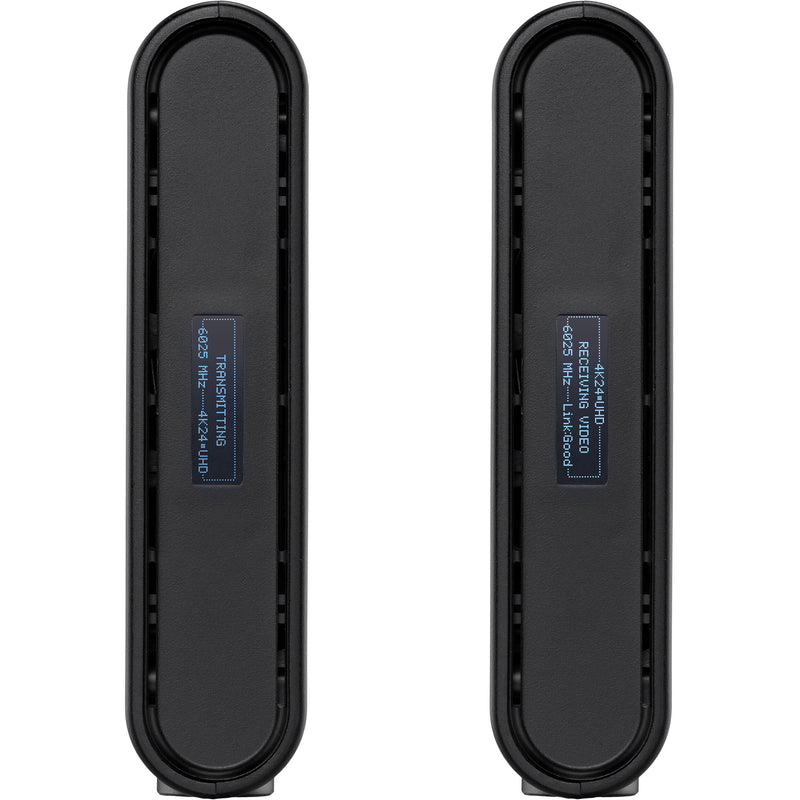

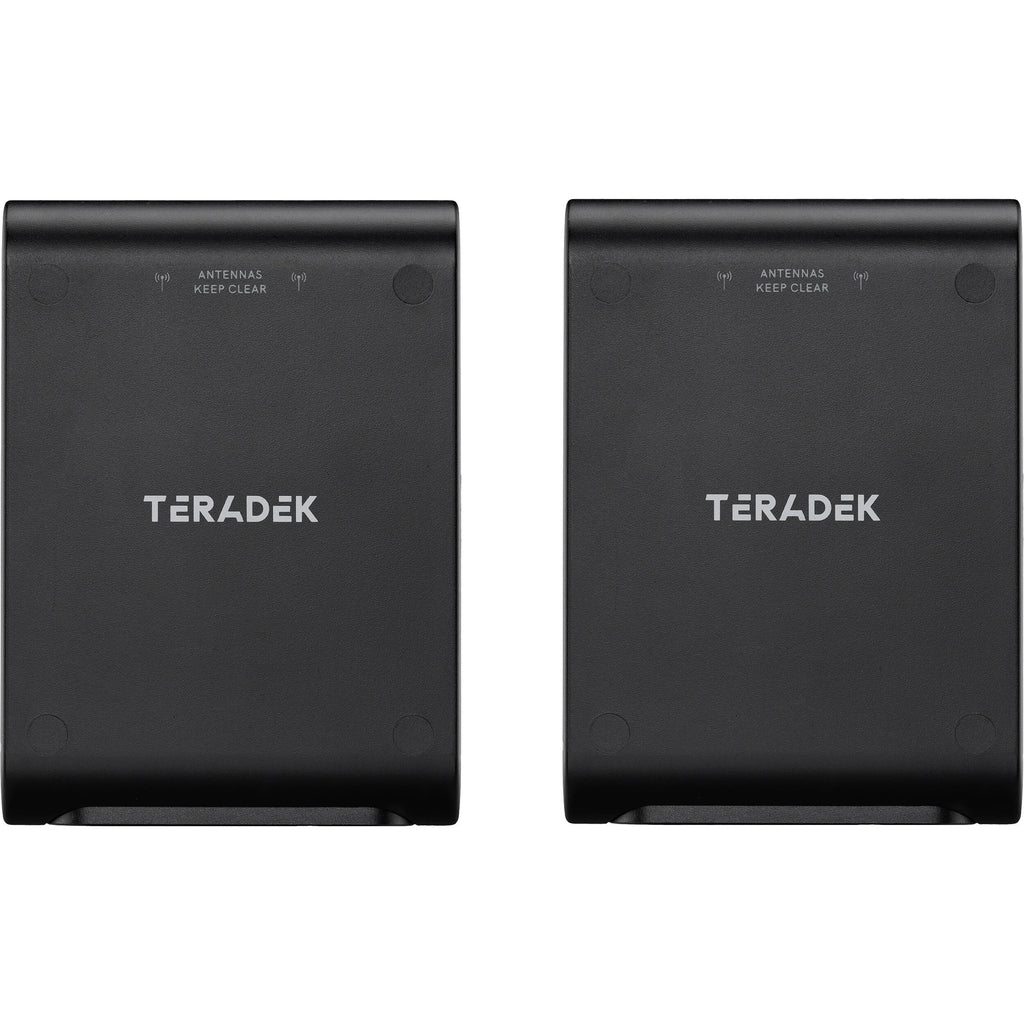

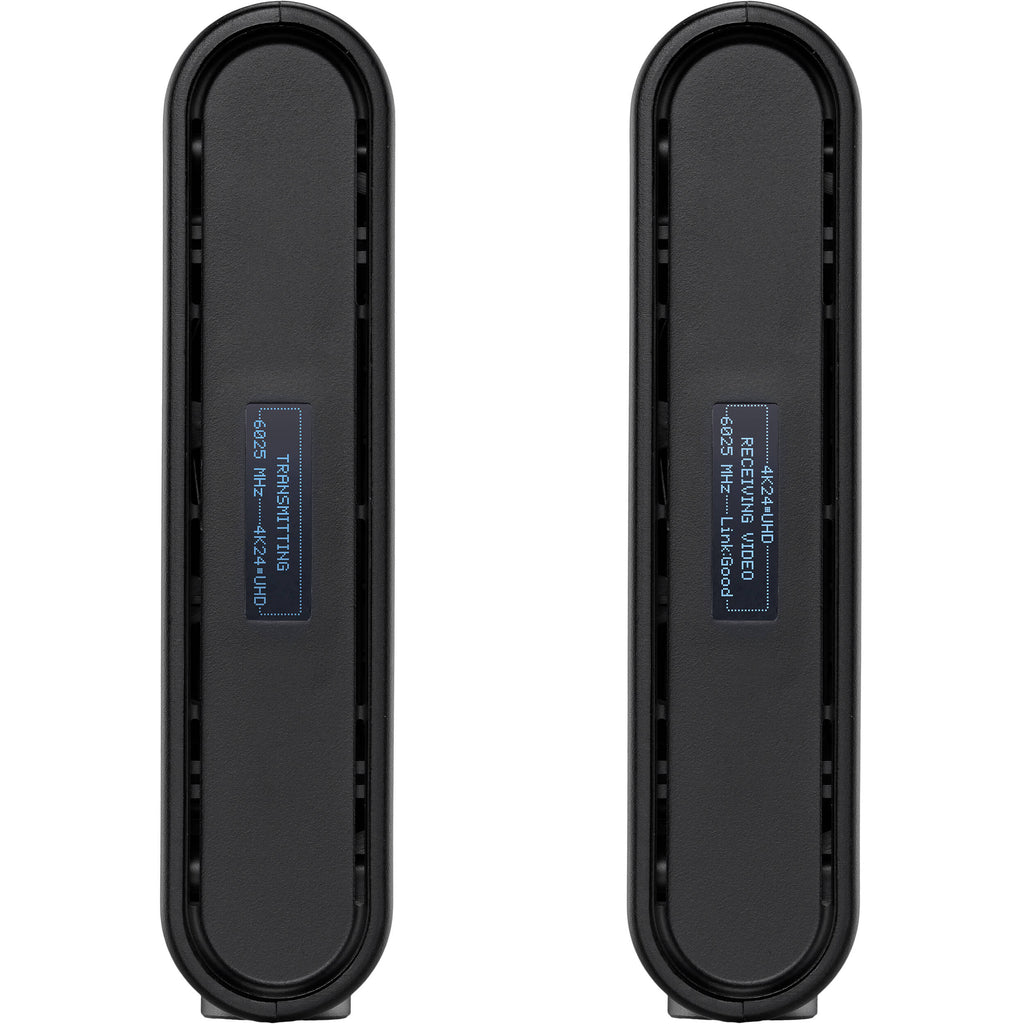

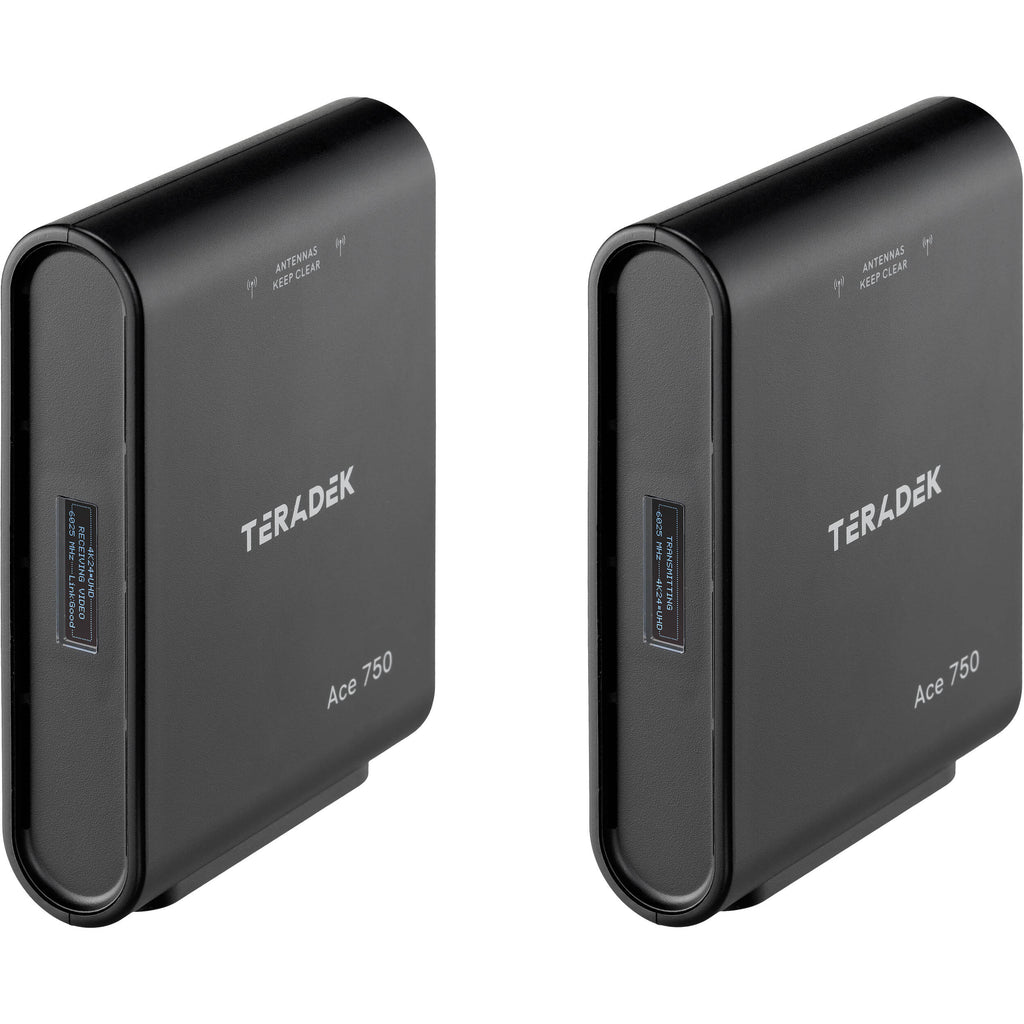

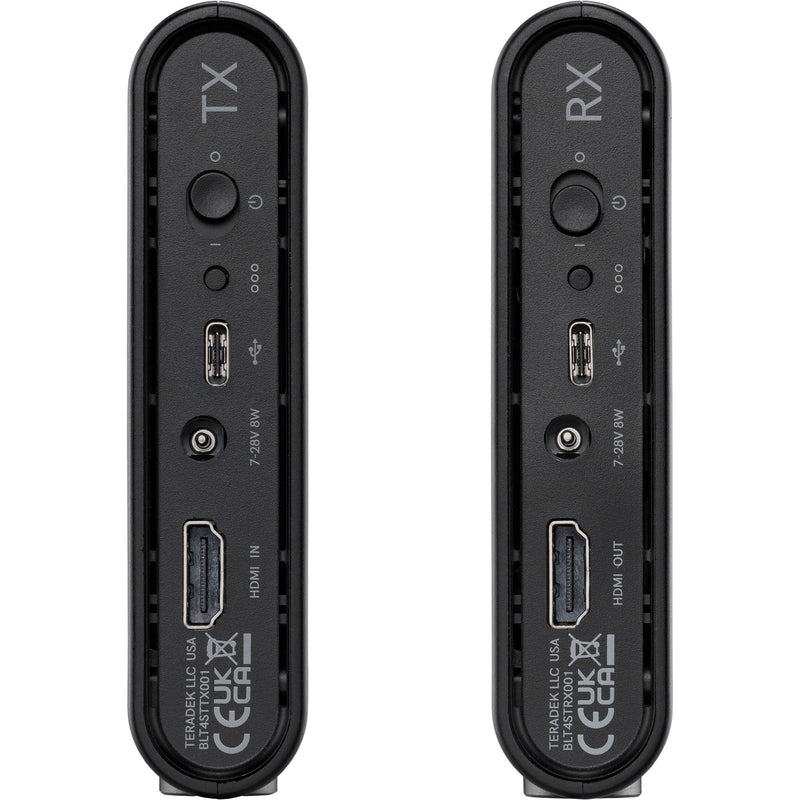

The Teradek Ace 750 HDMI Wireless Video Transmitter and Receiver Set includes an Ace 750 transmitter unit and an Ace 750 receiver unit. The system allows you to transmit and receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with no delay up to 750' line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install, and the units feature HDMI connectors.
With the Teradek Ace 750 HDMI Wireless Video Transmitter, you can transmit visually lossless, uncompressed 10-bit 4K30 HDR video signals from your camera to one or more Ace 750 receivers with no delay up to 750' line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt receivers. Built-in antennas make the unit more compact and easy to install.

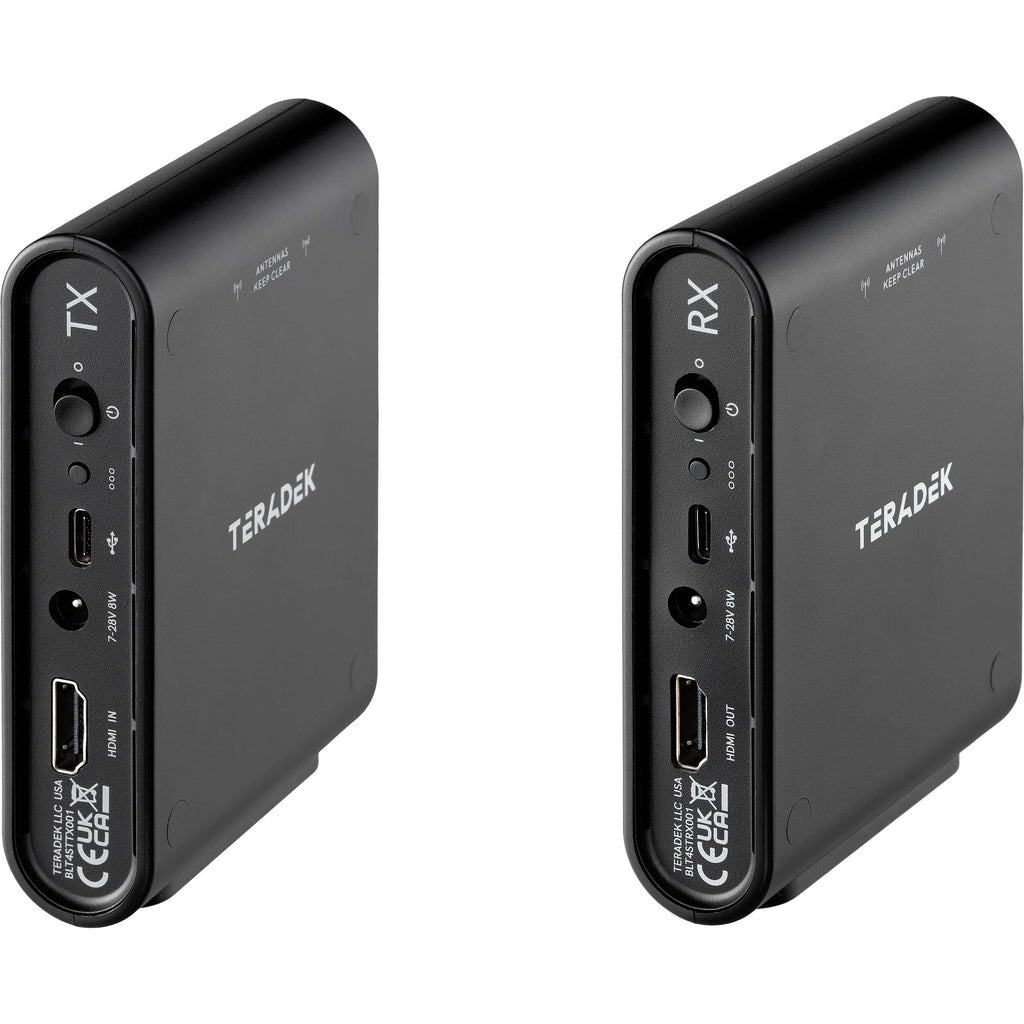

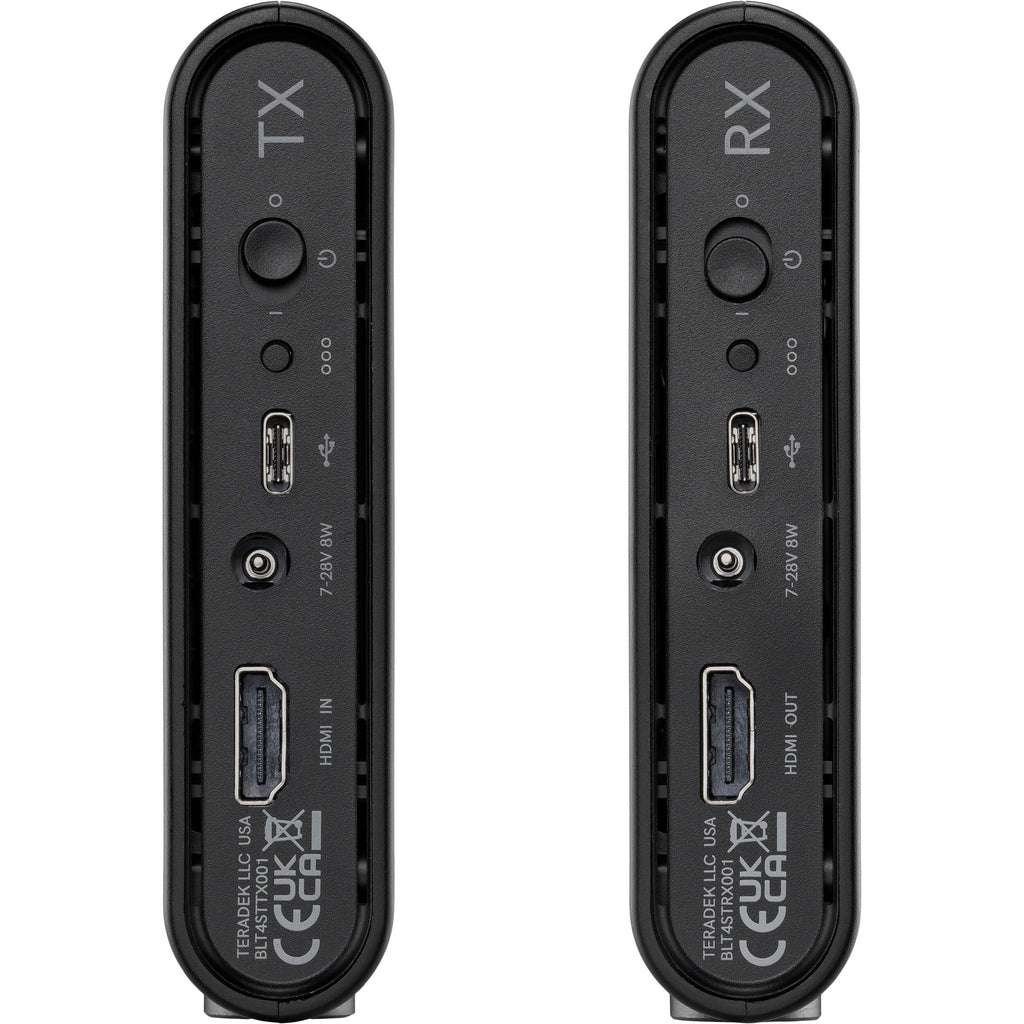

The Ace 750 features an HDMI input, and power is provided using a DC power source or L-series battery plate, both available separately. The transmitter can send the video signal simultaneously to up to six devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.
With the Teradek Ace 750 HDMI Wireless Video Receiver, you can receive visually lossless, uncompressed 10-bit 4K30 HDR video signals from a camera with an Ace 750 transmitter with no delay up to 750' line of sight. The Ace 750 supports 5 and 6 GHz frequency bands, so it is compatible with existing Bolt systems such as the Bolt 6 and Bolt 4K, as well as SmallHD monitors with integrated Bolt TX or RX units. Built-in antennas make the unit more compact and easy to install.
The Ace 750 features an HDMI output, and power is provided using a DC power source or L-series battery plate, both available separately. A separately available Ace 750 transmitter can send the video signal simultaneously to up to six receiver devices, including Ace or Bolt receivers and devices running the Bolt Manager app. The unit can be secured to a mount or stand via built-in threads.
Items Included
- Teradek Ace 750 Wireless Video Transmitter
- Shoe Adapter
- Ultrathin HDMI Cable (18")
- D-Tap to Barrel Cable (18")
- Limited 1-Year Manufacturer Warranty
- Teradek Ace 750 HDMI Wireless Video Receiver
- 1/4"-20 Light Stand Adapter
- Ultrathin HDMI Cable (18")
- 18W, 12 VDC Power Adapter (6')
- D-Tap to Barrel Cable (18")
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Teradek Ace 750 Specs
| Video I/O |
1x HDMI 1.4b Input
|
| Embedded Audio |
HDMI: 2-Channel
|
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (10-Bit 4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Power Consumption |
6 W
|
| Mounting |
1x 1/4"-20 Female
|
| Antenna I/O |
No
|
| Video I/O |
1x HDMI 1.4b Input
|
| Embedded Audio |
HDMI: 2-Channel
|
| Audio I/O |
No
|
| Power I/O |
1x Barrel Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Encryption |
Yes, 256-Bit AES
|
| Wireless Range |
750' / 228.6 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency |
< 0.01 ms
|
| RF Power |
19 dBm
|
| Wi-Fi |
No
|
| Bluetooth |
Yes
|
| Mobile App Compatible |
Yes: Android & iOS
App Name: Bolt Manager Functionality: Adjust Settings, Remote Control, Setup |
| Cellular Support |
No
|
| Video Format |
HDMI (10-Bit 4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Audio Format |
2-Channel 24-Bit 48 kHz
|
| Timecode Support |
Yes
|
| Input Power |
7 to 18 VDC
|
| Power Consumption |
6 W
|
| Mounting |
1x 1/4"-20 Female
|
| Environmental Resistance |
No
|
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Material of Construction |
Plastic
|
| Dimensions |
4.4 x 3.2 x 1" / 112 x 81 x 25 mm
|
| Weight |
6.60 oz / 187.00 g
|
| Package Weight |
2.035 lb
|
| Box Dimensions (LxWxH) |
12.3 x 9 x 4.6"
|
Teradek Ace 750 Specs
| Video I/O |
1x HDMI 1.4b Output
|
| Embedded Audio |
HDMI: 2-Channel
|
| Latency |
< 0.01 ms
|
| Video Format |
HDMI (10-Bit 4:2:2 RGB, YCC)
UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 50 480p: 60/59.94 576i: 60 480i: 59.94 |
| Power Consumption |
6 W
|
| Mounting |
1x 1/4"-20 Female
|
| Antenna I/O |
No
|
| Video I/O |
1x HDMI 1.4b Output
|
| Embedded Audio |
HDMI: 2-Channel
|
| Audio I/O |
No
|
| Power I/O |
1x Barrel (18 VDC) Input
|
| Other I/O |
1x USB-C (Firmware) Input
|
| Encryption |
Yes, 256-Bit AES
|
| Wireless Range |
750' / 228.6 m (Line-of-Sight)
|
| Channel Bandwidth |
40 MHz
|
| Frequency Range |
Non-DFS Frequencies
US: 5.94 to 6.42 GHz US: 5.19 to 5.23 GHz US: 5.75 to 5.79 GHz DFS Frequencies US: 5.27 to 5.67 GHz |
| Latency |
< 0.01 ms
|
| RF Power |
17 dBm
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
