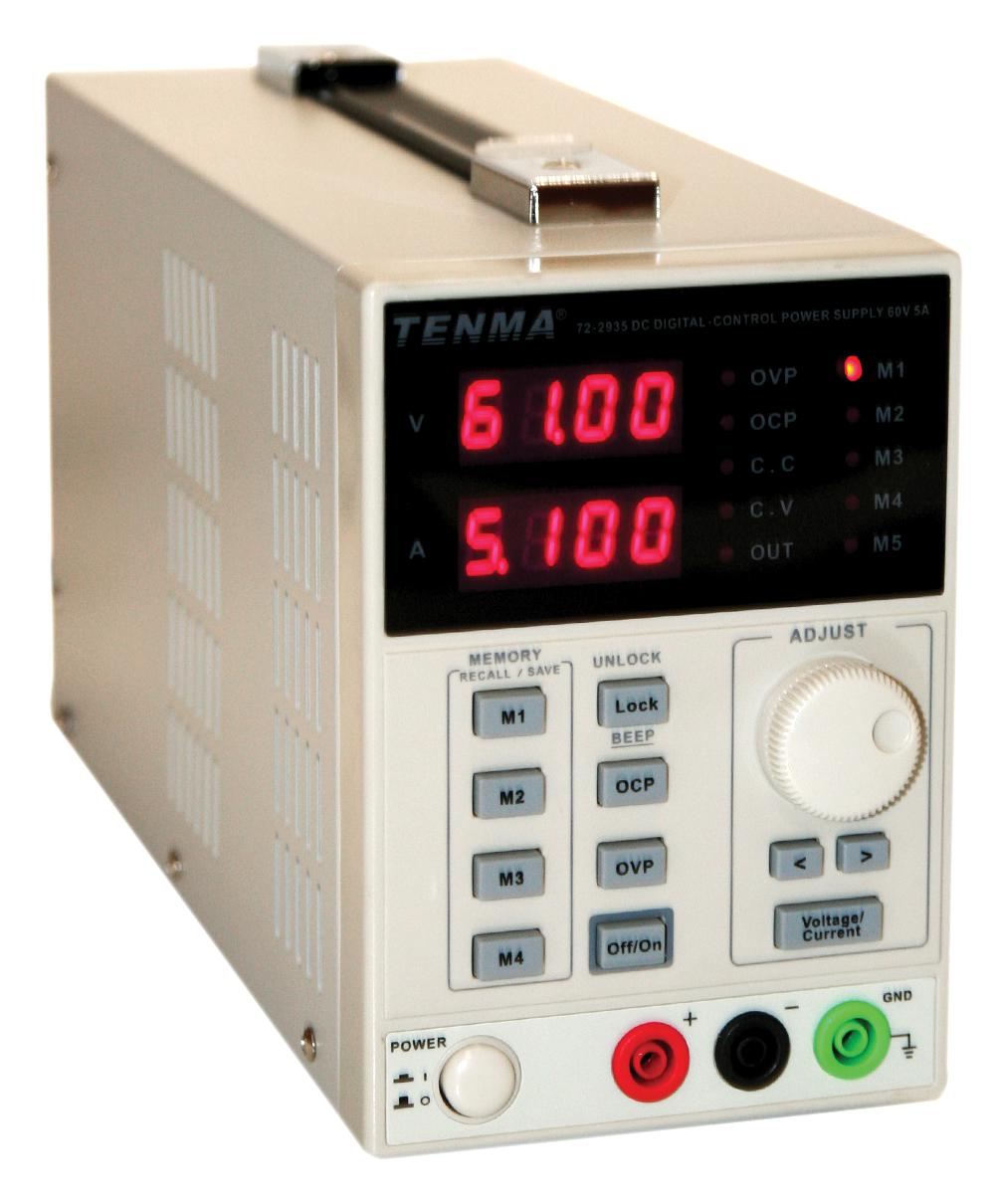

Tenma 72-2935 Bench Power Supply Encoder Control DC Adjustable 1 Output 0 V 60 A 5

The 72-2935 from Tenma is a single channel bench top DC power supply. This power supply has low noise and ripple. It also has keyboard lock function to prevent operator errors. The 72-2935 is an easy alternative to the traditional digital display power supplies. This power supply has load regulation <=0.01% +2mV (voltage), <=0.1% +5mA (current) and line regulation of <=0.01% +3mV (voltage), <=0.1% +3mA (current). The setting accuracy (25°C ±5°C) is <=0.5% +20mV (voltage), <=0.5% +10mA (current) and read back accuracy is 10mV/1mA.

• 0V to 60V voltage range, 0A to 5A current range
• 10mV/1mA set-up resolution
• Encoder controlled knob
• Constant voltage (CV) and constant current (CC) modes of operation
• Settable overcurrent protection (OCP), overvoltage (OVP) and constant protection mode
• 5 sets of parameters can be stored and recalled
• Output switch control, power-off memory function
• Dimension is 110mm(W) x 156mm(H) x 310mm (D) and weight is 7Kg
• Ambient operating temperature from 0°C to 40°C
• 12 month limited warranty *view Terms & Conditions for details
• Optional Interfaces (for programmable models only): RS232, USB

Applications

Test & Measurement

Contents

72-2935 power supply, Power cord (1.2m), User manual.

Footnotes In addition, we have calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.

Other details

Brand	TENMA
Part Number	72-2935
Quantity	Each
Technical Data Sheet EN
Operating Instructions EN
Software EN
