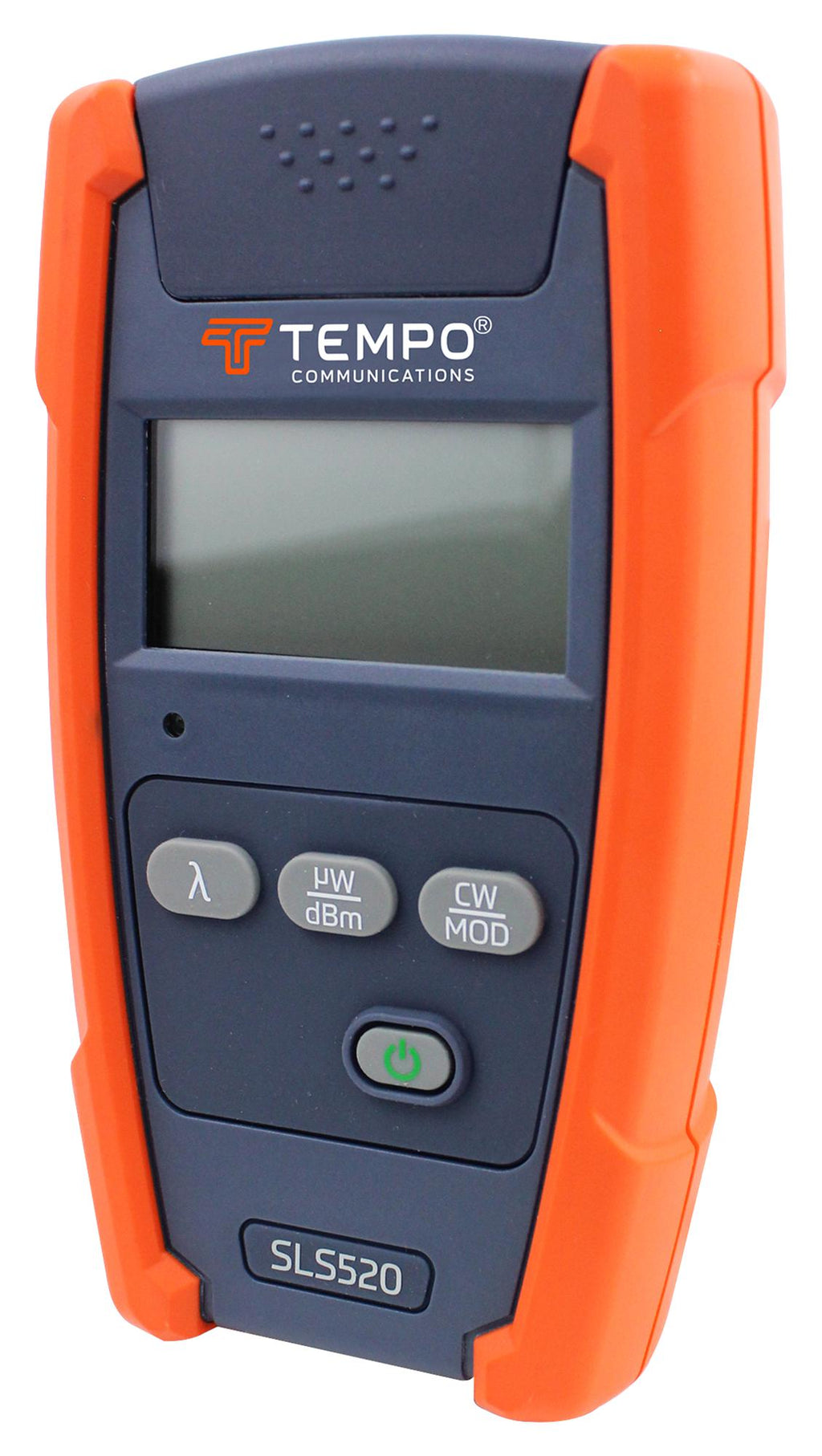

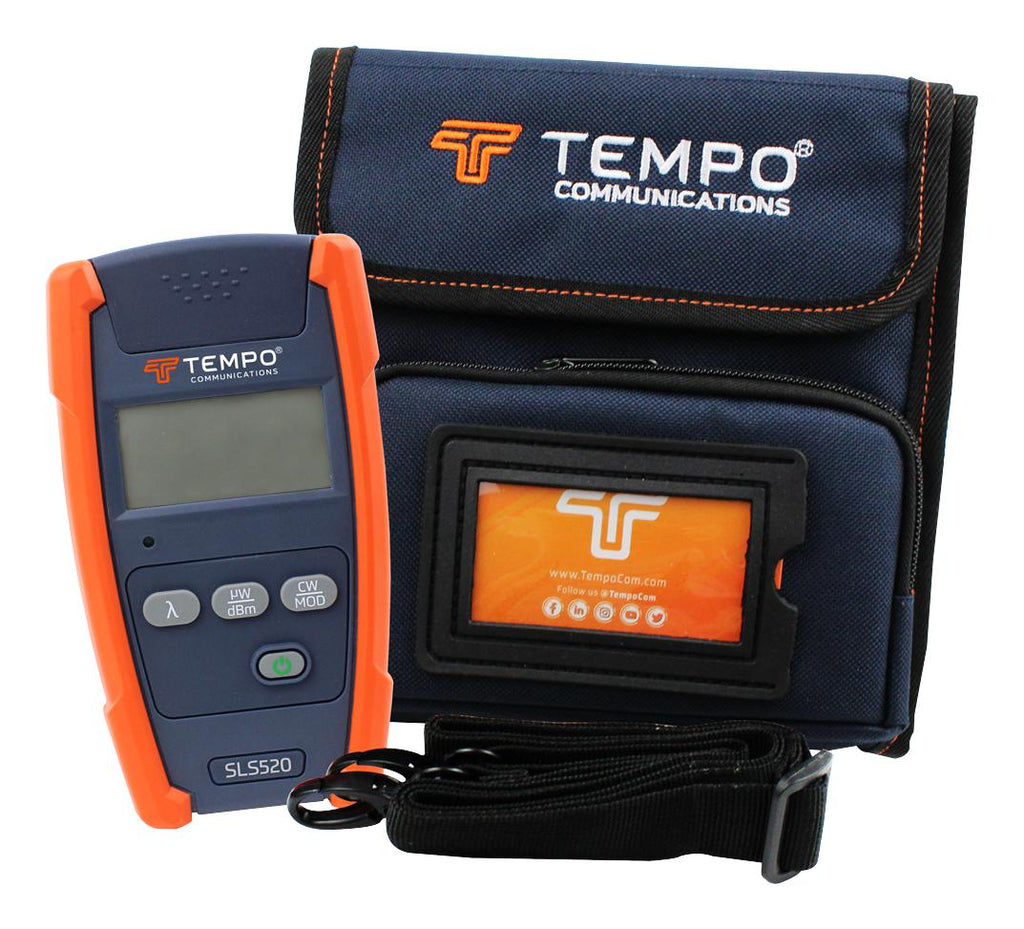

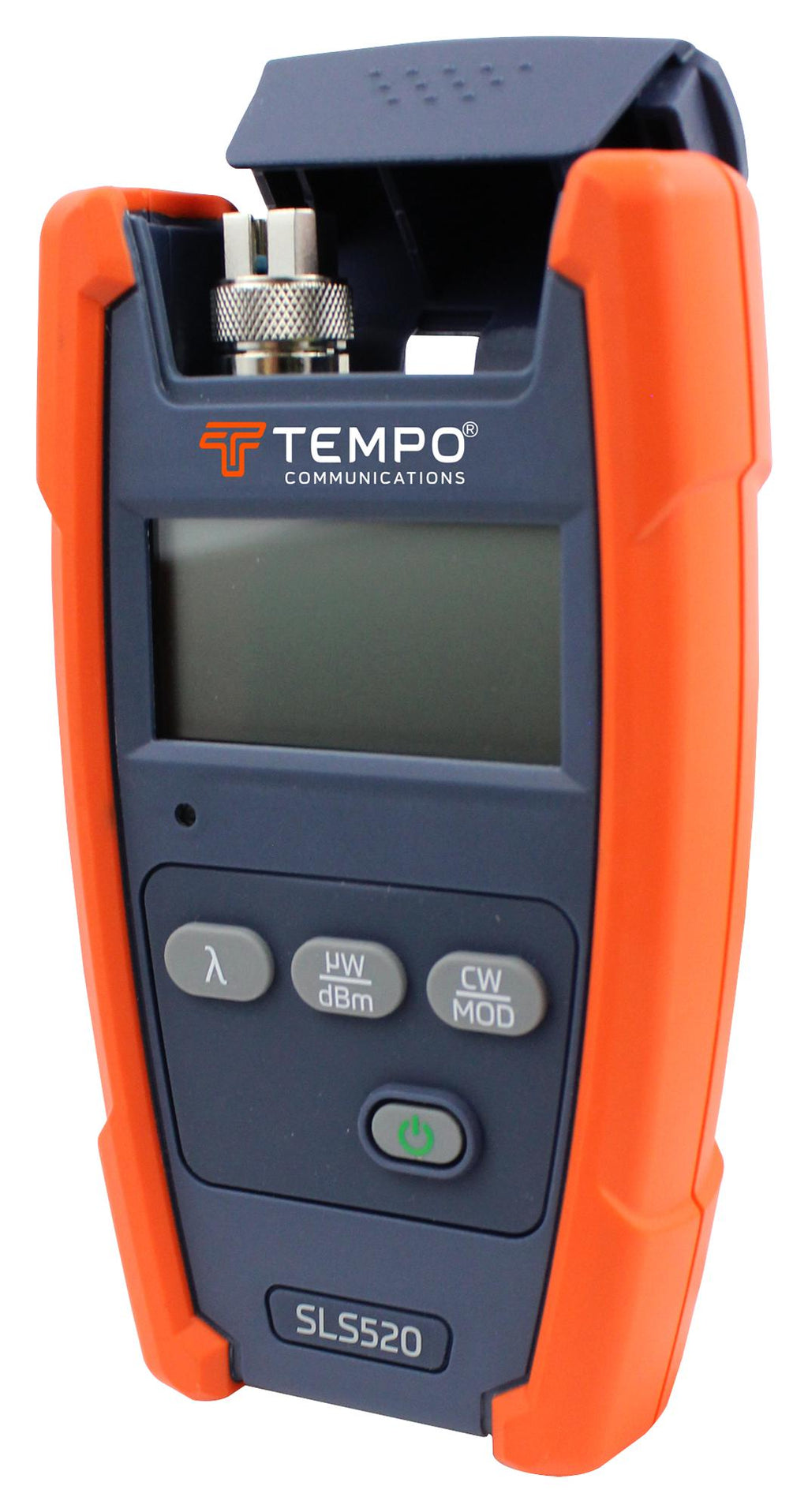

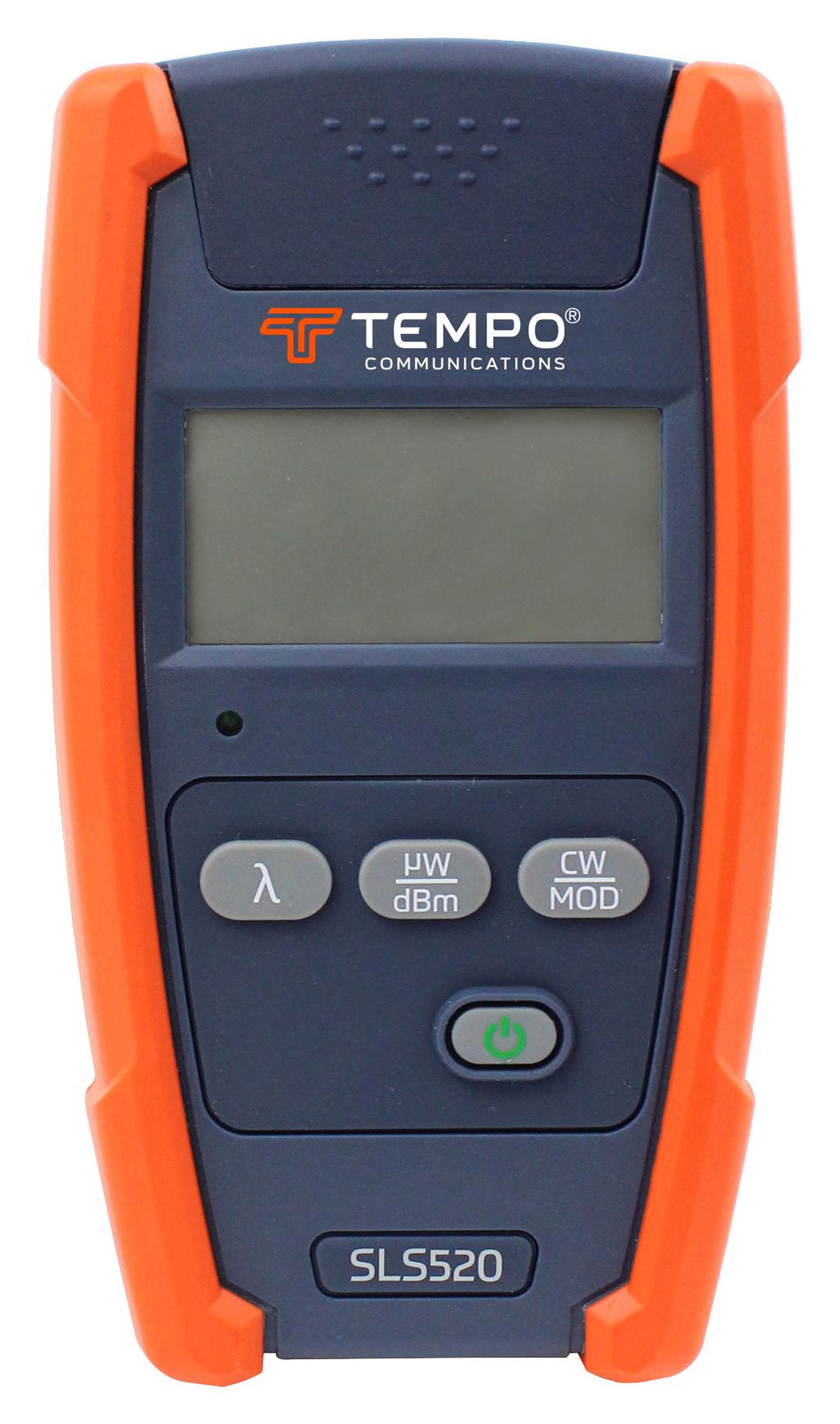

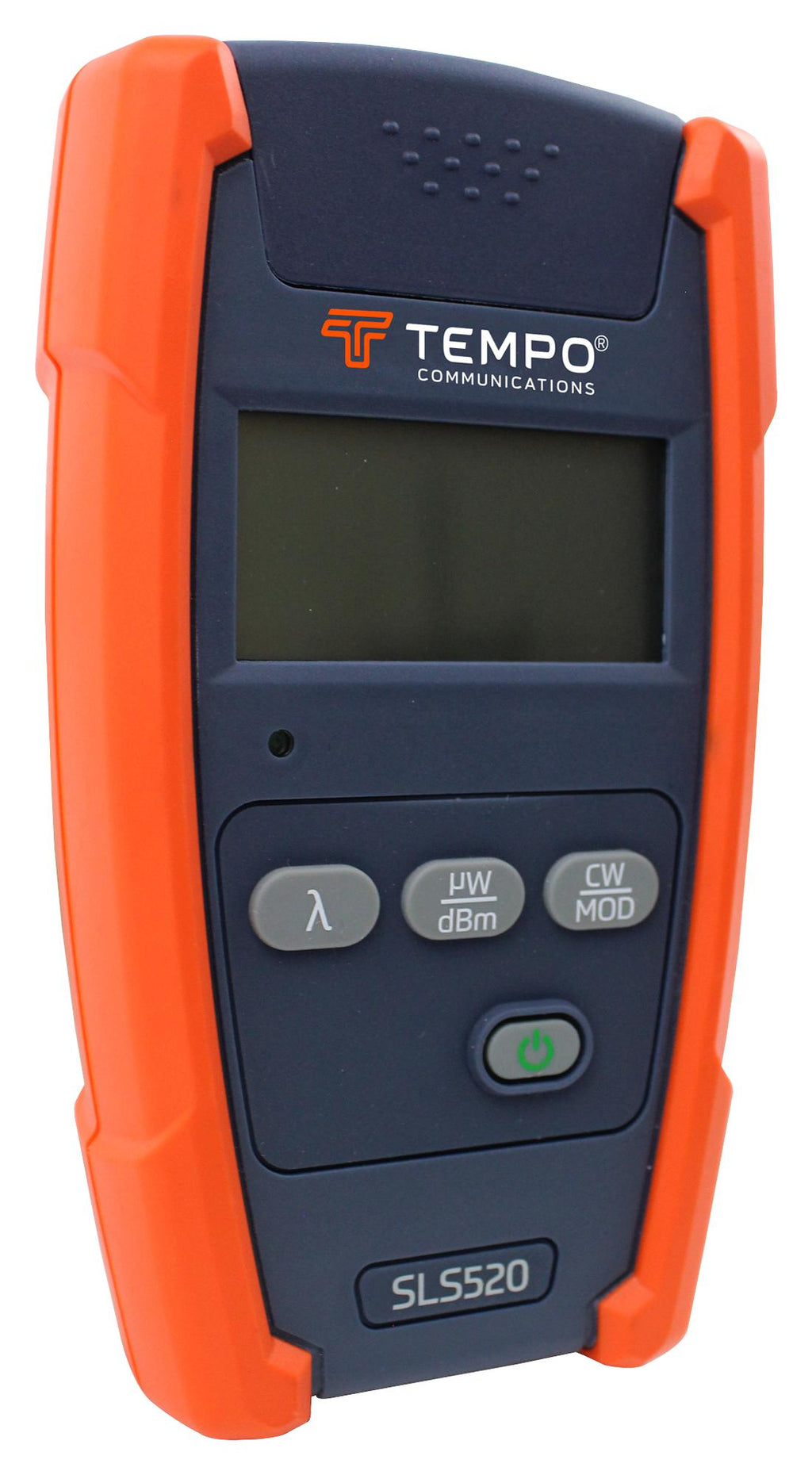

Dual laser source is a rugged, adaptable and stable dual wavelength fibre optic source. Accurate insertion loss measurements are possible when used in conjunction with the Tempo Communications optical power meters. When placing tones on the fibre the Tempo Communications optical power meter will quickly identify the fibre. The ruggedized IP54 compliant package provides test confidence when testing singlemode and multimode networks.
- Dual wavelength laser source of 1310/1550nm
- Tone and probe fibre networks at 270Hz, 1kHz and 2kHz
- SC, LC, FC and ST interchangeable bulkheads
- Compatible with singlemode networks
- Auto off or continuous on operation
- Battery or 120/240VAC operation
- Dimension (H�W�T) is 6.1 � 3.5 � 1.3" (155 � 89 � 33mm)
- Powered by 9V alkaline or 1000mAh lithium battery/ 9V AC adapter
Product details
| Connector Type |
SC, PC Fibre Optic |
| Photodetector Type |
- |
| Operating Range dBm Min |
- |
| Operating Range dBm Max |
- |
| Product Range |
- |
Other details
| Brand |
TEMPO |
| Part Number |
SLS520 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
