Description
Tempo NC-100 Overview

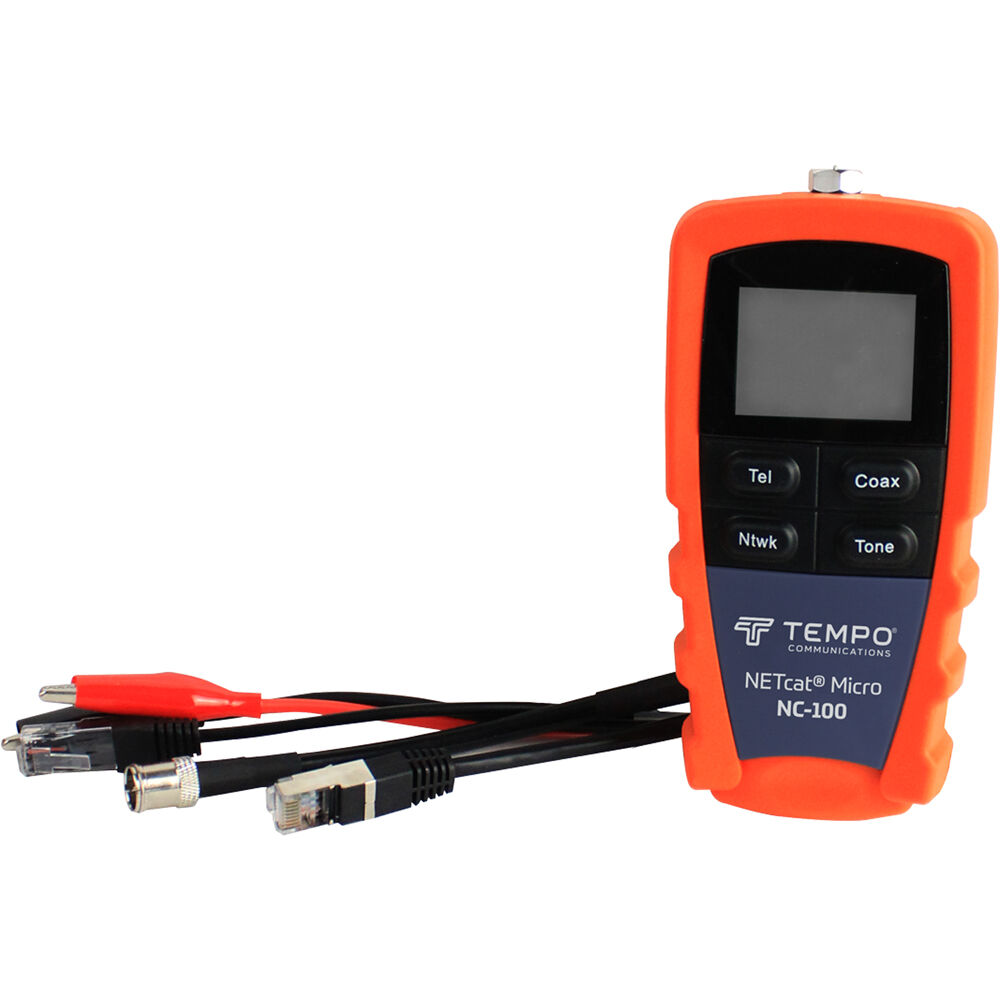

The Greenlee - NC-100 NETcat Micro is a wiring tester designed to verify shielded twisted pairs (STP), unshielded twisted pairs (UTP), and coaxial cables for digital voice, data, and video signals. It uses high-speed digital technology to detect shorts, opens, reversed polarity, crossed, and split pairs, and correct allocation of wire pairs.
Key Features
- Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables
- TIA/EIA standard wiring pair verification
- Detects shorts, opens, reversed polarity, crossed, and split pairs
- Verifies wiremaps
- Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting
- Tracing modes can be adjusted for high-performance LAN cables
- Complete set of connector types standard (telephone, LAN, and coax)
- Nested remote allows end-to-end testing of all wiring types
- Simple testing of LAN wiring and phone lines
- Detection of common wiring and connector errors
- Warning of hazardous voltages
- Checks for reversed telephone wires
- High-contrast LCD with backlight
- Powered via 9V battery
UPC: 783310236368
In the Box
- Tempo NC-100 NETcat Micro - Wiring Tester for Digital Voice, Data, and Video
- Nested Remote Unit
- Limited 1-Year Manufacturer Warranty
Tempo NC-100 Specs
| Type | Micro digital voice, data, and video wiring |
| Backlight | Green LED |
| Buttons | Four momentary contact push buttons |
| Display LCD | Icon and seven-segment type |
| Interface Connector | RJ45 shielded socket RJ12 6-way socket F-type threaded female coaxial connectors |
| Tone | Pair Tracing Tones: Alternating frequencies of 577 Hz and 983 Hz are produced at three user-selectable rates |
| Standards | TIA/EIA |
| Cable Length | Minimum Cable Length for Network Split-Pair Detection: 5 to 10' / 1.5 to 3.0 m (depending on cable type) |
| Assumptions | Pair Connection Assumptions: It is assumed when testing telephone and network cables that the allocation of pairs to circuit numbers is in accordance with TIA standards |
| Power Source | 9 V alkaline battery (PP3, 6LR61) |
| Humidity | Up to 95%, non-condensing |
| Operating Temperature | 32 to 122 °F / 0 to 50 °C |
| Storage Temperature | 14 to 140 °F / -10 to 60 °C |
| Dimensions | 5.90 x 2.75 x 1.29" / 150 x 70 x 33 mm) |
| Weight | 0.48 lb / 220 g (including remote unit and battery) |
Packaging Info
| Package Weight | 1.1 lb |
| Box Dimensions (LxWxH) | 9.95 x 6.9 x 2.7" |
