Description
Tempo AT8L Overview

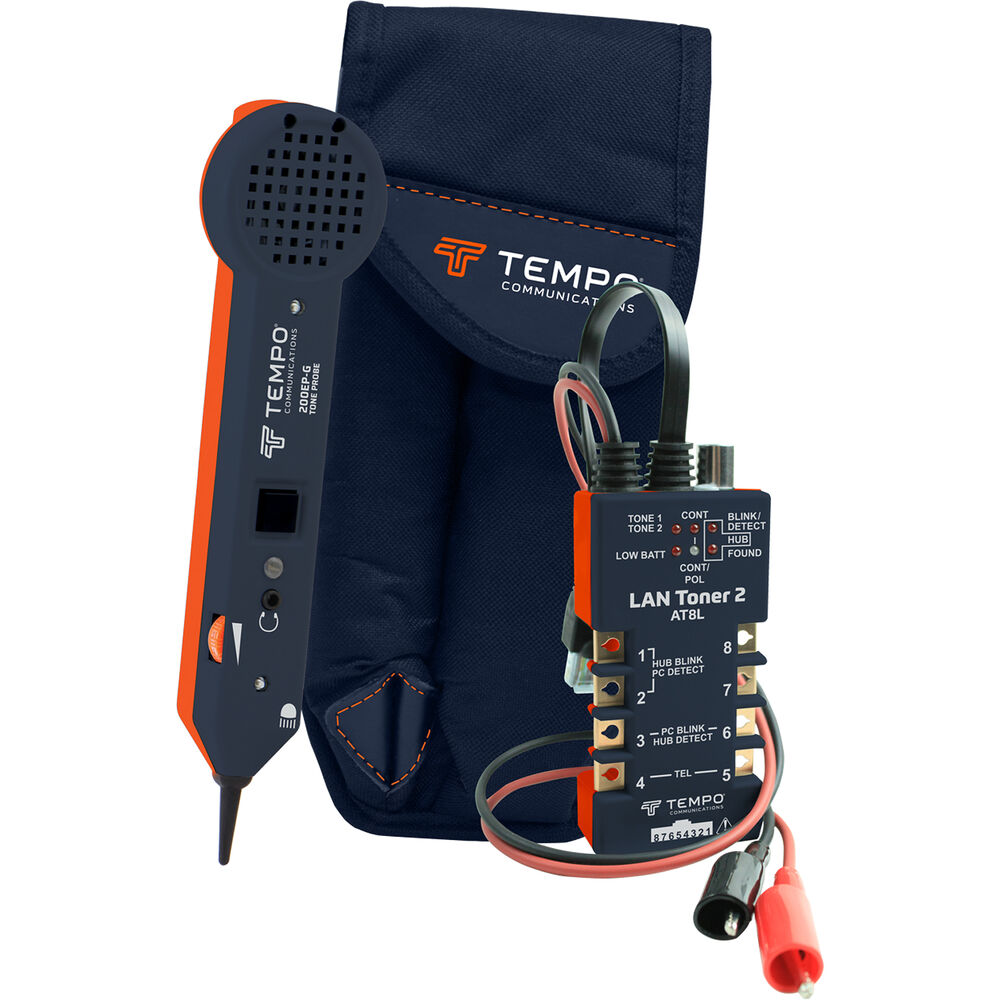

The AT8L LAN Toner Kit is a kit comprised of a Greenlee 200GX Tone Probe Amplifier, an AT8L LAN Toner, and a nylon case. The amplifier and tone-generator are intended to facilitate the tracing and troubleshooting a variety of electrical circuits in a variety of circumstances, including Datacom, Telecom, alarm/security, audio, and CATV. It accomplishes all of this without piercing insulation.
The probe, which can operate at levels of 30 dB, includes an LED for a visual indication of signal strength, and for recessed telephone test-set connectors. Also provided is a plastic probe tip to prevent accidental shorts.
The accompanying power-tone generator provides two selectable warble tones for identifying multiple cable runs, tone signaling, continuity testing, telephone line polarity indication, and more.
In the Box
- Tempo AT8L LAN Toner Kit
- 200GX Tone Probe
- AT8L Tone Generator
- Carrying Case
Tempo AT8L Specs
| Gain | 30 dB |
| Input Impedance | 100 MOhms |
| Resistance | Plastic probe tip: 300 Ohms |
| Battery | 1 x 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61) |
| Battery Life | 50 hours (nominal) |
| Operating/Storage Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 9.0 x 1.9 x 1.4" / 22.9 x 4.8 x 3.5 cm |
| Weight | 4.6 oz / 0.13 kg |
| Battery | Talk battery: 4.2 VDC into 600 Ohms |
| Output Power | 8 dBm into 600 Ohms |
| Output Frequency | Tracing tones Tone 1: 820 / 1110 Hz Tone 2: 577 / 820 Hz Warbling rate Tone 1: 1.9 Hz Tone 2: 5.5 Hz |
| Voltage Protection Rating | 60 VDC into 600 Ohms |
| Battery Life (approx.) | 50 hours |
| Auto Shut-Off | About 5 hours |
| Operating Temperature | 32 to 158°F / 0 to 70°C |
| Storage Temperature | -13 to 185°F / -25 to 85°C |
| Relative Humidity | 80% max |
| Dimensions | 4.6 x 2.1 x 1.2" / 117.8 x 52.5 x 30.5 mm |
| Weight | 0.4 lb / 0.2 kg, with battery |
| Package Weight | 1.05 lb |
| Box Dimensions (LxWxH) | 12.2 x 5.5 x 2.9" |
