Description
Tempo 801K Overview

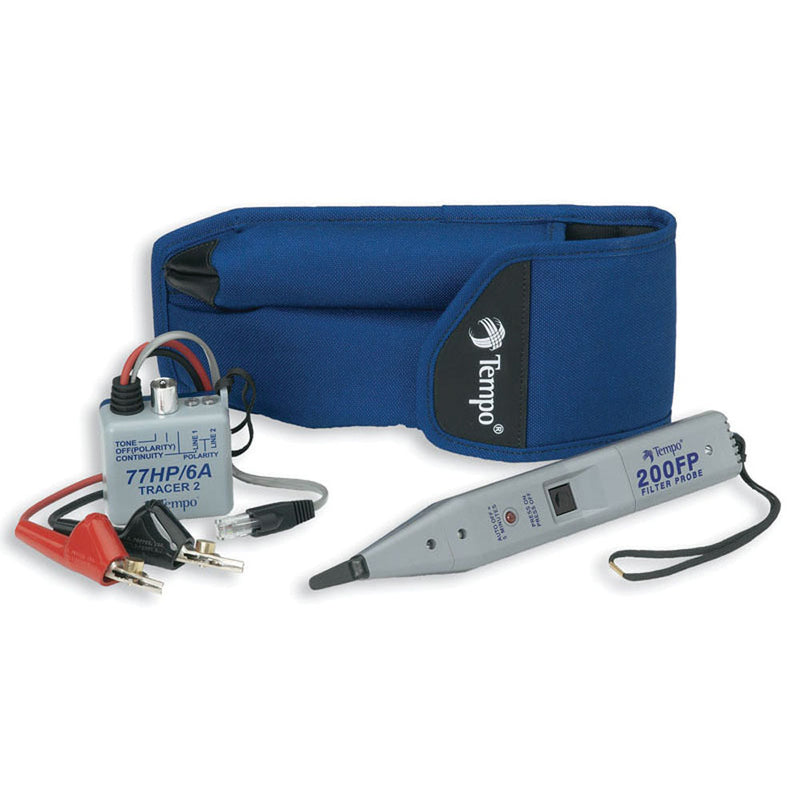

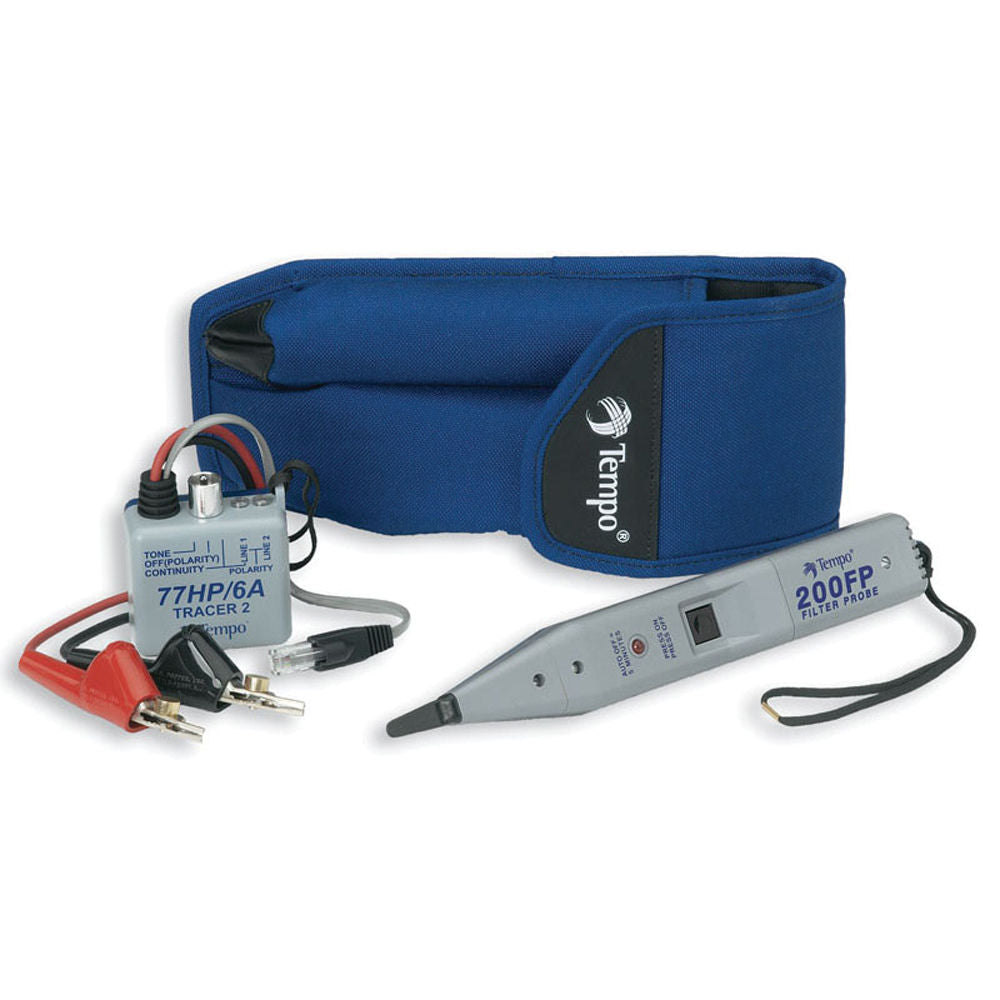

The 801K is a kit comprised of a Greenlee 200FP Filtered Tone Probe, a 77HP-G/6A High Power Tone Generator, and a Cordura carrying case. The probe and tone-generator are intended to identify or trace wires and cables without ever surrounding removing insulation.
The probe, which can operate at levels of 35 dB, has been designed to filter all power-related noise to eliminate the interference of the phenomenon of "power line hum". The accompanying power-tone generator provides the alternating 890/960 Hz signal, and can identify conductors within bundles, at cross-connection points, or at remote ends. Both the tone generator and the probe are battery powered, lasting up to 50 hours off of a 9V battery. When the items are not in use, you can store them in the Cordura carrying case.
In the Box

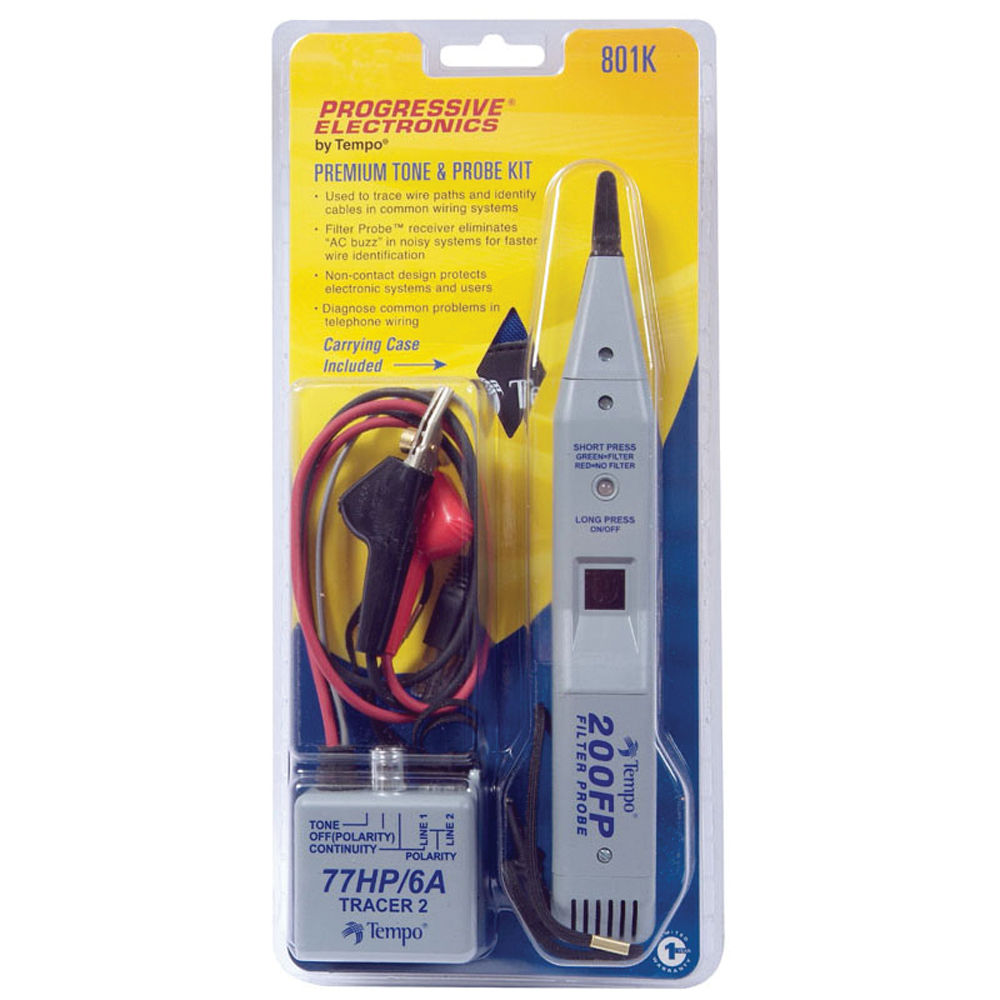

- Tempo 801K Premium Tone and Probe Kit
- 200FP Filtered Tone Probe
- 77HP-G/6A High Power Tone Generator
- Carrying Case
- Limited 1-Year Warranty
Tempo 801K Specs
| Gain | 35 dB, nominal |
| Input Impedance | 100 MOhms, nominal |
| Resistance | Probe tip: 300 Ohms |
| Overvoltage Protection | Cat I, 150 V to ground |
| Battery | 1 x 9 V (alkaline) |
| Battery Life | 50 hours (nominal) |
| Operating/Storage Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 9.9 x 1.3 x 1.4" / 250 x 32 x 35 mm |
| Weight | 5.0 oz / 142.0 g |
| Output Frequency | Alternating between 890 and 960 Hz |
| Frequency (Operating) | Warbling: Slow: 1.3 Hz Fast: 6 Hz |
| Voltage Protection Rating | 52 VDC into 600 Ohm Circuit |
| Impedance | General: 600 Ohms Resistive short visual indication: < 10 kOhms Resistive short audio indication: < 200 Ohms |
| Battery | 9 VDC (NEDA 1604, JIS 006P or IEC 6LR61) |
| Battery Life (approx.) | 50 hours |
| Power | Talk battery: 4.6 VDC Output: 10 dBm |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Storage Temperature | -58 to 167°F / -50 to 75°C |
| Dimensions | 1.3 x 2.5 x 2.3" / 32 x 64 x 57 mm |
| Weight | 4.5 oz / 128.0 g |
| Package Weight | 1.015 lb |
| Box Dimensions (LxWxH) | 12.35 x 5.5 x 2.65" |
