Description
Tempo 701K-G Overview

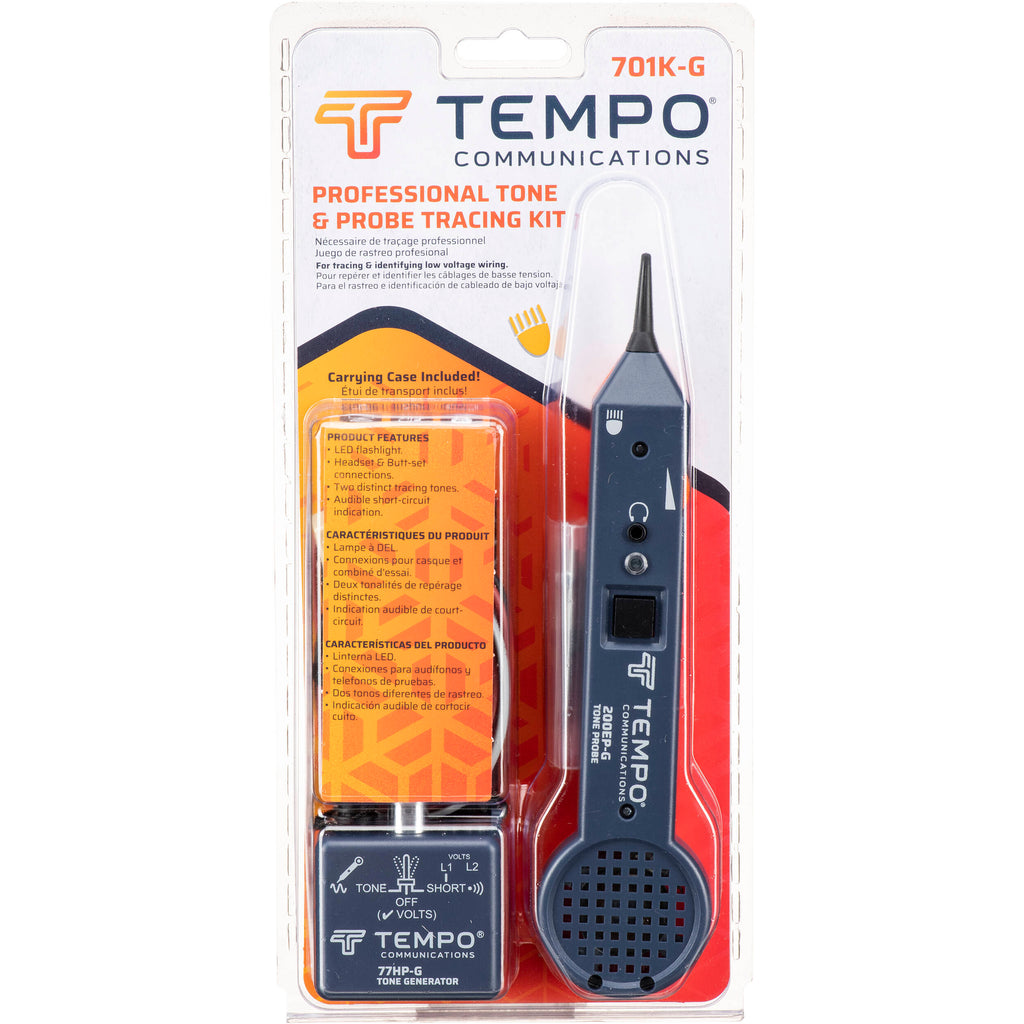

The 701K-G is a kit comprised of a Greenlee 200EP Tone Probe Amplifier, a 7HP-G High Power Tone Generator, and a rugged nylon carrying case. The amplifier and tone-generator are intended to facilitate the testing and tracing of wire and cables.
The probe, which can operate at levels of 30 dB, features a 3.5mm headset jack for monitoring tone in headphones, and comes with a plastic probe tip to prevent accidental shorts. The accompanying power-tone generator provide the alternating 890/960 Hz signal to trace a given wire, or pair of wires. Both the tone generator and the probe are battery powered, lasting up to 50 hours off of a 9V battery. When the items are not in use, you can store them in the woven nylon carrying case.
In the Box
- Tempo 701K-G Standard Tone and Probe Kit
- Greenlee 200EP-G Tone Probe Amplifier with Headset Jack & Flashlight
- Tone Probe Amplifier
- Carrying Case
- Limited 1-Year Warranty
Tempo 701K-G Specs
| Gain | 30 dB, nominal |
| Input Impedance | 100 MOhms |
| Resistance | Plastic probe tip: 300 Ohms Metal probe tip: 0 Ohms |
| Headset Jack | 3.5 mm stereo plug, 8 Ohms minimum |
| Battery | 1 x 9 VDC (NEDA 1604, JIS 006P, or IEC 6LR61) |
| Battery Life | 50 hours (nominal) |
| Operating/Storage Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 9.1 x 2.2 x 1.1" / 23.1 x 5.5 x 2.8 cm |
| Weight | 5.1 oz / 145.0 g |
| Output Frequency | Alternating between 890 and 960 Hz |
| Frequency (Operating) | Warbling: Slow: 1.3 Hz Fast: 6 Hz |
| Voltage Protection Rating | 52 VDC into 600 Ohm Circuit |
| Battery | 9 VDC (NEDA 1604, JIS 006P or IEC 6LR61) |
| Battery Life (approx.) | 50 hours |
| Power | Talk battery: 4.5 VDC Output: 7 dBm |
| Impedance | 600 Ohms |
| Operating/Storage Temperature | 32 to 122°F / 0 to 50°C |
| Dimensions | 1.3 x 2.5 x 2.2" / 3.2 x 6.4 x 5.7 cm |
| Weight | 4.5 oz / 128.0 g |
| Package Weight | 1.01 lb |
| Box Dimensions (LxWxH) | 12.35 x 5.55 x 2.7" |
