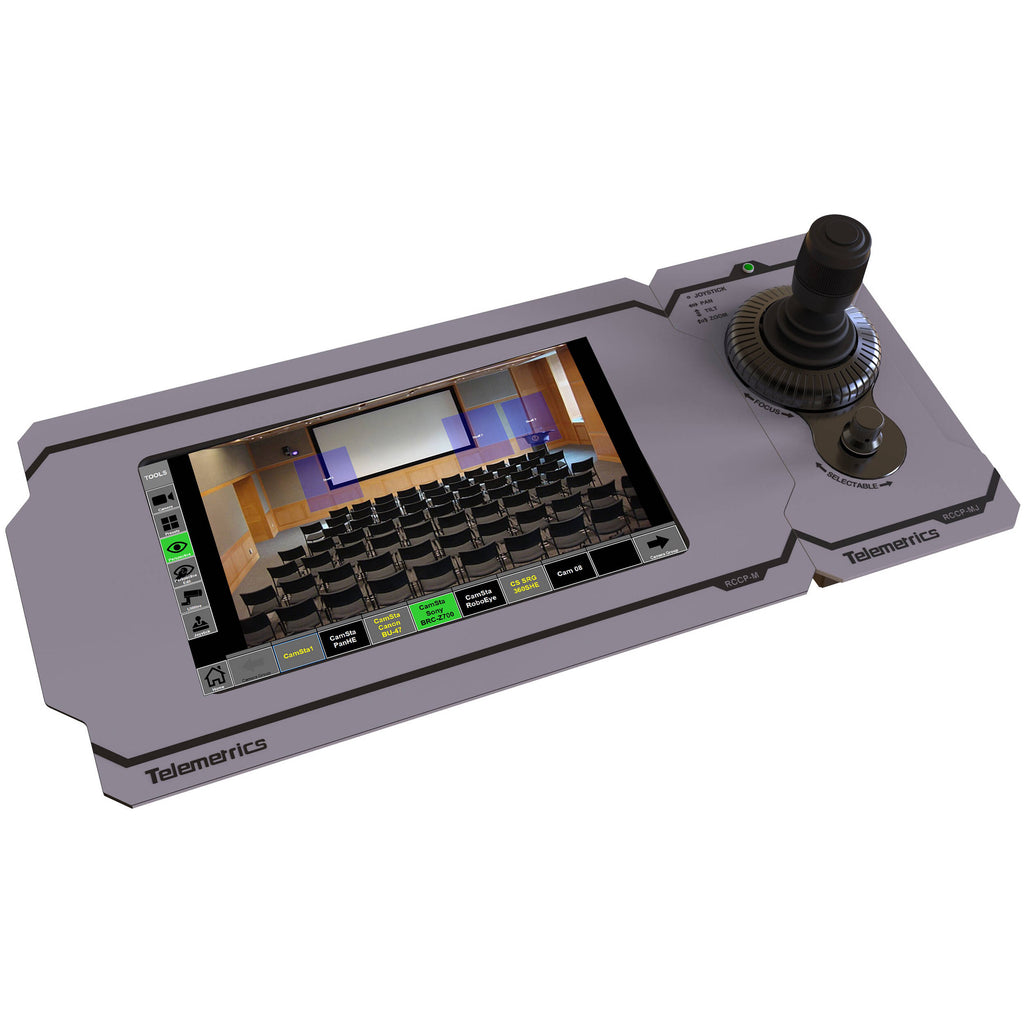

Telemetrics RCCP-M Overview
Telemetrics brings a flexible, modular approach to video production automation and single-operator efficiency with this RCCP-M Modular Robotic Camera Controller with software and customizable control panel. This proven robotic camera control package features an easy-to-use (and customizable) joystick controller and a large touchscreen interface for full camera image controls and scene presets. With its intuitive feature layout, the controller is ideal for the Corporate AV and house of worship markets.
With its Perspective View feature, the RCCP-M camera control panel gives users a bird's eye view of the room and its various participants eliminating the struggle with difficult-to-remember presets. The operator can load an image into the panel providing independent Perspective views for each camera that clearly show how the production will look. This innovative Perspective View also makes it easier for church volunteers and less skilled operators because they don't have to necessarily know what camera they want to operate. They simply use the RCCP-M's graphical user interface to click on an image and go live with each camera position.
This cost-effective control panel features a large, capacitive touchscreen interface for instantly identifiable camera functions; pan, tilt, and zoom speed control knobs; and a large focus knob for highly precise camera control. It also offers a number of flexible options, so users can upgrade to more advanced controls as the need arises.
Intuitive and Easy-to-Use
The controller includes the Telemetrics Robotic Camera Control Panel Software, which gives non-technical staff the power to set up robotic/PTZ presets and camera pan/tilt controls via a graphical touchscreen interface. The software includes auto-sense device detection and a Perspective feature that allows for simplified preset recall.
Universal Connectivity
The Telemetrics RCCP-M offers full support and connectivity for robotically controlled PTZ systems from Telemetrics, Panasonic, Sony, Canon, and others. It is also compatible with Broadcast cameras from Grass Valley, Hitachi, Ikegami, JVC, Panasonic, and Sony, when using Telemetrics robotics.
Modular and Versatile
The joystick can be attached on the left or right side of the panel, or completely disconnected allowing you to mount the touchscreen section. Users can operate remotely or walk into a studio with the controls in hand, wirelessly. An additional sidecar joystick can be purchased separately to add to the opposite side for additional camera control.
Professional Quality Construction
The RCCP-M provides a high-precision 3-axis proportional control joystick for on-air moves, a high-resolution focus wheel for fine adjustments, and a user-definable knob for quick access to camera functions. The high-resolution capacitive touchscreen provides a responsive user interface. The RCCP-M is designed to last with its all-metal chassis.
Software Features
Supports up to eight cameras
In the Box
- Telemetrics RCCP-M Modular Robotic PTZ Camera Control Panel
- Power Adapter
Telemetrics RCCP-M Specs
General
| Number of Supported Cameras |
8 Channels via IP |
| Supported Control Protocols |
IP |
| Control Interface |
1 x RJ45 (IP Control, LAN) Output |
| Other I/O |
3 x USB Type-A (USB 3.1 / USB 3.2 Gen 1) Input/Output |
| Controls |
1 x Pan/Tilt Joystick
1 x Zoom Knob |
| Presets |
10,000 via IP |
Display
| Size |
10.8" |
| Resolution |
1920 x 1080 |
| Touchscreen |
Yes |
Power
| PoE Support |
None |
| Power Connectors |
1 x USB Type-C |
| Power Consumption |
30 W |
| AC Input Power |
115 to 230 VAC, 50 / 60 Hz |
| DC Input Power |
12 VDC |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C |
| Storage Temperature |
-4 to 140°F / -20 to 60°C |
| Operating Humidity |
10 to 90% |
Physical
| Security Lock Support |
None |
| Dimensions |
9.68 x 8.55 x 5.61" / 24.59 x 21.72 x 14.25 cm |
| Weight |
5.5 lb / 2.5 kg |
