Description

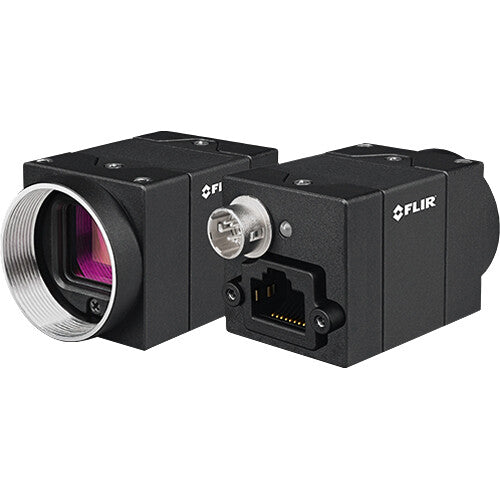

Teledyne Flir Blackfly S GigE 8.0MP Overview
The Blackfly S GigE 8.0MP Black & White Camera from Teledyne Flir captures up to 2840 x 2840 resolution video and offers Gigabit Ethernet output. Its maximum standard frame rate is 15 and 30 fps with lossless Turbodrive compression. Featuring a compact form factor, the high-performance camera is designed for industrial machine vision applications and meets the GigE Vision v1.2 standard. A C lens mount provides support for a wide variety of varifocal and fixed focal length lenses.
Features include a Sony IMX546 2/3" 8MP CMOS sensor, two custom user settings, manual/auto gain, IEEE 1588 clock synchronization, and a global shutter. You can power the camera using a 6-pin Hirose power source or via PoE using an optional interface card.
- Acquisition modes: Continuous, Single Frame, Multi Frame
- Exposure control: hardware trigger, programmable via camera API, automatic
- Exposure range: 18 ?s to 30 seconds
- Flash memory: 6MB non-volatile memory
- Gain control: manual, automatic (AGC)
- Image buffer: 240MB
- Image processing: gamma, lookup table, and sharpness
- Partial image modes: pixel binning, decimation, ROI
- User sets: two user configuration sets for custom camera settings
- Absolute sensitivity threshold (y): 4.53
- Dynamic range: 69.96 dB
- Gain range: 0 to 47 dB
- Quantum efficiency mono: 68 at 525nm
- Saturation capacity (e-): 9625
- Temporal dark noise (read noise): 2.56
Items Included
- Teledyne Flir Blackfly S GigE 8.0MP Black & White Camera (C Mount)
- Limited 3-Year Manufacturer Warranty
Additional Resources
Teledyne Flir Blackfly S GigE 8.0MP Specs
| Image Sensor |
2/3"-Type CMOS
|
| Sensor Resolution |
Effective: 8 Megapixel (2840 x 2840)
|
| Lens Mount |
C with Included Adapter
|
| Image Stabilization |
No
|
| Supports Color Recording |
No
|
| Video Output |
RJ45
2840 x 2840 at 15/30.00 fps |
| Partial Image Processing |
Pixel Binning/Decimation/Region of Interest (ROI)
|
| Shutter Type |
Electronic Global Shutter
|
| Compensation Mode |
No
|
| Video I/O |
1x RJ45 LAN Output
|
| Audio I/O |
No
|
| Power I/O |
1x Hirose 6-Pin Input
|
| Other I/O |
No
|
| Internal Storage |
No
|
| Media/Memory Card Slot |
No
|
| Wireless |
No
|
| Remote Control |
No
|
| Mobile App Compatible |
No
|
| PoE Support |
PoE 802.3af
|
| Voltage |
8.0 to 24.0 VDC
|
| Power Consumption |
2.5 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 20 to 80% Humidity
|
| Features |
Decimation Mode
|
| Certifications |
CE, FCC, Kcc, RoHS
|
| Machine Vision Standard |
GigE Vision v1.2
|
| Dimensions |
1.5 x 1.1 x 1.1" / 39 x 29 x 29 mm
|
| Weight |
1.9 oz / 53 g
|
