Tele Vue P4E-7023 Overview

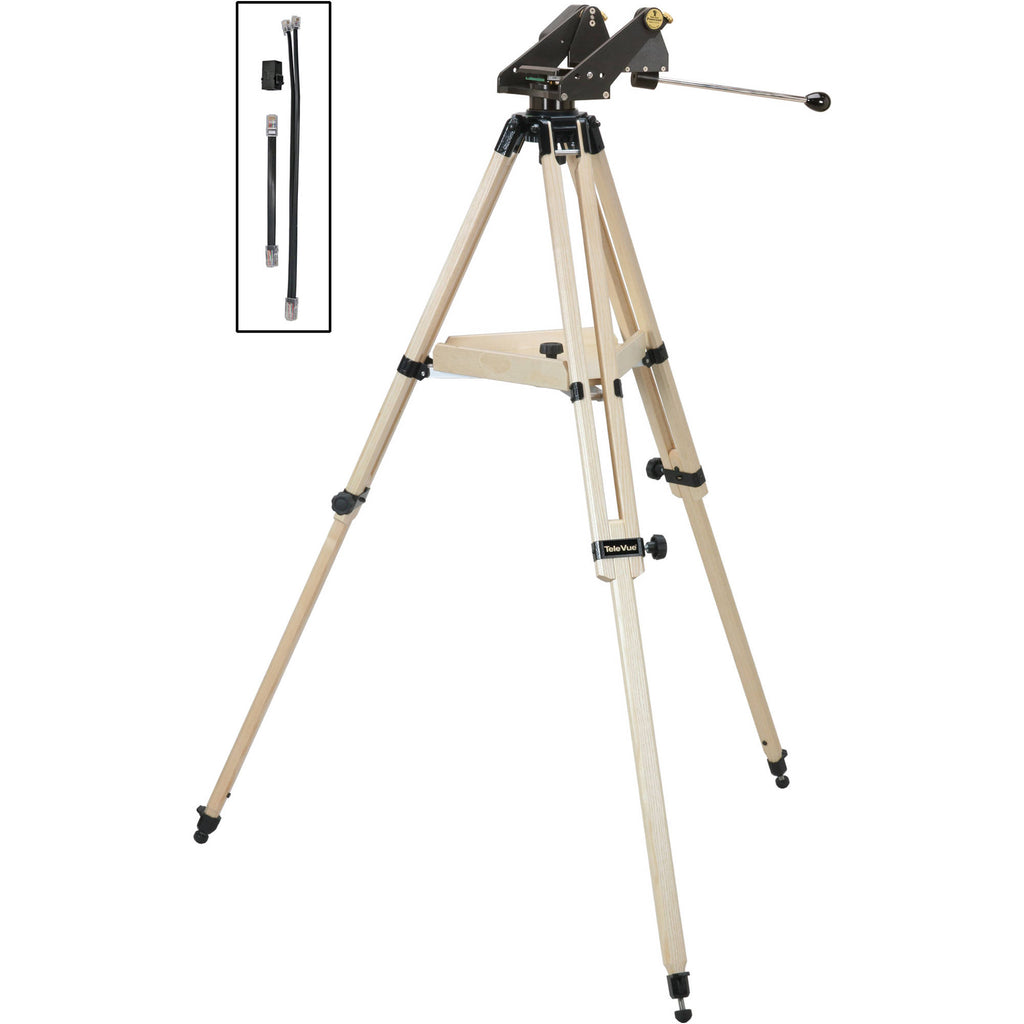

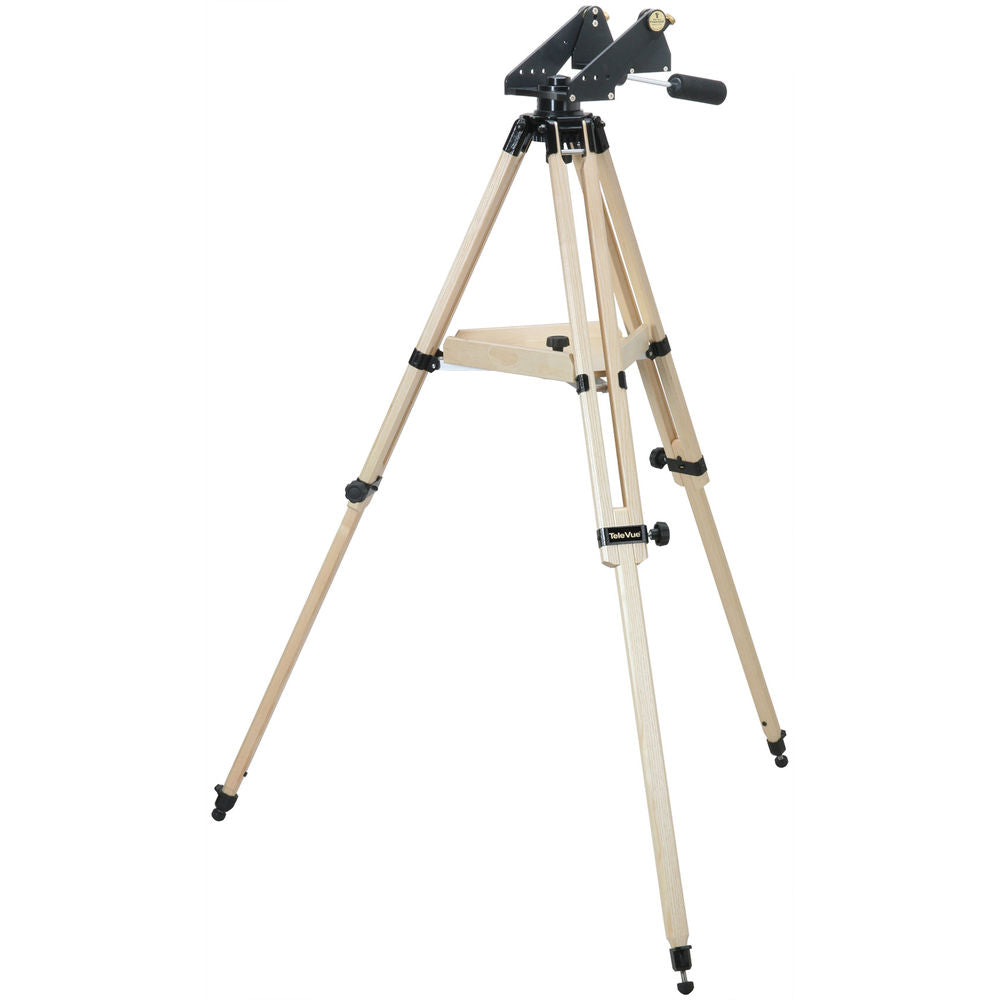

Tele Vue upgrades their lightweight Tele-Pod mount with a factory-installed encoder kit and the addition of a custom-made ash wood tripod to create the Encoder-Equipped Panoramic Alt-Az Telescope Mount .
It comes outfitted with their manual alt-azimuth Tele-Pod head, which is configured as a dual-fork yoke mount that cradles your optical tube assembly (OTA) at its center of balance for smooth pan/tilt motion with greatly reduced vibrations. The addition of the encoders on the mount head allows you to use your digital setting circles (DSCs) or computer to show you where objects are and provides real-time mount position as you move the telescope to points of interest.
The Panoramic is recommended for OTA apertures of up to 85mm and its custom-made ash wood tripod provides a rock-solid platform with natural vibration absorption and an accessory tray that provides a convenient place for eyepieces, filters, phones, and flashlights. The tripod adjusts from 28 to 48" and comes with metal spikes at the end of the feet to improve stability and rubber tips to cover the spikes.
Mount
- Recommended for OTAs up to 4"
- Altitude adjustment range from -17° to view below the horizon line (such from a hilltop), to +85 for viewing objects near the zenith
- Dual-fork yoke configuration
- Cradle design sits OTA at mount's center of balance for smooth pan/tilt motion with reduced vibrations
- Installed digital encoder kit automatically keeps track of head's movement and position after initial alignment for use with user-provided digital setting circles (DSCs) or computer
- Smooth-motion altitude and azimuth bearing with tension adjustments
- 1/4"-20 and 3/8"-16 mounting holes on azimuth plate for easy OTA attachment
- Scope stop prevents damage if the objective end "nosedives" down
- Control handle facilitates smooth tracking of celestial and terrestrial objects
Tripod
- Adjustable height from 28 to 48"
- Custom-made out of ash wood
- Two leg sections
- Large leg-clamp knobs for easy and secure adjustment
- Quick-mounting matching wood accessory tray
- Spiked feet with included rubber covers to protect spikes and/or surfaces
In the Box
- Tele Vue Encoder-Equipped Panoramic Alt-Az Telescope Mount

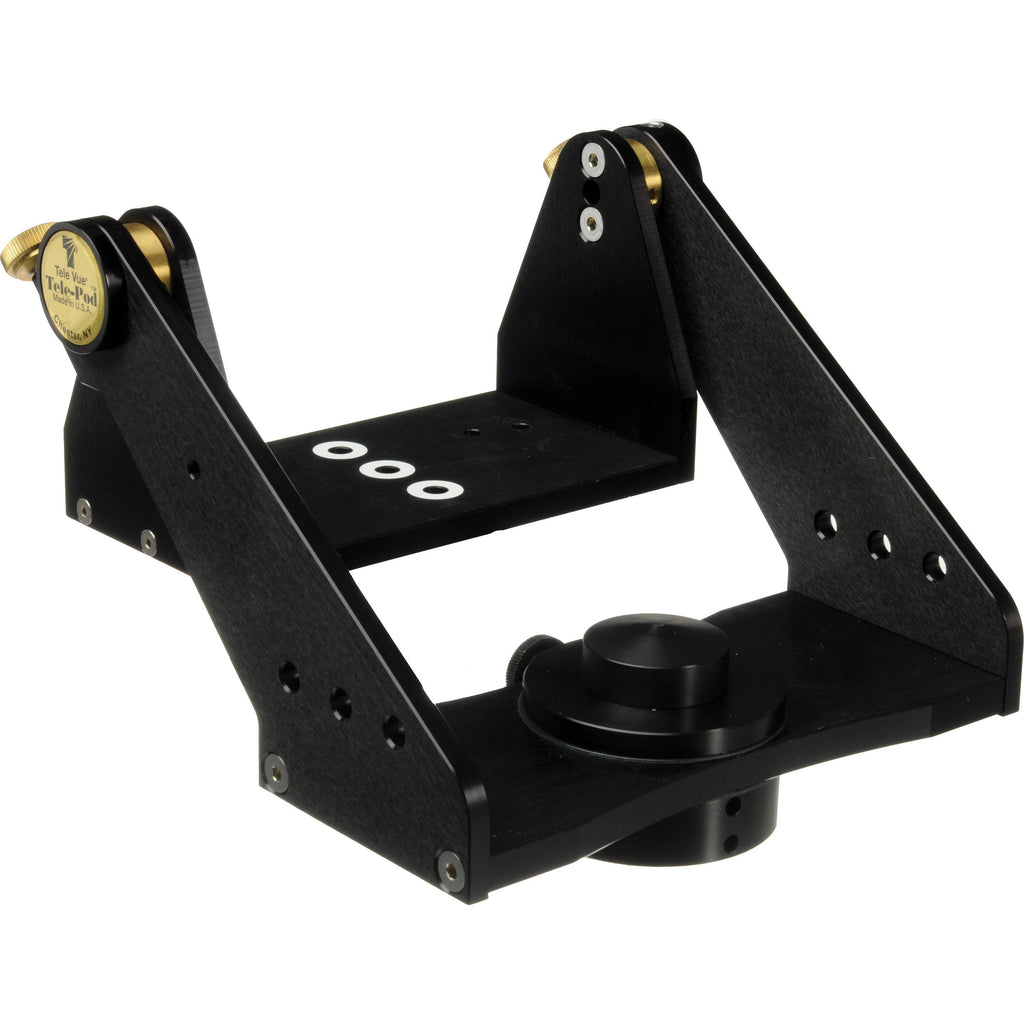

- Tele Vue Tele-Pod Alt-Az Yoke Mount (Head Only)
- Tele Vue Pano Tele-Pod Gib Encoder Kit
- Ash Wood Tripod
- Limited 5-Year Warranty
Tele Vue P4E-7023 Specs
| Mount Type | Manual; Alt-Azimuth |
| GoTo Capability | None |
| Motor | None |
| Altitude Adjustment | -17 to 85° |
| Polar Axis Scope | None |
| Height Adjustment Range | 27.6 to 48" / 70.1 to 121.92 cm |
| Leg Sections | 2 |
| Materials | Wood |
| GPS | None |
| Wi-Fi | None |
| Dimensions | Not Specified by Manufacturer |
| Weight | 11.4 lb / 5.1 kg |
