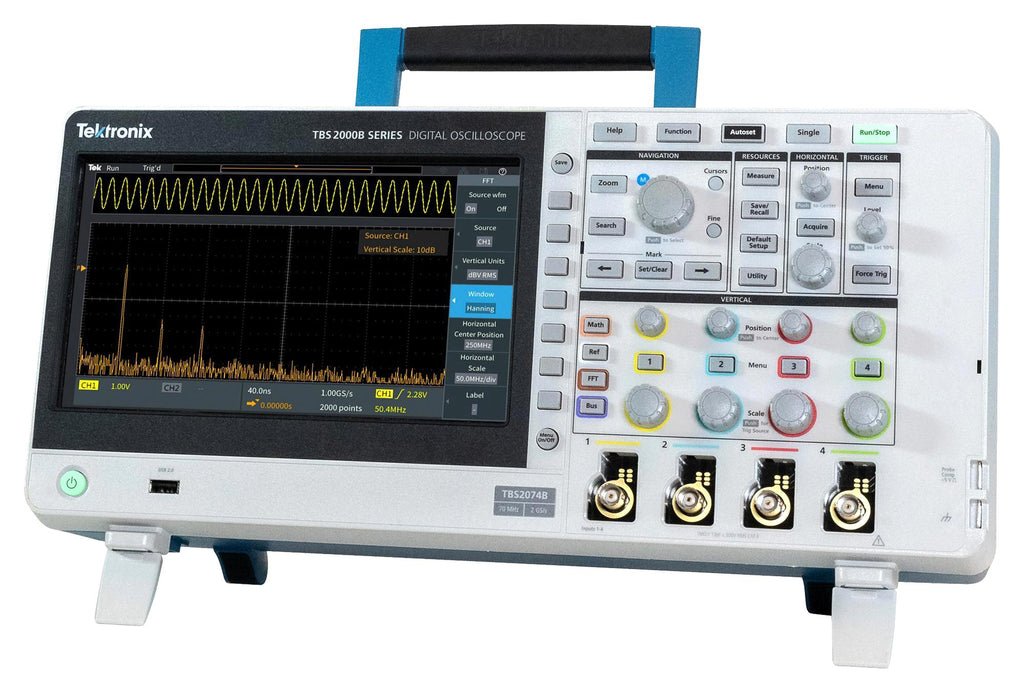

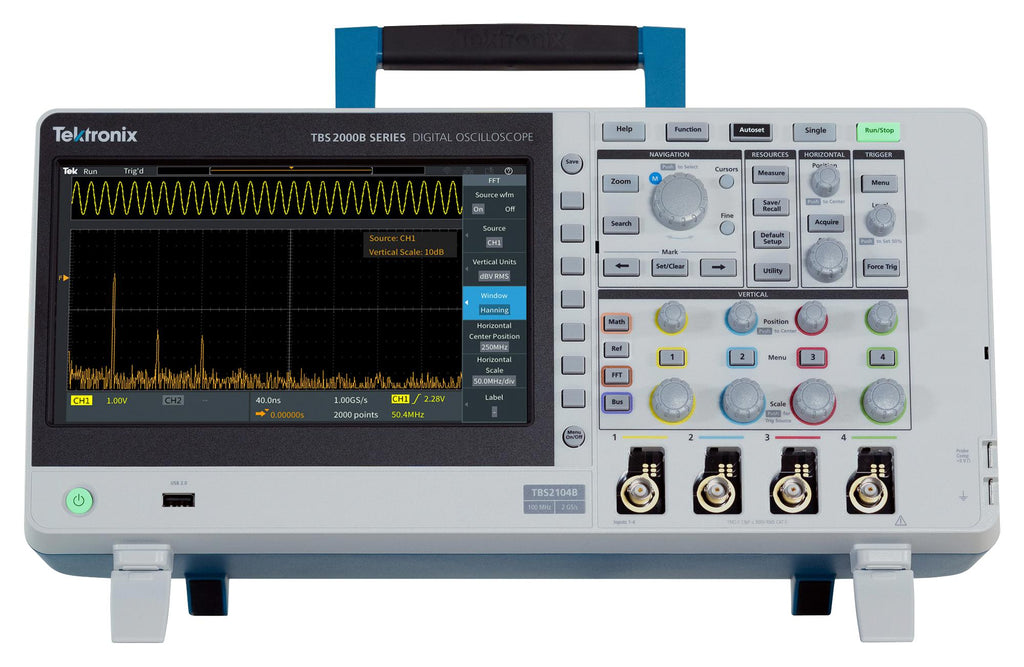

Tektronix TBS2204B TBS2204B Digital Oscilloscope TDS2000C Series 4 Channel 200 MHz 2 Gsps 5 Mpts

The TBS2204B is a TBS2000B Series of Oscilloscope with a 9" WVGA display, 5 million point record length and 2GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyse your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.

• TBS2000B series digital storage oscilloscope with 4 analogue channels and 200MHz bandwidth
• TekVPI probe interface supports active, differential and current probes with automatic scaling
• New front-end design enables more accurate measurements
• Search and mark features for easy identification of events that occur in the acquired waveform
• HelpEverywhere provides helpful on-screen tips for new users
• Built-in scope Intro handbook provides operating instructions and oscilloscope fundamentals
• Instrument user interface and the front panel overlay is translated into 10 languages
• USB 2.0 host, USB 2.0 device, 10/100BASE-T Ethernet ports and Wi-Fi interface
• 9inch WVGA colour display with 15 horizontal grids shows 50% more signal
• 32 automated measurements and FFT function for quick waveform analysis

Contents

Oscilloscope, TPP0100 passive probe, Calibration certificate, Power cord, Compliance/safety instructions, Programming manual.

Other details

Brand	TEKTRONIX
Part Number	TBS2204B
Quantity	Each
Technical Data Sheet EN
Manufacturer Catalogue EN
