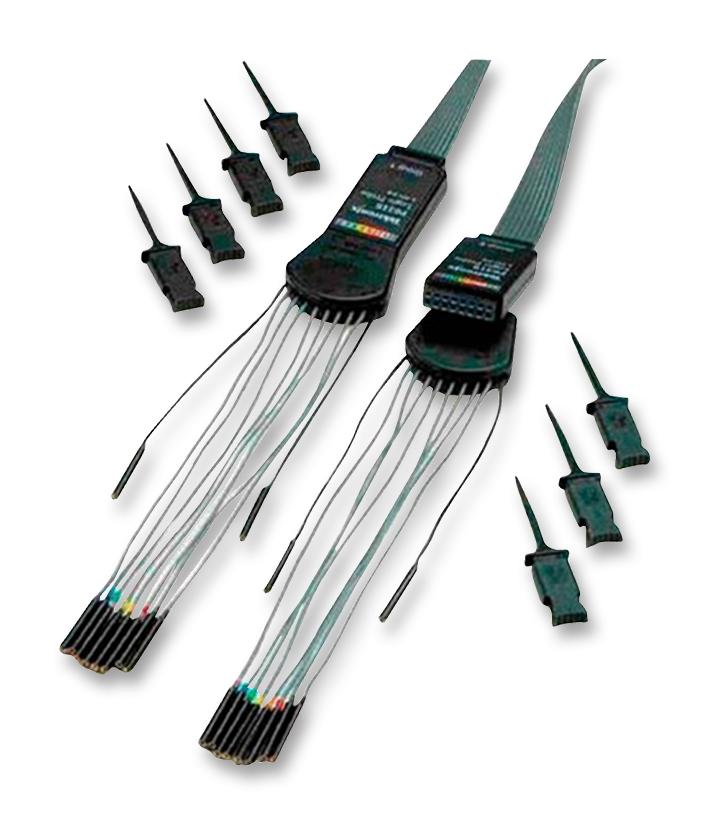

The P6316 is a MSO Probe design offers two eight-channel pods, simplifying the process of connecting to the device-under-test. When connecting to square pins, the P6316 can connect directly to 8 x 2 square pin headers spaced on tenth-inch centers. When more attachment flexibility is required, you can use the included flying lead sets and grabbers to clip onto surface mount devices or test points. The P6316 offers outstanding electrical characteristics applying only 8pF of capacitive loading with 101kR input impedance.
- Offers two eight-channel pods to simplify connecting to device
Applications
Test & Measurement
Product details
| Oscilloscope Probe Function |
Logic |
| Bandwidth |
- |
| Input Voltage Max |
- |
| Test Probe Attenuation |
- |
| For Use With |
Tektronix MSO2000 Series Mixed Signal Oscilloscopes |
| Product Range |
- |
Other details
| Brand |
TEKTRONIX |
| Part Number |
P6316 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
| Manufacturer Product Page EN |
|
