Tektronix MSO24 2-BW-70 MSO / MDO Oscilloscope 2 Series 4 Channel 70 MHz 2.5 Gsps 10 Mpts

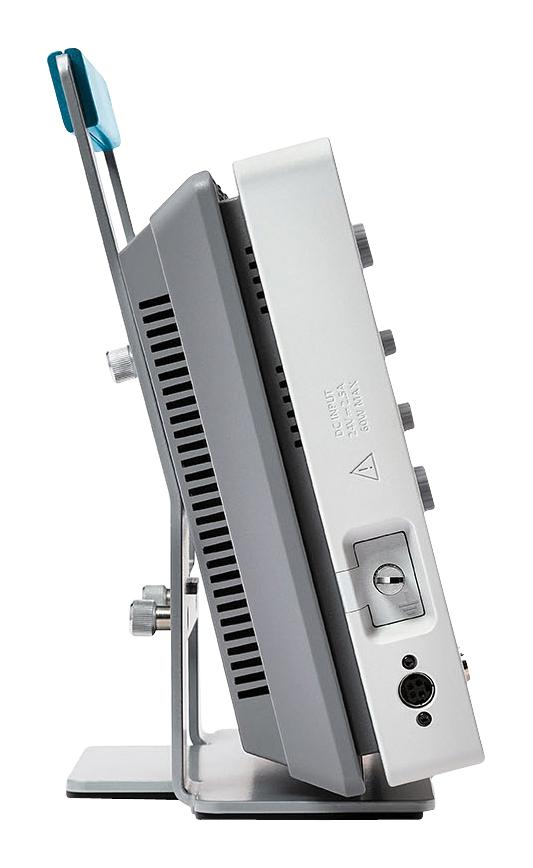

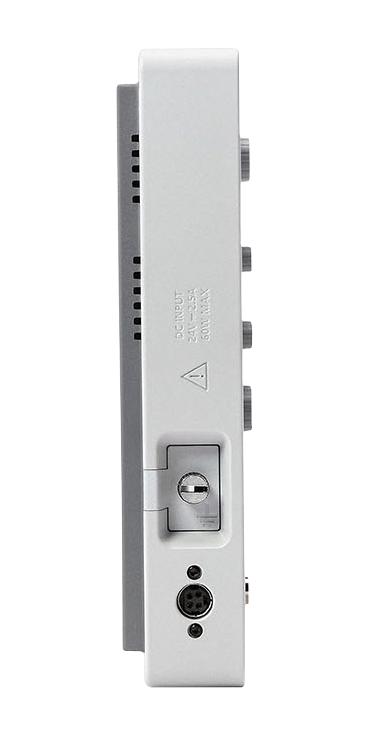

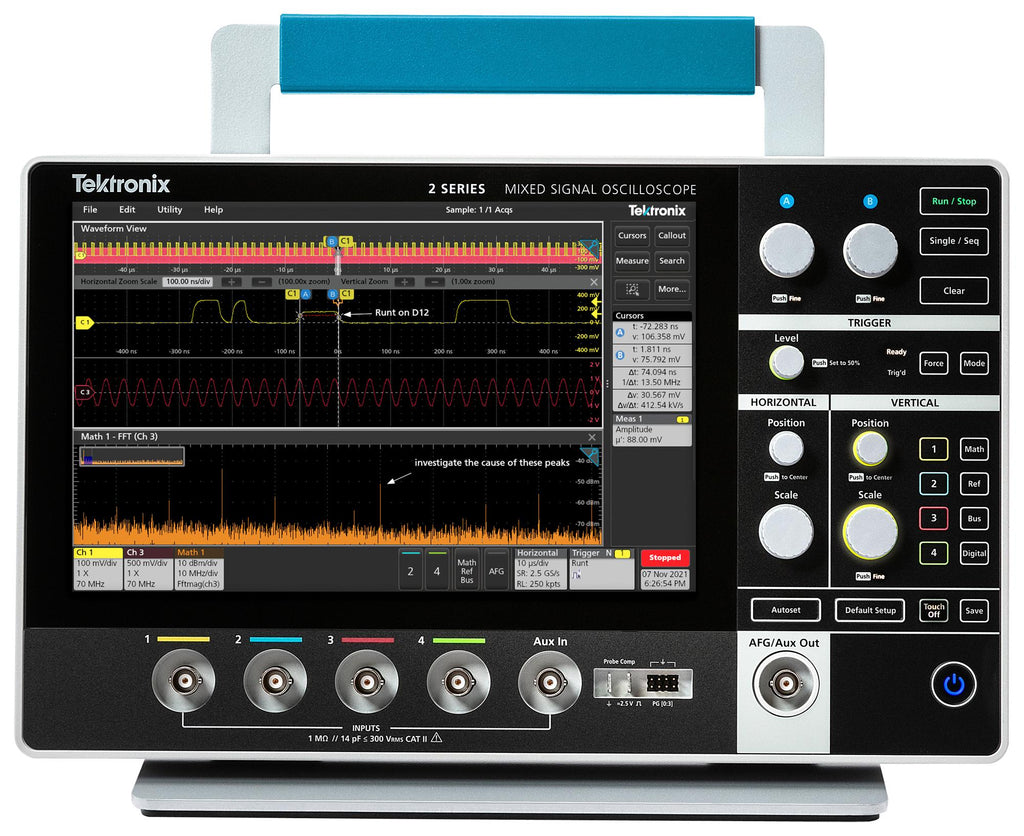

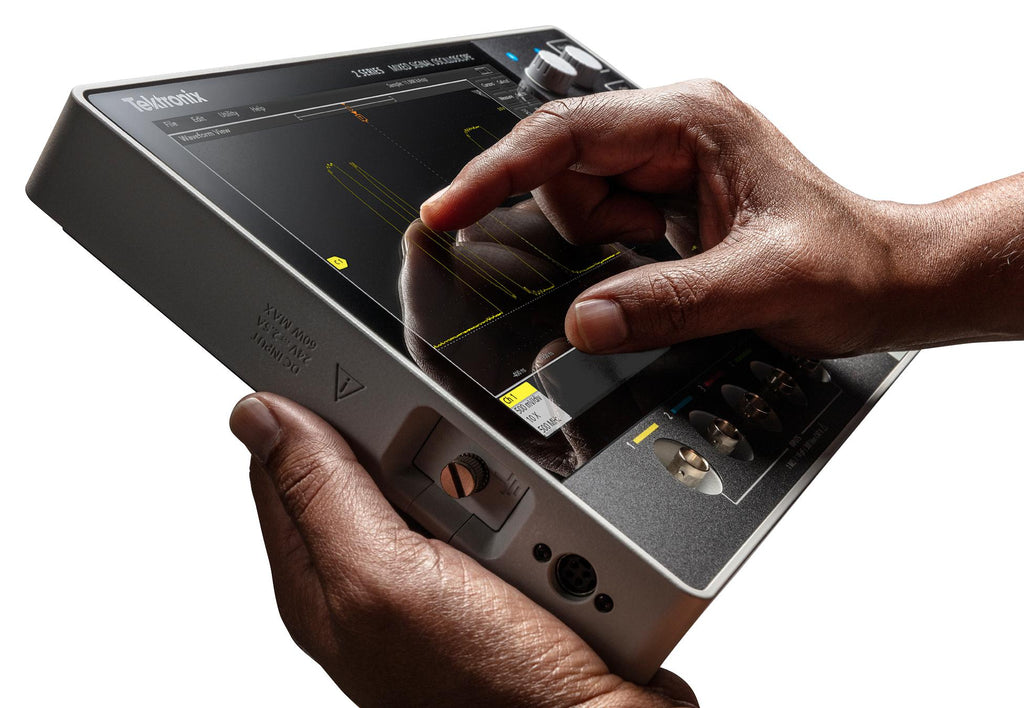

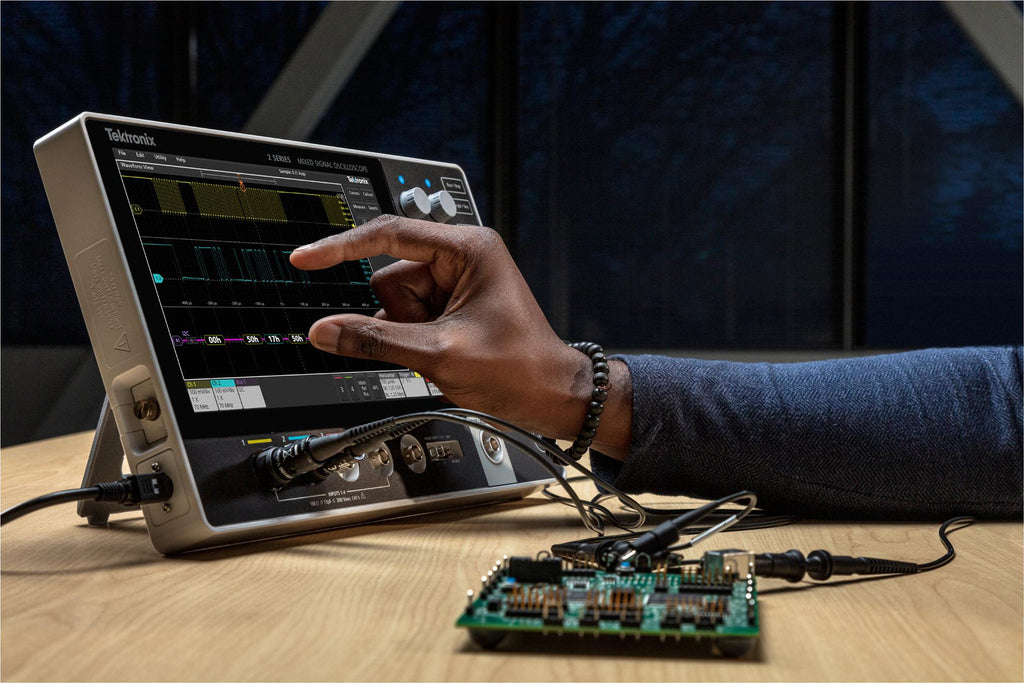

MSO24 2-BW-70 is a 70MHz bandwidth 2 series MSO mixed signal oscilloscope with 256.5mm LCD capacitive touch display. The compact, industry-leading form factor unlocks valuable bench space without compromising performance. Front and side I/O allow easy connectivity. Built-in support for TekDrive enables a collaborative data workspace and works with TekScope off-line analysis software.

• 4 analogue & 16 digital channel, 2.5GS/s sample rate(half channel interleaved), 10Mpts record length
• Optional advanced triggers, protocol decode, AFG, digital pattern generator, DVM, frequency counter
• 8-bit ADC vertical resolution
• Edge, pulse width, runt, timeout, logic, setup & hold, rise/ fall time and parallel bus
• 36 automated measurements, advanced math, FFT with gating, search and mark, limit, and eye mask
• USB 2.0 host, USB 2.0 device (2 ports), LAN (10/100 MB/s Base-T Ethernet) connectivity
• Remotely view and control the oscilloscope over a network connection through remote VNC

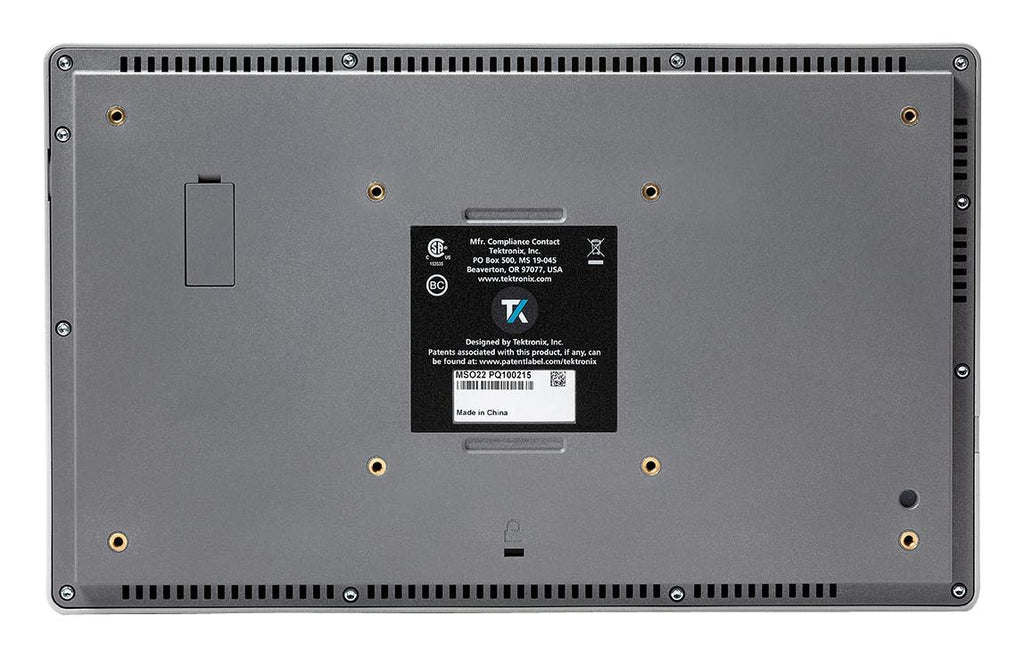

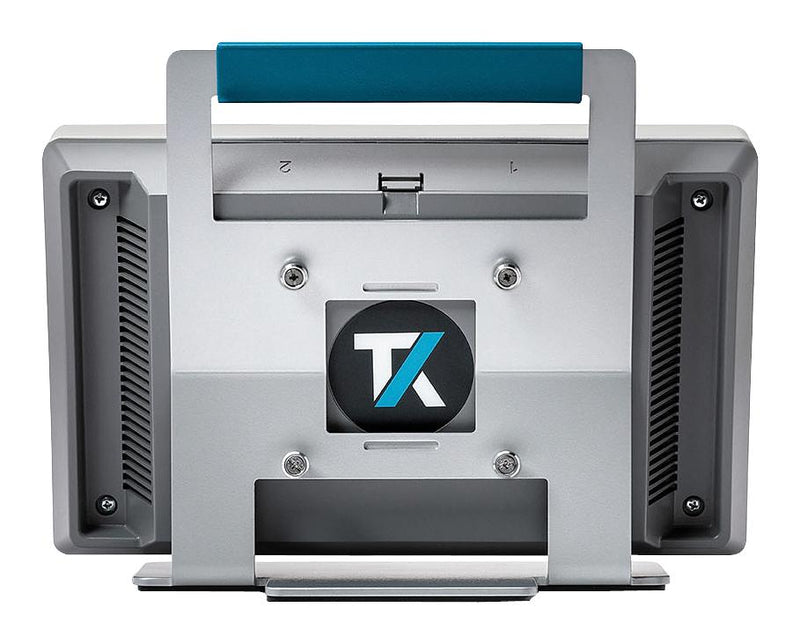

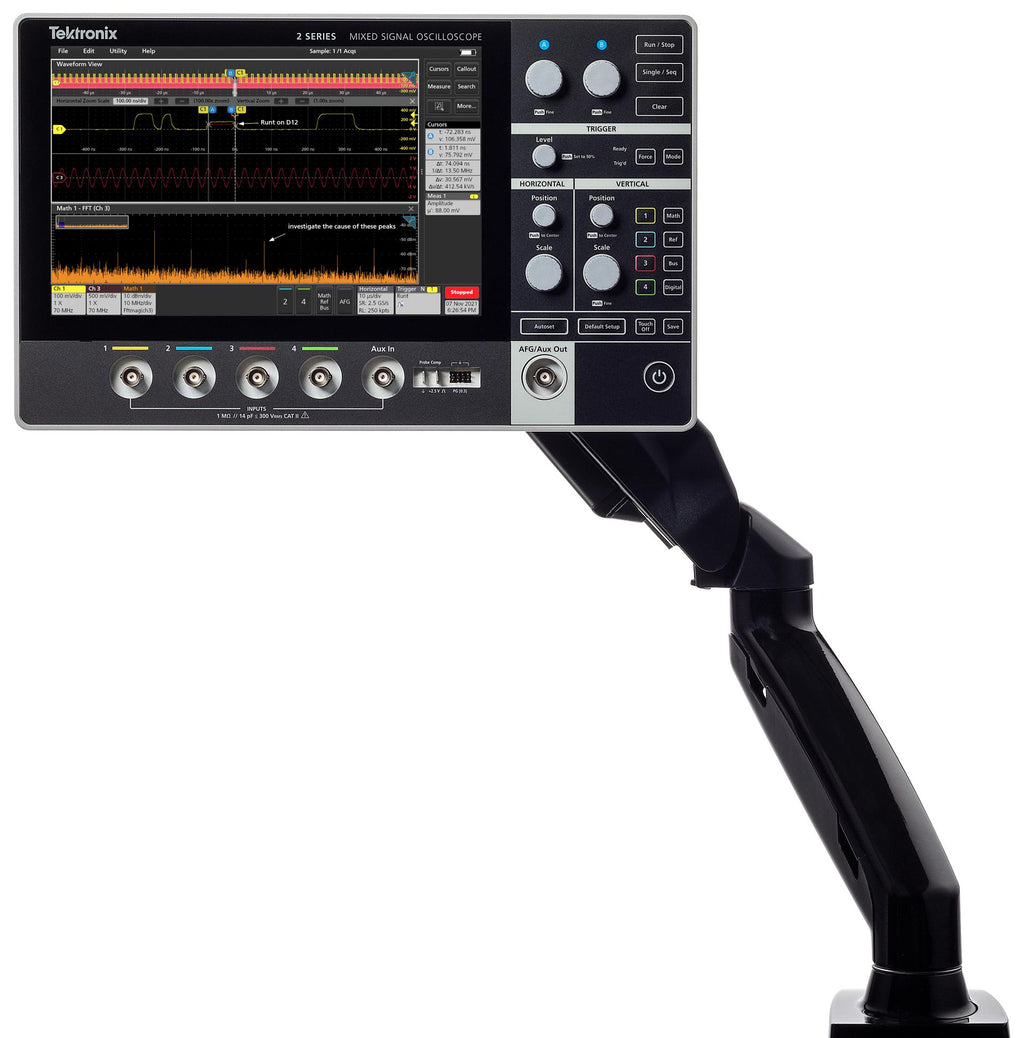

• Standard (VESA MIS-D 100) 100 mm x 100 mm VESA mounting points on rear of instrument

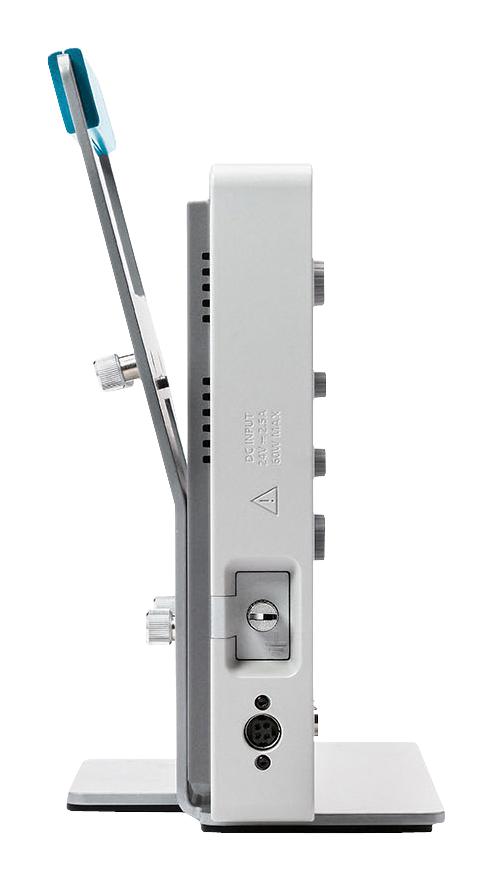

• Rear-panel security slot connects to standard Kensington-style lock

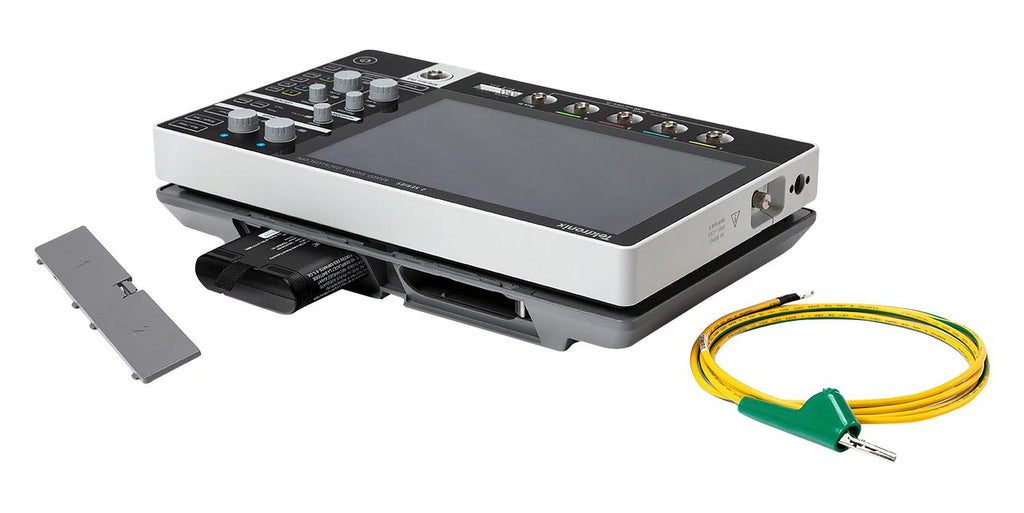

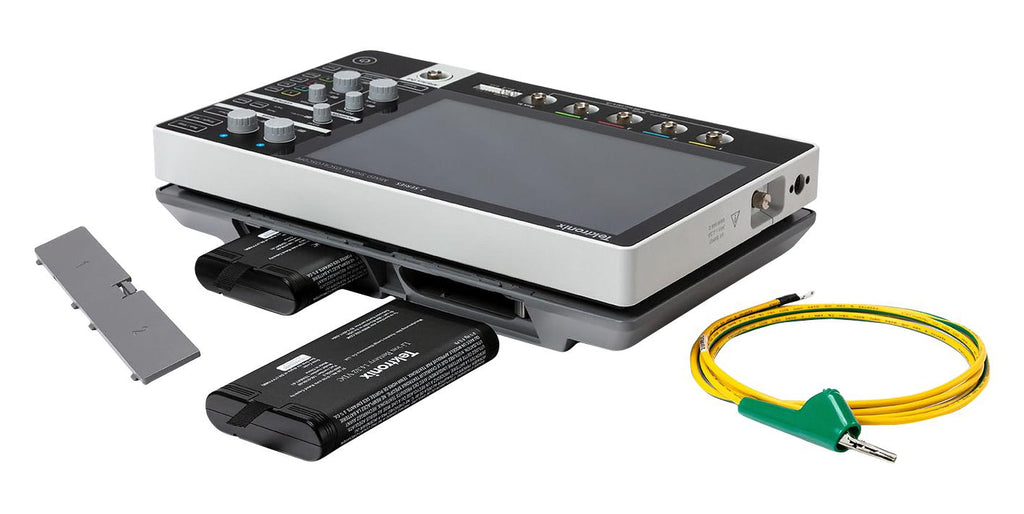

• Optional battery pack with 2 battery slots and hot-swap capability

Contents

MSO(Mixed Signal Oscilloscope), TPP0200 200MHz, 10x probe (one per channel), Instrument stand, Installation and safety manual, Embedded help, External power supply, Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration, One-year warranty.

Other details

Brand	TEKTRONIX
Part Number	MSO24 2-BW-70
Quantity	Each
