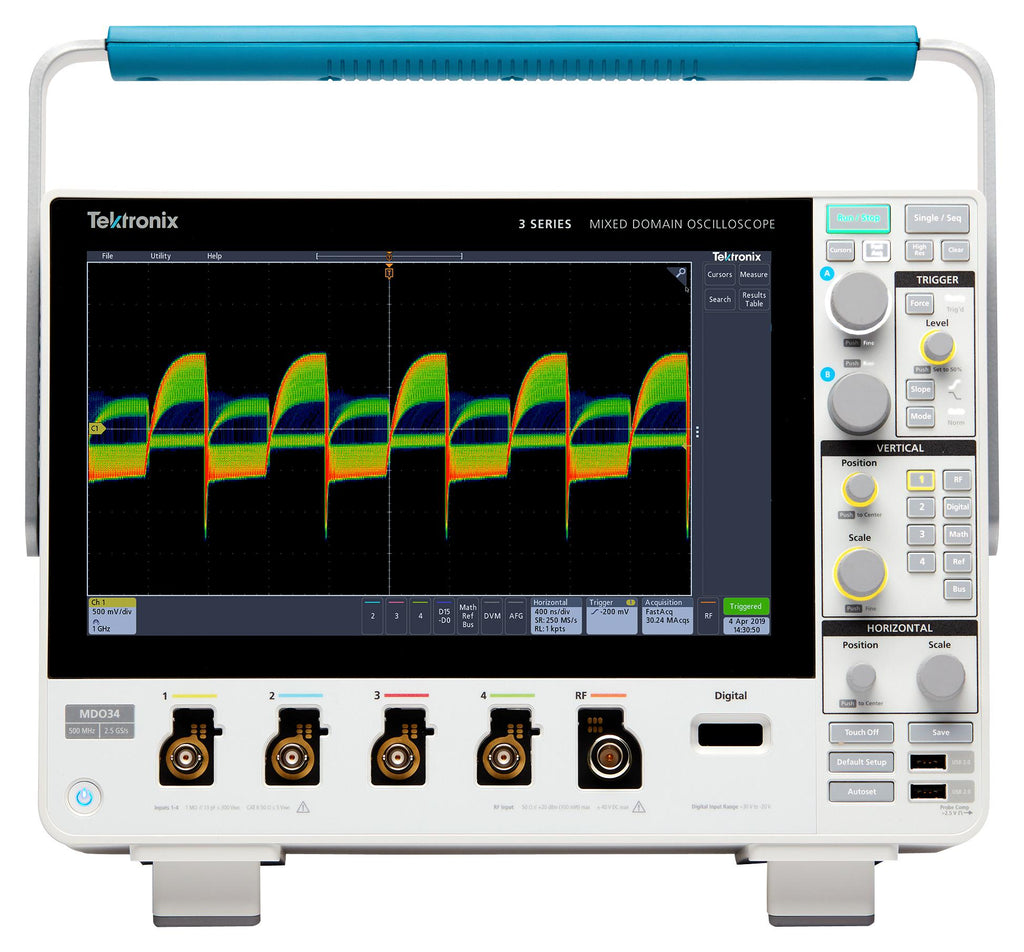

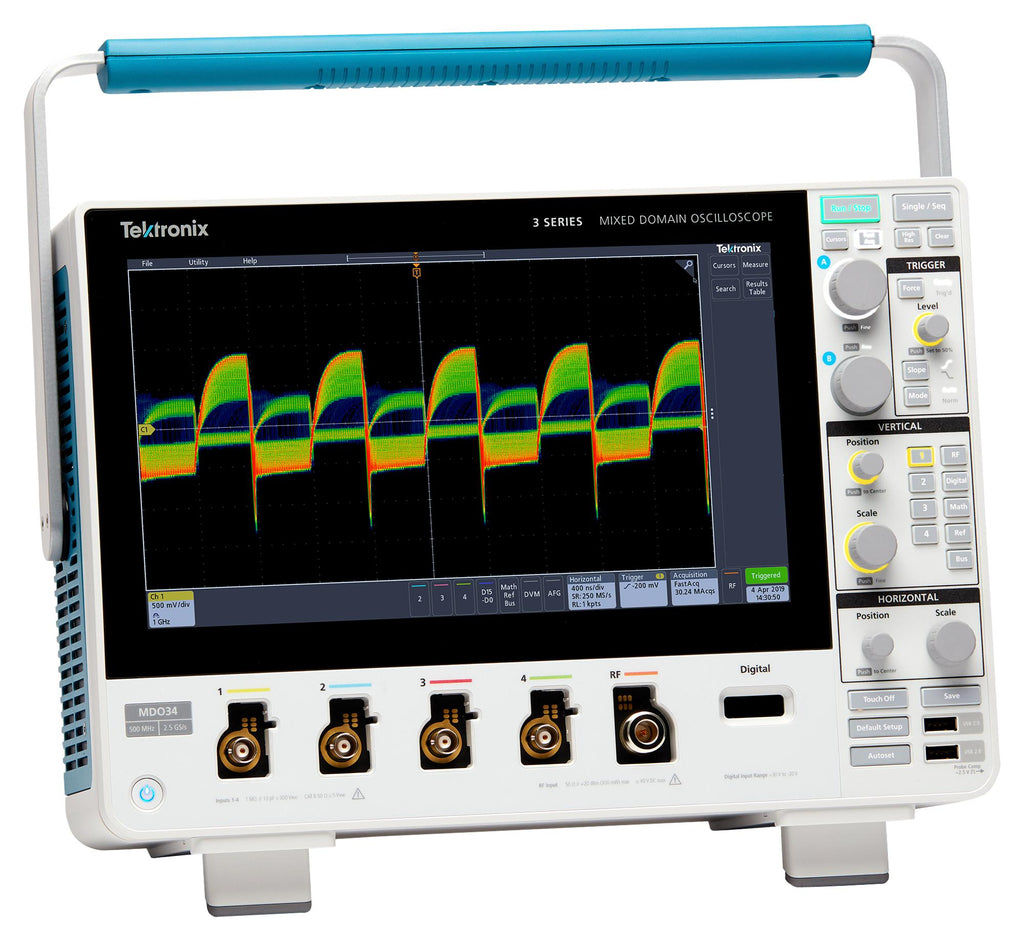

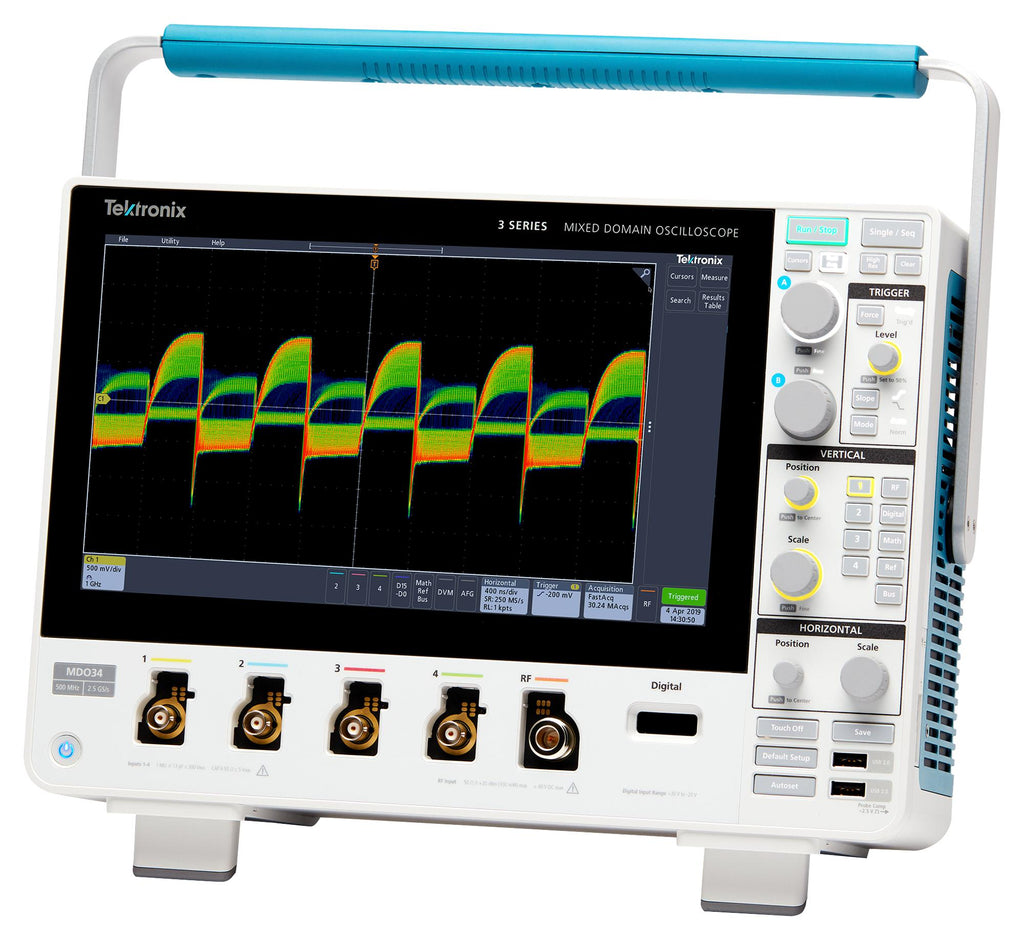

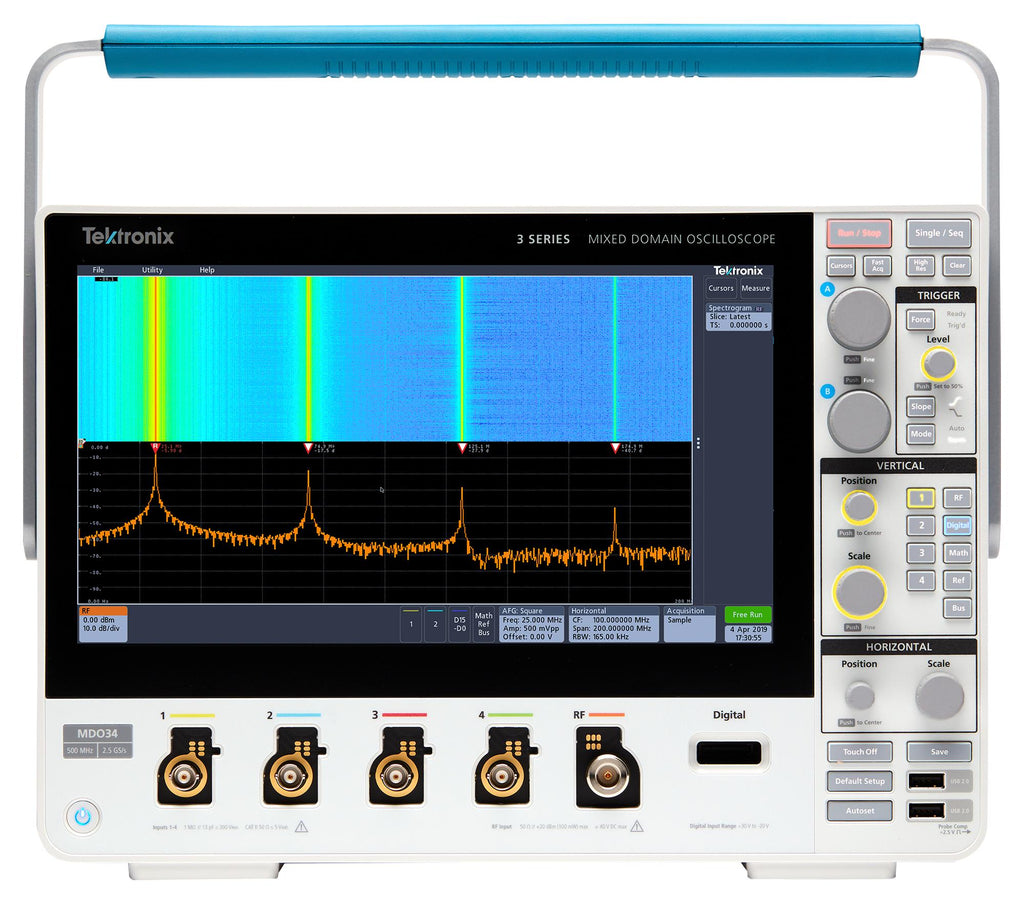

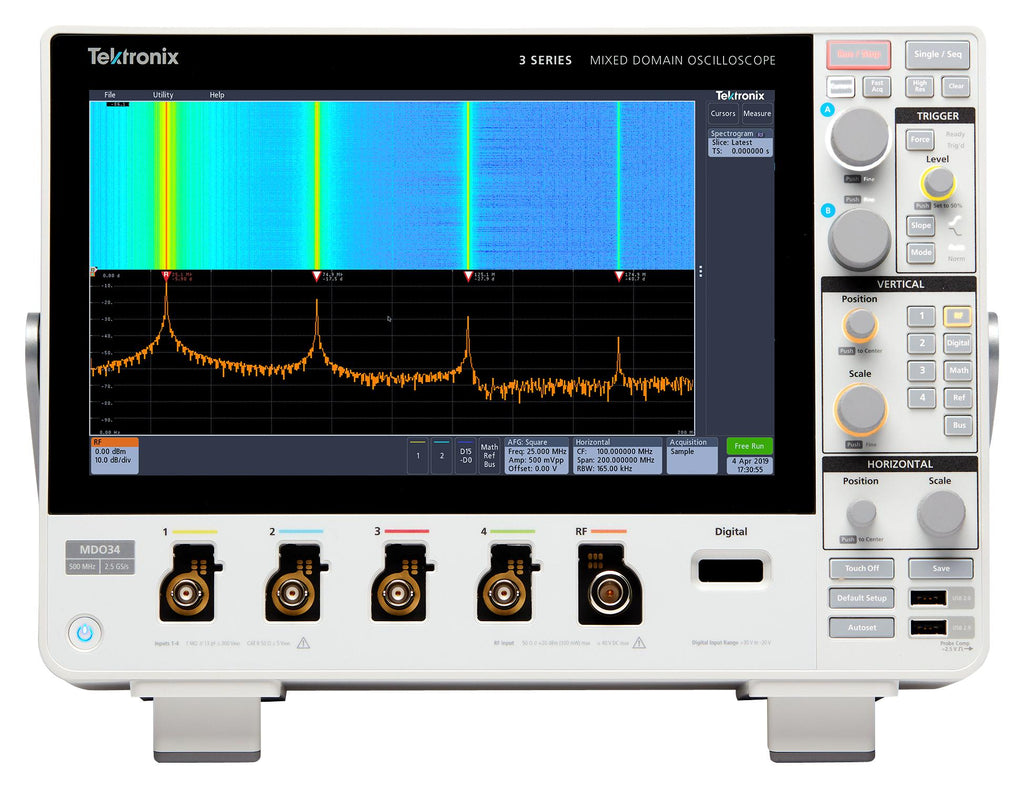

Tektronix MDO32 3-BW-200 MSO / MDO Oscilloscope 3 Series 2 Analogue 200 MHz 2.5 Gsps

The 3 Series MDO minimizes rack or bench space by integrating multiple instrument, which combines analog, digital, and RF measurements with a signal source in a single, small (5.9 in., 149 mm deep) instrument. The combination of a small instrument and high level of integration aids in the teaching of various electronics principles as well as in its usage for more sophisticated lab experiments. Fully upgradable bandwidths and options enable adding functionality over time.

• 2 and 4 analog channel models
• Large 11.6" (1920 x 1080 HD resolution) capacitive touch display, highly intuitive user interface
• 100 MHz, 200 MHz, 350 MHz, 500 MHz, 1 GHz bandwidth models
• Bandwidth is upgradable (up to 1 GHz)
• Up to 5 GS/s sample rate
• 10 M record length on all channels
• >280,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading and 250 MHz or 500 MHz analog bandwidth
• A DVM/frequency counter added at no cost following product registration
• Option to add spectrum analyzer hardware at 1GHz or 3GHz

• Debug complicated embedded designs with a wide range of serial decodes
• 6-in-1 instrument integration

Applications

Aerospace, Defence, Military, Electronics Design, Embedded Design & Development, Lighting, Motor Drive & Control, Power Management, Power Supplies, Research & Development, Sensing & Instrumentation, Wireless

Contents

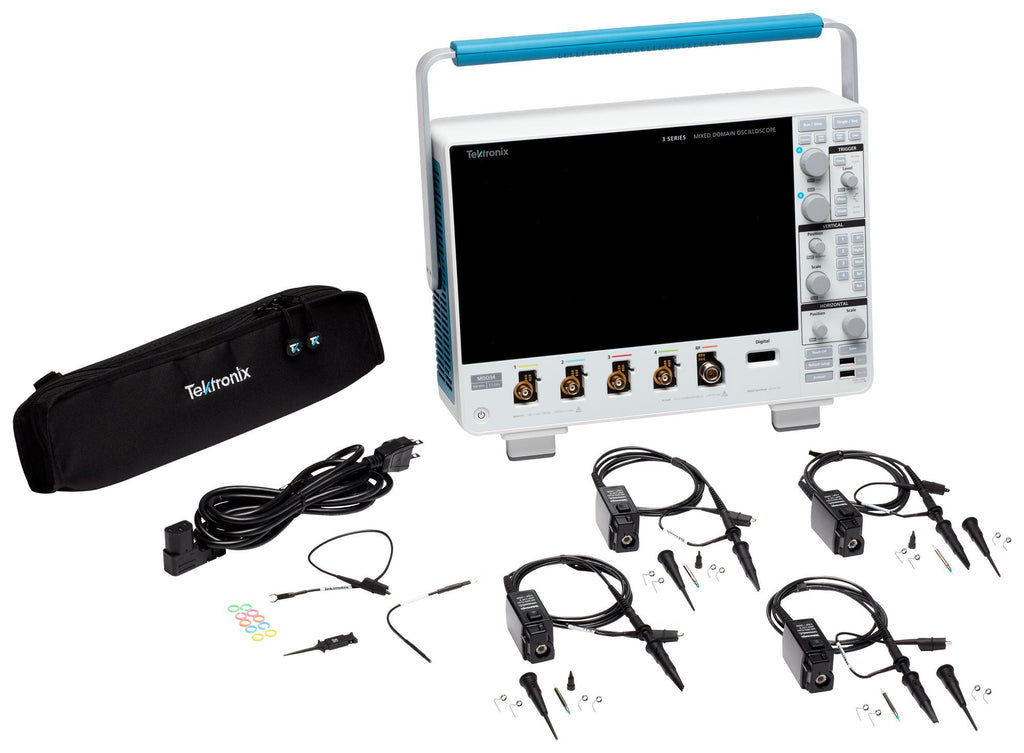

MDO32, One TPP0250 250 MHz passive probe per analog channel, Power cord, Calibration certificate documenting traceability to National Metrology Institute(s) and ISO9001/ISO17025 quality system registration, 3-year warranty covering all parts and labor on the instrument. 1-year warranty, parts and labor, on included probes.

Product details

Product Range	3 Series
Scope Channels	2 Analogue
Bandwidth	200MHz
Sampling Rate	2.5GSPS
Display Memory Depth	-
Calculated Rise Time	-
Scope Display Type	HD Capacitive Touch Screen
Kit Contents	MDO32 w/3-BW-200 Bandwidth Upgrade
Manufacturer Warranty	3 Years
Plug Type	-

Other details

Brand	TEKTRONIX
Part Number	MDO32 3-BW-200
Quantity	Each
Technical Data Sheet EN
One Page Summary EN
Miscellaneous EN
Manufacturer Catalogue EN
Operating Instructions EN
Application Note EN
Enhanced Product Overview EN
