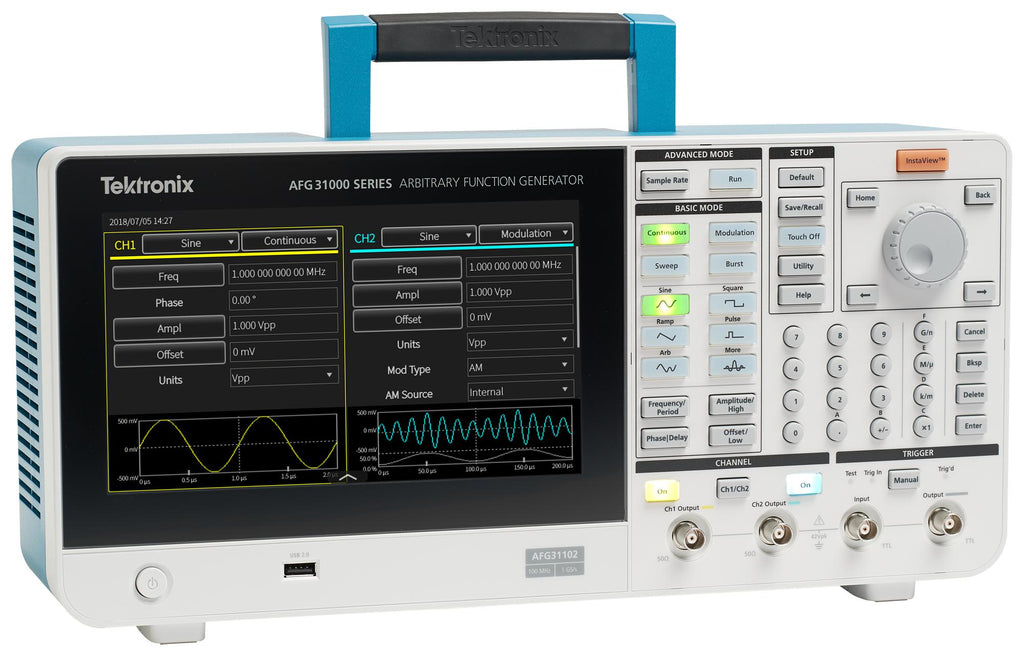

The AFG31000 Series is a high-performance AFG with built-in arbitrary waveform generation, real-time wave monitoring, and the largest user interface on the market. Providing advanced waveform generation and programming capabilities, waveform verification along with a modern touchscreen interface, the new AFG31000 is sure to make every engineer and researcher's life easier.
- Patented InstaView� technology enables engineers to see the actual waveform at the Device Under Test (DUT) in real time, without the need for an oscilloscope
- Programmable waveform sequencing for generating long, complex waveforms up to 256 steps
- The 9-inch capacitive touch screen works like a smart phone and has short-cuts to frequently used settings
- Built-in ArbBuilder for arbitrary waveform creation and edit, eliminates the need of connecting to a PC
Applications
Test & Measurement, Electronics Design, Wireless, Sensing, Power Management, Motor Drive & Control, Lighting, Displays, Embedded Design & Development, Power Supplies
Contents
Generator, Generators compliance and safety instructions, Power cord, USB cable, BNC cables, NIST-traceable calibration certificate, 3-year warranty.
Product details
| Signal Generator Type |
Arbitrary, Function |
| No. of Channels |
1 Channel |
| Product Range |
AFG31000 Series |
| Bandwidth |
25MHz |
| Signal Generator Modulation |
AM, ASK, FM, FSK, PM, PSK, PWM |
| Manufacturer Warranty |
3 Years |
| Plug Type |
- |
Other details
| Brand |
TEKTRONIX |
| Part Number |
AFG31021 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Operating Instructions EN |
|
