Description
teenage engineering TX-6 Overview
- 1Description
- 2TX-6 Firmware Updates
- 3Battery Powered
- 4Synthesizer and Sequencer
- 5Built-In Effects
- 6Quality Engineering
- 7Wireless Connectivity
- 8Super Slimline Cables
- 9Customizable Interface
- 10DJ Mode
- 111/4" and 3.5mm Outputs
- 12Field Bags
By Photo's
Andrew Eisele

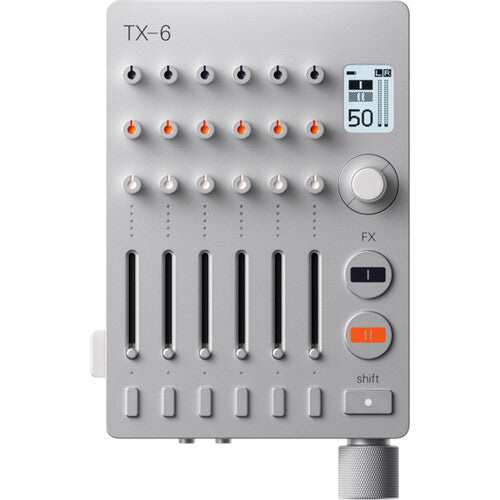

In search of an ultraportable, battery-powered mixer, multichannel audio interface, and recorder? Check out the teenage engineering TX-6, a pint-sized powerhouse that manages to squeeze a ton of features into this CNC-machined aluminum enclosure with custom-made encoders and faders. The device can be used as a multifunctional 32-bit / 48 kHz audio interface with effects including reverb, chorus, delay, freeze, tape, filter, distortion, and more.

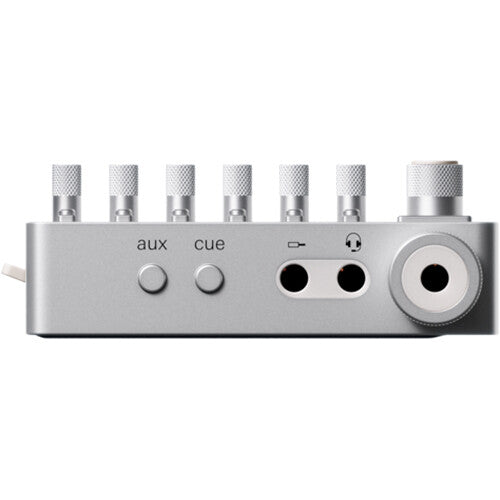

The TX-6 features six 3.5mm TRS inputs, a 3.5mm aux output, a 3.5mm cue (headphone) output, and a 1/4" main output with an included 3.5mm adapter. Each channel sports three encoders that are completely customizable. Use them as a 3-band EQ or assign each knob to control whichever settings you prefer. The TX-6 is highly versatile and includes tempo sync, an onboard synthesizer, drum machine, and sequencer. There's an onboard tuner, plus you can connect to both a computer or to your iOS device (MFi compatible). A USB-C cable is included.
TX-6 Firmware Updates
Firmware Update 1.2.5
- Added beat tracking of audio input signals.
- Improved tap-tempo control.
- Added one decimal for finer BPM adjustment.
- Added tempo sync to Pong Tape FX.
- Improved DC-blocking filter on inputs.
- Added MIDI CC control of track gain setting.
- Added MIDI CC control of sequencer pattern.
- Use range 0-127 for all MIDI CCs.
- Made quick access selection persistent.
- Fixed issue when device was started with USB disk inserted.
- File corruption is prevented when powering off during recording.
Firmware Update 1.1.4
- USB mass storage disk record/playback for 24-bit 48 kHz stereo WAV files, including armed recording with automatic start on audio detect.
- PO-sync output on aux and cue, with selectable 8th note for PO-sync and 16th note for modular systems.
- External MIDI control of all TX�6 parameters, for complete remote control over MIDI.
- Extended MIDI support for synth mode to play the synth chromatically using MIDI notes from an external keyboard.
- Added Scenes to save and load all settings.
- USB audio multiple sample rate support: 48 kHz and additionally 44.1 kHz, for compatibility with MPC live etc.
- BLE MIDI clock in/out support with clock routing settings.
- BLE host mode to connect peripherals like BLE MIDI keyboards.
- Switchable aux and cue outputs, to be able to utilize the higher output level of the aux jack if needed for high impedance headphones.
- Added balanced mono input mode in addition to the stereo / mono / split modes.
- Parameters keep their values until a knob is moved, making it easier to switch knob config without undesired behavior.
- No snap back of the freeze FX parameter. Click to reset instead.
- Smoother change of FX I send.
- Stability bug fix for USB MIDI host mode.
- USB audio mode set on menu exit, instead of directly.
Battery Powered
The rechargeable battery holds for about 8 hours. For energy efficiency, the display automatically goes to sleep when not in use, and LED strength is completely adjustable.
Synthesizer and Sequencer
TX-6 also functions as a portable synthesizer and sequencer with 4 oscillator waveforms and 4 synthesized drum sounds. Use tempo sync to stay on the beat.
Built-In Effects
Explore send effects like reverb, chorus, and delay, and creative effects freeze, tape, filter, and distortion. Each channel has a 3-band EQ and adjustable compressor.
Quality Engineering
TX-6 is a sturdy little machine. encased in CNC aluminum with 2k molding, custom-made encoders and faders, and custom PCB�engineered for portability.
Wireless Connectivity
With BLE, you can use TX-6 as a wireless controller for other BLE MIDI devices or trigger and sync the internal synth and sequencer from other sources.
Super Slimline Cables
High-quality slimline cables custom-made for TX-6 (available separately). The narrow profile allows you to use all 6 channels at once and makes for an easy pack down.
Customizable Interface
When you're ready for the studio, use TX-6 as a 12-channel audio interface and connect to any DAW over USB-C. MFi also allows you to connect to iOS devices.
DJ Mode
Turn TX-6 on its side and use it as a DJ mixer. Turn channel 1 into a fader to crossfade between channels 5 and 6, so you can fade or cut between the two.
1/4" and 3.5mm Outputs
Connect your audio output through 3.5mm mini jack or use the included and removable 1/4" jack to 3.5 mm mini jack adapter.
Field Bags
Designed to fit TX-6 field mixer and constructed in heavy-duty fabric and hardware, the separately sold field bags are designed for durability, ready to be used out in the field.
In the Box
- teenage engineering TX-6 Ultraportable Pro Mixer, Audio Interface, and Recorder
- USB-C Cable
Firmware Updates
v1.2.5, Nov '22
Table of Contents
- Description
- TX-6 Firmware Updates
- Battery Powered
- Synthesizer and Sequencer
- Built-In Effects
- Quality Engineering
- Wireless Connectivity
- Super Slimline Cables
- Customizable Interface
- DJ Mode
- 1/4" and 3.5mm Outputs
- Field Bags
teenage engineering TX-6 Specs
| Form Factor | Desktop |
| Display | 1 x LCD |
| Channels of I/O | 6 Inputs / 2 Outputs at 48 kHz |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Preamps | None |
| Built-In Microphone | None |
| Input Level Adjustment | 6 x Fader |
| Expansion Slots | None |
Signal Processing
| Pad | None |
| Gain/Trim Range | 0 dB to +42 dB |
| Solo/Mute | Solo, Mute per Input Channel |
Connectivity
| Analog Audio I/O | 6 x 1/8" / 3.5 mm TRS Unbalanced Line Input 1 x 1/8" / 3.5 mm TRS Unbalanced Aux Output 1 x 1/4" TRS Unbalanced Line/Main Output 1 x 1/8" / 3.5 mm TRRS Unbalanced Headset In/Out |
| Phantom Power | None |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C |
| Host Connection Protocol | Not Specified by Manufacturer |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | Bluetooth (Audio Streaming, Remote Control) |
Performance
| Maximum Input Level | 1/8" / 3.5 mm Line Inputs: 8 dBu |
| Maximum Output Level | Line Outputs: 8 dBu |
| Impedance | 1/8" / 3.5 mm Line Inputs: 10 Kilohm |
| SNR | 1/8" / 3.5 mm Line Inputs: 102 dBA Line Outputs: 120 dBA Monitor Outputs: 110 dBA |
Digital Audio
| Sample Rates | 48 kHz |
| Bit Depths | 24-Bit |
Audio Storage & Playback
| Memory Card Slot | None |
Compatibility
| OS Compatibility | Windows macOS Linux iOS Android *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Included Plug-Ins | None |
| App Compatible | No *As of November, 2022: Check with manufacturer for the most up-to-date compatibility |
Power
| Power Requirements | USB Bus Power |
| Battery Type | 1 x Internal Rechargeable |
| Approximate Battery Life | 8 Hours |
Physical
| Dimensions | 4 x 2.4 x 0.9" / 102 x 62 x 23 mm (Including Controls and Protrusions) |
| Weight | 5.6 oz / 159.0 g |
Packaging Info
| Package Weight | 0.68 lb |
| Box Dimensions (LxWxH) | 7.6 x 7.1 x 1.2" |
