Description
TecNec 12G-SDI Feed Through BNC Patch Panel Overview

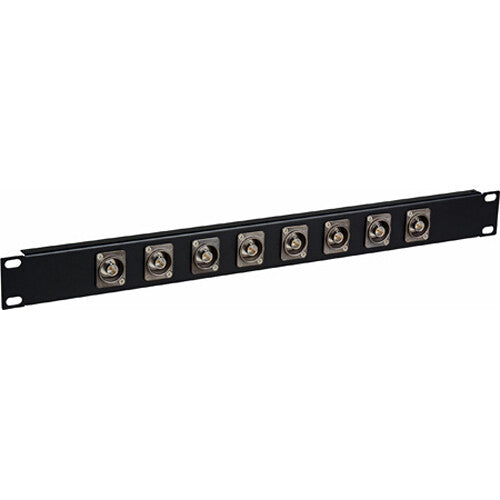

Build or replace a BNC patch bay on your video rack with the My Custom Shop 8-Point 12G-SDI Feed-Through BNC Patch Panel from TecNec. This 1 RU unit features a corrosion-resistant black finish and incorporates eight Neutrik BNC 12G-SDI connectors that support video signals up to 8K. The panel mount features a D-shaped housing that mounts flush into a standard rack, so it does not protrude into the room and makes it less likely to snag on cables or technicians while protecting it from damage. The BNC connectors are compatible with all standard BNC connectors. This panel is suitable for use in control rooms and production facilities, as well as building into flight packs for remote broadcast situations.
In the Box
- TecNec My Custom Shop 8-Point 12G-SDI Feed-Through BNC Patch Panel (1-RU)
- Limited 1-Year Warranty
TecNec 12G-SDI Feed Through BNC Patch Panel Specs
| Connectors | 8 x Neutrik NBB75DFGX Grounded 75 Ohm 4K/8K UHD D-Style Chassis Mount BNC Connector |
| Resistance | Contact Resistance Inner: �3 mOhms Outer: � 2 mOhms Insulation 5 gOhms at 1.5 kVDC |
| Compliance | SMPTE ST 2082-1, ST 2081-1, ST424, ST292 |
| Dimensions | 1 RU |
| Package Weight | 1.565 lb |
| Box Dimensions (LxWxH) | 20.1 x 5 x 2.7" |
