Description
TechLogix Networx M1U-SC-050 Overview

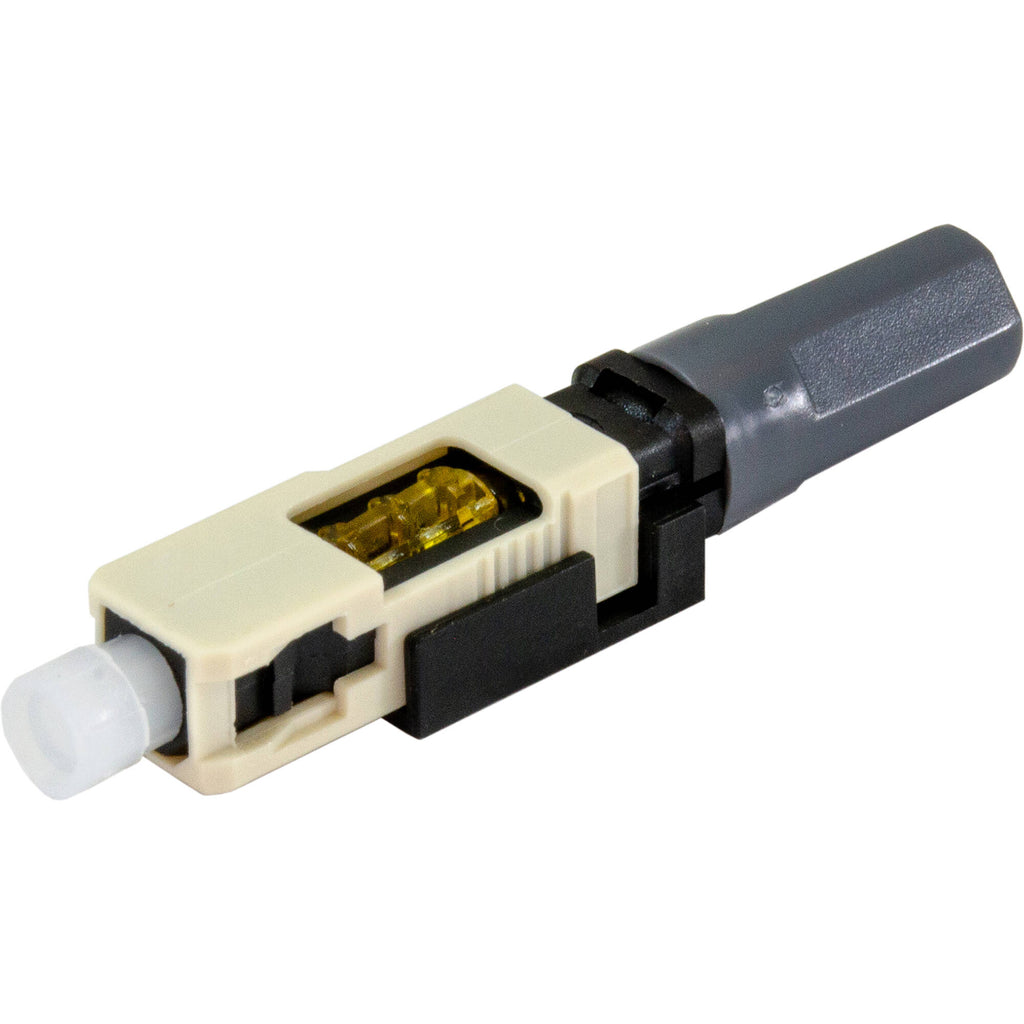

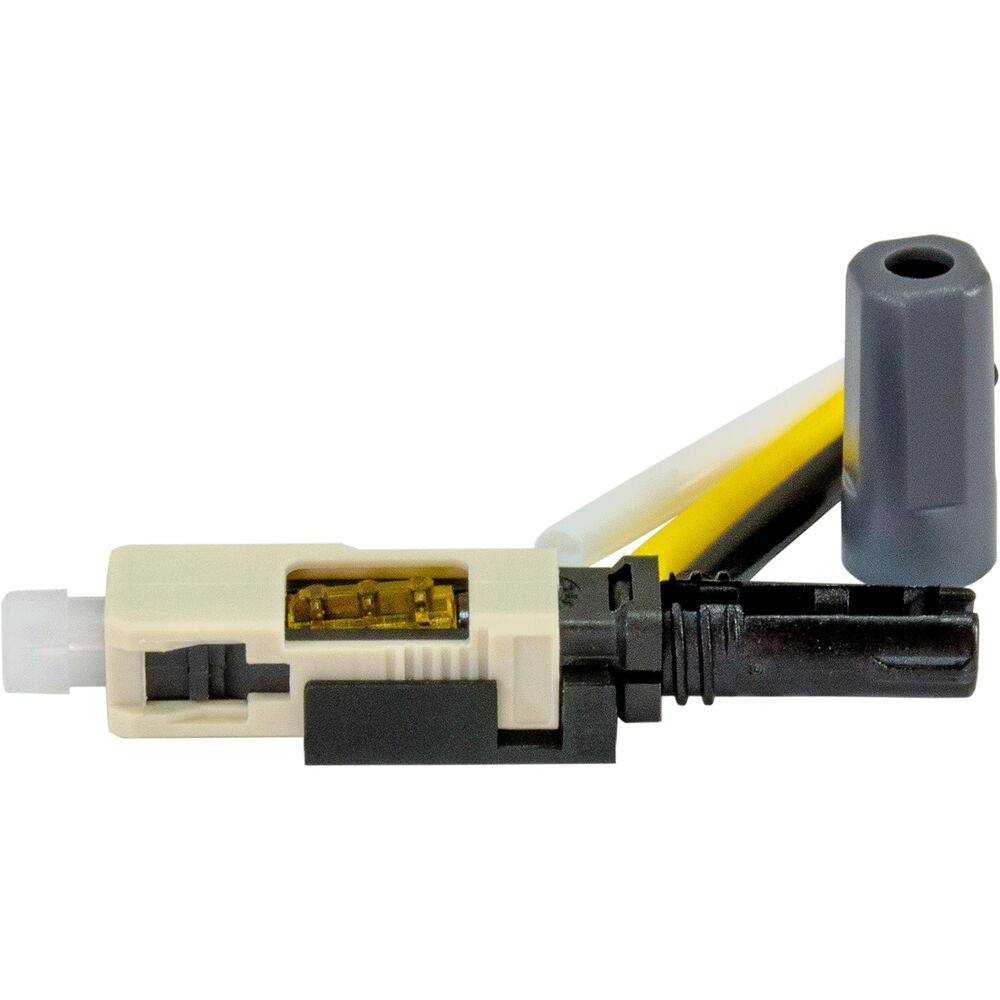

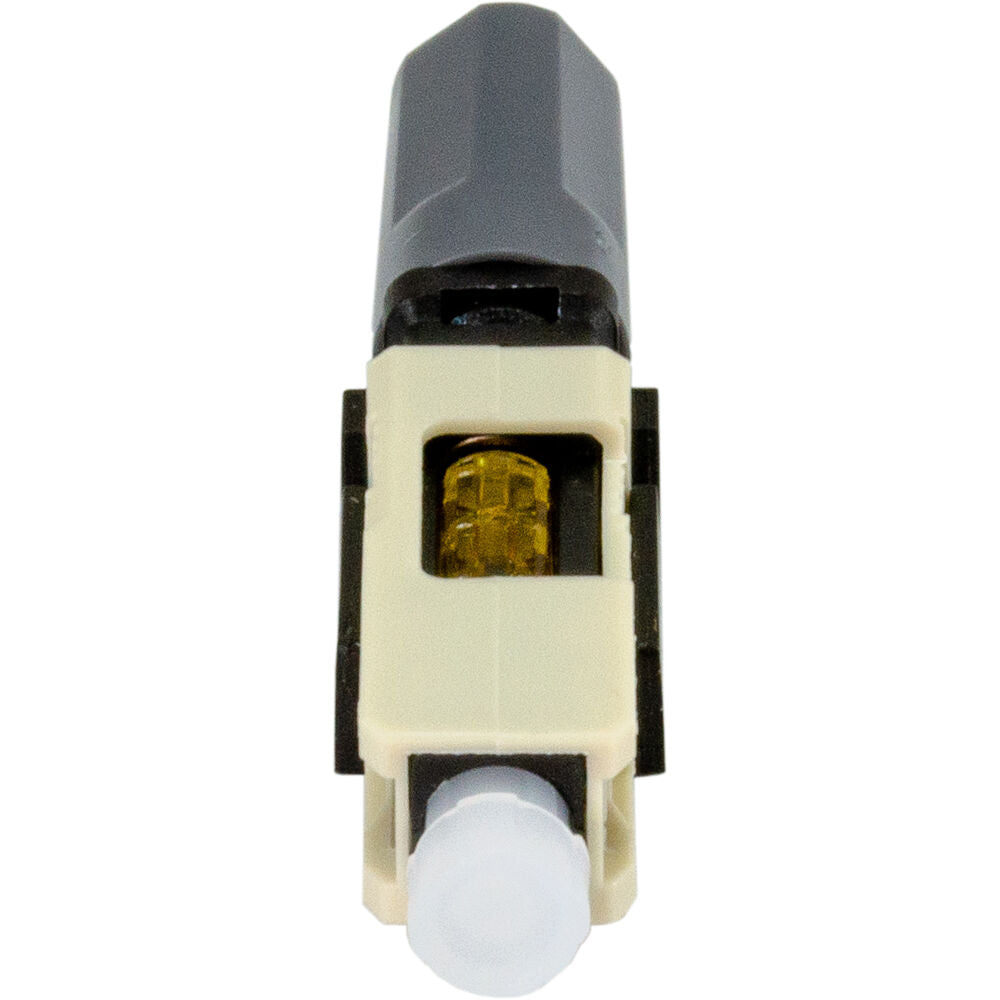

Terminate your bulk fiber optic cabling with the ECOConnector Multimode (OM1) SC Fiber Optic Click-On Connector from TechLogix Networx to help ensure a fast and reliable connection. This 50-pack of beige SC connectors is specially designed for compatibility with legacy 62.5µm fiber, fitting onto 250µm, 900µm, 2mm, and 3mm zip-cord or distribution style multimode (OM1) cables. It also features a standard UPC polish to help ensure perfect alignment with reduced refraction and signal loss. Install the connector in about two minutes without the need for special tools, epoxy, polishing, or crimping. A large built-in verification window, self-centering alignment groove, and button for one-click termination and locking jig release makes the process relatively quick and easy. You can also reuse this connector with five or fewer termination cycles recommended.
In the Box
- TechLogix Networx ECOConnector Multimode (OM1) SC Fiber Optic Click-On Connector (UPC, 50-Pack Beige)
- Limited 3-Year Warranty
TechLogix Networx M1U-SC-050 Specs
| Connector 1 | SC |
| Connector 2 | SC |
| Coupling Type | None |
| Cable Length | 2" / 51 mm |
| Fiber Type | OM1 Multimode |
| Core Size | 62.5 µm |
| Return Loss | RL: 50 dB IL: 0.3 to 0.5 dB |
| Outer Diameter | 0.4" / 9 mm |
| Operating Temperature | -40 to 167°F / -40 to 75°C |
| Storage Temperature | -49 to 185°F / -45 to 85°C |
| Connector Dimensions | 2 x 0.4 x 0.4" / 51 x 9 x 9 mm |
