Description

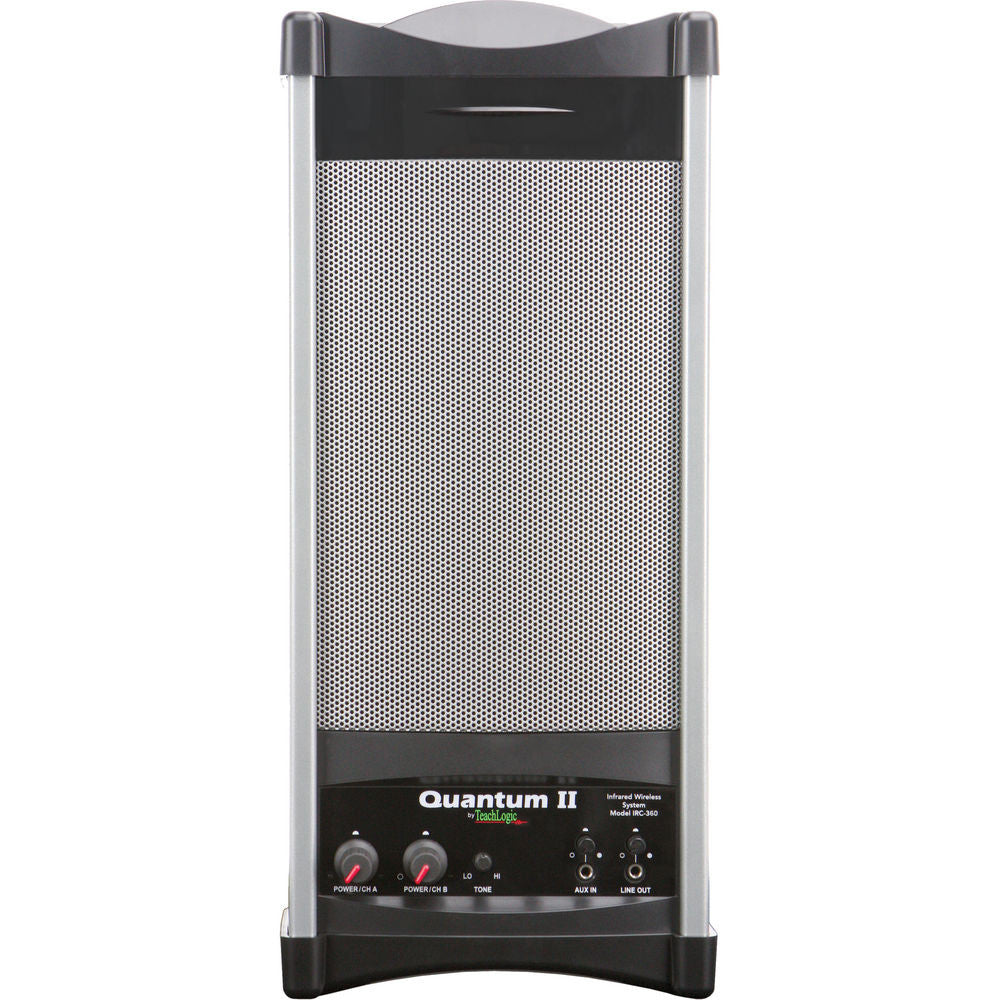

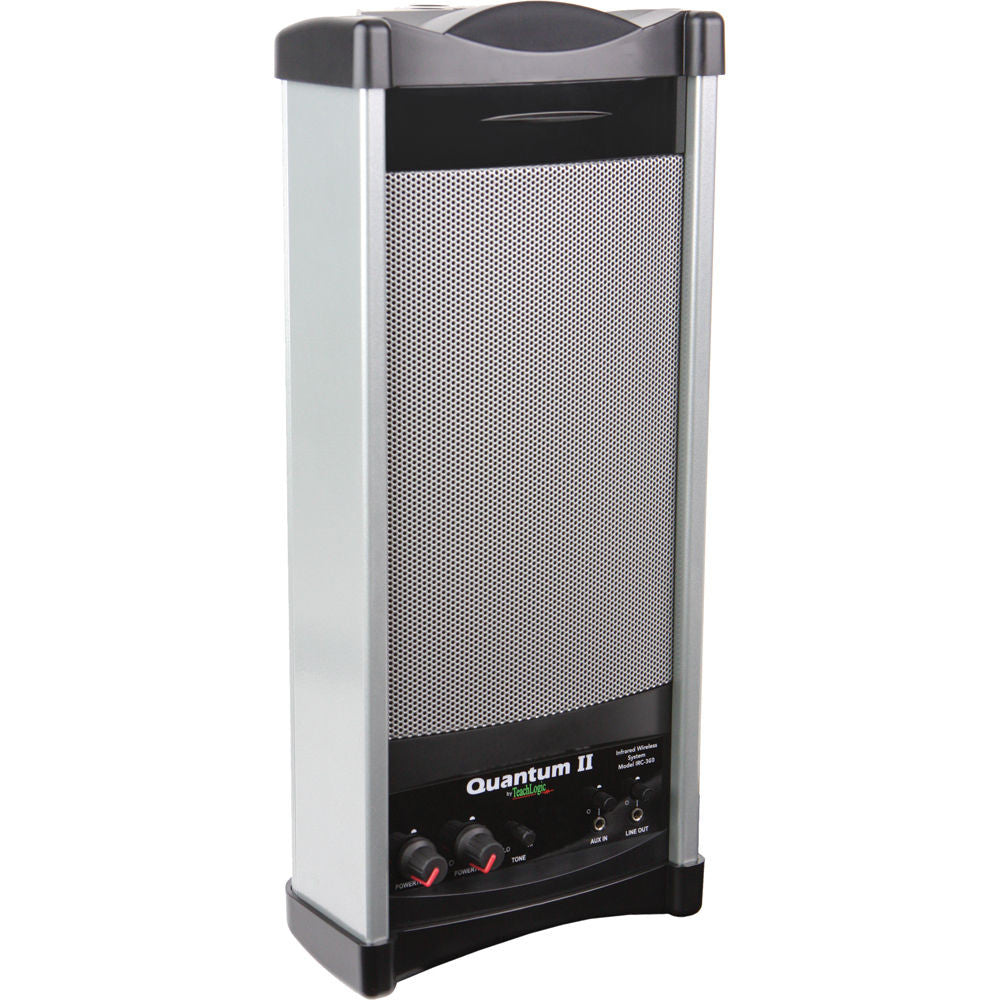

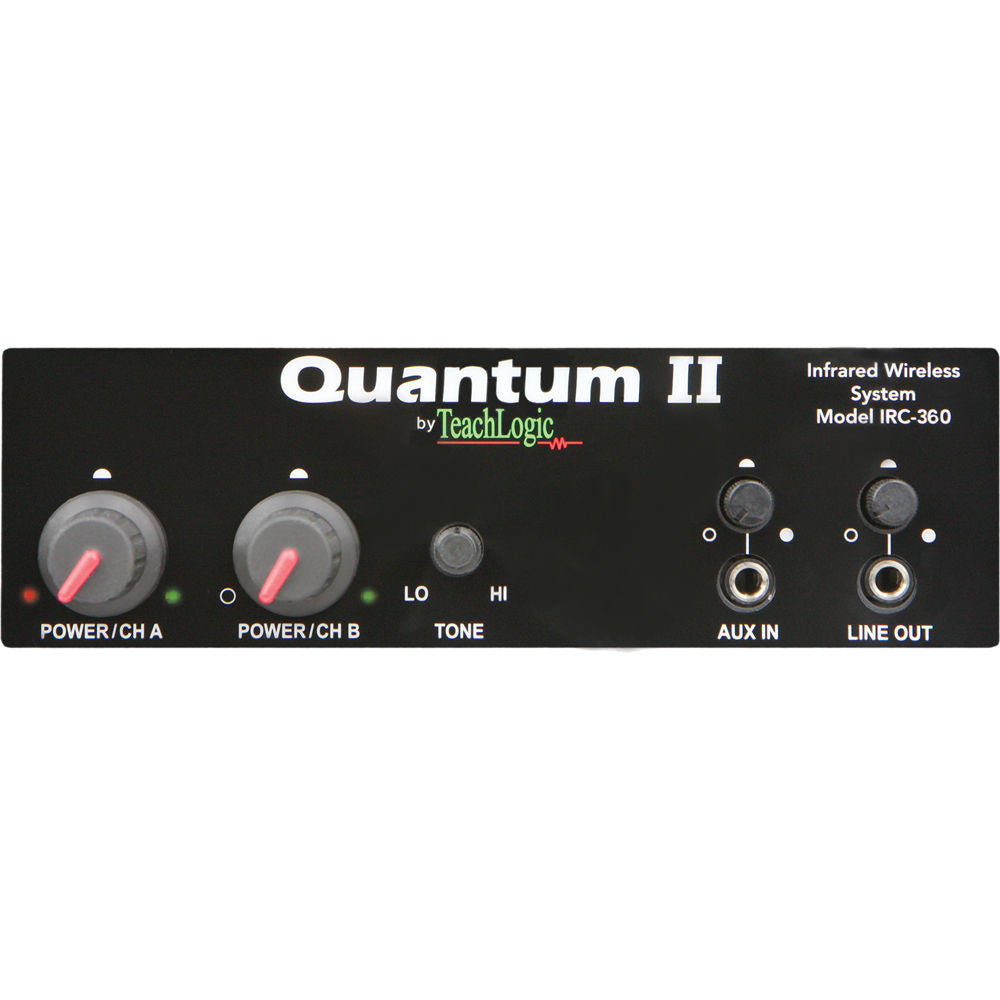

The IRC-360 Quantum II from TeachLogic is designed for portable use or permanent installation. Along with wireless microphones/transmitters (not included), it forms a completely self-contained infrared wireless microphone sound system. The full-range coaxial speaker provides complete coverage of a typical classroom. The device also includes 2 integrated infrared wireless microphone receivers that allow you to simultaneously use two IR wireless transmitter microphones (sold separately). It also includes a powerful 30W, low-noise, Class D digital audio amplifier.
- Two infrared receivers for simultaneous use of two IR wireless microphones (sold separately)
- Built-in wide-angle infrared sensor for reliable 180� IR reception
- Powerful 30W, low-noise, Class D digital audio amplifier
- Efficient full-range coaxial speaker for optimum vocal clarity
- Tone control, � 6 dB to dial in treble & bass
- Digital equalization and limiting
- Auxiliary line level input (3.5mm) for computer, interactive whiteboard, or MP3 player
- Program output (3.5mm), adjustable line level for Lesson Capture or Assistive Listening System connection
- Signal present indicator on IR inputs to verify presence of signal
- External speaker output for companion speaker (sold separately) to expand sound coverage for a total combined power output of 50W
- Two external sensor inputs for supplementary infrared sensors for extended IR coverage
- Structured aluminum enclosure for controlled sound dispersion
- Threaded brass insert for use with speaker stand for mobile application
- Wall mount bracket included
- RoHS compliant
In the Box
TeachLogic IRC-360 Quantum II Column Speaker with Built-In Receiver/Amplifier & Wall Mount Bracket
- AC-35 AC Switching Power Supply for Quantum II and Maxim II
- Wall Mount Bracket
- Limited 5-Year Warranty on Parts & Labor
| Input | Infrared FM |
| Modulation | FM wide-band |
| Reception Frequencies | Channel A: 2.08 MHz Channel B: 2.54 MHz |
| Wavelength | 850 nm |
| Tone Signal | Channel A: 32.768 kHz |
| De-Emphasis | 50 ?s |
| Frequency Response | 50 Hz to 15 kHz, �3 dB |
| S/N Ratio | >65 dB |
| THD | <1% @ 1 kHz |
| Nominal Deviation | �10 kHz |
| Maximum Deviation | �25 kHz |
| Sensor Input | 2 x RCA |
| Coverage | 60' (18.2 m) line of sight |
| AUX Input | 1 x 3.5 mm with gain control, front panel |
| Line Output | 1 x 3.5 mm with gain control, front panel |
| Equalization | Tone control, �6 dB |
| Output Power | 30 W RMS, Class D amplifier |
| External Speaker Jack | 15 W / 4 ? |
| Output Connection | Two-terminal Phoenix connector |
| Power Supply | 15 VDC / 2.3 A / 34.5 W (CE, CSA, and UL listed power supply included) |
| Dimensions (W x H x D) | 6.25 x 14.00 x 4.75" (158.75 x 355.60 x 120.65 mm) |
| Weight | 4.2 lb (1.9 kg) |
