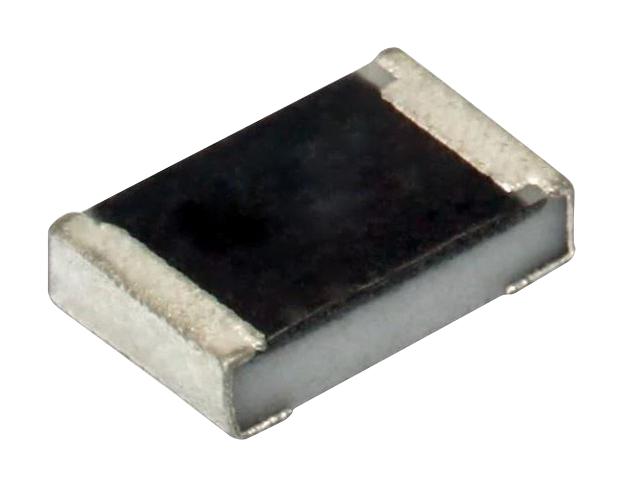

The RN73C2A1M0BTDF from TE Connectivity is RN73 series high stability 1Mohm thin film (nichrome) precision chip resistor. Value of resistance restricted to the E96 and E24 value grids. This resistor is produced with three sputtered layers giving optimum performance. This resistor has an accurate and uniform physical dimension to facilitate placement.
- Available in 0805 [2012 Metric] chip size
- Resistance tolerance is ±0.1%
- Maximum operating voltage is 100V
- ±10ppm/°C temperature coefficient
- Operating temperature range from -55°C to +155°C
- Insulation resistance is 1000Mohm
- Stability of 0.5%
- Rated power of 0.1W at 70°C
- Electroplated 100% matte Sn finish
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
RN73C2A1M0BTDF |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
