Description

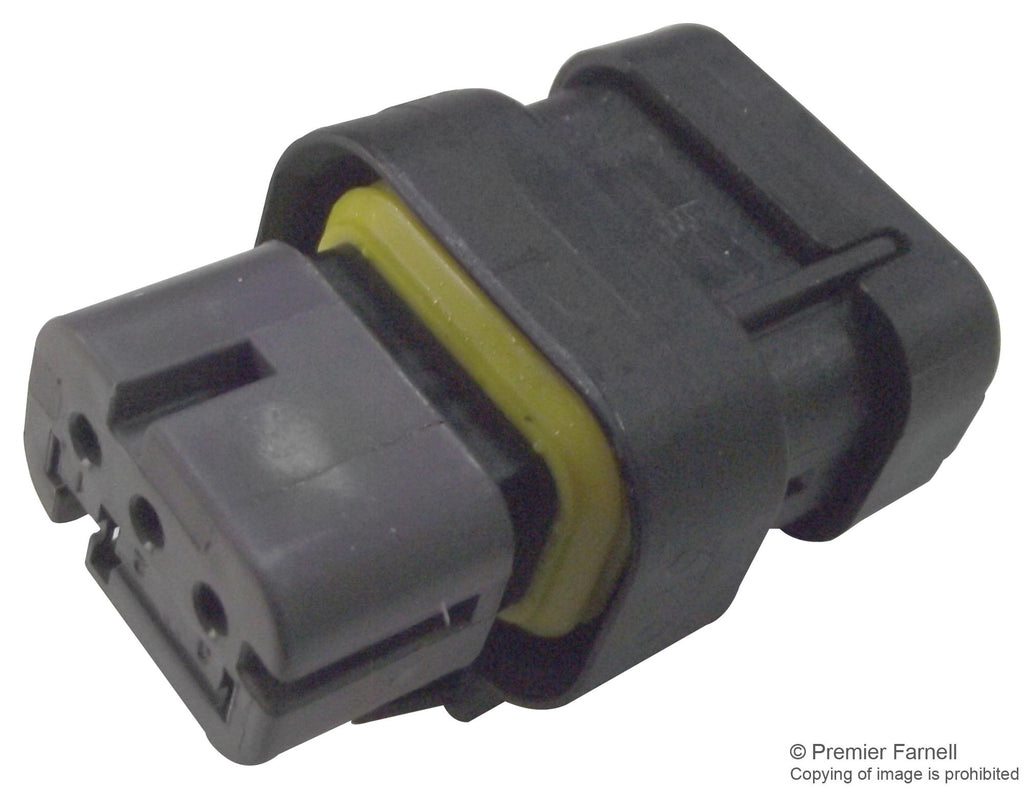

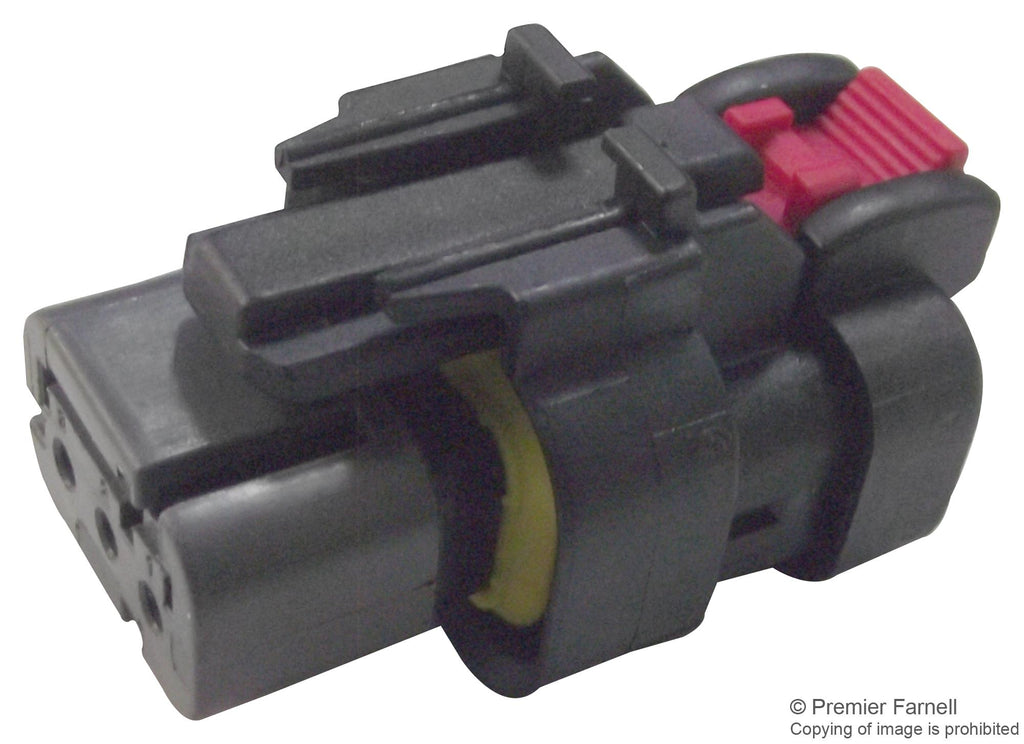

The 776429-1 is a 3-way 1-row sealed Receptacle Red Housing Assembly made of glass reinforced PBT. It is ideal for AMPSEAL 16 connector system. The AMPSEAL 16 receptacle housings come fully assembled, offering an one-piece approach for applied cost savings. Receptacle housing assemblies consist of the plug housing with both interface and wire seals, wire seal cover, TPA and CPA.
- UL94HB Flammability rating
- IP6K9K Protection rating
- Polarized 180° Cable exit angle
- 250VDC Operating voltage
- -40 to 125°C Operating temperature range
- Rugged
Industrial, Automotive
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discountsOther details
| Brand | TE CONNECTIVITY |
| Part Number | 776429-1 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |
| Drawing EN | |
