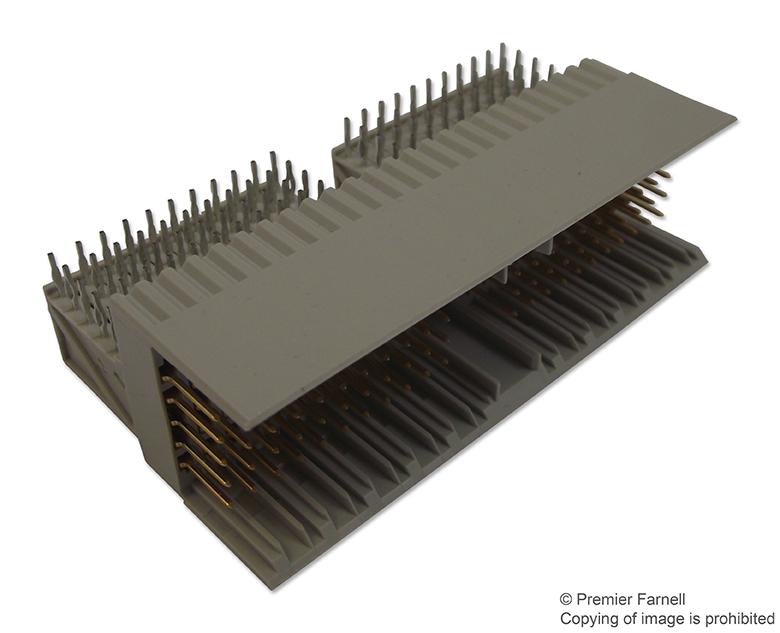

TE Connectivity 5106015-1 5106015-1 Connector Z-PACK 110 Contacts 2 mm Header Press Fit 5 Rows

The Z-PACK series 2mm HM (hardmetric) Connector System designed to meet the current and future needs of instrumentation applications giving excellent electrical and mechanical characteristics. It is a high performance, high density system with flexible configuration which offers upgradeability. The connector system is fully supported by Tyco Electronics spice models to guarantee choosing the right product to match the application.

• High density system with small real estate on backplane and daughtercard
• Extensive range of signal, power, coaxial and fibre board-to-board and cable-to-board connections
• Modular units give flexible configuration
• Special versions for VME64 extensions and CompactPCI
• Signal contact rating 1.5a fully energized
• Universal power module rated at 7.8A/line, 23.4A fully energized
• All lines impedance controlled to 50 (single ended) and 100R (differential) nominal
• Safe design, complies with IEC950 in mated condition
• Universal power module is safe in unmated condition
• Several performance levels for board and cable connectors with unshielded and shielded versions

• Mismatching keys block mating before any contact touch
• Small press fit board hole allows maximum track width and minimum signal corruption
• 1.4 to 5.6mm (0.055 to 0.220 inch) Backplane thickness range

Applications

Communications & Networking, Computers & Computer Peripherals, Sensing & Instrumentation

Other details

Brand	TE CONNECTIVITY
Part Number	5106015-1
Quantity	Each
One Page Summary EN
Product Change Notice EN
Drawing EN
3D Product Image EN
