This is a

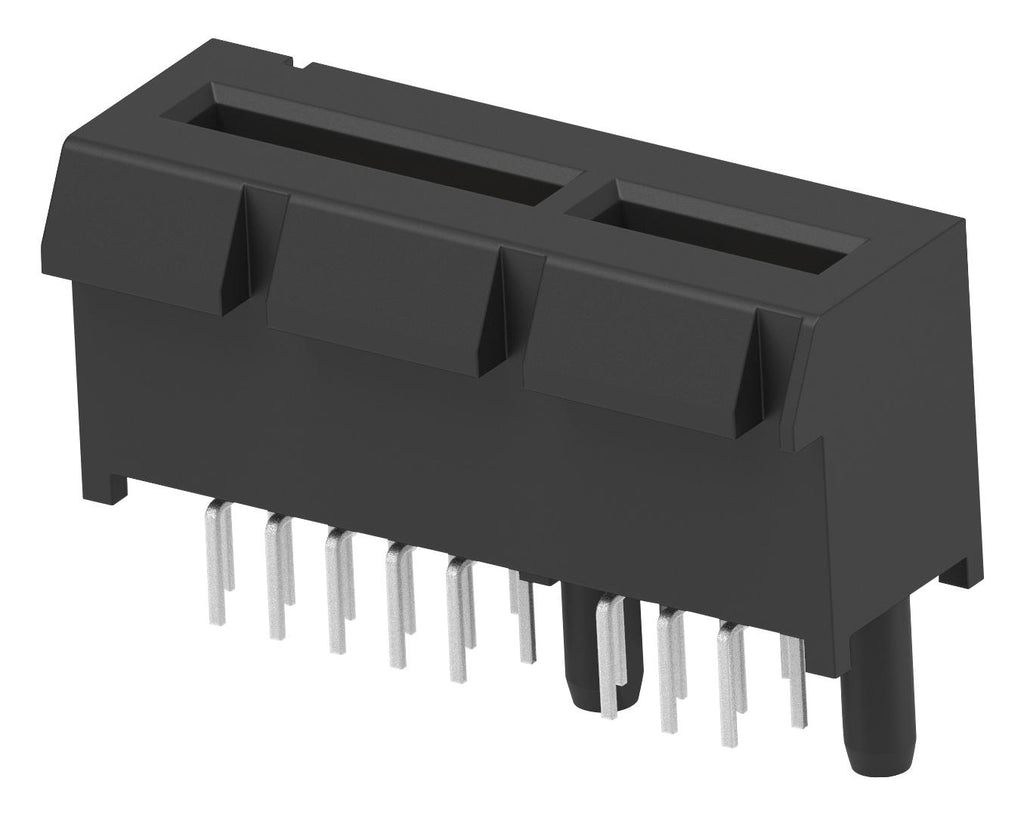

3-2362375-1 Card Edge Connector , PCI Express Gen 4, Dual Side, 1.57 mm, 36 Contacts, Through Hole Mount product from TE CONNECTIVITY with the model number 3-2362375-1
Product details
| Card Edge Connector Type |
Dual Side |
| Card Thickness |
1.57mm |
| No. of Contacts |
36 Contacts |
| Connector Mounting |
Through Hole Mount |
| Connector Body Orientation |
Straight |
| Contact Termination Type |
Solder |
| Contact Material |
Phosphor Bronze |
| Contact Plating - Mating Side |
Gold Flash Plated Contacts |
| Connector Body Material |
Thermoplastic Body |
| Product Range |
- |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
3-2362375-1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
