| ₹ 519.62 includes GST and import duties. | |
| B2B customers can avail ₹ 79.24 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

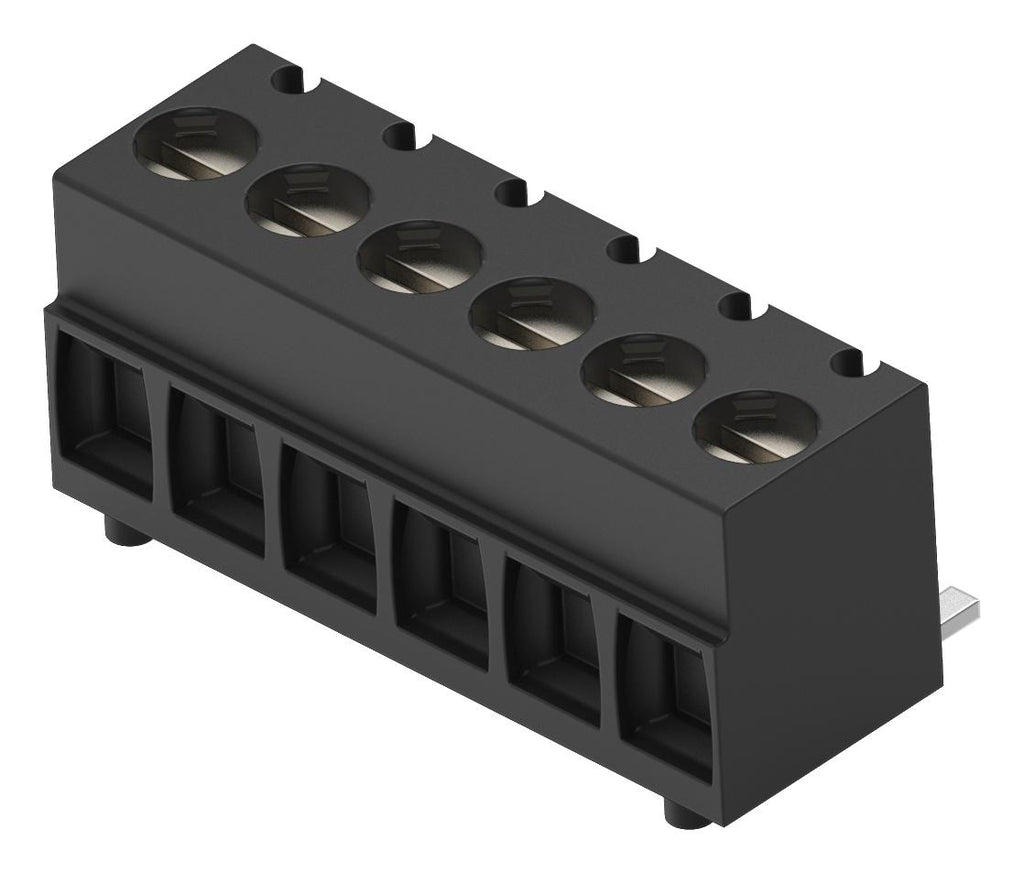

This is a 2383942-6 Wire-To-Board Terminal Block , 3.5 mm, 6 Ways, 28 AWG, 16 AWG, 1.31 mm², Screw product from TE CONNECTIVITY with the model number 2383942-6
Product details
| Pitch Spacing | 3.5mm |
| No. of Positions | 6Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 16AWG |
| Conductor Area CSA | 1.31mm² |
| Wire Connection Method | Screw |
| Rated Current | 12A |
| Rated Voltage | 300V |
| Block Orientation | Surface Mount Right Angle |
| Product Range | - |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 2383942-6 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 509.23 |
| 3-5 | ₹ 504.03 |
| 5-10 | ₹ 493.64 |
| 10+ | ₹ 483.25 |
Bulk discount will be automatically applied during checkout based on quantity.
