Description

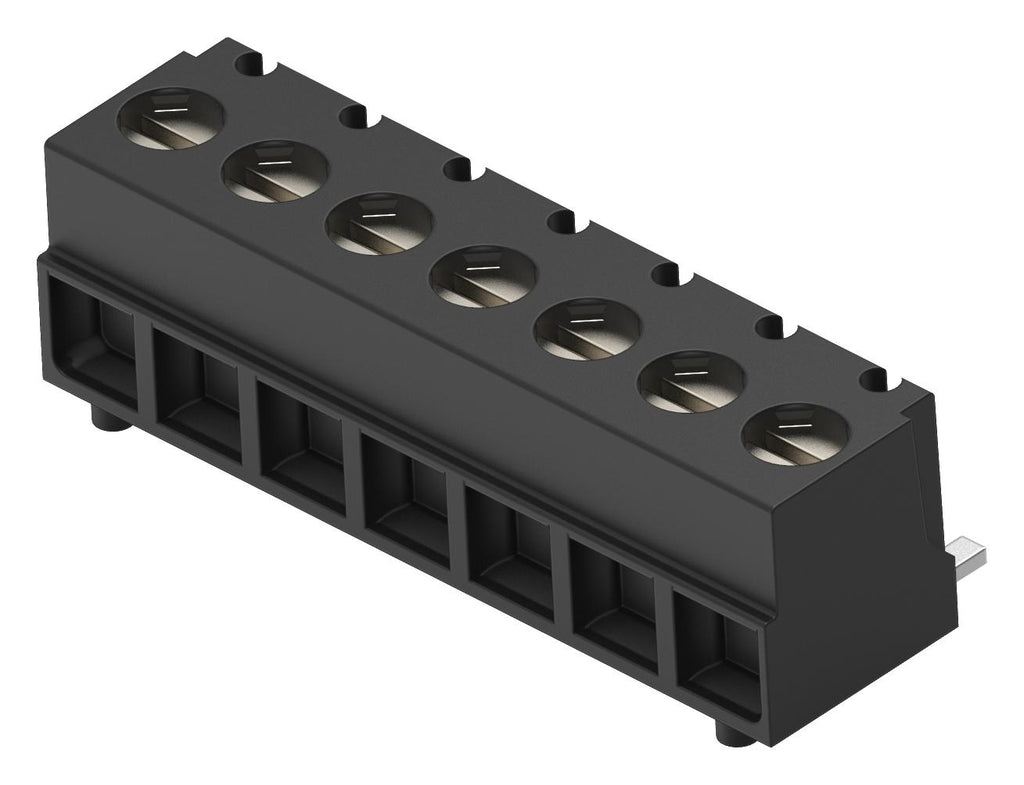

This is a 2383941-7 Wire-To-Board Terminal Block , 3.81 mm, 7 Ways, 28 AWG, 18 AWG, 0.82 mm², Screw product from TE CONNECTIVITY with the model number 2383941-7
Product details
| Pitch Spacing | 3.81mm |
| No. of Positions | 7Ways |
| Wire Size AWG Min | 28AWG |
| Wire Size AWG Max | 18AWG |
| Conductor Area CSA | 0.82mm² |
| Wire Connection Method | Screw |
| Rated Current | 7A |
| Rated Voltage | 300V |
| Block Orientation | Surface Mount Right Angle |
| Product Range | - |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 2383941-7 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
| Drawing EN | |
