This is a

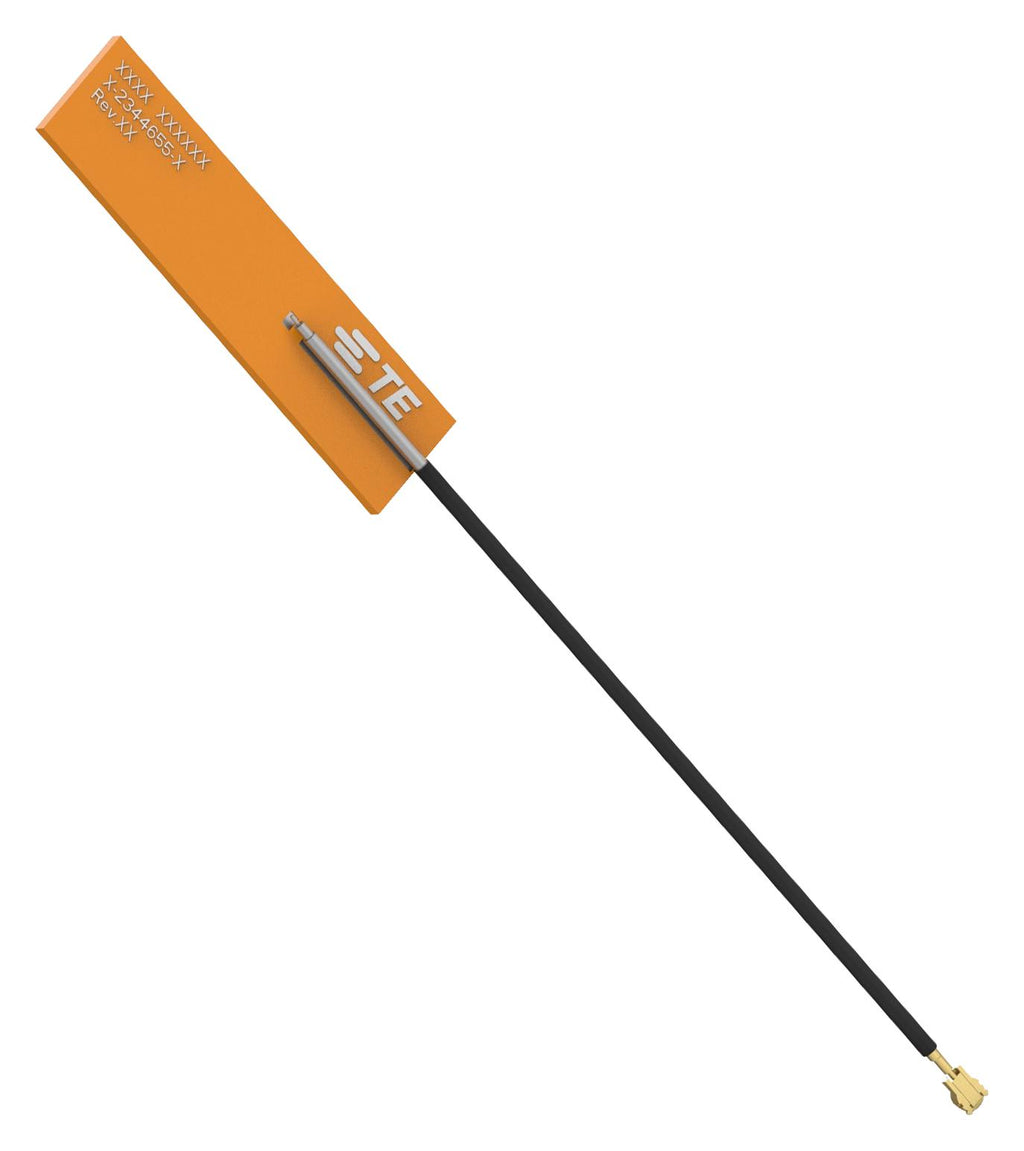

2344655-1 Antenna , PCB, 2.4 to 7.125 GHz, 5.9 dBi Gain, 50 ohm, Linear Polarization, Adhesive New product from TE CONNECTIVITY with the model number 2344655-1
Product details
| Antenna Type |
WiFi 6E / Bluetooth / ZigBee |
| Frequency Min |
2.4GHz |
| Frequency Max |
7.125GHz |
| Antenna Mounting |
Adhesive |
| Gain |
5.9dBi |
| VSWR |
1.8 |
| Input Power |
10W |
| Input Impedance |
50ohm |
| Antenna Polarisation |
Linear |
| Product Range |
- |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
2344655-1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
