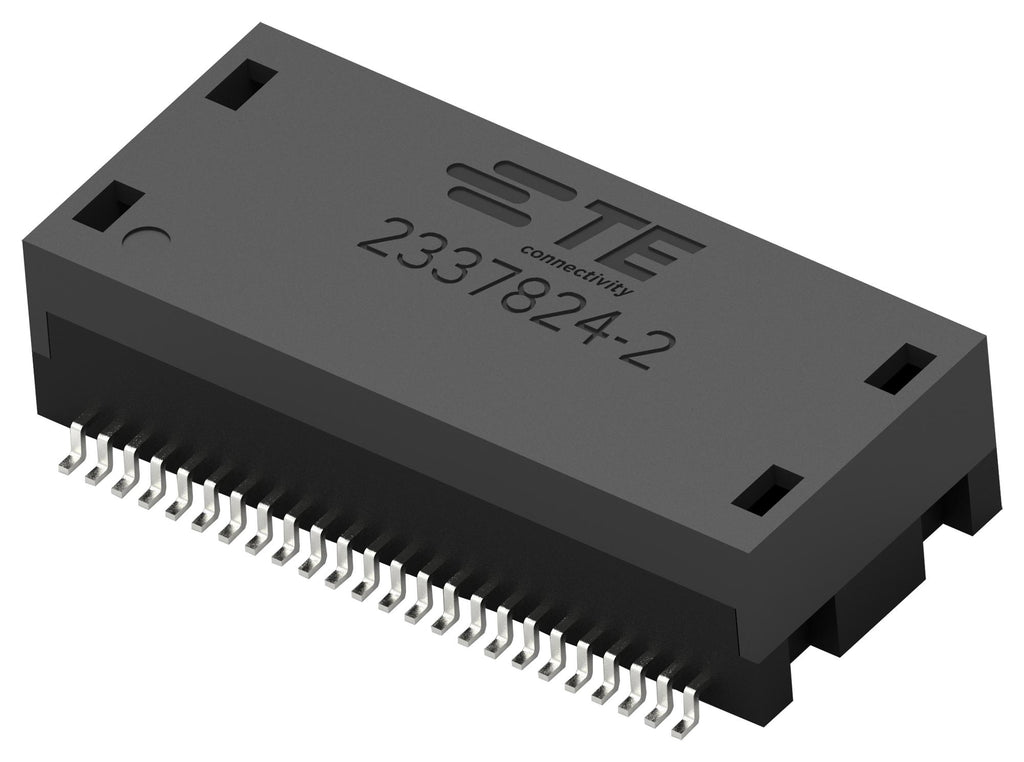

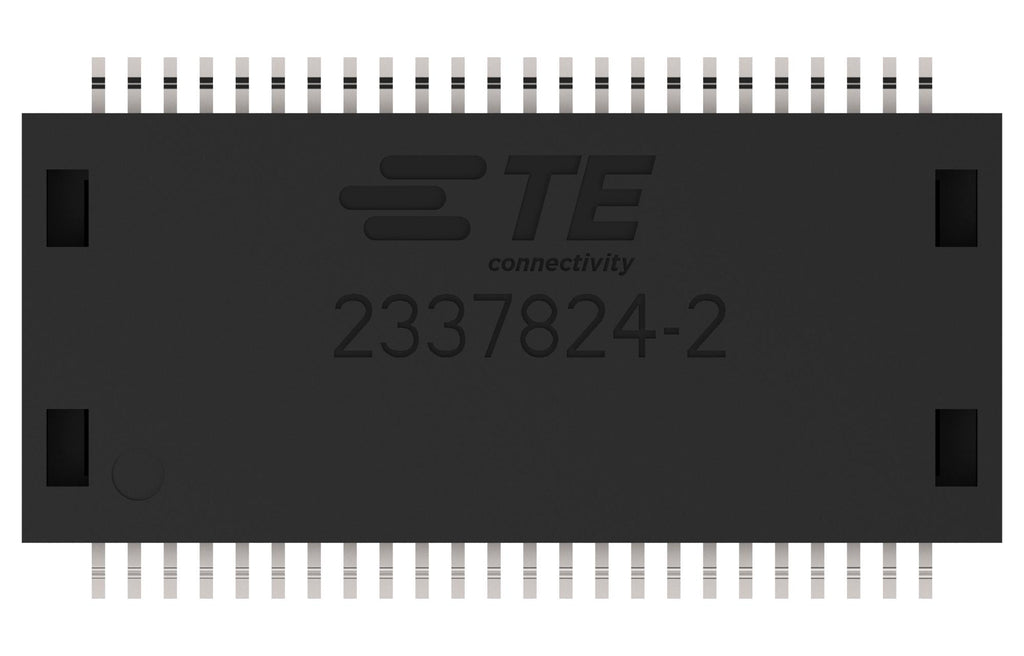

2337824-2 Transformer , LAN, Modular Jack Filter, 2 Port, 10/100/1000 Base-T, -40°C to 105°C, Surface Mount product from TE CONNECTIVITY with the model number 2337824-2
Product details
| Compatible With |
10/100/1000 Base-T |
| No. of Ports |
2 Port |
| Turns Ratio |
1CT:1CT |
| Inductance |
350µH |
| Isolation Voltage |
1.5kV |
| Transformer Mounting |
Surface Mount |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
105°C |
| Product Range |
- |
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
2337824-2 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Drawing EN |
|
