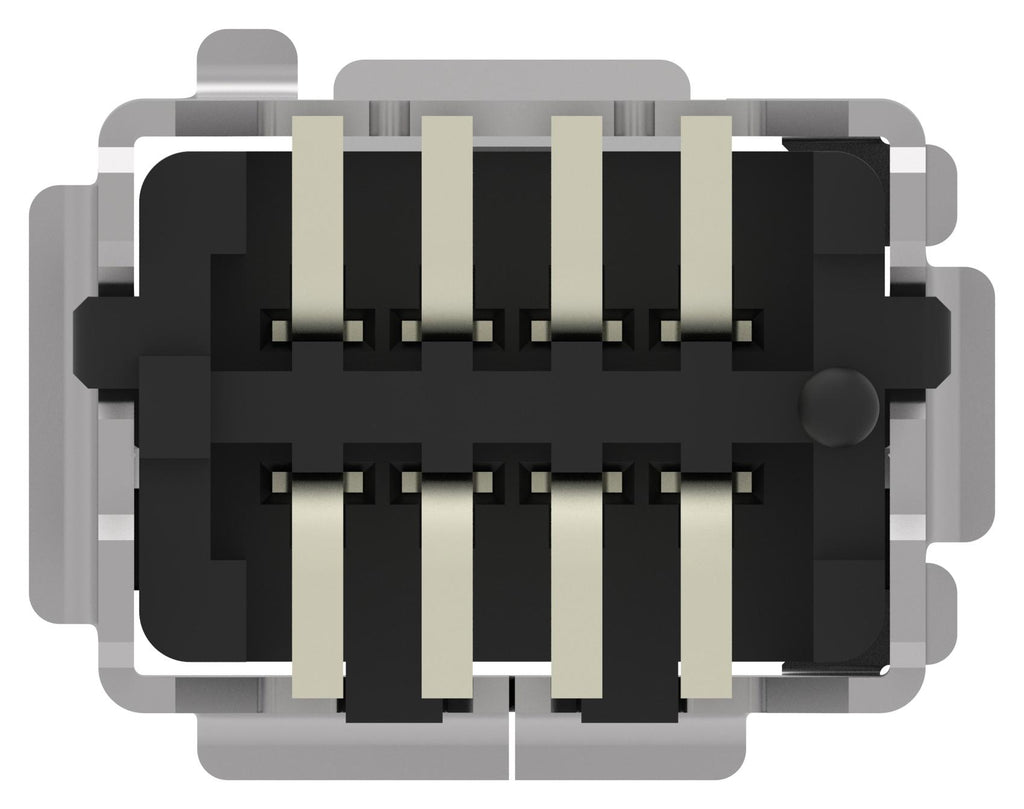

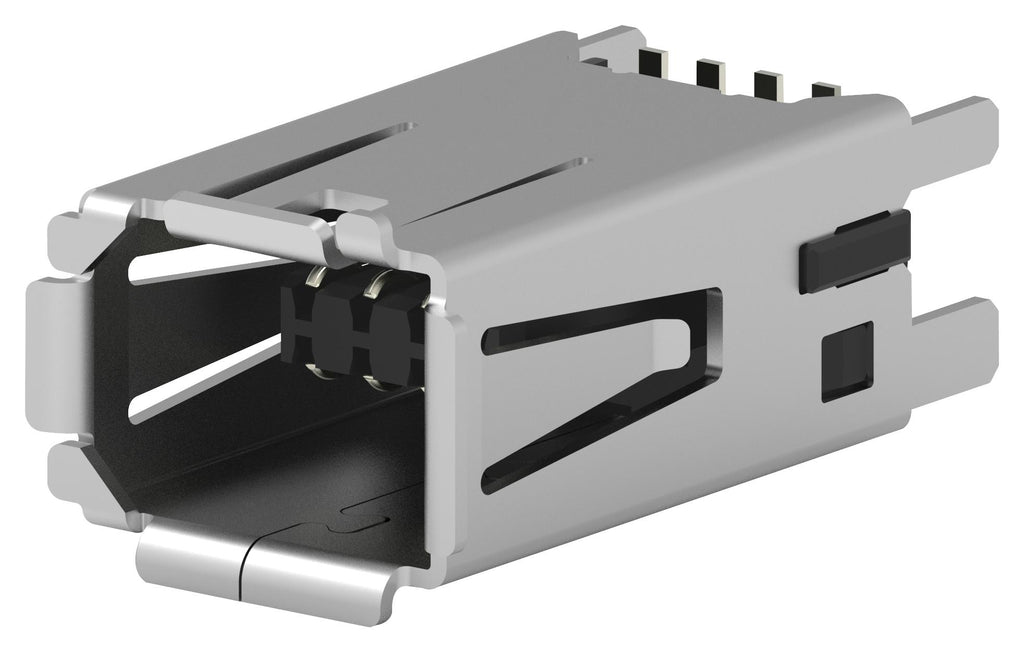

2271656-1 is a mini I/O Type I receptacle black vertical connector. The SMT PCB Mini I/O portfoli0The meet the latest requirements of the industrial assembly processes. With an improved co-planarity of 0.08mm, the amount of solder paste can be reduced. Together with the use of LCP materials in the connector, it allows for higher reflow solder temperatures, increasing processing efficiency and extending durability over lifetime.
- 8 position, 1.27mm pitch
- Top entry
- Copper alloy with gold plating contact
- LCP black housing
- Operating temperature range�from -40°C to +85°C
Other details
| Brand |
TE CONNECTIVITY |
| Part Number |
2271656-1 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Enhanced Product Overview EN |
|
| Drawing EN |
|
