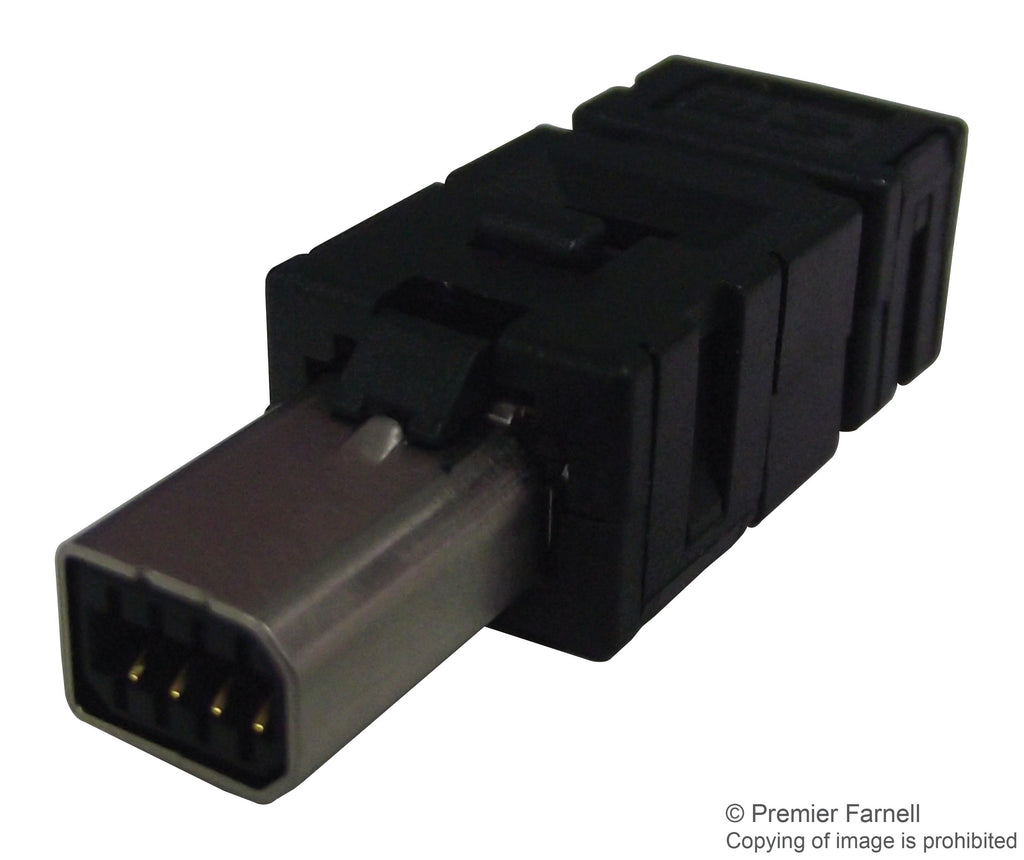

TE Connectivity 1-2201855-1 Modular Connector RJ45 Plug 1 x (Port) 8P8C Cat5e Cable Mount

The 1-2201855-1 is a 8P8C Mini I/O Connector Type II L provides innovative and time-saving wire-termination alongside serving as a space saving and reliable I/O solution for industrial environments. It is only one quarter the size of the conventional RJ45 plug and as a result, provides space saving and the flexibility to use limited space on the PCB more effectively. It is built for the stringent demands of an industrial and high vibration environment, enabling increased productivity through a reliable connection. It decreases the time usually needed to terminate the wires through soldering and with an easy to use hand tool, the field assembly in virtually any environment.

• Reliable connections in industrial and vibration-prone environments
• Space saving solution that allows for increased design flexibility
• Enables wire-to-wire connections
• Intermateable with receptacles of various configurations
• Keying interface to prevent mis-mating
• -40 to 85?C Temperature range

Applications

Communications & Networking, Computers & Computer Peripherals, Robotics, Motor Drive & Control, Industrial

Other details

Brand	TE CONNECTIVITY
Part Number	1-2201855-1
Quantity	Each
Technical Data Sheet EN
Drawing EN
Drawing EN
Product Change Notice EN
