Description

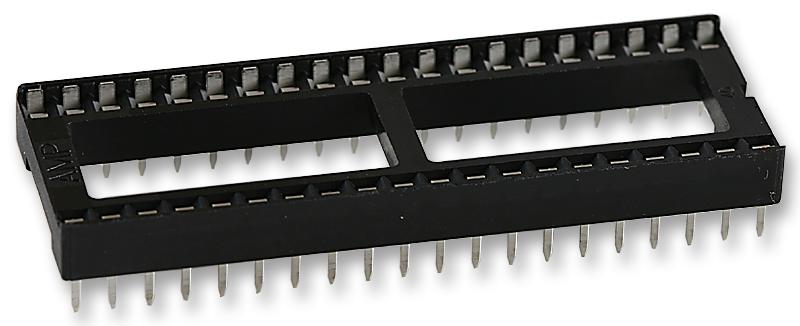

The 1-2199299-5 is a 40-way through hole DIP Socket with 30% glass filled PBT, thermoplastic housing, tin/lead-plated brass/copper sleeve and tin-plated phosphor bronze contacts. Dual leaf mating contact, standard socket style and polarisation mating alignment type.
- Vertical mounting angle
- 20mR Contact resistance
- 1000MR Insulation resistance
- 250VAC/DC Voltage rating
- 1A Current rating
- 1000VAC Minimum dielectric withstanding voltage
- -40 to 105°C Operating temperature range
Industrial
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1-2199299-5 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| One Page Summary EN | |
| Drawing EN | |
| Product Change Notice EN | |
| Drawing EN | |
| CAD Multiple Formats EN | |
| 3D Product Image EN | |
