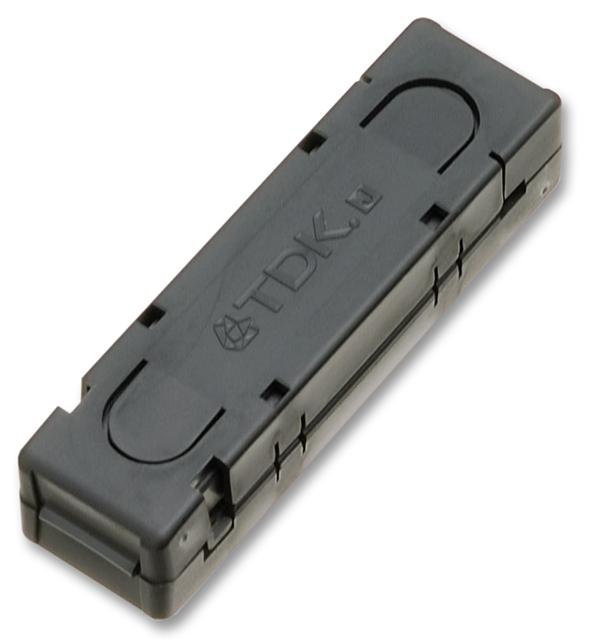

The ZCAT series clamp filter Ferrite Core for use with flat cable and also suitable for electronic musical instruments, video games, copiers and facsimiles. The unique plastic case ensures simple, convenient installation and includes a self-holding mechanism to prevent slippage on cables. The ferrite core provides excellent absorption of high-frequency EMC.
- Highly effective as countermeasure against common mode EMC without adverse effect on signal quality
- Large core size prevents saturation during large signal surges
Applications
Computers & Computer Peripherals, System Monitoring, Communications & Networking, Audio, Industrial
Warnings Not Recommended for New Design
Product details
| Impedance @ 100MHz |
- |
| Frequency Min |
50MHz |
| Frequency Max |
500MHz |
| Cable Width x Thickness |
17.5mm x 1.3mm |
| Product Range |
ZCAT Series |
Other details
| Brand |
TDK |
| Part Number |
ZCAT3618-2630DT |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
