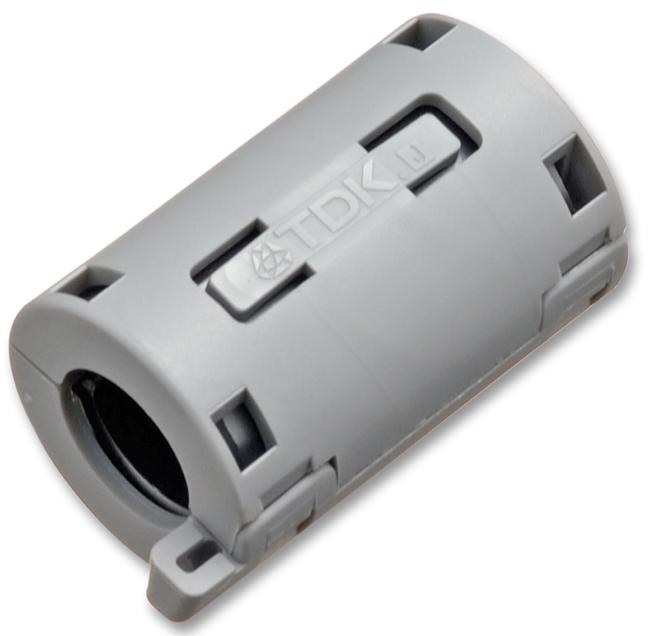

The ZCAT2132-1130 is a Ferrite Core mounted and integrated in a plastic case. It is possible to attach to interface cables and power cables with one touch without having to cut the cables. This clamp filter features excellent absorption of high-frequency noise using the high-frequency absorption characteristics and effective for common mode noise, so can be implemented as a noise countermeasure without influencing signal quality.
- Halogen-free
- -40 to 85°C Operating temperature range
Applications
Computers & Computer Peripherals, System Monitoring, Audio, Imaging, Video & Vision, Communications & Networking, Consumer Electronics, Portable Devices
Product details
| Cable Diameter Max |
11mm |
| Frequency Min |
- |
| Frequency Max |
- |
| Impedance @ 100MHz |
40ohm |
| Product Range |
- |
| RoHS Phthalates Compliant |
To Be Advised |
Other details
| Brand |
TDK |
| Part Number |
ZCAT2132-1130 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
