| ₹ 57.5 includes GST and import duties. | |
| B2B customers can avail ₹ 8.77 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
The VLS6045EX series from TDK are high magnetic shield type inductors. These inductors are manufactured with ferrite magnetic material which is typically used in power circuits.
- Dimension of 6mm (L) x 6mm (W) x 4.5mm (H)
- Inductance value range from 0.47�H to 220�H
- Rated current available in two range of values 800mA to 13.5A (Idc1) and 500mA to 7A (Idc2)
- DCR value range from 0.010 ohm to 1.15ohm
- Available in �20%, �30% tolerance values
- Operating temperature of -40�C to 105�C
- Compatible with high density mounting
- Larger current and lower Rdc have been achieved by optimizing the ferrite core figure
- 0.6g of weight
Applications
Industrial, Consumer Electronics, Power Management, Portable Devices
Product details
| Power Inductor Case | 6mm x 6mm x 4.5mm |
| DC Resistance Max | 0.017ohm |
| Saturation Current (Isat) | 8.2A |
| Packaging | Cut Tape |
| Inductance Tolerance | � 30% |
| Product Range | VLS-EX Series |
| RMS Current (Irms) | 5.3A |
| Inductance | 1.5�H |
| Inductor Construction | Wirewound |
Other details
| Brand | TDK |
| Part Number | VLS6045EX-1R5N |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

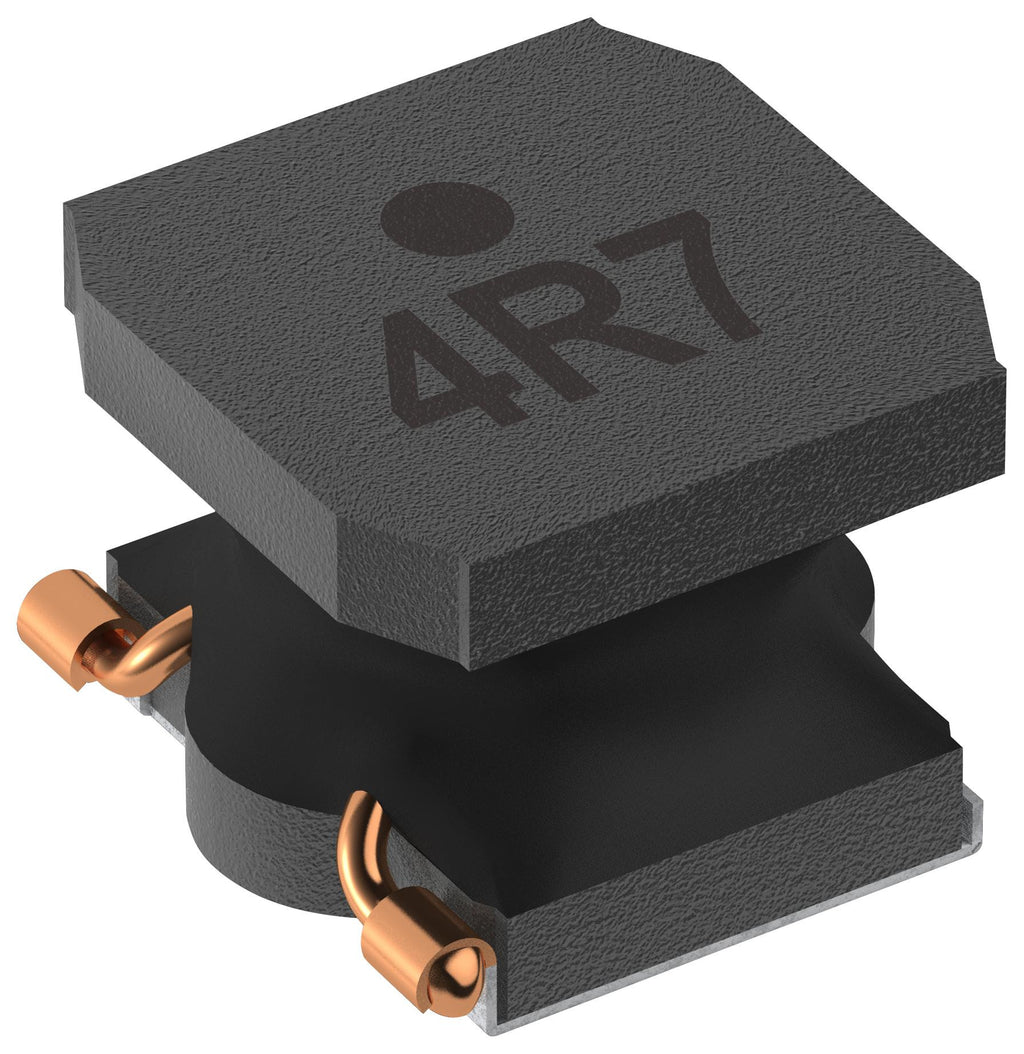

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 56.35 |
| 3-5 | ₹ 55.78 |
| 5-10 | ₹ 54.63 |
| 10+ | ₹ 53.48 |
Bulk discount will be automatically applied during checkout based on quantity.
