Description
The VLS6045EX series from TDK are high magnetic shield type inductors. These inductors are manufactured with ferrite magnetic material which is typically used in power circuits.
- Dimension of 6mm (L) x 6mm (W) x 4.5mm (H)
- Inductance value range from 0.47�H to 220�H
- Rated current available in two range of values 800mA to 13.5A (Idc1) and 500mA to 7A (Idc2)
- DCR value range from 0.010 ohm to 1.15ohm
- Available in �20%, �30% tolerance values
- Operating temperature of -40�C to 105�C
- Compatible with high density mounting
- Larger current and lower Rdc have been achieved by optimizing the ferrite core figure
- 0.6g of weight
Applications
Industrial, Consumer Electronics, Power Management, Portable Devices
Product details
| Power Inductor Case | 6mm x 6mm x 4.5mm |
| DC Resistance Max | 0.012ohm |
| Saturation Current (Isat) | 12A |
| Packaging | Cut Tape |
| Inductance Tolerance | � 30% |
| Product Range | VLS-EX Series |
| RMS Current (Irms) | 6A |
| Inductance | 1�H |
| Inductor Construction | Wirewound |
Other details
| Brand | TDK |
| Part Number | VLS6045EX-1R0N |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

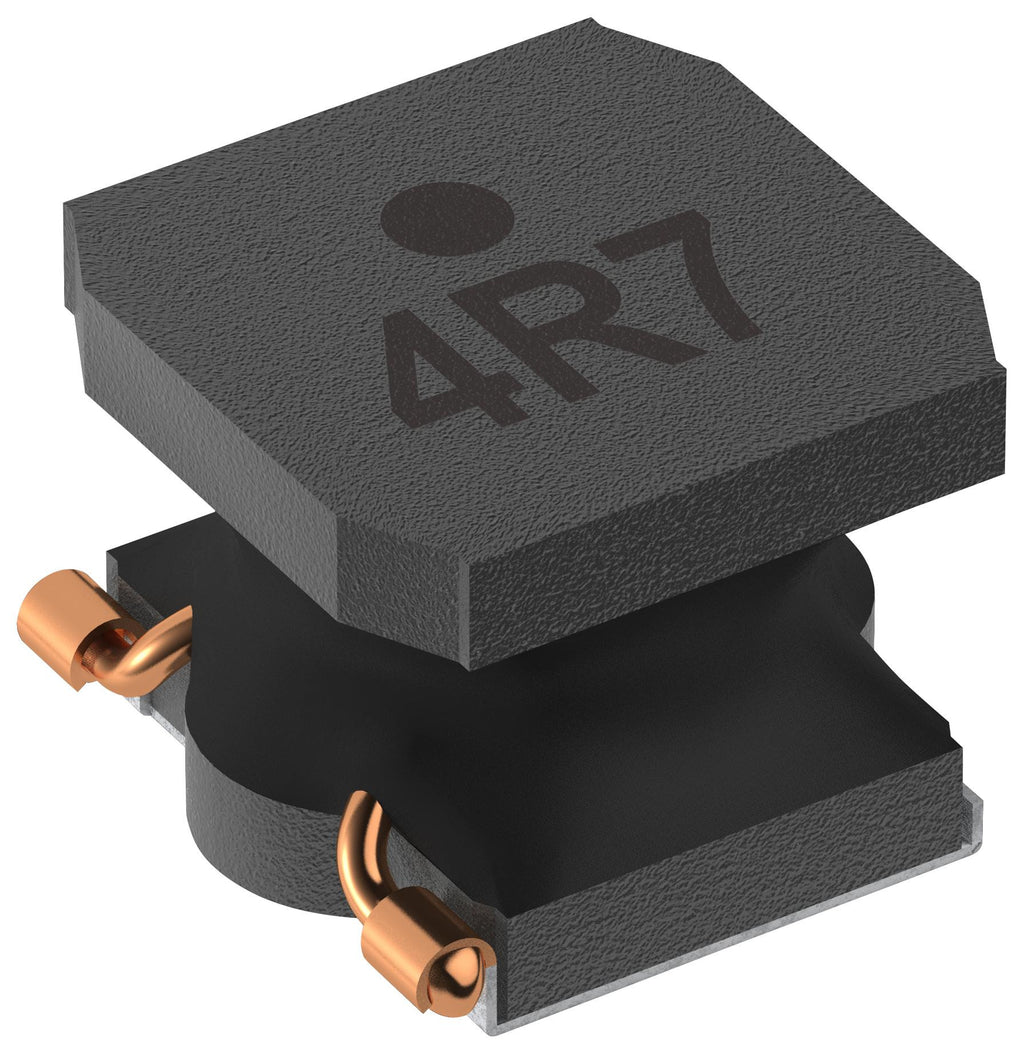

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
