| ₹ 57.5 includes GST and import duties. | |
| B2B customers can avail ₹ 8.77 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
This is a Power Inductor (SMD), 100 µH, 900 mA, 1.1 A, VLS-EX Series, 6mm x 6mm x 4.5mm, Wirewound product from TDK with the model number VLS6045EX-101M
Product details
| Inductance | 100µH |
| RMS Current (Irms) | 900mA |
| Saturation Current (Isat) | 1.1A |
| Product Range | VLS-EX Series |
| Power Inductor Case | 6mm x 6mm x 4.5mm |
| Inductor Construction | Wirewound |
| DC Resistance Max | 0.47ohm |
| Inductance Tolerance | ± 20% |
| Packaging | Cut Tape |
Other details
| Brand | TDK |
| Part Number | VLS6045EX-101M |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |

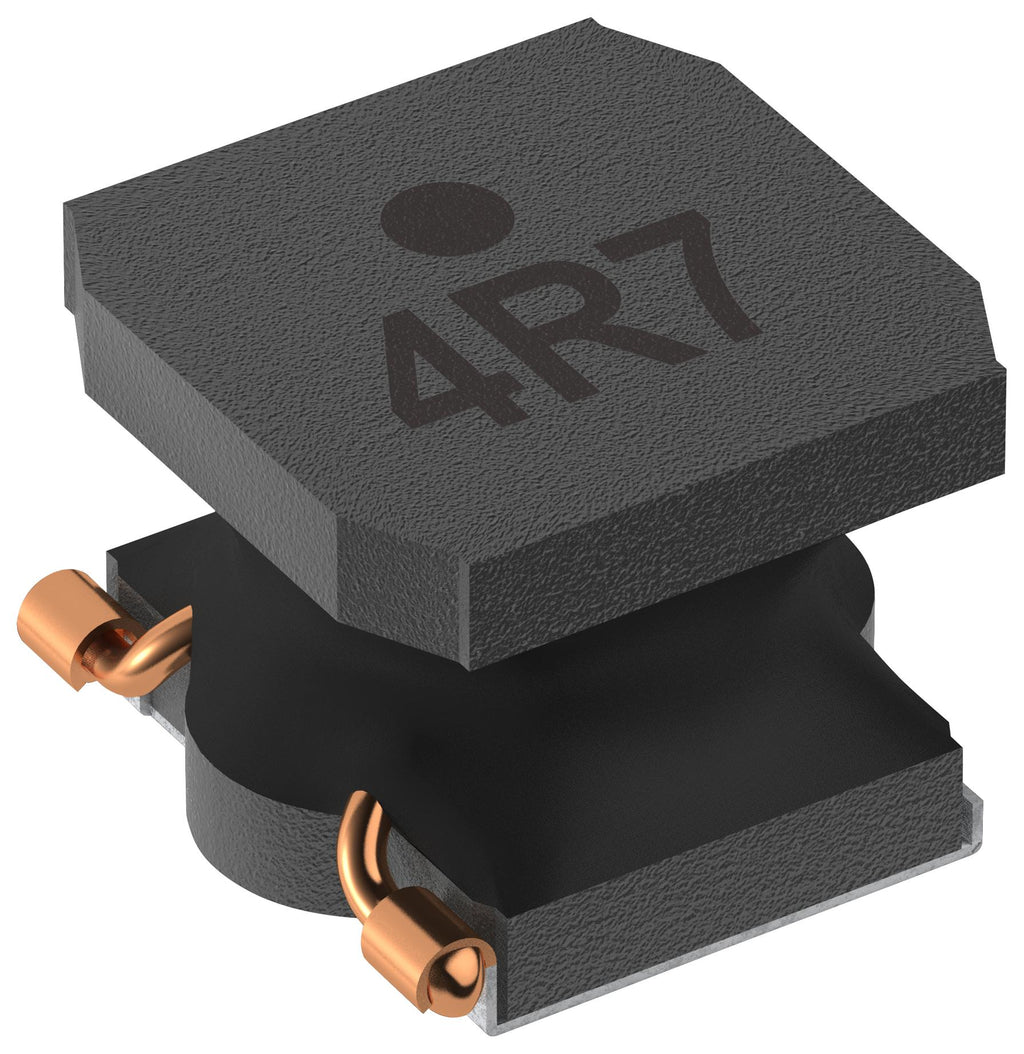

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 56.35 |
| 3-5 | ₹ 55.78 |
| 5-10 | ₹ 54.63 |
| 10+ | ₹ 53.48 |
Bulk discount will be automatically applied during checkout based on quantity.
